• Model NO.：KQ Series
• Name：Automatic Control Milk Reception Holding Storage
• Material：Stainless Steel 304 , 316L
• Refrigerating Fluid(R)：R22 , R404A
• Insulating Property：≤4ºC,4h
• Agitator Speed：36r,Min
• Power (Kw)：3-20
• Dimension(mm)：Cusotmized
• Type：Vertical , Horizontal
• Certificate：ISO9001: 2000
• Warranty：Three Year .
• Packing：Wooden Box
• Control Box：Yes
• Spare Parts：Available
• Working Life：More Than 10 Years
• MOQ：1set
• Transport Package：Wooden Box
• Specification：100L to 20000L
• Trademark：Kaiquan
• Origin：Shanghai, China
• HS Code：843420000
• Production Capacity：1000units,Month

TypeKQ-0.3T
Vertical typeKQ-0.5T
Vertical typeKQ-1T
Vertical typeKQ-1.5T
Laying typeKQ-2T
Laying typeKQ-3T
Laying typeKQ-5T
 Laying typeKQ-10T
 Laying typeCapacity(L)3005001000150020003000500010000LRefrigerating Output(W)4500

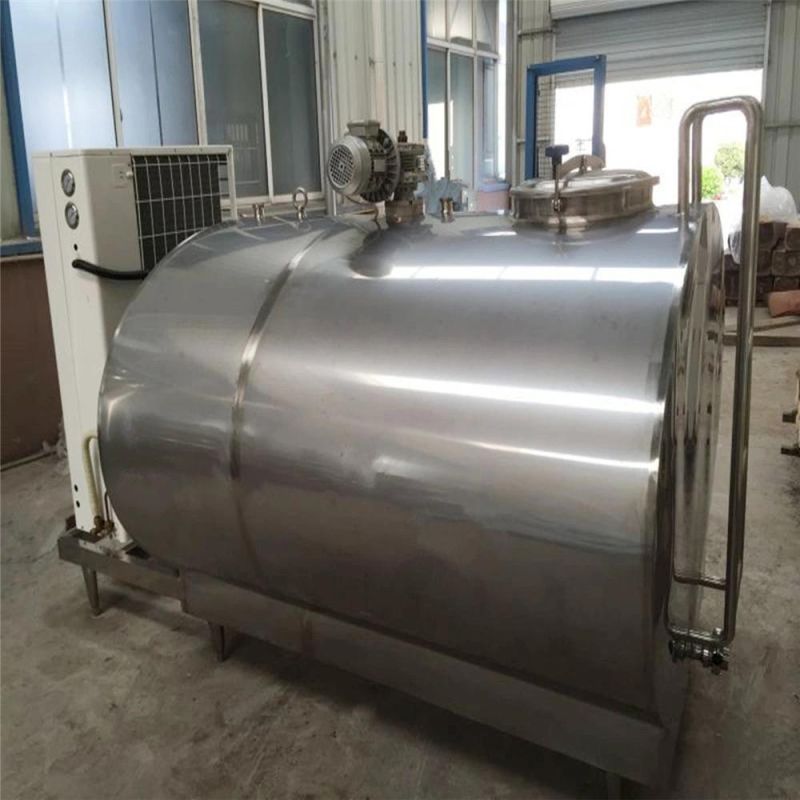

 60009000120001500015000×219000*222000×2Refrigerating  Fluid(R)R22R22R22R22R22R22R22R22Insulating Property≤1ºC/4h≤4ºC/4h≤4ºC/4h≤1ºC/4h≤1ºC/4h≤1ºC/5h≤1ºC/5h≤1ºC/6hAgitator Speed36r/min36r/min36r/min36r/min36r/min36r/min36r/min36r/minPower (Kw)333.855.97.51119.4Voltage380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50HzDimension(mm)1500*1000*15001600*1000*15001800*1200*15002800*1550*17503400*1550*17503600*1700*19004200*2050*22007000*2200*2300Weight(Approximately)0.35T0.4T0.6T0.7T 0.75T0.9T1.15T2.2TUnit Price: FOB SHANGHAI3700USD4000USD4400USD5600USD7400 USD8500 USD10000 USD21000 USDHorizontal milk cooling tank 2000L to 5000L (elliptical milk cooling tank) picture
Milk Cooling Tank Features:
100Liter to 15,000Liter milk cooling tank capacity available
Precisely sanitary designed
High performance







High durability
Less maintenance
Excellent (automatic) temperature control system
Robust design with stainless steel food grade
Durable finish standards
Environmental-friendly cooling gas
Comply with FDA high standard
Copeland, Blitzer, Maneurop compressor for your choice
A variety of milk cooling tank structure
300L ~ 15,000L Milk Cooling Tank structure

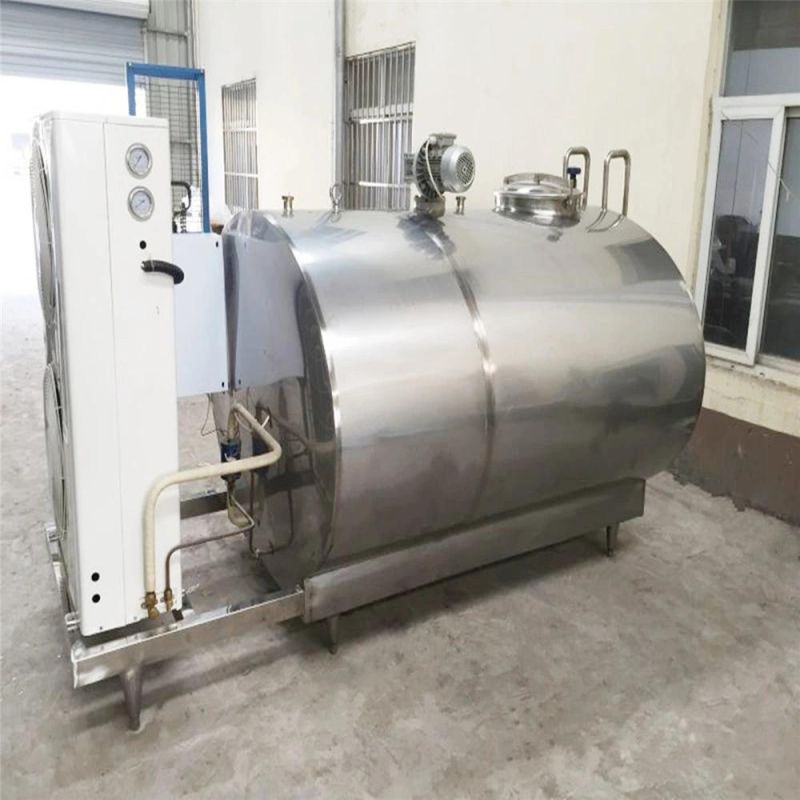

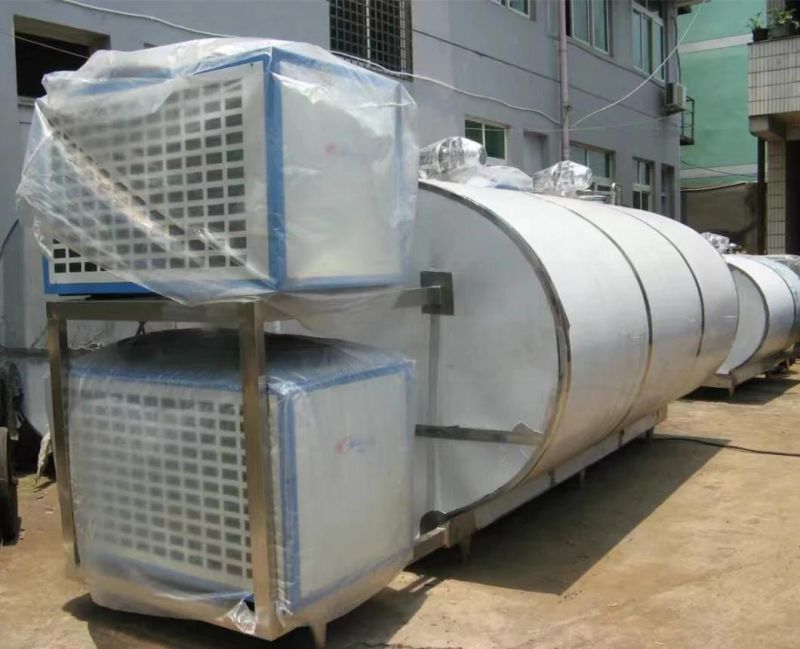

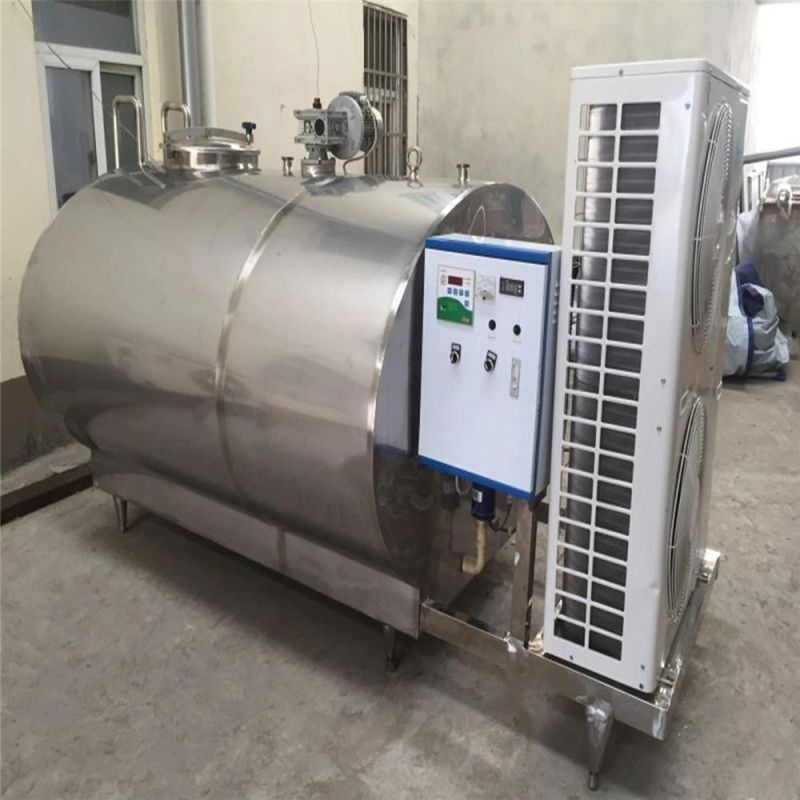

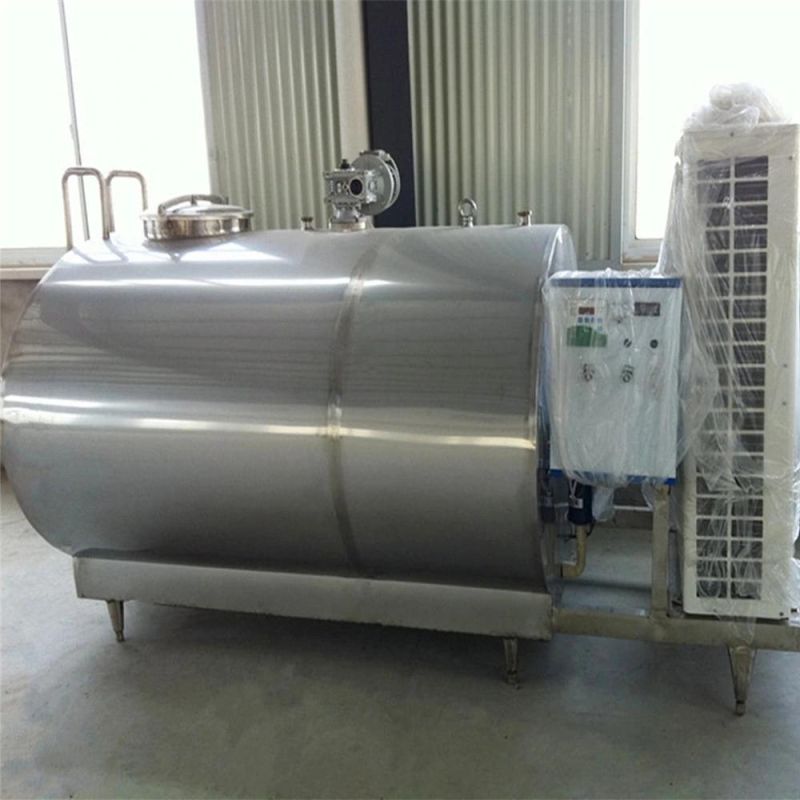

----- Horizontal milk cooling tank 2000L to 5000L (elliptical milk cooling tank)
----- Vertical sealed milk cooling tank 200L to 2000Liter (cylindrical milk cooler)
----- Open top milk cooling tank 300L to 1000L (open milk cooling tank with movable cover)
----- U shape milk cooling tank 200L to 1000Liter
This equipment adopting large vertical cooling surface is introduced in 90's with advanced technology. Through the fixed full automatic controlling system, it can be operated in first time of positioning, and also can refrigerate the milk rapidly to the desirable 4ºC and continuously keeping the temperature. In prevent of the production of bacterium and remaining the A grade emulsive state of emulsion, the refrigerating compressors, adopt the overall sealing compressors with perfect property and energy-saving function which is assembled with reliable protector for avoiding the overload or burned or burned engine caused by the trouble system. The heat-keeping layer applied the new technology of polyurethane foaming has a good feature of heat-insulation.
