• Model NO.：6YL-160BF
• Press Materials：All Oil Seeds
• Press Series：Fourth
• Condition：New
• Customized：Customized
• Feature：with Cooker
• Stucture：Double Filtering System
• Delivery Time：10days
• Power：18.5+1.5kw
• Capacity：400-500 kg,h
• Transport Package：Wooden Box

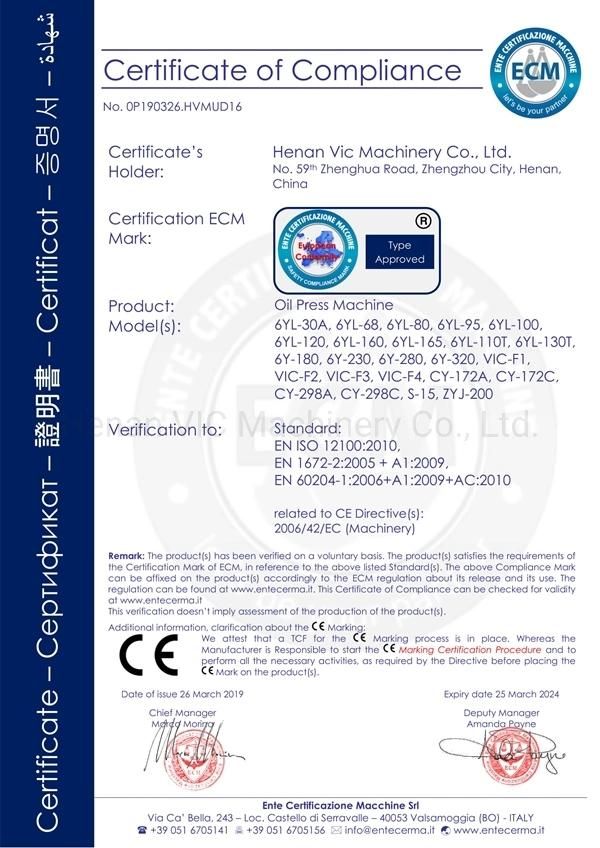

• Specification：CE
• Trademark：VIC
• Origin：China
• HS Code：847920000
• Production Capacity：3000PCS,Year

Basic Info.

Model NO. 6YL-160BF Press Materials All Oil Seeds Press Series Fourth Condition New Customized Customized Feature with Cooker Stucture Double Filtering System Delivery Time 10days Power 18.5+1.5kw Capacity 400-500 kg/h Transport Package Wooden Box Specification CE Trademark VIC Origin China HS Code 847920000 Production Capacity 3000PCS/Year

Product Description

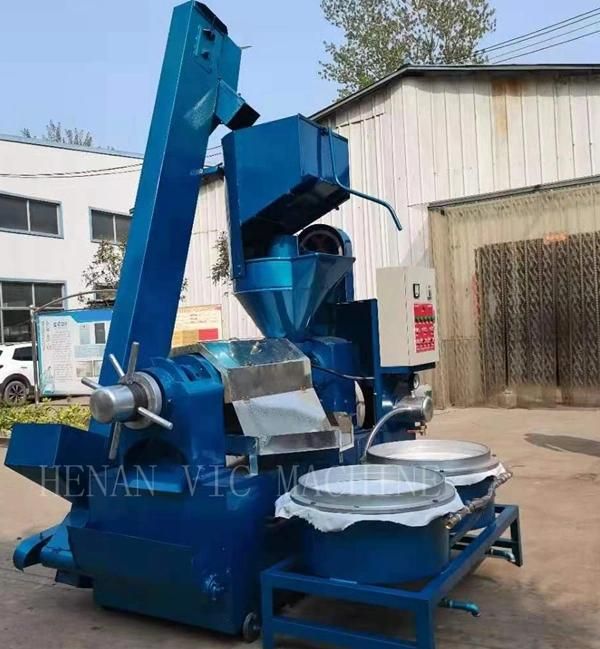

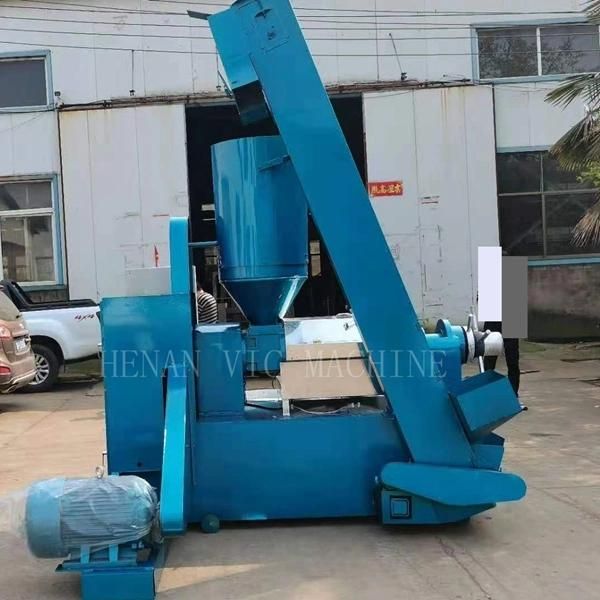

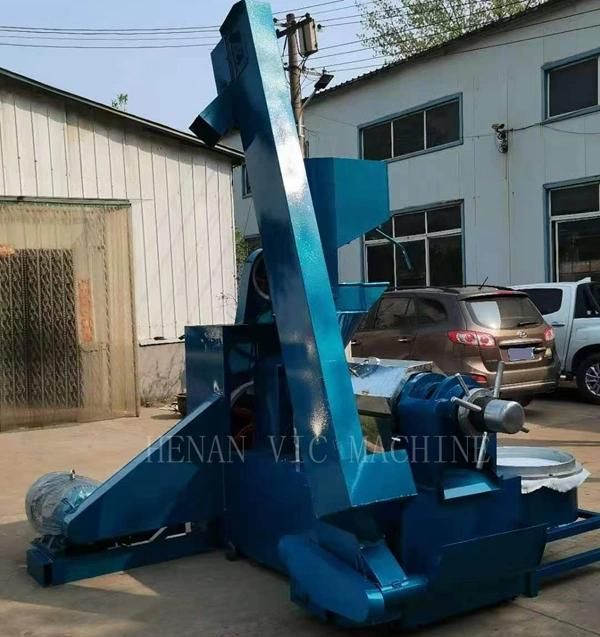

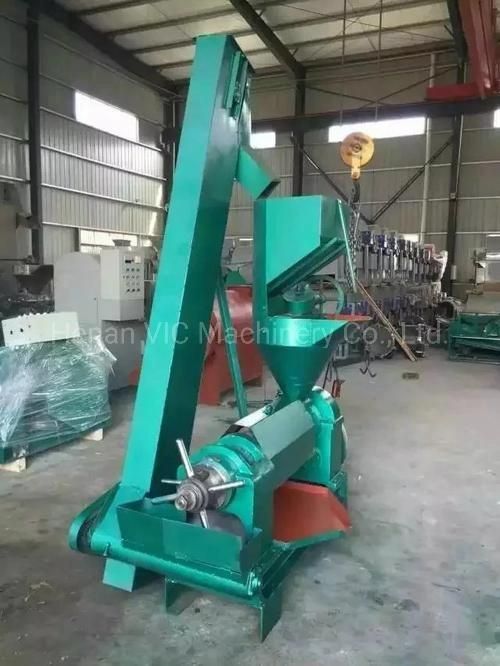

6Y160BF System Cooker Combined Oil Press
Application:
auto temperature control conveying cooker is produced according to customer's requirement about pressing and frying combined together. This equipment can match with different model screw oil press, it can cook different oilseeds such as rapeseeds, peanut, soybean, sunflowerseeds, teaseeds etc while conveying, also can realize fast heating, auto temperature controling and direct pressing to save labor and time with easy operation, the oil seeds after frying is with high oil output rate and high quality oil, its especially suitable for continuous working of small and medium oil factory.

Flow chart:
Feeding materials---cooking---dried materials into oilpress---filtering---final product

Technical data:
Model: 6YL-160BC
Capacity: 100-300kg/h
Power: 0.75kw speed motor
Size: 3800x2600x2800mm
Weight: 680kg

Matched machines:

Model	Capacity (kg/h)	Power(kw)	Size(mm)f	Weight(KG)
6YL-80BF	100-150	5.5kw+0.75kw	1600x1100x1500	600
6YL-100BF	200-250	7.5kw+0.75kw	1970x1375x1700	1200
6YL-120BF	300-350	11kw+1.1kw	2150x1500x1800	1750
6YL-160BF	400-500	18.5kw+1.5kw	2350x1650x1930	2100

The electric cooker can be matched with the integrated oil press machine to pre-roast the raw materials, then directly conveyed into the oil press machine, this way will increase the oil extraction rate.

More pictures:


Customer use site

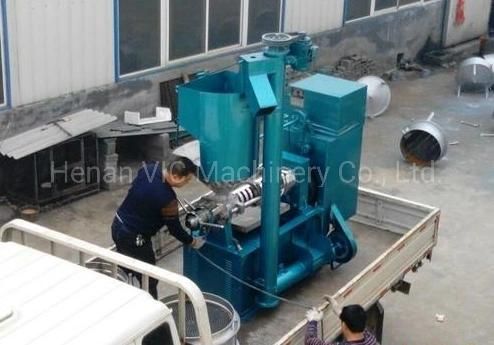

Deliver

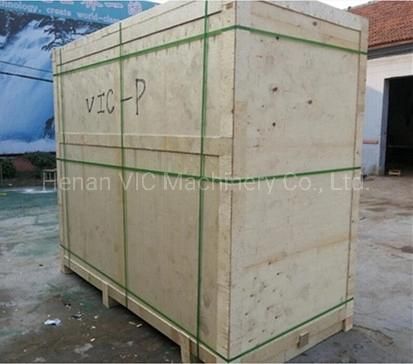

Package

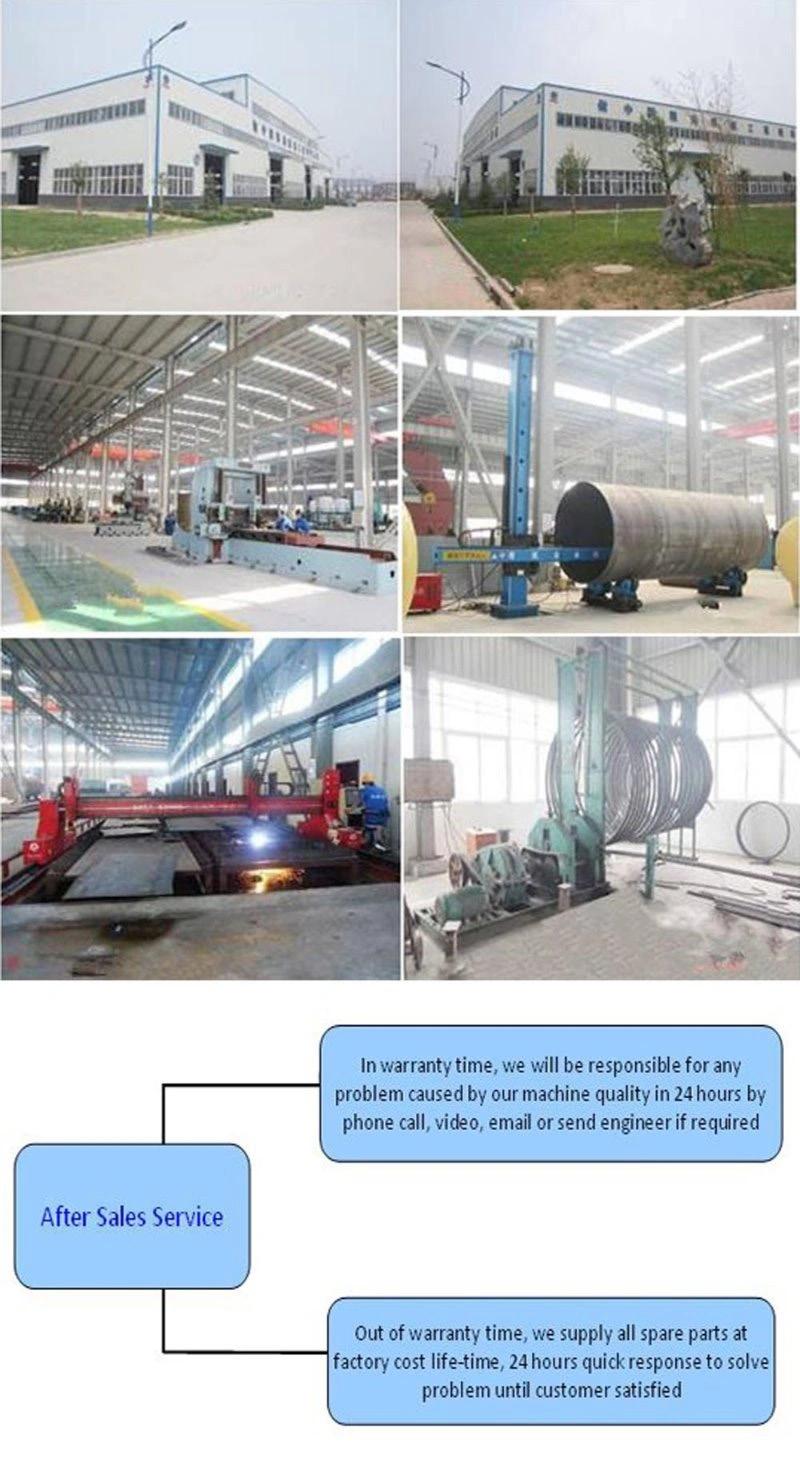

Our factory
