• Model NO.：CY-172A
• Press Materials：All Oil Seeds
• Press Series：Fifth
• Condition：New
• Customized：Customized
• Feature：Glass Filter and Temperature Control
• Hot Press and Cold Press：Both Available
• Capacity：70-85 kg,h
• Power：4kw(380V,50Hz,3P)
• Weight：350 kg
• Transport Package：Wooden Box
• Specification：CE
• Trademark：VIC
• Origin：China
• HS Code：84792000
• Production Capacity：3000PCS,Year

ModelCY-172ACY-282ACY-298ACapacity70-85 kg/h100-130 kg/h180-240kg/hPower4kw(380V/50Hz/3P)5.5kw(380V/50Hz/3P)7.5kw(380V/50Hz/3P)Size108*92*140cm130*96*142cm150*100*160cmWeight350kg560kg785kg

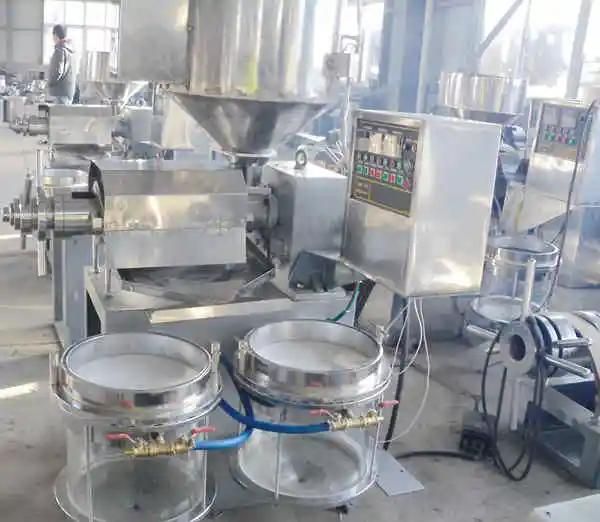

3.More pictures and details

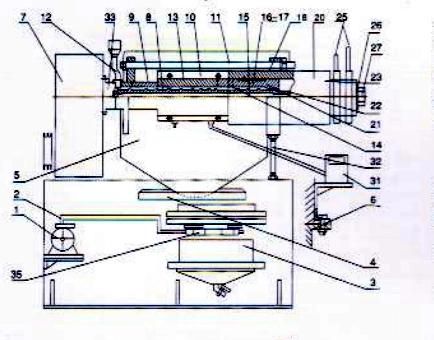

7	Gearbox	14	1# pressing ring	21	Cake output exit	28	Adjusting nut
6	Base	13	Pressing rube	20	Cake output ring	27	Bearing adjusting nut
5	Oil tray	12	Feeder head	19	Heating plate 2	26	Bearing lock nut	33	Feed opening
4	Oil conveyor	11	Pull rod	18	Round ring frame	25	Handle	32	Bearing rod
3	Oil filter	10	Heating plate	17	Round ring 2#	24	Bearing	31	Meter box
2	Vacuum pump	9	Rods	16	Round ring 1#	23	Screw	32	Pressing screw nut
1	Small motor	8	Pressing screw	15	Main shaft	22	Slay-out head	29	Lock nut
No	Name	No	Name	No	Name	No	Name	No	Name

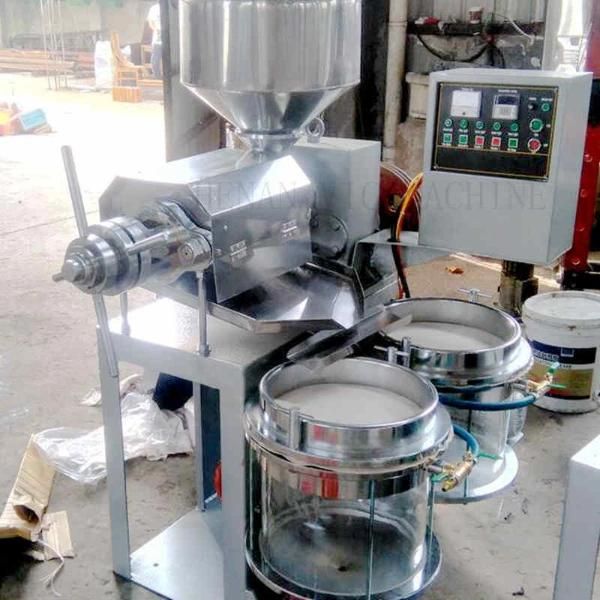

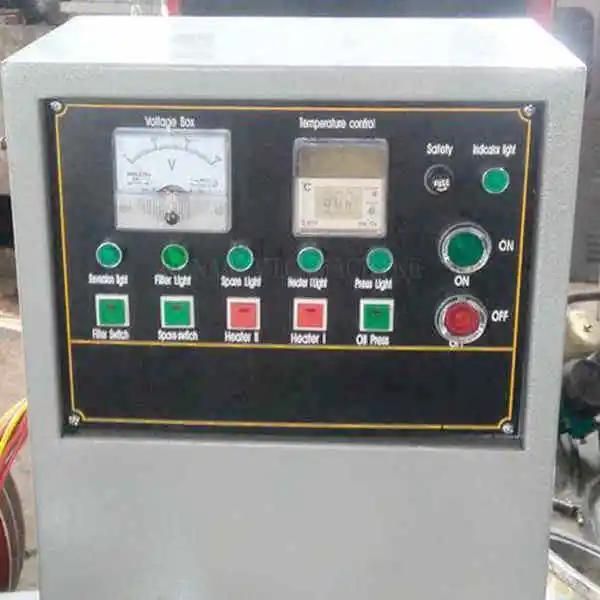

Control system

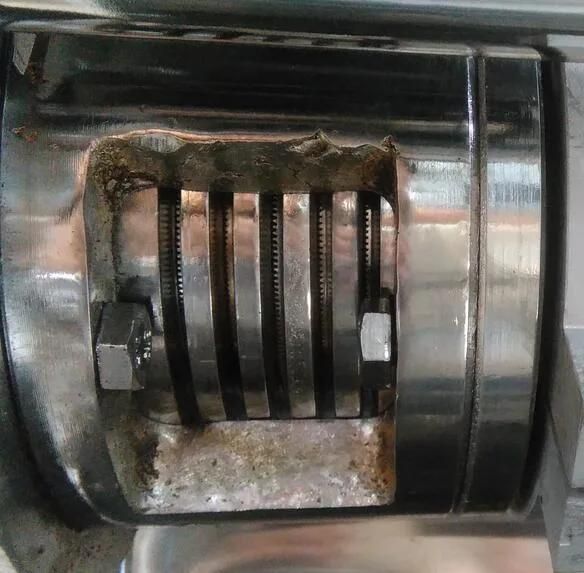

Press chamber and round row

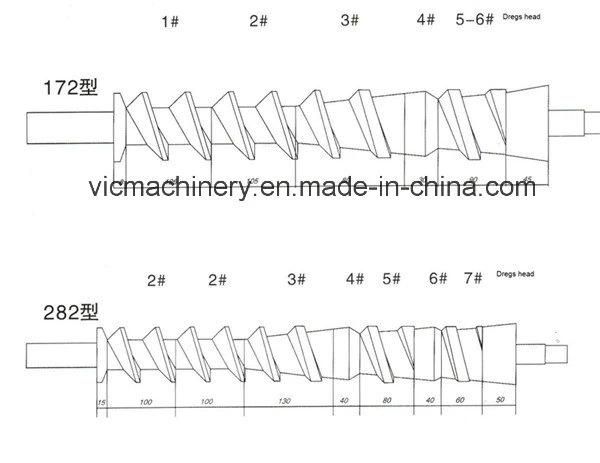

CY-system pressing screw

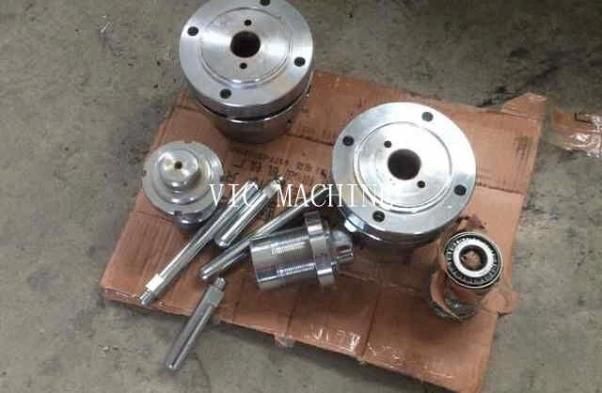

Parts

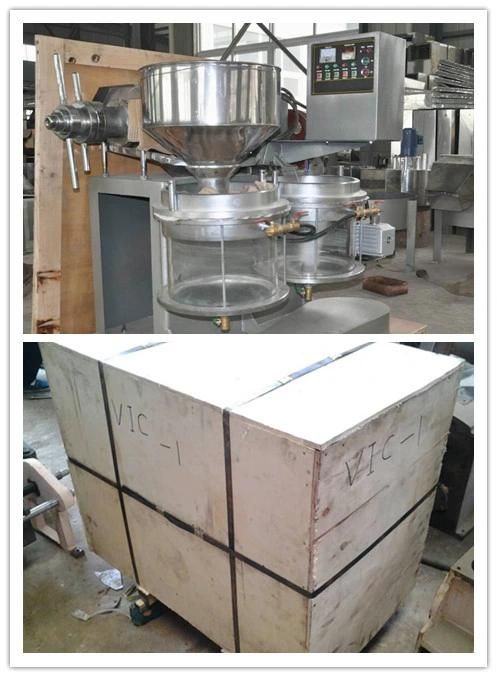

Package picture

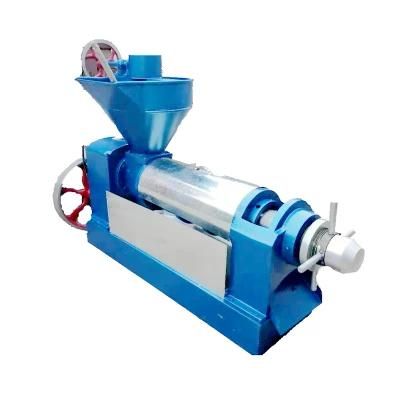

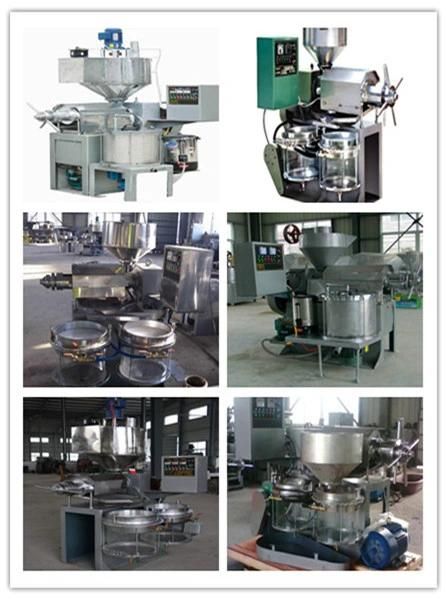

Other type of CY-system oil press machine

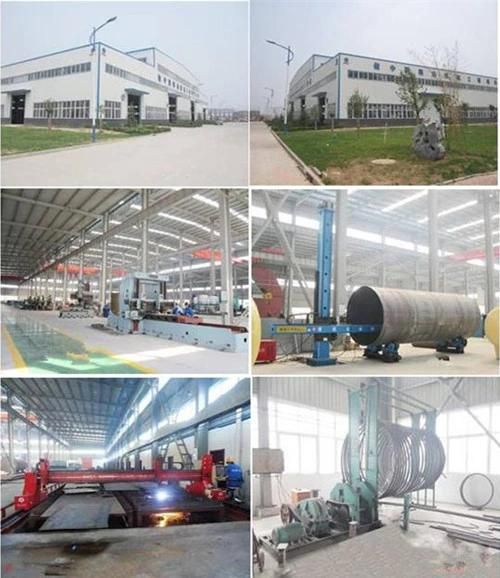

Factory view


Company certification
