• Model NO.：A1
• Condition：New
• Customized：Customized
• Throughput(T/H)：0.5-2.0
• Accuracy：≥99.98%
• Voltage(V)：220V,50Hz
• Power(Kw)：1.5
• Weight(Kg)：500
• Dimension：825*1590*1840mm
• Transport Package：Wooden Box
• Specification：825*1590*1840mm
• Trademark：pinyang
• Origin：Hubei China
• HS Code：8437800000
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. A1 Condition New Customized Customized Throughput(T/H) 0.5-2.0 Accuracy ≥99.98% Voltage(V) 220V,50Hz Power(Kw) 1.5 Weight(Kg) 500 Dimension 825*1590*1840mm Transport Package Wooden Box Specification 825*1590*1840mm Trademark pinyang Origin Hubei China HS Code 8437800000 Production Capacity 50000PCS/Year

Product Description

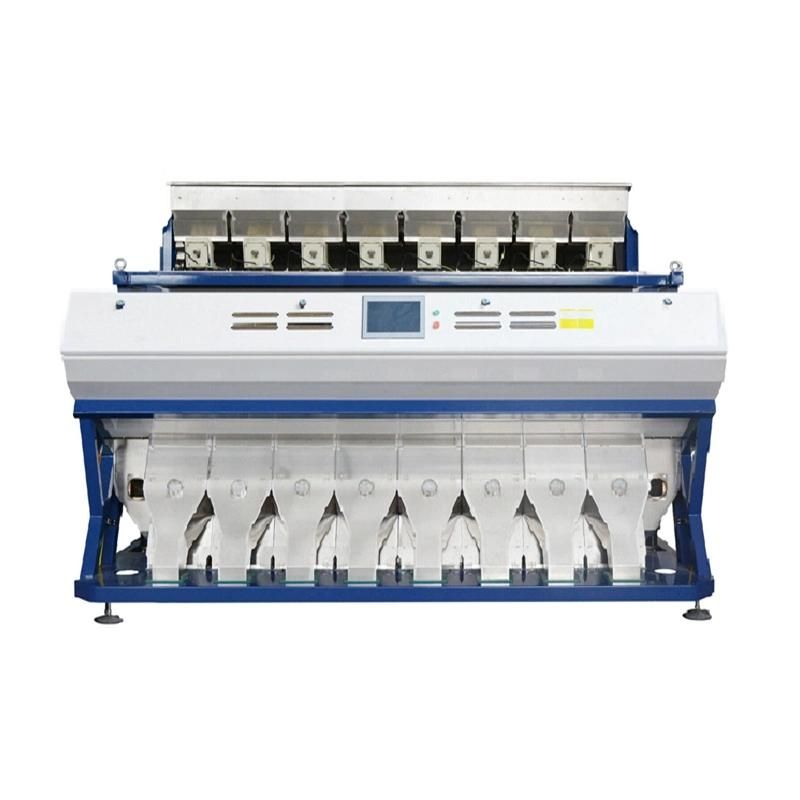

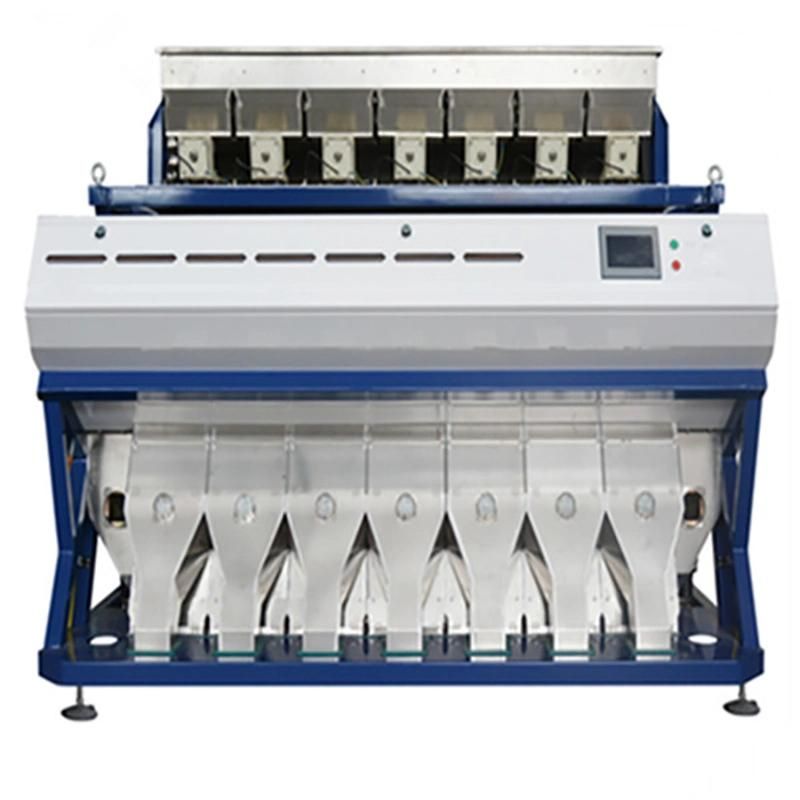

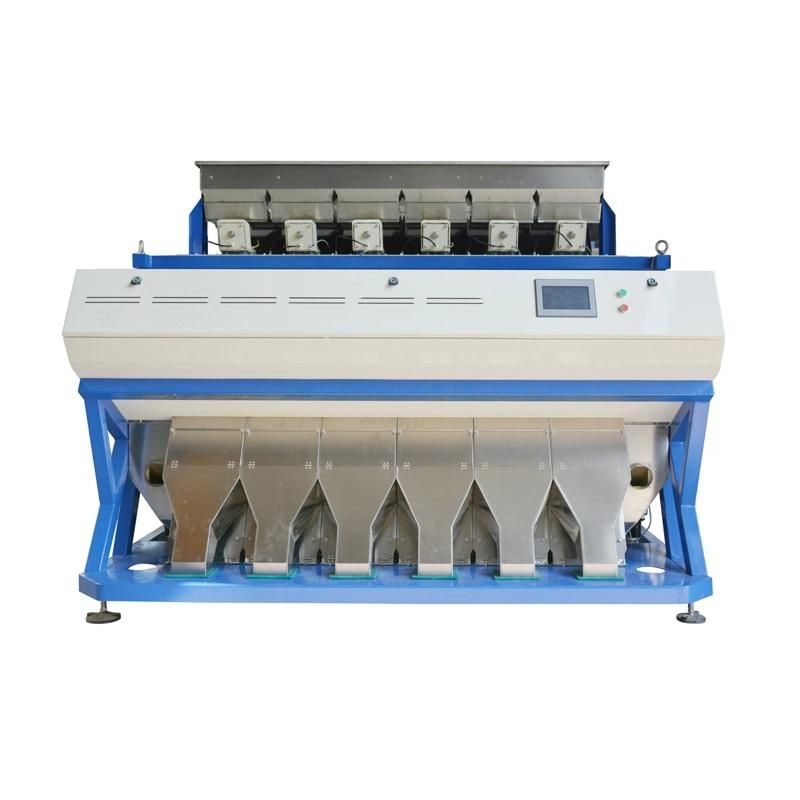

The sorter adopts high quality special industrial lenese designed and manufactured for color sorting.

High speed air valve is used to ensure quick penponse,low power consumption and long service life.

Failure alarm automatic and modular construction makes easy repair.






Model	A1	A3	A4	A5	A6	A7	A8	A10
Channels	64	192	256	320	384	448	512	640
Output(T/H)	0.5-2	2.5-6.5	3.0-8.5	4.5-8	5-10T	5.5-17.5T	6.5-20T	8.0-25T
Accuracy	>99.98%	>99.98%	>99.98%	>99.98%	>99.98%	>99.98%	>99.98%	>99.98%
Waste	≥8:1	≥8:1	≥8:1	≥8:1	≥8:1	≥8:1	≥8:1	≥8:1
Voltage(V)	220V 50Hz	220V 50Hz	220V 50Hz	220V 50Hz	220V 50Hz	220V 50Hz	220V 50Hz	220V 50Hz
Power(KW)	1.5	2.2	2.5	2.8	3.1	3.4	4	4.5
Pressure(MPa)	≥0.6	≥0.6	≥0.6	≥0.6	≥0.6	≥0.6	≥0.6	≥0.6
Consumption(L/min)	500-1200	1000-2500	1500-2800	1600-3500	1800-3800	2000-4200	2200-4500	2500-5200
Dimension(L*W*H)	825*1590*1840	1425*1590*1840	1725*1590*1840	2025*1590*1840	2325*1590*1840	2625*1590*1840	2925*1590*1840	3525*1590*1840
