• Model NO.：SL
• Condition：New
• Pot Capacity：100L to 2000L Customized
• Raw Material：Wheat, Vegetables, Water, Corn, Fruit, Nuts, Milk,
• Machine Material：Stainless Steel 304
• Functions：Set Temperature and Timing
• Application Fields：Vegetable Processing Plant, Meat Processing Plants
• Transport Package：Woodern Packing
• Specification：3000*1000*1150mm
• Origin：China
• Production Capacity：500sets,Year

Basic Info.

Model NO. SL Condition New Pot Capacity 100L to 2000L Customized Raw Material Wheat, Vegetables, Water, Corn, Fruit, Nuts, Milk, Machine Material Stainless Steel 304 Functions Set Temperature and Timing Application Fields Vegetable Processing Plant, Meat Processing Plants Transport Package Woodern Packing Specification 3000*1000*1150mm Origin China Production Capacity 500sets/Year

Product Description

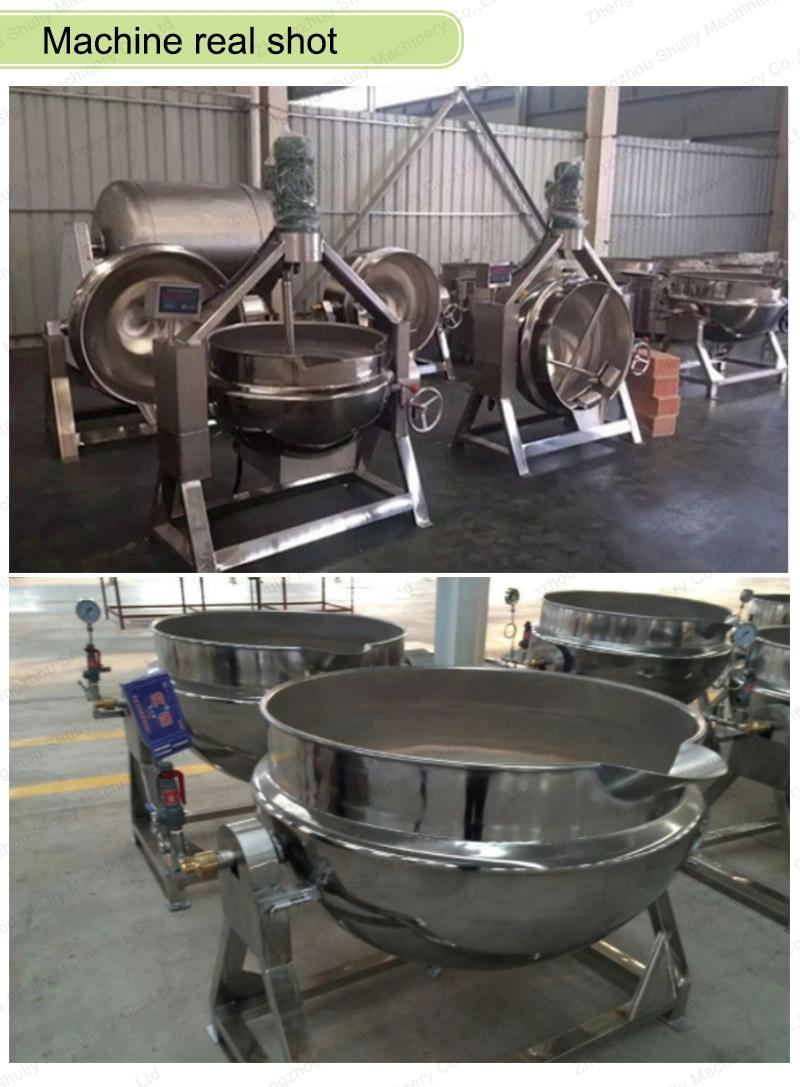

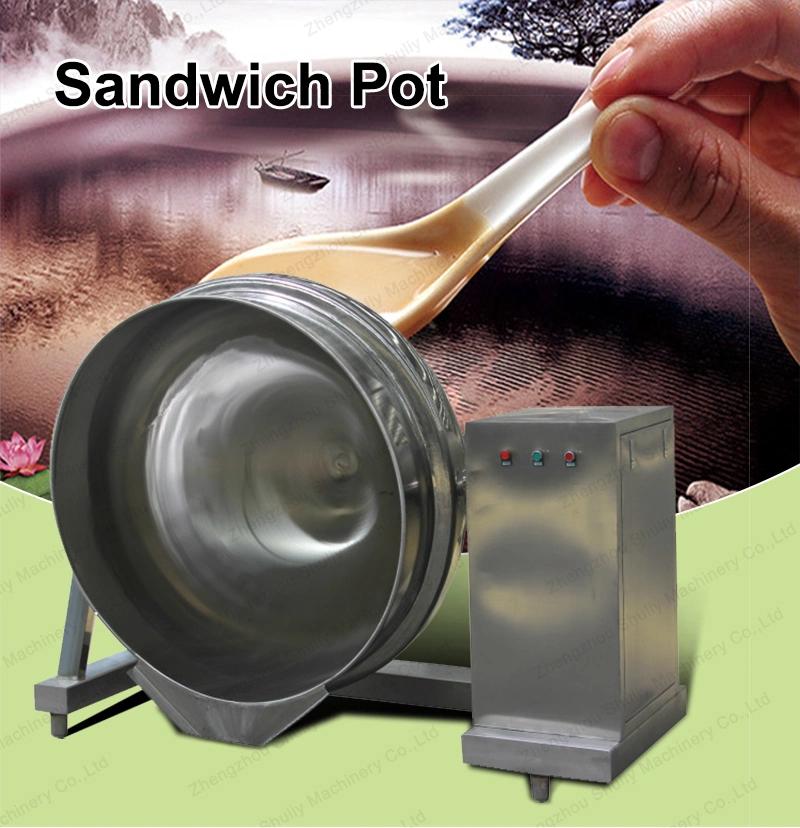

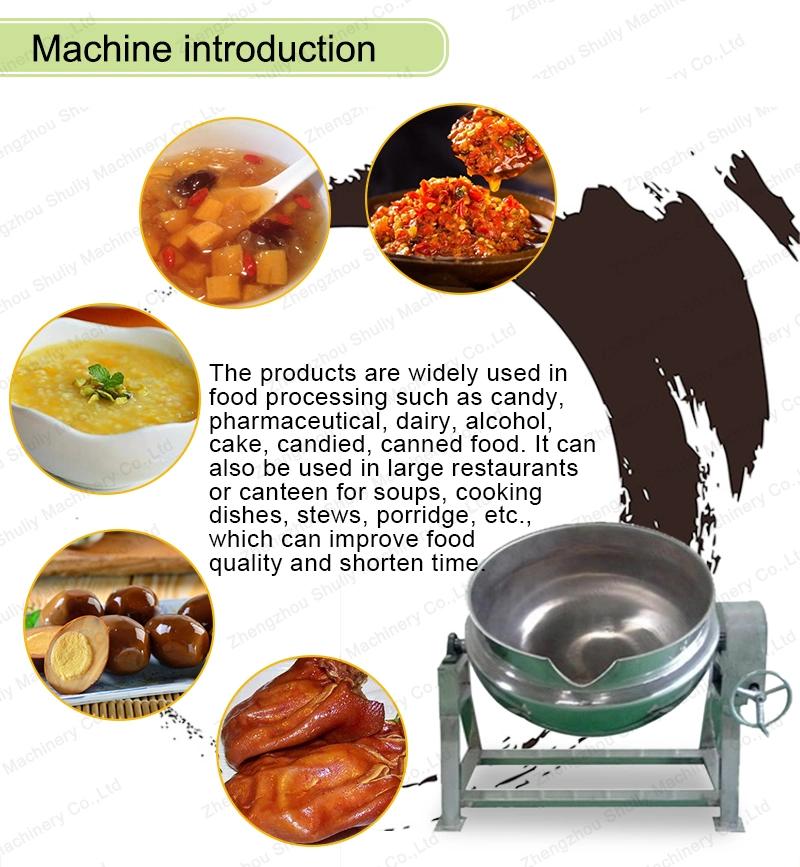

Large Cooking Kettle Jacketed Pan Porridge Making MachineDescription of sandwich pot:
Sandwich pot is also known as cooking pot. According to the structure of the sandwich pot, it is divided into tilting and vertical structures. According to the needs of the process, it is equipped with stirring or without stirring. According to the heating method, it is divided into electric heating, steam heating and gas heating.Advantages of sandwich pot:
The sandwich pot has the characteristics of a large heating area, high thermal efficiency, uniform heating, short boiling time of liquid material, easy control of heating temperature, beautiful appearance, easy installation, convenient operation, safety and reliability.
 Installation steps and precautions for use:
1. Choose the installation site and the cement floor as level, and fix the pot body with bottom corner bolts after the pot body is stable.
2. Tighten the two setscrews of the support frame. When shaking the pot, the inlet and outlet pipes at both ends are not allowed to rotate with the pot.
3. After the installation is completed, the agitated jacketed pot should be tested for empty truck and can only be put into production after the transmission components are running normally.
4. Be sure to unscrew the oil injection port before use. Sealing and heating is strictly prohibited.
5. Observe whether the temperature display of the temperature controller is normal during heating.Zhengzhou Shuliy Machinery Co., Ltd. was found in 2000. Our company specializes mainly to produce food packaging machinery, food processing machinery, agricultural processing machinery, and so on. We not only provide customers with cost-effective products but also provides first-class service support and solutions. Our products have been exported to countries and regions such as Arabia, India, Russia, Central Asia, Africa, and Mongolia. Perfect after-sales service system allows you to worry-free. Our company not only provides customers with high-quality products but also offers first-class services as well as effective support and solutions. In recent years, our machines are sold domestically and overseas such as Arab, India, Russia, Mongolia, Central Asia, Africa, and other countries and regions, covering agriculture, breeding industries, environmental protection, and other industries.
FAQ
Q1. What is the capacity of the sandwich pot?
A1. The capacity is 100L,200L,300L,500L,1000L,2000L.
Q2. What is the heating method of the sandwich pot?
A2. Electric heating, gas heating, steam heating.
Q3. How to choose machine type based on raw materials?
A3. If it is a relatively thin material, you can choose the jacketed
kettle without stirring. Particularly thick material, it is
recommended to use the one with stirring.
Q4. What is the scraper of the sandwich pot?
A4. The scraper is four pieces, and the scraper material is food
grade PTFE.
Q5. What is the power problem of electric heating?
A5. If the capacity of the machine is greater than 100L, three-
phase power is required. 100L and 50L can be two-phase power.
Q6. How to set the heating temperature of the machine?
A6. The electric heating can set the temperature through the
electric control cabinet. The gas heating needs to be measured by
yourself.

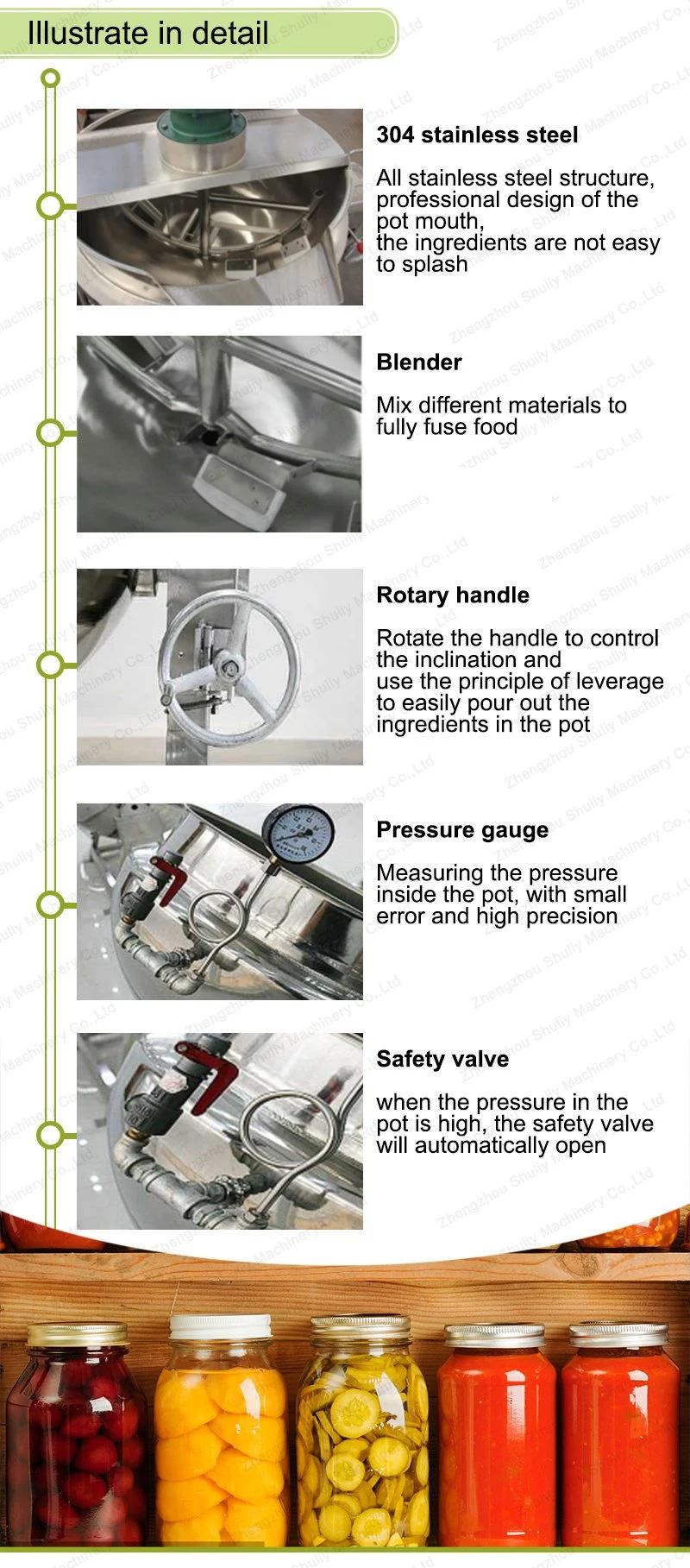

Q7. What is the material of the sandwich pot?
A7. The pot body is made of 304 stainless steel.
Q8. What is the thickness of the machine steel plate?
A8. 3mm.
