• Condition：New
• Customized：Customized
• Transport Package：Wooden Block and Steel Wire for Reinforcement
• Specification：3m*3m*6m
• Trademark：Huatai
• Origin：Henan, China
• HS Code：84792000
• Production Capacity：500sets

Basic Info.

Condition New Customized Customized Transport Package Wooden Block and Steel Wire for Reinforcement Specification 3m*3m*6m Trademark Huatai Origin Henan, China HS Code 84792000 Production Capacity 500sets

Product Description

Red Palm Oil Press Machine/Palm Oil Extraction Machine

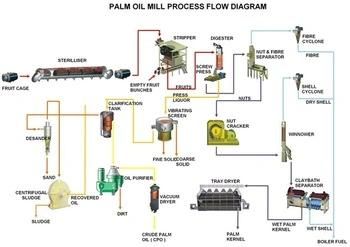

FFB Pressing Process Flow Diagram

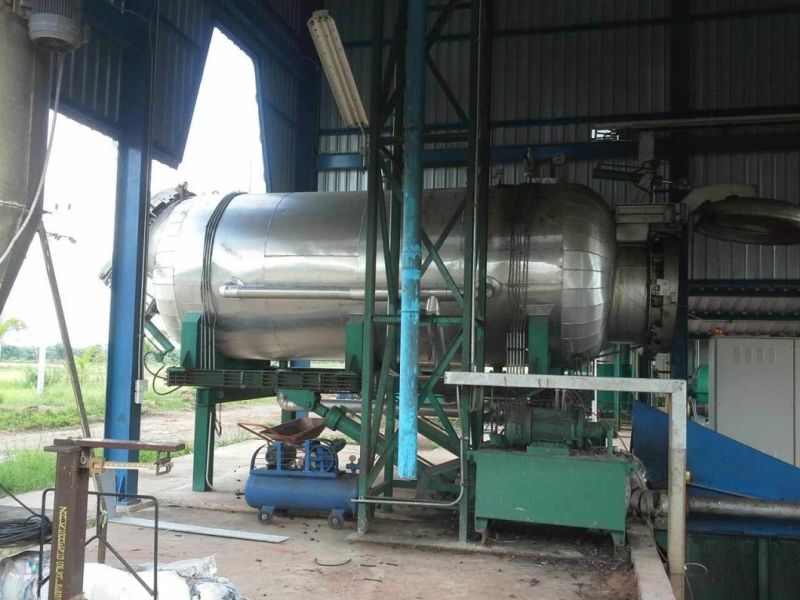

1. Load FFB into sterilizing tank, inject direct steam into it for high temperature sterilization.All fruits are heated when steam passes through bunches, reduce activation of bacterium and enzyme, avoid FFA from increasing,increase crude oil quality.

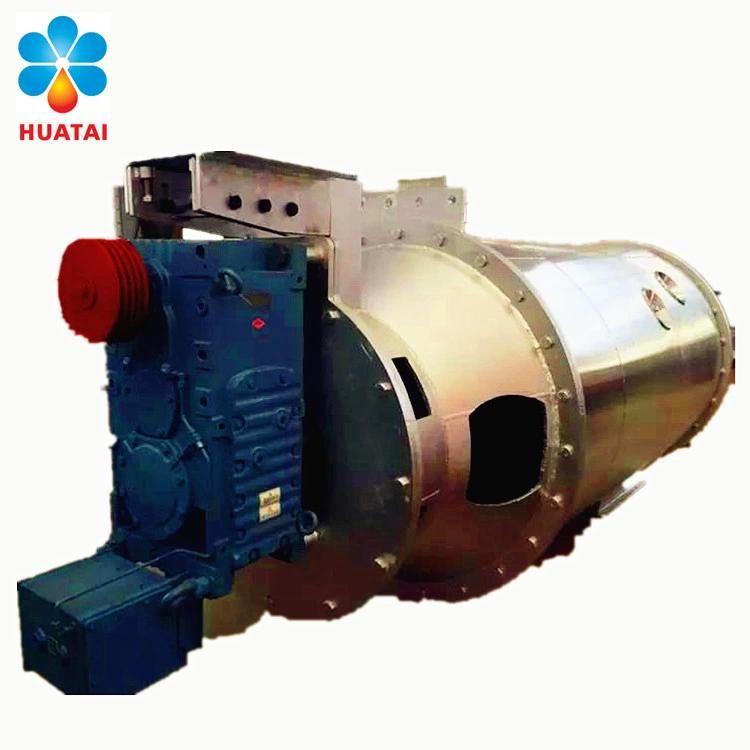

2. Convey sterilized FFB to drum separator,separate EFB from FFB through rotating, EFB will be sent to pulverize for fertilizer back to orchard.

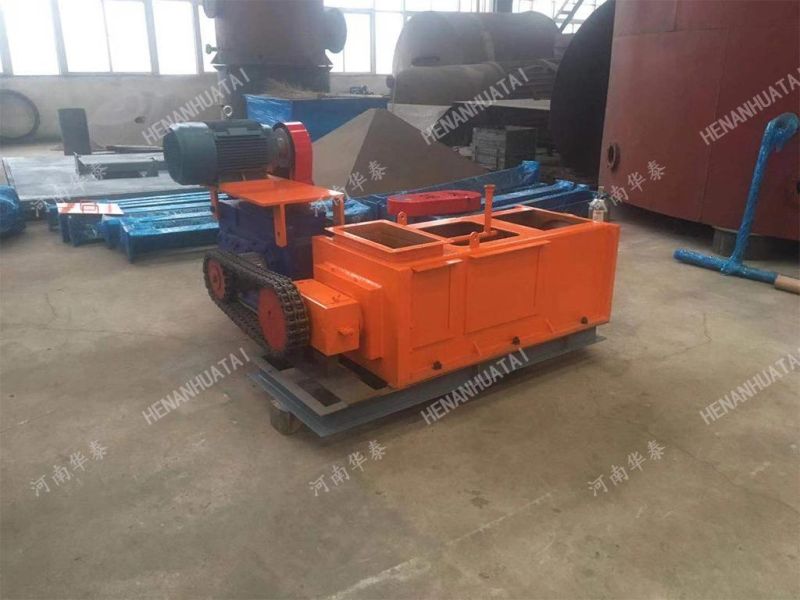

3. Thresh palm fruits through special equipment,then send them to press with twin-screw oil press, then send ,mixed liquid of sediment,water and oil to purifier,and separate crude palm oil out.

4. Solids from oil press are sent to pneumatic vertical separation column, separate fiber from nuts under wind action.

5. Fiber are conveyed to boiler for fuels.

6. Polished nuts are conveyed to nut storage vessel,then separate palm kernels after crushing.

7. Processed crude palm oil is mainly consist of solid muddy sand, water and oil.Solid parts are separated with vibration rotary screen,and crude palm oil is separated by means of statics.Heated crude palm oil is sent to vacuum dryer by oil pump to remove moisture, and stored to crude oil tank.Treated sediments discharge into sewage treatment channel,solids are used to fertilize land,steam boiler is mainly used to offer steam for generating electricity,sterilizing and heating,fuel is separated fibers and shells.

Company Information

Henan Huatai Cereals and Oils Machinery Co., Ltd. ,outstanding membership enterprise of CCOA,also public company in oil machine field in China.We are a large scale oil machinery manufacturer integrating research, development, design, manufacture and installation.Our oil machines sell well in more than 30 provinces, cities and districts, and exported to Estonia, Russia, Kazakhstan,Uzbekistan,Tajikistan,Malaysia, Indonesia, Egypt, Bangladesh, Myanmar, the Philippines,Nigeria, Sudan, Tanzania,Rwanda,Bolivia,Peru and other countries, and now we have developed into a major oil machinery manufacturing base in China.

Our Services

Our service purpose is "survive by top quality, develop by technical innovation",adopt 22 inspection process to control quality strictly.
