• Model NO.：GD150S
• Capacity：150kg,H
• Steam Consumption Steam Pressure：250kg,H, 0.5~0.8MPa
• Candy Weight：as Per The Candy Size
• Electric Power Needed：18kw,380V
• Total Length：15m
• Weight of Machine：3500kg
• Transport Package：Wooden Carton
• Specification：150 kg,h
• Trademark：ShinWei
• Origin：Shanghai
• HS Code：84382000
• Production Capacity：10

Basic Info.

Model NO. GD150S Capacity 150kg/H Steam Consumption Steam Pressure 250kg/H, 0.5~0.8MPa Candy Weight as Per The Candy Size Electric Power Needed 18kw/380V Total Length 15m Weight of Machine 3500kg Transport Package Wooden Carton Specification 150 kg/h Trademark ShinWei Origin Shanghai HS Code 84382000 Production Capacity 10

Product Description

FEATURES:

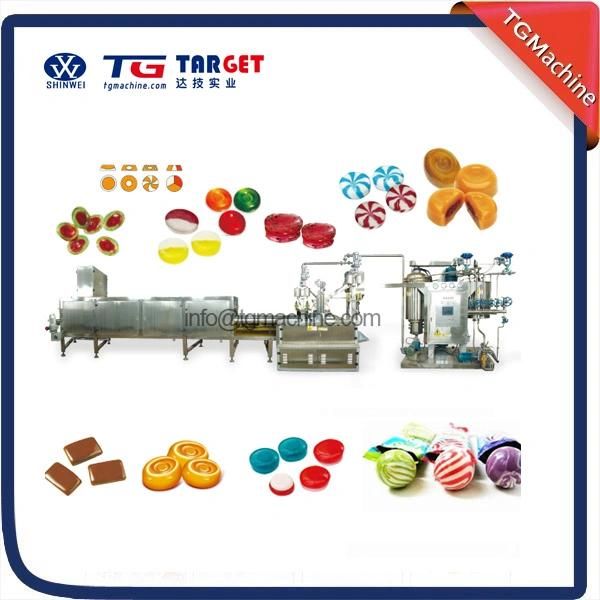

The processing line is a compact unit which can continuously produce various kinds of hard candies under a strict sanitary condition. It is also an ideal equipment which can produce out good quality products by saving both the manpower and the space occupied.
PLC /computer and Servo driven process control available;
An LED touch panel for easy operating;
The standard production capacity is 150kgs/h;
The main parts are made of hygienic Stainless Steel;
Optional (mass) flowing controlled by Frequency inverters ;
In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;
Dosing pumps for the automatic injection of colors, flavors and acids;
Use AUTOMATIC STEAM CONTROL SYSTEM instead of manual steam valve which controls a stable steam supply to the microfilm cooker;
"two-color stripe depositing", "two-color double layers depositing", "central filling", "clear" hard candies and etc. can be made as an option.
Moulds can be made according to the candies samples provided by the customer.

TECHNICAL SPECIFICATIONS:

Model	GD150S
Output	150 kg/h
Max candy weight	As per the candy size
Speed	55~65 n/min
Steam consumption Steam pressure	250kg/h, 0.5~0.8MPa
Compressed air consumption Compressed air pressure	0.2m3/min, 0.4~0.6MPa
Electric power needed	18kW/380V
Total length	15,000 mm
Gross weight	3,500 kgs

MAIN EQUIPMENT LIST:
The whole line is comprised of cookers, vacuum micro-film syrup cooking unit, depositor, industrial cooling system, gear pumps, dosing pumps, controller etc.
COMMODITY: GD150S HRAD CANDY DEPOSITING LINE

S/N	EQUIPMENT	SPEC.	UNIT	QTY
1	FIXED COOKER	200 L	PCS	1
2	GEAR PUMP	1	PCS	1
3	STORAGE TANK	200L	PCS	1
4	VACUUM MICROFILM COOKING UNIT with auto steam control system 4-1.MAIN MICROFILM COOKER (1) 4-2.PRE-HEATER(1) 4-3.VACUUM PUMP(1) 4-4.FEEDING PUMP with frequency inverter(1) 4-5.DISCHARGING PUMP 4-6.CONNECTING PIPES & VALVES(1set) 5-7.PLC CONTROLER(1)	150KGS/H	SET	1
5	CANDY DEPOSITING UNIT: 5-1.DEPOSITING MACHINE(1) 5-2 FLAVOR AND COLOR DOSING PUMPS(4) 5-3.INDUSTRIAL COOLING SYSTEM(1) 5-3.FLAVOUR MIXER(2) 5-4.CONNECTING PIPES(1set) 5-5.PLC CONNECTING(1)	150KGS/H	SET	1
6	MOULDS	180PCS/SET	SET	1



Profile
Shanghai Target Industry Co., Ltd is the sales and service company for Shanghai SHINWEI Machinery Manufacturing Co., Ltd which is the first manufacturer to build the complete production line for depositing hard candies in China and has accumulated 40 years' fabrication experience. It is also one of the leading and professional exporters in China by providing customers home and abroad with high quality confectionery, chocolate, biscuit and packaging machinery. Our machineries have been exported to East European, south America, middle east, southeast Asia.
As the first-class corporation for fabrication of confectionery, chocolate, biscuit and packaging machinery, Target Industry offers not only the advanced equipment with competitive and economical efficiency, but the whole solutions for the customer's demands also. We provide the design, production, assembly and commissioning work of small or medium confectionery and biscuit machines in accordance with the customer's specific requirements.
For further information, please visit: shinwei.en.made-in-china.com

Strength
Why choose us?
a.Established in 1982, nearly 20-year experiences in the area of machinery manufacturing of food processing;
b.Cooperate with well-known enterprises for some mechanical parts;
c.Adopt environment-friendly and food-grade materials;
d.Offer customized machineries and give suggestion for plant layout.

Service
After-sale services for all the customers
a. Free training of machine installation, operation and maintenance will be provided;
b. Some spare parts will be sent together with the machine for free and some spare parts are always at favorable price for regular customers;
c.Technical support will be offered by call, email or video etc;
d.If necessary, our engineer will go to your factory for machine installation, adjustment or maintenance.
