• Model NO.：HT-CCY1
• name：Tea Drying Machine For Sale
• Material：Stainless Steel
• Transport Package：Fumigation-Free Wooden Case
• Specification：2700*1000*1400mm
• Trademark：HENTO
• Origin：Henan, China
• Production Capacity：500sets,Month

Basic Info.

Model NO. HT-CCY1 name Tea Drying Machine For Sale Material Stainless Steel Transport Package Fumigation-Free Wooden Case Specification 2700*1000*1400mm Trademark HENTO Origin Henan, China Production Capacity 500sets/Month

Product Description

Tea Drying Dehydration Dewatering Machine For Sale
1.Machine details:

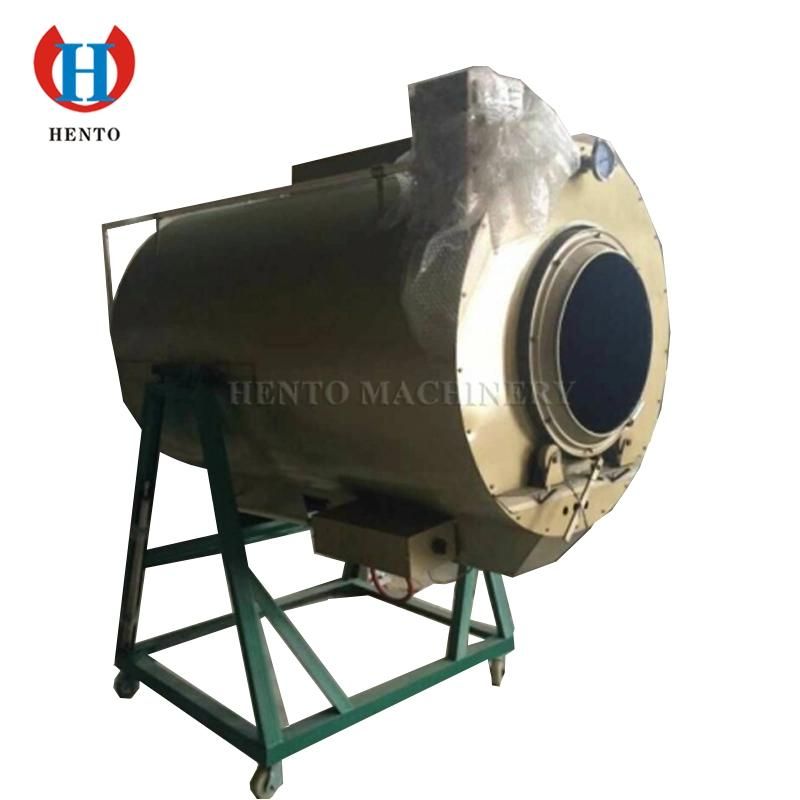

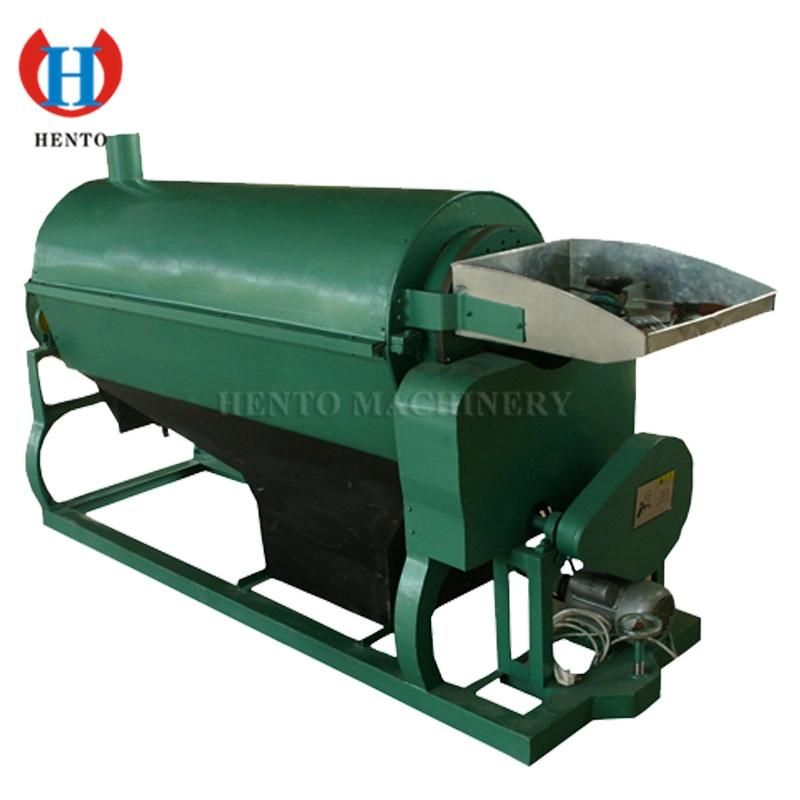

Tea Drying Dehydration Dewatering Machine
Electric heating HT-SQJ








Machine ntroduction
1).the beginning temperature is high, easy to operate is easy to master;
2).machine hot air temperature is high, strong penetrating power, good steamed leaf color, leaf full body, high fragrance, effectively guarantee the tea internal nutrition;
3).pushes the high efficiency, suitable for tea factory assembly line operations;
4).this machine can be overcome, but also can be used for drying, baking, wide used.
 Technical parameters&Quotation

Model	HT-SQJ4	HT-SQJ5	HT-SQJ6	HT-SQJ8
Capacity (kg/h)	50	80	200	500
Heating type	electric	Electric	Electric	Electric
Power	18kw	28kw	30kw	76kw
Voltage	380v	380v	380v	380v
Drum size	0.52*2.7m	0.55*3m	0.6*3.5m	0.8*4.5m
dimension (m)	3.28*0.83*1.38	3.58*0.98*1.45	4.3*1.08*1.83	5*1.18*1.95
Machine weight	780kg	1180kg	1650kg	2300kg

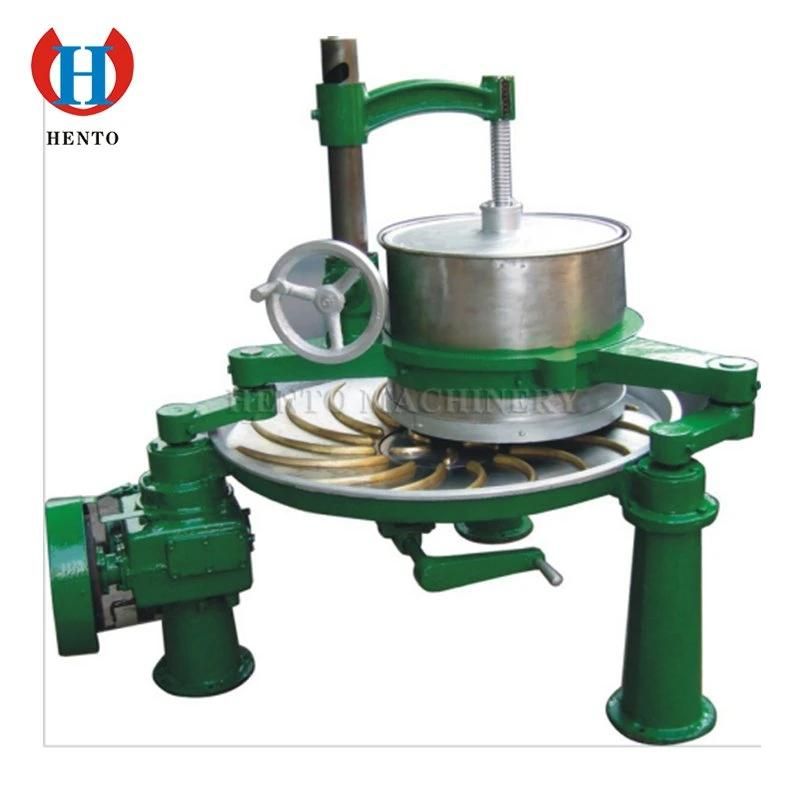

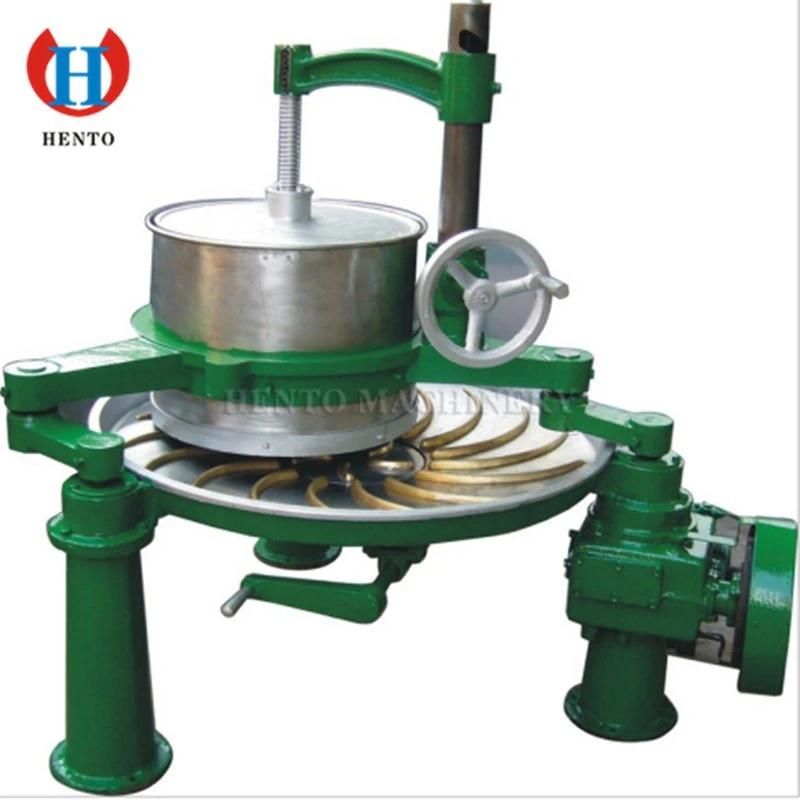

Tea Leaf Roller Machine


1.Machine introduction
Automatic Tea Leaf Roller is one of the tea machinery, tea in it bear tea rolled. Apply to the Maofeng, Biluochun, excellent tea and green tea, black tea leaves.
2.Machine features
Rolled high quality: the rolling tea, high efficiency, tight into high, tea leaf tissue damaged moderate and high,complete chopped
Green Materials: high-quality stainless steel,no lead and other harmful elements pollution
Reducer system: product deceleration institutions using advanced high-reliability design, long life, low noise Rolling system: rolling system using multi-bearing system, smooth running, reliable
Kneading pan: the overall structure and increasing the rigidity and reliability of the product
Rubbing plate lined with: whole stainless steel, rolled tea quality is higher, more sophisticated manufacturing
3.Technical parameters&Quotation

Model	HT-RC25	HT-RC35	HT-RC40	HT-RC45	HT-RC55
Capacity	8-12kg/h	15-25kg/h	25-30kg/h	40-60kg/h	60-120kg/h
Voltage	380V	380V	380v	380v	380V
Power	0.375kw	0.75kw	1.1 kw	1.1 kw	3.0kw
Machine dimension	810*870*900	930*910*1120mm	1050*880*1270mm	1050*1140*1270mm	1350*1180*1580mm
Machine weight	158kg	193kg	207kg	232kg	500kg

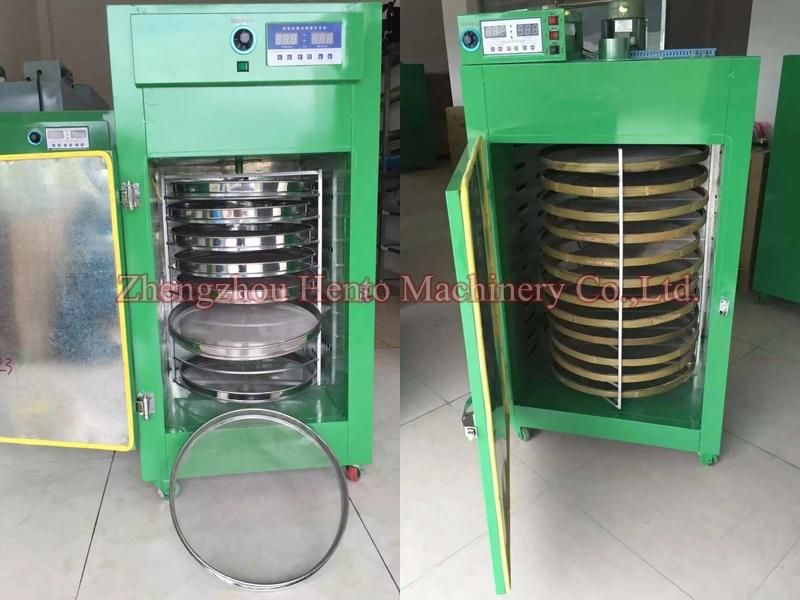

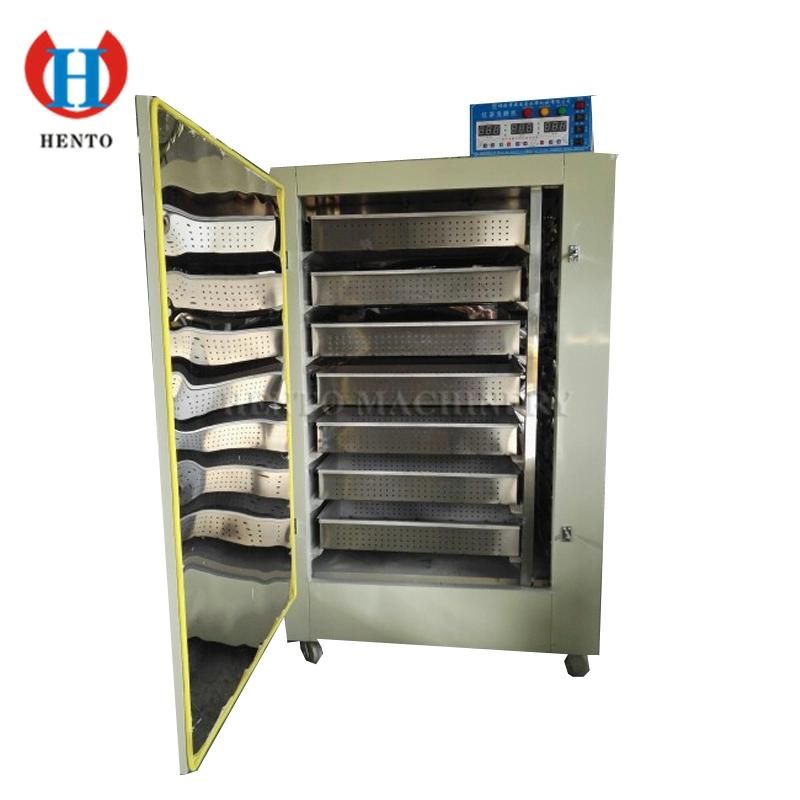

Drying Machine

Machine introduction                                                    Adopting hot air recycle system, each layer has wind outlet to keep uniform temperature.
(2) Adjustable temperature control,thermostat settings and timer function.
(3) With Ceramic fiber as insulation material, largely reduced power consumption.
(4) Widely used for drying tea leaf, mushroom,dates,logan,medicine,seeds,sea food etc.Technical parameters & Quotation

Model	HT-T09	HT-T12	HT-T16
Motor power	0.55KW	0.55KW	0.55KW
Heating power	4KW	6.55KW	12KW
Capacity	40-60kg/batch	70-90kg/batch	80-100kg/batch
Dimension	710*670*1370mm	960*818*1855mm	1180*1100*2080mm
Baking tray layers	9	12	16
Chamber Dimension	560*540*810mm	760*790*1085mm	990*960*1350mm
Voltage	220V	220V	380V
Weight	120kg	177kg	320kg

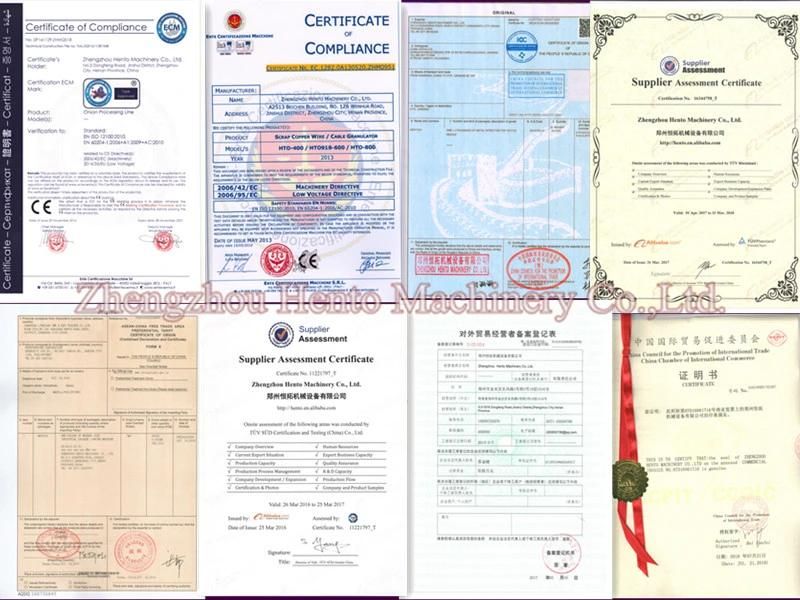

4.Company Certificate:

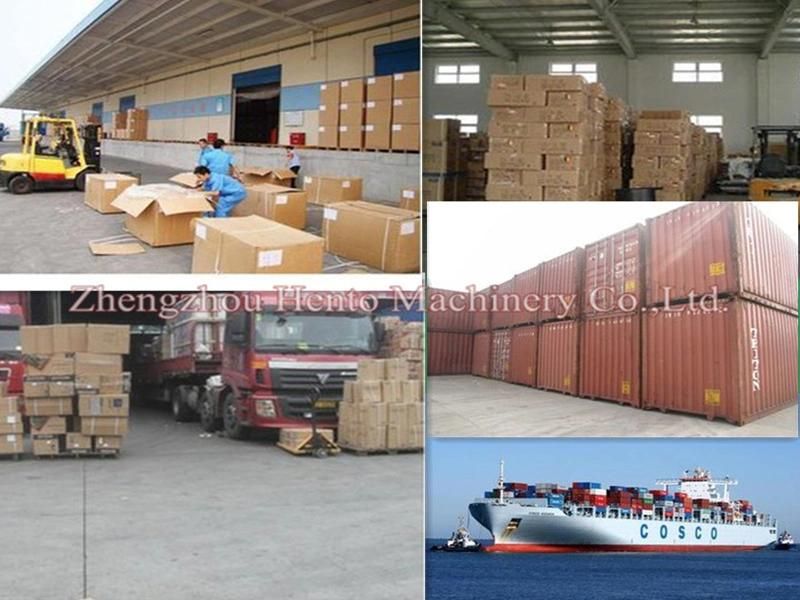

5.Packing&Delivery:


6.Our Customers:


7.Contact us:
If you need further information, please contact us freely, we will do our best to cooperate with you.
