• Model NO.：corn flour mill
• Condition：New
• Customized：Customized
• Capacity：According to Customers′ Need
• Machine Test：Supported
• Place of Origin：Henan, China (Mainland)
• Supply Type：Manufacturer
• Warranty：1 Year
• Transport Package：Exported Wooden Package
• Specification：CE, ISO9001, SGS, CCC
• Trademark：HNLY
• Origin：Jiaozuo of Henan Province
• HS Code：8437800000
• Production Capacity：300 Sets Per Month

Basic Info.

Model NO. corn flour mill Condition New Customized Customized Capacity According to Customers′ Need Machine Test Supported Place of Origin Henan, China (Mainland) Supply Type Manufacturer Warranty 1 Year Transport Package Exported Wooden Package Specification CE, ISO9001, SGS, CCC Trademark HNLY Origin Jiaozuo of Henan Province HS Code 8437800000 Production Capacity 300 Sets Per Month

Product Description

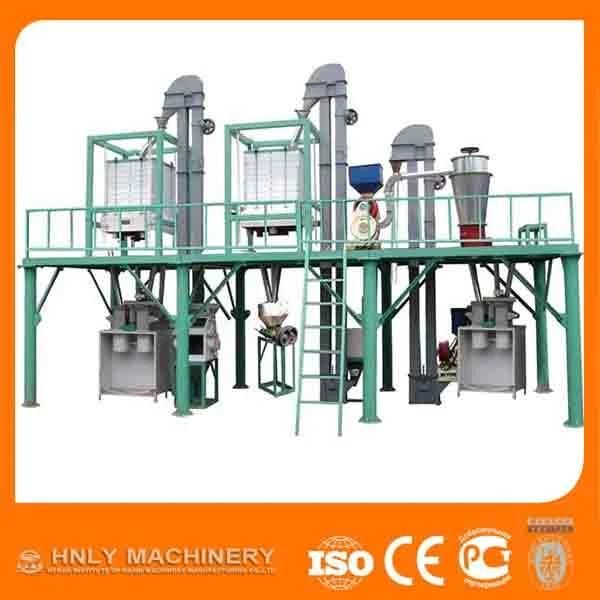

Corn Mill Machine for Making Corn Flour
It uses (all dry method) mixed peeling and degerming process, which can produce different particle sized low-fat corn grits, corn flour, corn bran at the same time. Corn grits and corn meal is not only the raw materials for food plants, alcohol plants, white spirit plants, breweries, lactic acid plant, corn sugar corn and other re-processing enterprises, but also the best coarse food for urban residents to eat coarse grain in a fine way to improve the living. Corn bran can be used as feed. (Corn bran able to packaged directly without drying)

A. Equipment Specifications
1. End Products: Corn grits, corn meal, corn bran
2. Power consumption: Tonnes of maize consumption is about 60 KW. H
3. The finished product rate: Corn grits about 45-55%, corn flour about 30-20%, corn bran about 25%; Corn grits and corn flour total production rate 75-80%

B. Product quality indicators
1. Corn flour fineness: 40-120 mesh (adjustable)
2. Sand content: Not more than 0.002%
3. Magnetic metal content: Not more than 0.003g / kg
4. Water: Storage type: 13.5-14.5%
5, color odor: Natural maize color; Smell, taste normal
6. Fat content: 0.5-1%

C. Total power: 105KW

D. Covering Area: Length width, height: 10×5×5.5m


Advantages of corn/maize flour mill machine:
1. Turnkey project 10T-500T/D complete maize flour milling machinery.
2. Advanced technology support and customized design.
3. Thorough crafts and rational allocation.
4. Dust-free design and low power consumption.
5. Perfect after-sales service.
6. One year guarantee.

Working process of Corn Flour Mill Machine:
Cleaning and stone removing - peeling - polishing and degerming - milling - sifting - milling
Final products parameter of the corn milling machine:
1. Sand content: <0.02%
2. Metal content: <0.003g/kg
3. Water content: 13.5-14.5%
4. Color and smell: Regular

Final products	Output rate	Fat content	Size
Corn grits	45-55%	<0.8%	Mesh 8-40
Corn flour	20-30%	<1.5%	Mesh 50-80
Animal feed	25%	High	Normal

Model	Capacity (per 24hs)	Total power(kw)	Working Space(m)	Power Consumption
FTA-150	150 tons	365	27*7*8	50kwh/t
FTA-100	100 tons	285	27*7*8	50kwh/t
FTA-50	50 tons	128	13*5*6	50kwh/t
FTA-30	30 tons	105	10*5*5.5	55kwh/t

Packaging & Shipping
1. Standard wooden case packing with international quality.
2. Reliable shipping agent with long-term cooperation.



Our service
1. We supply spare all year around.
2. We supply technical solutions and helps for buyers at any time.
3. We have professional team help customers in designing and planning.


Company Information
Henan Institute Of Grain Machinery Manufacturing Co., Ltd. Is established driven by the academy of Henan University of Technology. As a large joint-stock enterprise integrating technology, manufacture and sales, our company is specializing in the production of grain and oil machinery, agricultural and sideline machinery. Cooperating with Henan Mechanical Design and Research Institute and Henna University of Technology (Former Zhengzhou Grain College), Henan Institute Of Grain Machinery Manufacturing Co., Ltd. Has carried out the research and application of oil machinery, food machinery, grain machinery, construction machinery, and feed machinery, etc.
We provide a turnkey project of our machinery, including special design, installation, commissioning and training workers.
