• Model NO.：Wheat Flour Milling Machine
• Condition：New
• Customized：Customized
• Warranty：1 Year
• Machine Test：Supported
• Place of Origin：Henan, China (Mainland)
• Supply Type：Manufacturer
• Capacity：According to Customers′ Need
• Transport Package：Exported Wooden Package
• Specification：CE, ISO9001, SGS, CCC
• Trademark：HNLY
• Origin：Jiaozuo of Henan Province
• HS Code：8437800000
• Production Capacity：300 Sets Per Month

Basic Info.

Model NO. Wheat Flour Milling Machine Condition New Customized Customized Warranty 1 Year Machine Test Supported Place of Origin Henan, China (Mainland) Supply Type Manufacturer Capacity According to Customers′ Need Transport Package Exported Wooden Package Specification CE, ISO9001, SGS, CCC Trademark HNLY Origin Jiaozuo of Henan Province HS Code 8437800000 Production Capacity 300 Sets Per Month

Product Description

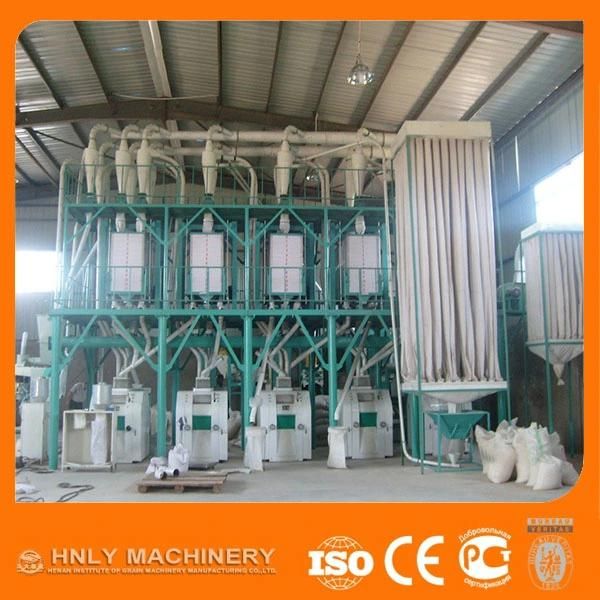

150 Tons Per Day Wheat Flour Milling Machinery Prices
Product Description
1. Technology in cleaning part: Two screen, two scour, two destoner, One damper, and one magnetic separator.
2. Technology in milling part: Five sets Double-roller mill, five sets of Double-section high efficiency square sifter consist of the milling technology of four break, four reduction, one scratch, two bran brusher
3. Production capacity: 60tons of wheat/24H.
4. Flour extraction: To produce standard flour: 75-82%
To produce grade 2 flour: 70 -75%
To produce grade 1 flour: 60-65%



1. Cleaning part
To clean out the middle and small impurity from wheat. E. G., dust, stone, magnetic material, wheat was bitten by insect and so on. Includes beating, screening, destoner, magnetic separator and dampening. This section is make the wheat to prepare for millling part and to protect the machinery as well.

2. Milling part
Include different number of mill and sifter to mill the wheat and separate the flour and bran
(1) Mill: Mill the wheat to break the integrity by the roller moving
(2) Sifter: To separate the flour and bran, also separate large size and small size to enssure flour quality

3. Packing part
The packing part can be manual one also can be auto one, this can be designed according to requirement and machine capacity.

4. PLC controlling system
To controlling the whole set of machinery to work well and showing the process of working

5. Packing and Loading part
We adopts international standard packaging:
1. We will pack by the protect film inner, water-repellent plastic outside.
2. The wood packing is necessary If send by less than a container.
3. The machine will fixed by steel rope in the container. Make sure it is in good condition when arrived destination

Model	100T/24H Maize/Corn Flour and Grits Milling Machine
Production capacity (T/24h)	100-120Tons/24h of corn/maize
Main machines and Processing techniques	High efficiency vibration sifter, Destoner, Washer stoner, Damper,  Peeling machine,  Embryo separator, Polisher, Grading machine, Roller mill, Multi-section plansifter, Super-mico-particle pulverizer.  Produce flour and grits
Products and extraction rate (%)	Corn flour: 40-50% Corn grits: 35-40% Corn bran, coarser fodder: 10-12% Embryo: 8-10% It can produce fine corn flour (all through 100M sifter)
Products quality	Sand content: ≤0.02% Magnetic metal content: ≤0.003% Moisture content: ≤13.5-14.5% (based on the raw corn according with national standard for Raw grain storage) Fat content: ≤2.5%
Power required (kW)	385Kw
Size of workshop: (L×W×H, m)	3-storey building or single storey workshop (25×8×10)

Packaging
Packaging: All machines covered by plastic film firstly and then packed in wooden case to best protect the machine during long time transportation.



Shipping
Shipping: All machines will be sent by sea, if you need other kind of transportation, please inform us in advance. And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.


Our service
1. One year quality warranty for the machine and spare parts
2. Overseas engineers service for installation
3. Whole-life after-sales service and free consultation
4. Customized requirements available
5. Technician guide at the site.
6.24Hr online service




Company Information
1. About us
Henan Institute Of Grain Machinery Manufacturing Co., Ltd. Is established driven by the academy of Henan University of Technology. As a large joint-stock enterprise integrating technology, manufacture and sales, our company is specializing in the production of grain and oil machinery, agricultural and sideline machinery. Cooperating with Henan Mechanical Design and Research Institute and Henna University of Technology (Former Zhengzhou Grain College), Henan Institute Of Grain Machinery Manufacturing Co., Ltd. Has carried out the research and application of oil machinery, food machinery, grain machinery, construction machinery, and feed machinery, etc.
We provide a turnkey project of our machinery, including special design, installation, commissioning and training workers.


2. Why choose us
---Advanced equipments, good quality
---Professional skills, all-related services
---High quality and efficiency technology
---Complete production line, quick delivery
---The biggest grain and oil machine manufacturer and exporter in China
---Exporting to more than 30 countries and regions
