• Model NO.：LFM
• Transport Package：Wooden Packing
• Specification：customized
• Trademark：Longer
• Origin：China
• Production Capacity：100-1000kg,H

Basic Info.

Model NO. LFM Transport Package Wooden Packing Specification customized Trademark Longer Origin China Production Capacity 100-1000kg/H

Product Description

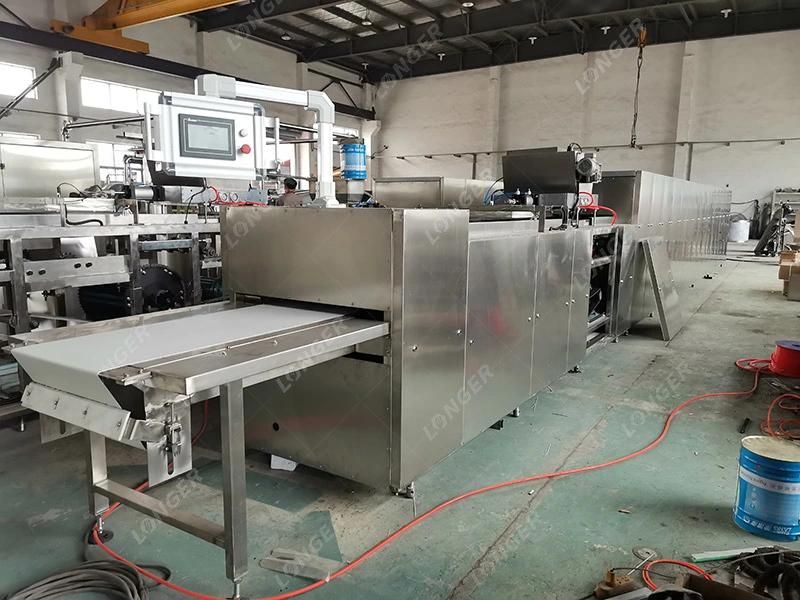

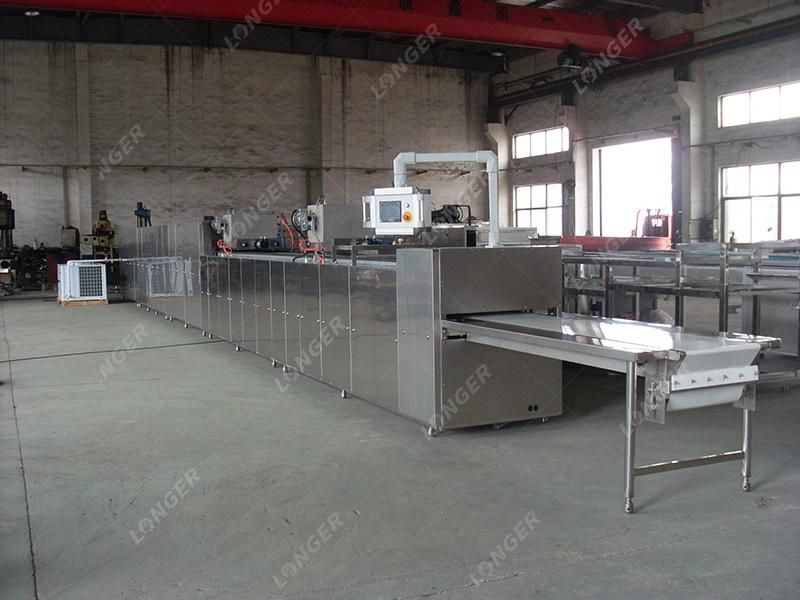

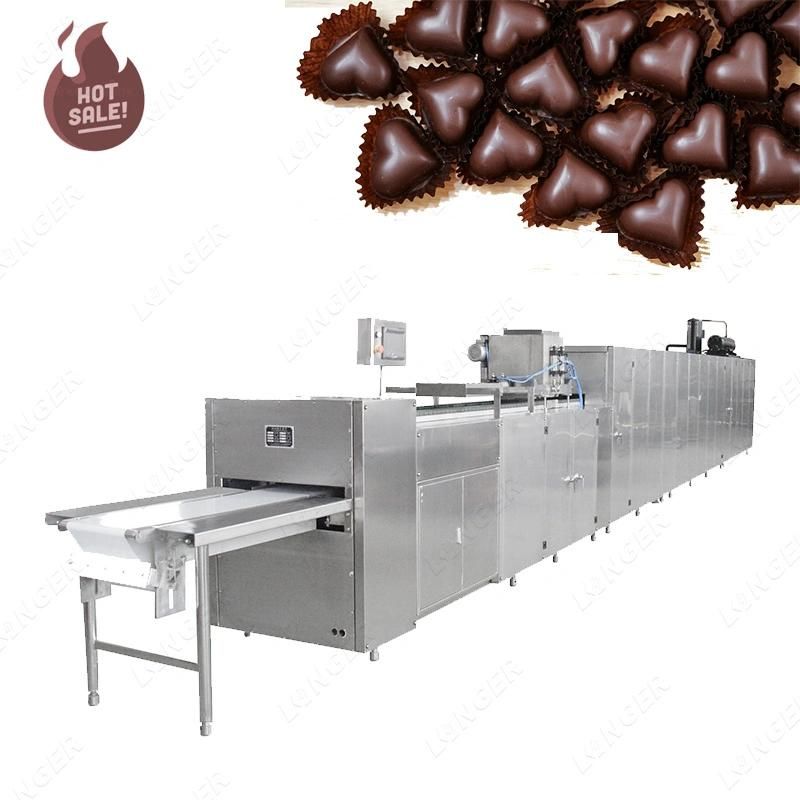

Introduction of chocolate moulding machine
This chocolate moulding machineis mainly used for the pouring of single-color, double-color, and filled chocolate. The chocolate moulding machinedrives the sprocket indexing mechanism with the worm gear reducer through the motor, which is transmitted to the main drive shaft by the indexing mechanism, and the main drive shaft drives the chain to rotate. The chocolate moulding machine is controlled by the proximity switch installed on the output shaft of the indexing mechanism. Start and stop, make the template do intermittent movement driven by the chain, and there is an indexing mechanism for positioning.
Feature Of moulding machine chocolat1. Accurate pouring quantity: The frequency conversion (servo) motor stroke is used to control the pouring quantity, and the pouring quantity control is accurate, and the error does not exceed 2G.
2. Precise template positioning: no template, no pouring, accurate control.
3. Multiple functions: it can produce single-color, left-right double-color and slurry-filled chocolate products (single-head pouring machine), and a fully automatic pouring machine that integrates mold drying, pouring, vibration mold, cooling, demoulding, and conveying; also It can produce single-color, left-right double-color, upper-lower double-color and slurry-filled chocolate (double-head pouring machine), which integrates mold drying, secondary pouring, secondary vibration mold, secondary cooling, demolding, and conveying. Diverse choices and diverse coordination.
4. Wide application template, easy to change the model: by changing different templates, the model of products of different shapes can be changed. At the same time, a special mechanism is designed for the connection of the template and the chain, which can realize the plug and play of the template, which is efficient and fast, and is easy to clean.
5. Low labor intensity, convenient operation and maintenance: PLC intelligent control, large-size touch screen operation, easy operation, intelligent fault diagnosis. , According to the intelligent storage related parameters of different materials, one-key switching improves the flexibility and versatility of the equipment.

Parameters Of chocolate making machine for small production

Model	GG-CJZ150	GG-CJZ175	GG-CJZ510
Capacity	6-15Template block/min	6-15Template block/min	6-15Template block/min
Power(Kw)	6	19	21
Number of templates(Piece)	200	280	280
Template size(mm)	275*175*30	330*200*30	510*200*30
Weight(Kg)	500	3500	4000
Dimension(mm)	4000*520*1500	16000*1000*1600	16000*2000*1600
