LG-Cjz275 (3+2) Automatic Dairy Milk Chocolate Manufacturing Injection Machine Chocolate ...
Zhengzhou Longer Machinery Co., Ltd.- Certification：CE
- Power Source：Electric
- Process：Cocoa Bean Processing Machinery
- Automatic Grade：Automatic
- Application：Peanut
- Customized：Customized
Base Info
- Model NO.：LFM
- Transport Package：Wooden Packing
- Specification：customized
- Trademark：Longer
- Origin：China
- Production Capacity：100-1000kg,H
Description
Basic Info.
Model NO. LFM Transport Package Wooden Packing Specification customized Trademark Longer Origin China Production Capacity 100-1000kg/HProduct Description

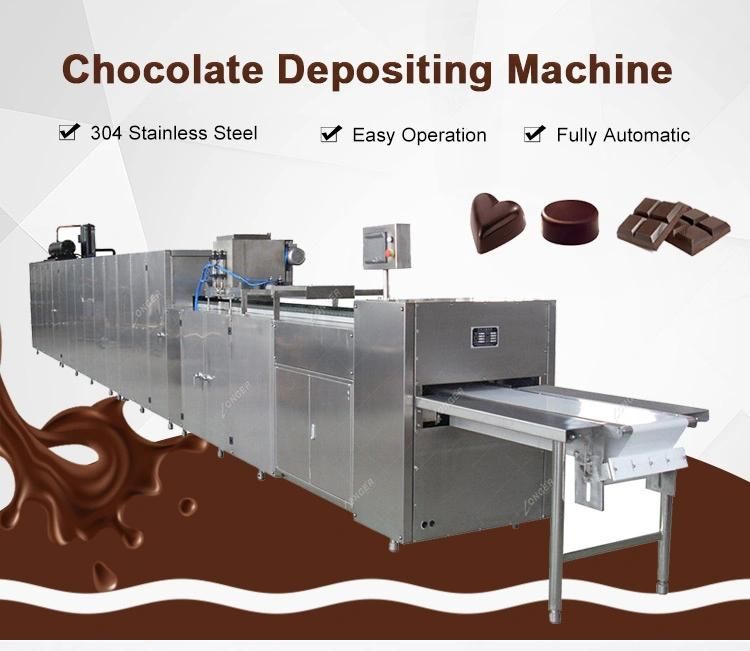

Introduction of automatic chocolate machine
Put the template into the mold adding frame, and the special chain on the chain drives the template to move forward. When the mold is under the drying mold mechanism, the mold drying mechanism will bake and heat the mold. When the mold moves under the pouring mechanism, the pouring mechanism performs pouring. When the mold reaches the vibration table, the vibration mechanism will vibrate to compact the chocolate paste. Then when it reaches the discharge port, the template is manually removed and placed in the cold channel or cold storage for cooling and forming.
Feature Of chocolate candy machine
1.Accurate pouring quantity: The frequency conversion (servo) motor stroke is used to control the pouring quantity, and the pouring quantity control is accurate, and the error does not exceed 2G.
2. Precise template positioning: no template, no pouring, accurate control.
3. Multiple functions: it can produce single-color, left-right double-color and slurry-filled chocolate products (single-head pouring machine), and a fully automatic pouring machine that integrates mold drying, pouring, vibration mold, cooling, demoulding, and conveying; also It can produce single-color, left-right double-color, upper-lower double-color and slurry-filled chocolate (double-head pouring machine), which integrates mold drying, secondary pouring, secondary vibration mold, secondary cooling, demolding, and conveying. Diverse choices and diverse coordination.
Parameters Of chocolate injection machin
| Model | GG-CJZ150 | GG-CJZ175 | GG-CJZ510 |
| Capacity | 6-15Template block/min | 6-15Template block/min | 6-15Template block/min |
| Power(Kw) | 6 | 19 | 21 |
| Number of templates(Piece) | 200 | 280 | 280 |
| Template size(mm) | 275*175*30 | 330*200*30 | 510*200*30 |
| Weight(Kg) | 500 | 3500 | 4000 |
| Dimension(mm) | 4000*520*1500 | 16000*1000*1600 | 16000*2000*1600 |
