• Model NO.：SB serial
• Condition：New
• Customized：Non-Customized
• Name：Rice Mill
• Power：Electric Motor or Diesel Engine
• Capacity：700-3000kg,H
• Product：Rice Mill Machinery
• with Polisher：Yes
• Roller：Rubble Roller
• Transport Package：Wood Case
• Specification：760*730*1735mm
• Trademark：ACME
• Origin：China
• HS Code：843352000
• Production Capacity：3000

Basic Info.

Model NO. SB serial Condition New Customized Non-Customized Name Rice Mill Power Electric Motor or Diesel Engine Capacity 700-3000kg/H Product Rice Mill Machinery with Polisher Yes Roller Rubble Roller Transport Package Wood Case Specification 760*730*1735mm Trademark ACME Origin China HS Code 843352000 Production Capacity 3000

Product Description

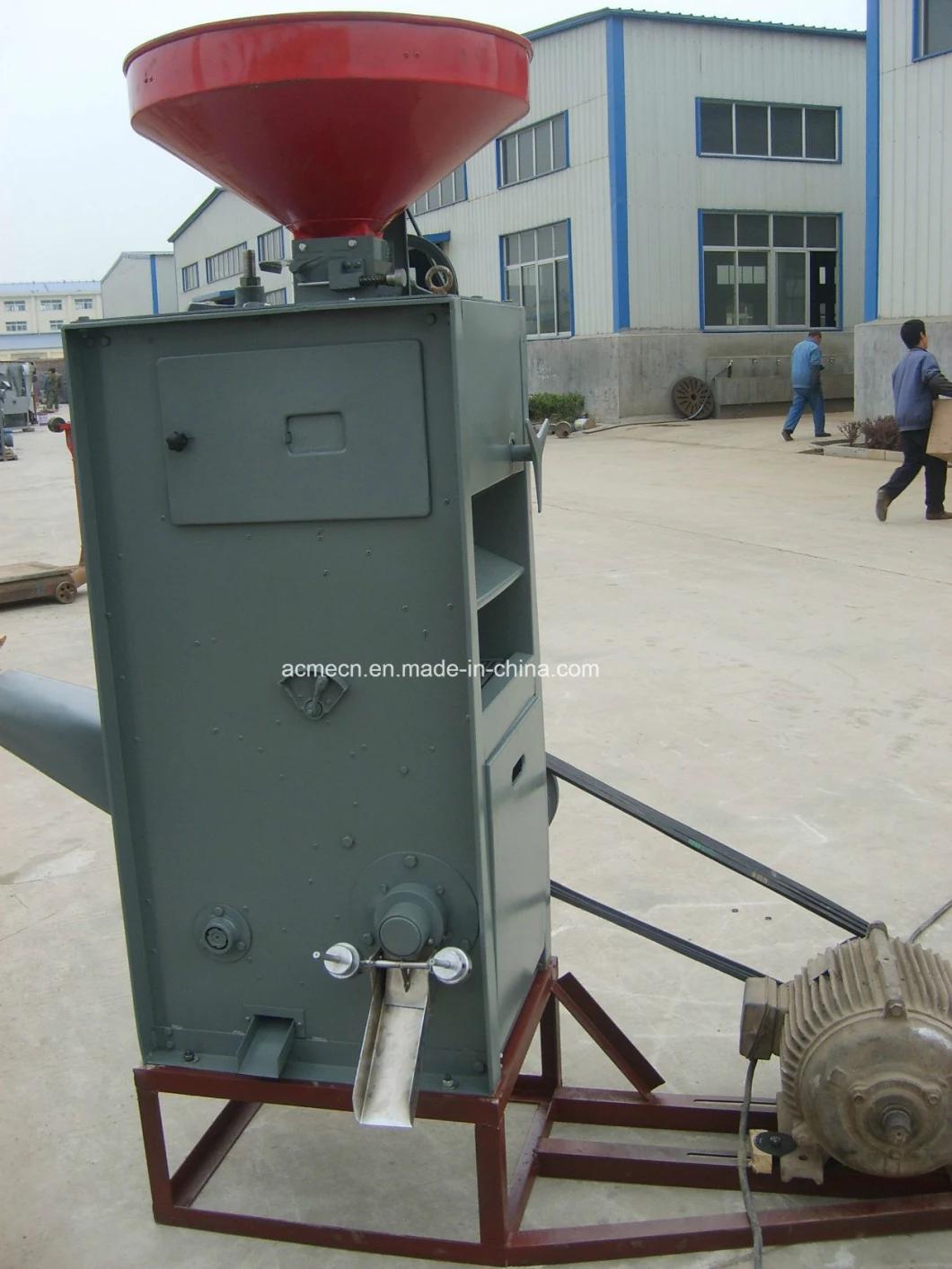

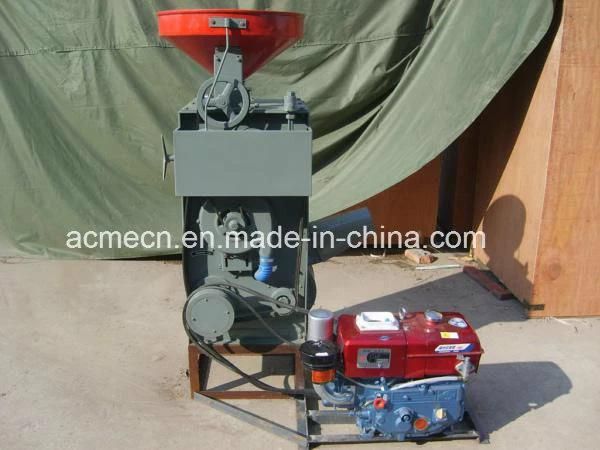

SB electric and diesel powered rice mill with polisher

Introduction:

SB rice mill is a comprehensive equipment for paddy processing. paddy first goes into machine
through vibrating sieve and magnet device,and then passes rubber-roller for bulling,after air blowing and air jetting to the milling room ,the paddy finishes the process
of busking and milling in succession.then busk,chaff,runtish,paddy,and white rice are pushed out of
 machine respectively,this machine adopts all the advantages of other types,and has comprehensive
layout,rational designed,compact structure and little noise in operation. it is easy to operate whit less
power consumption and high productive.the model can product white rice with rice with high purity
 above national standard 1,and with less chaff containing and less broken.so it is indeed rice mill of
a new generation.



Specification:

1.Rice huller

  Rubber roller,Ø222×101.6mm(diameter×length)

  R.P.M of fast roller 1200(rpm)

  R.P.M of slow roller 830(rpm)

  R.P.M of hulks blower 1681(rpm)



2.Rice polisher

  Iron cylinder,Ø86×278mm (outer diameter of protrudes×length)

  Screw conreyor,Ø80×110mm(outer diameter×length)

  Hexagonal screen,Ø97×266mm

  Mesh of hexagonal screen,0.95×15mm

  R.P.M of main shaft of rice polisher 900(rpm)

  R.P.M of high pressure blower 3400(rpm)

Data Sheet:

MODEL	CAPACITY	POWER	MACHINE  WEIGHT	PACKING SIZE		diesel engine  weight	diesel engine  packing size
SB-10	700-1000KG/H	15 hp diesel  engine	230KG	75*78*170CM		180KG	85*48*74cm
SB-30	1100-1500KG/H	18 hp diesel  engine	300KG	96*75*175CM		180KG	88*57*75cm
SB-50	1800-2300KG/H	30hp diesel  engine	530KG	112*96*200CM		310KG	90*50*77CM

Pre-Sales Service

1) Production arrangement.
2) Production planning provided.
3) Workshop visiting available.
4) Detailed specifications of machines provided.
5) Able to provide deatield Solutions.



After-Sales Service

1) Assistance to build factory.
2) Repairing and maintenance if any problem occur in warranty.
3) Installation and clerks training.
4) Spare and wearing parts for free or with discounts.
5) Inspections in factory.



Company Introduction



it's the membership of

UNGM,UNDP-SS-GATE, CCPIT,CAJCCI(China Africa Joint Chamber of Commerce and Industry),

HBICC(HUBEI International Chamber of Commerce),

HEBA(HUBEI E-BUSINESS Association),

WFIA(Wuhan food Industry Association).



focus on

agricultural machinery, food machinery, bio-energy, agricultural engineering and food engineering etc.

Pls contact us freely for price
