• Model NO.：sn
• Origin：China
• HS Code：84378000
• Production Capacity：500-6000kg,H

Basic Info.

Model NO. sn Origin China HS Code 84378000 Production Capacity 500-6000kg/H

Product Description

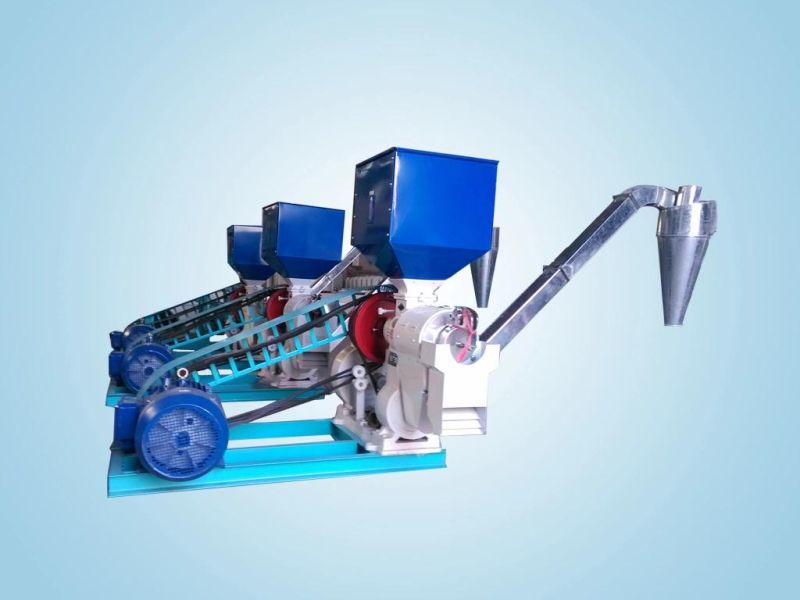

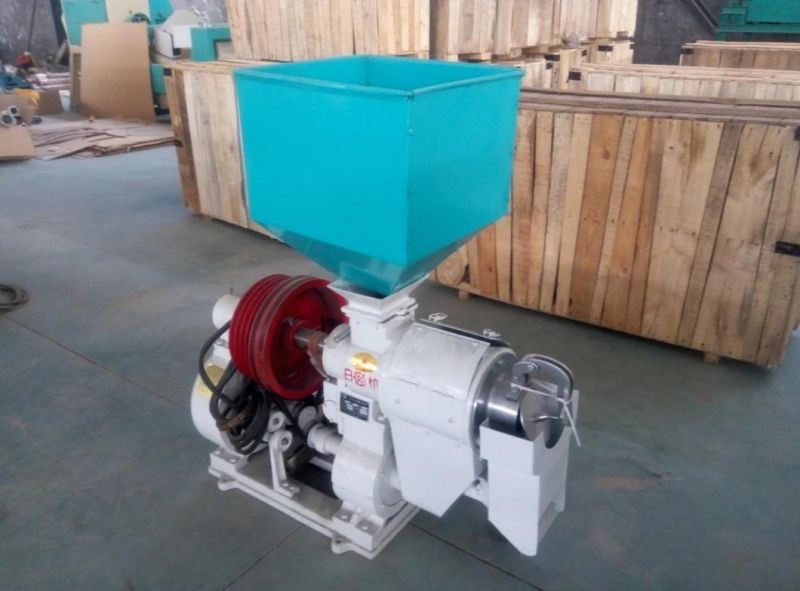

Dehuller with polisher /corn sheller / corn dehulling machine
 This machine is mainly use to peeling the skin of grain such as maize, wheat, mung bean, buckwheat and barley, millet, sorghum, etc. this machine can peel the skin of above. There is screen and grinding wheel in the working cabinet, peeling process is going on through the space between screen and grinding wheel.
As a manufacturer of grain processing machinery, Chengli's dehuller with polisher SN is used for maize dehulling and degerming in the production of maize flour for the grain processing industriy. It is designed to increase maize flour efficiency and flour yield through gentle dehulling and polishing of maize seeds. With two tuyeres, the machine can inhale and blow the light peels and fibers at the same time. It is also capable of processing a wide variety of other seeds.

It is better to wet the corn by little water before peeling and degerming by this machine. This machine can be used separately or with other machines like our Dehuller MNS to peel and degerminate corn to get very low fat dehulled corn in maize milling factories.

Features:
1. Suction system equipped to collect the husks and germs.
2. Fat content rate: below 1%
3. Reliability via sturdy construction.
4. High throughput with little space required.
5. Bran can be collected by air blower to perfect the surroundings.
6. Large output, no broken kernel

Advantages:

1. Innovative design, advanced structure, nice exterior;
2. Reasonable structure, reliable performance;
3. Great sanitation thanks to bran powder collector;
4. Change belts without removing spindle, easy operation, widely used;
5. High throughput capacities, high quality, smooth kernels;
6. Excellent design provides Flexibility with regard to existing spatial conditions.

FUNCTIONAL DESCRIPTION
This machine is new specialized equipment applied for corn hulling, de-germinating, polishing and the removal of tip cap. Raw grains are hulled, de-germinated and polished under the intensive processing of rotating cylinder and screen after the raw materials are delivered into the hulling chamber. The end products achieve the required accuracy after kernel and bran are separated with the help of wind.
The machine is not only can be used alone, but also compatible with complete sets like Grain/seed Cleaner, it can be integrated according to the specific needs in an existing range of machinery. It is an ideal equipment for small and medium size grain processing plants.


Model	Capacity (t/h)	Power (kw)	Weight (kg)	Dimension (mm)	Rotor speed(R/MIN)	Fan speed(R/MIN)
SN115	0.6	11-15	210	1550*490*900	940-1000	4200-4400
SN150	1.5-2	18.5-22	320	1650*510*1060	940-1000	3000-3050
SN200	2-2.5	22-30	980	1700*510*1060	940-1000	3000-3100
SN300	3-6	37-45	1100	1750*600*1060	940-1000	2900

 The machine consists of iron bar, propellers, wicker basket, screen pieces and others, using the wind pressure principle to achieve the effect of peeling, degerming.

A. sieve plates     B. batten for fixing the sieve plate
C. spiral propeller   D. Iron roller   E. Frame
