• Trademark：chengli
• Model NO.：fta
• Origin：China
• Production Capacity：100kg,H to 500ton Per Day

Basic Info.

Model NO. fta Trademark chengli Origin China Production Capacity 100kg/H to 500ton Per Day

Product Description

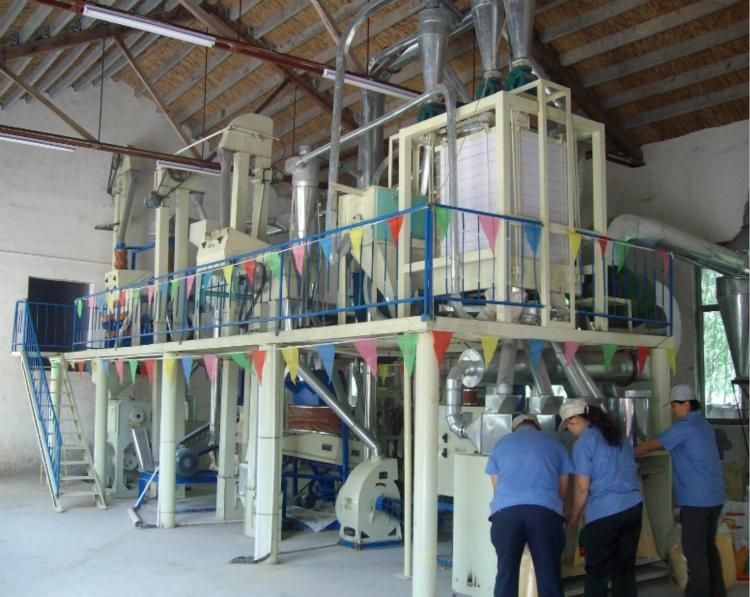

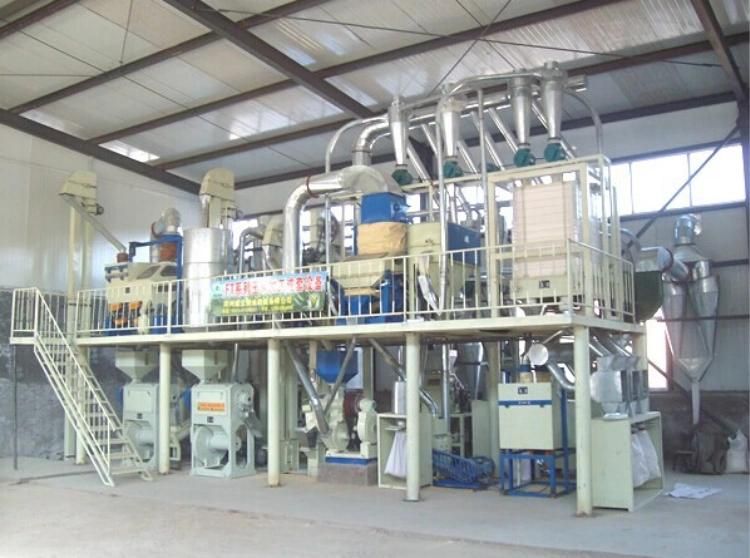

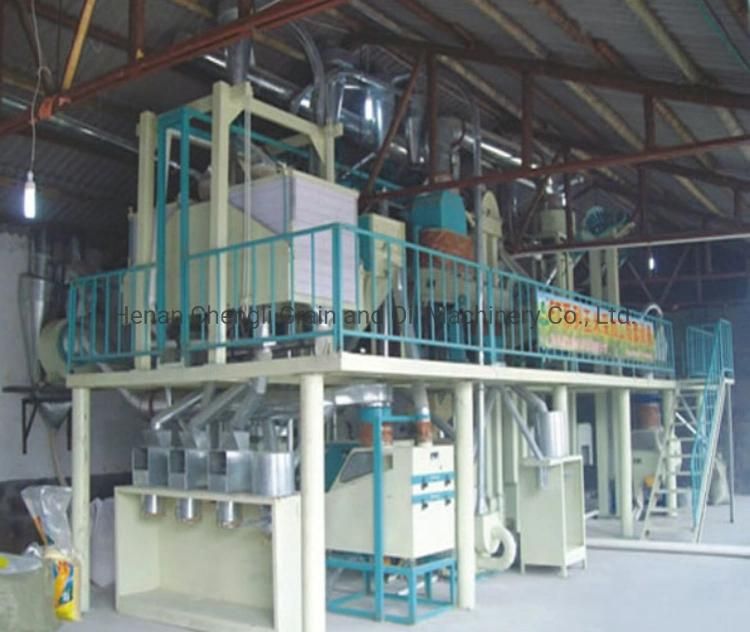

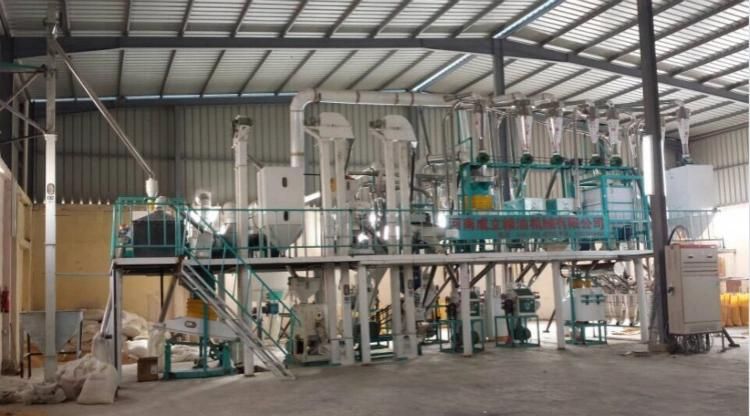

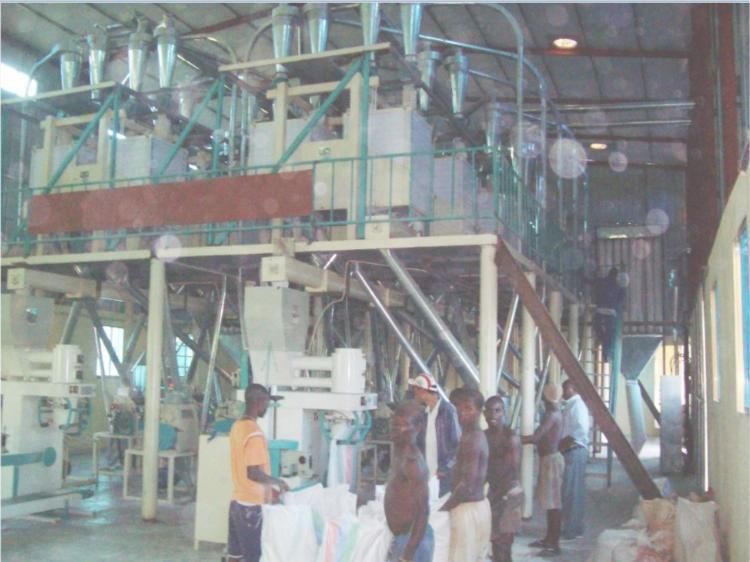

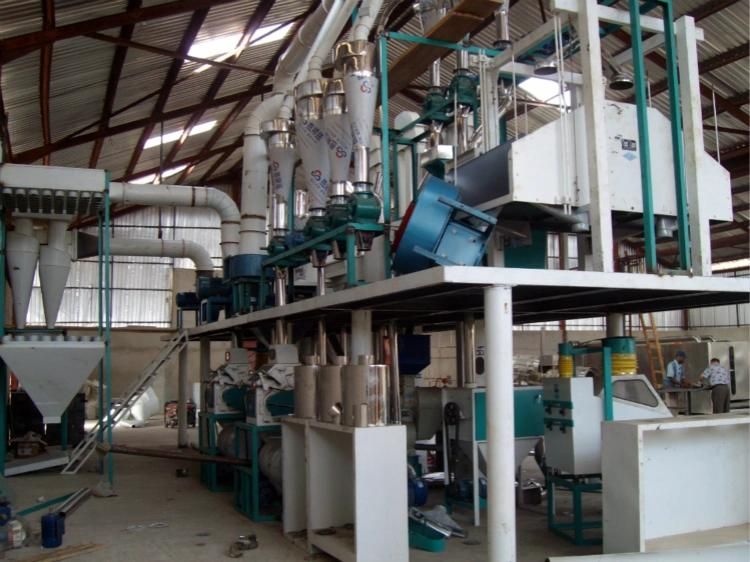

The maize flour mill is a complete production line. It only needs a few workers to operate from the raw materials to the final product. The operation of the maize corn grits mill is simple and easy. It can get corn grits or corn flour according to the customers demand.
Maize flour mill requires four steps
1. The cleaning stage.
Use a magnetic separator to remove the iron. The vibrating screen is mainly used to remove impurities, and then the destoner is used to remove stone and other impurities.
2. Peeling stage
The iron roller peeling machine to remove the husk of the maize
3. Flour milling stage
Use the flour mill to grinder the maize . Then use a double bin plansifter to screen.
4. Packaging stage
Finally the maize flour will be packaged.
Features of corn processing equipment:

     1. Applicability: This equipment can process and produce corn flour, corn flour, corn grits and corn kernels in different degrees.

     2. Good quality: The products produced are free of impurities, golden in color, fine powder, uniform particle size, and rich in nutritional value.

     3. Convenience: The equipment is easy to operate, fast in effect, and convenient in maintenance.

     4. High-quality service: Provide comprehensive integrated engineering services such as project design, manufacturing, installation, commissioning, training, and after-sales service.

The complete set of corn processing equipment is mainly composed of high-efficiency vibrating screen, vertical suction pipe, pulse dust collector, bucket elevator, air blower, polishing machine, dust removal and sealing net, circulating air separator, stone removal machine, suspension screen, specific gravity extraction embryo Machine, motor, and other equipment assembled

The corn goes through the cleaning sieve to remove impurities and enters the moisturizing hoist. The corn processing skin is soaked in water in the moisturizing hoist, and then enters the storage box, and then enters the peeling crusher. The germ and the skin are separated, and the corn grits after the peeling and germ removal enter the pulverizer to grind and flow out from the discharge port of the receiver. Corn-Screening-Moisturizing-Peeling-Stripping-Screening-Germ Extraction-Corn Grits-Milling-Bagging.

*(Product Features):

1. Corn flour mess: 40-120 mesh (adjustable mess).
2. Sand content: not more than 0.002%
3. Magnetic metal content: not more than 0.003g/kg
4. Moisture: Storage type 13.5-14.5%
5. Color and smell: pink, normal smell and taste.
6. Fat content: 0.5-1%



*(Product Parameters):


Capacity ( t/h)	Power (KW)	Workshop Size (mm)
50 T/24H	172	350000×5000×7000

*(Application and After-Sales Service):

Warranty: 12 months after finish the installation
Installation: we will send the engineer with experience to the customer site for install
