• Cooling by：Underground Water
• Model NO.：DN800
• Automation：Semiautomatic
• Principle：Static
• Operation：Intermittent
• Energy：Heat Sterilization
• Heating by：Electric
• Heating Power：27kw , 60kw
• Application：Meat and Beans in Tin Can
• Working Pressure：0.25MPa
• Working Temperature：125 Degree C
• Temperature Control：Automatic Control
• Pressure Control：Automatic Control
• Specification：500L, 1000L, 2000L
• Trademark：Ranking
• Origin：China
• HS Code：8419
• Production Capacity：5000
• Package size per unit product：150.00cm * 100.00cm * 1.60cm
• Gross weight per unit product：800.000kg
• Lead Time：14 days (1 - 10 Pieces) 30 days (11 - 20 Pieces) 45 days (21 - 50 Pieces) To be negotiated ( > 50 Pieces)

Basic Info.

Model NO. DN800 Automation Semiautomatic Principle Static Operation Intermittent Energy Heat Sterilization Heating by Electric Heating Power 27kw / 60kw Application Meat and Beans in Tin Can Working Pressure 0.25MPa Working Temperature 125 Degree C Cooling by Underground Water Temperature Control Automatic Control Pressure Control Automatic Control Specification 500L, 1000L, 2000L Trademark Ranking Origin China HS Code 8419 Production Capacity 5000

Packaging & Delivery

Package size per unit product 150.00cm * 100.00cm * 1.60cm Gross weight per unit product 800.000kg Lead Time 14 days (1 - 10 Pieces)
30 days (11 - 20 Pieces)
45 days (21 - 50 Pieces)
To be negotiated ( > 50 Pieces)

Product Description

small scale canned meat sterilizer retort available with several different size:

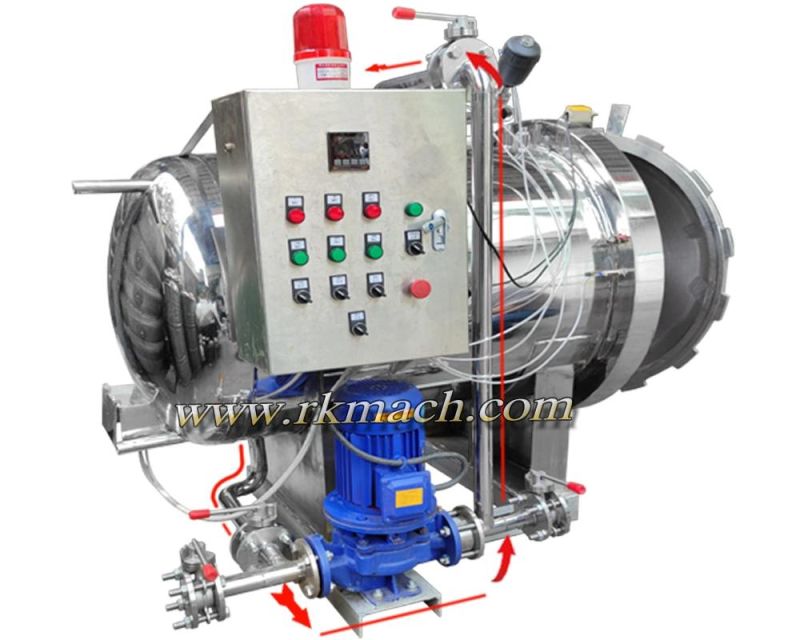

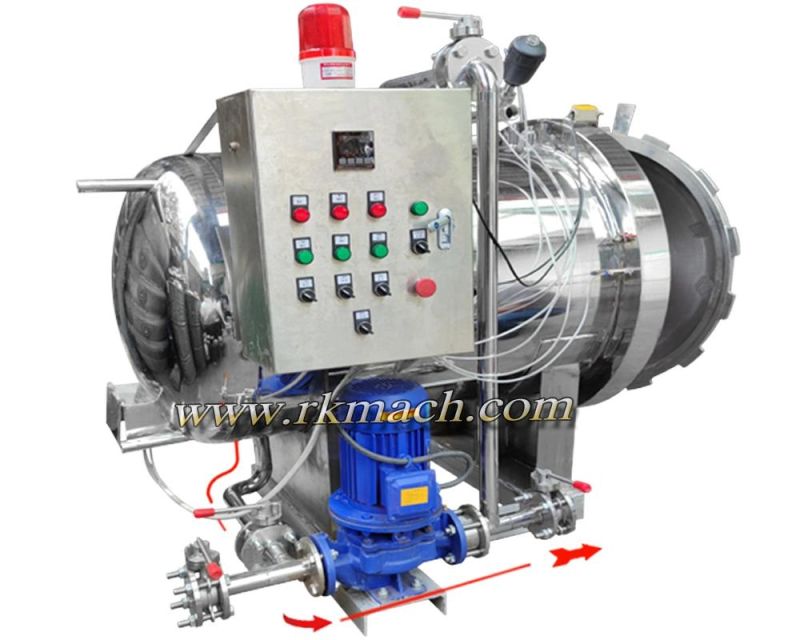

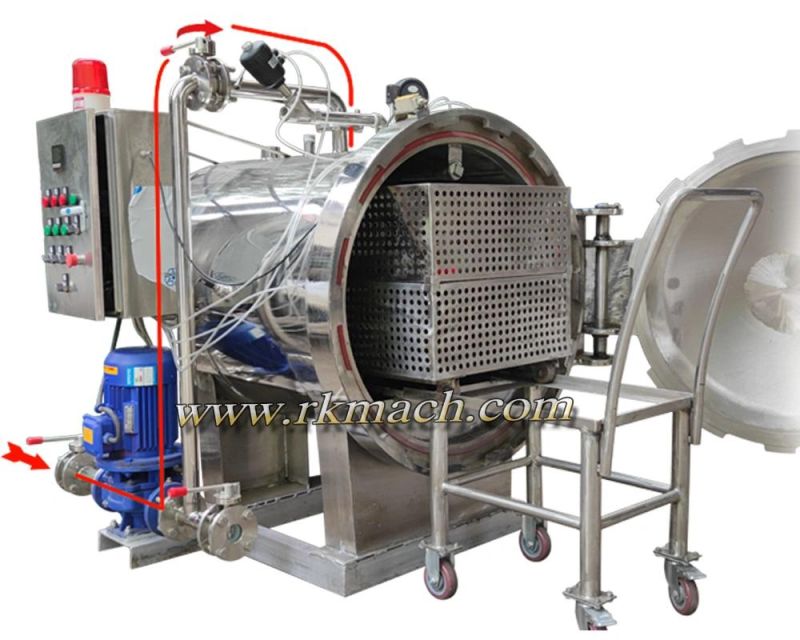

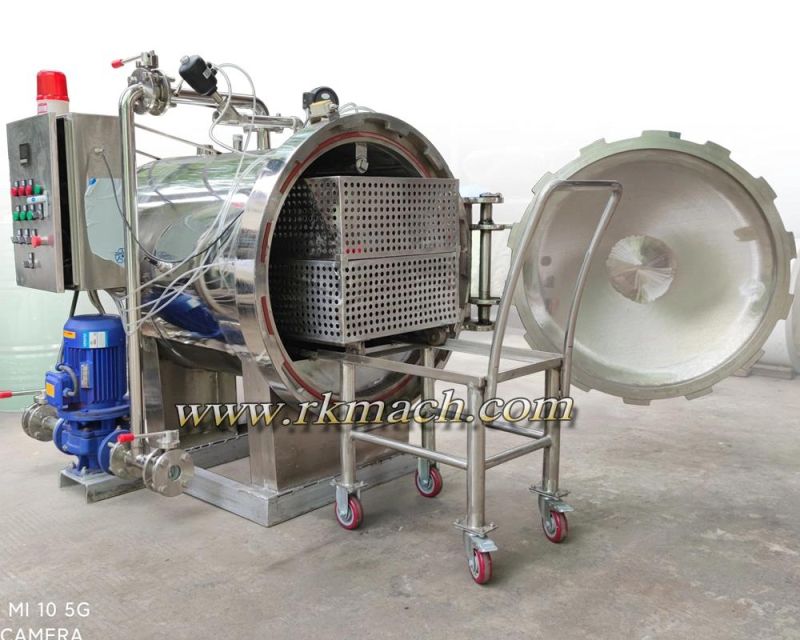

DN800×1000 AUTOCLAVE retort
DN900x1500 sterilizer / autoclave / retort
DN1000x2000 back pressure sterilizer retort
DN800×1000 AUTOCLAVE SPECIFICATION
How to choose a suitable autoclave / retort for your production?
In order to offer you the most suitable autoclave and minimize your investment on related equipment, please tell us your package dimension and how many pcs suchpackage you want to sterilize each cycle.

Autoclave Price (semi-automatic control / full automatic control autoclave)
The prices listed in the page is not for any sterilzier retort.
Please contact our online sales team to get the latest price

1. Autoclave body, dolley, tray, temp. and pressure sensor and gauge, water pump, realted pipeline as welll as control box
2. Air compressor not included
3. Cooling water storage tank not included

About semi-automatic control system

1. LDC temp. display screen, temp. will be controlled by ssystem automatically
2. LCD screen for sterilization holding time, automatic control
3. When sterilization temp. arrived, electric heating type autoclave will stop the heating automatically while steam heating type ones need operator stop the steam inlet manually
4. Back pressure need to be controlled manually for both steam heating and electric heating type autoclave.
5. Cooling water in and outlet need to be manual control for both steam and electric heating autoclave.

No.	Item	Main description	FOB Ningbo price
1	DN800×1000	Made of SS304 Horizontal, electric heating type, max 30kw 50mm thermal insulation 5mm wall thickness With basket and dolly
2	DN900×1500	Made of SS304 Horizontal, electric heating type, max36kw with temperature insulation 6mm wall thickness With basket and dolly
3	DN1100×2000	Made of SS304 Horizontal, electric heating type, max 60kw With temperature insulation 6mm wall thickness With basket and dolly

Optional functions
Herebelow are some optional functions that you may need. We list the prices for each of them. You only need to add this related cost to the above mentioned autoclave price if you need any of them.

No.	Function	Description	Cost
1	Automatic control A	With text panel, PLC and  programmable system, users can change sterilization parameter settings by pressing keys on the text display. Users only need to preset the necessary setting and wait until the sterilization process moves to the end by itself.
2	Automatic control B	With touch screen PLC and  programmable system, users can change sterilization parameter settings by touch the screen. Users only need to preset the necessary setting and wait until the sterilization process moves to the end by itself.
3	Date loge	Paperless type date loge, used to record the temp and pressure change during the sterilization process.
