Stainless Steel R22 404A Milk Cooling Vertical Milk Chilling Vat Price

Shanghai Kaiquan Machine Valve Co., Ltd.
  • After-sales Service：Online Service
  • Warranty：One Year
  • Process：Mild Processing
  • Power Source：Electric
  • Certification：CE, ISO9001
  • Automatic Grade：Automatic

Base Info

  • Model NO.：KQ Series
  • Application：Milk
  • Customized：Customized
  • Name：Stainless Steel R22 404A Milk Cooling Vertical Mil
  • Material：Stainless Steel 304 ,316
  • Refrigerant：404A ,R22
  • Compressor：USA Copeland
  • Fresh Bulk Milk Cooling and Storage：300litres to 10000litres
  • PU Insulation Wall Thickness：70mm
  • Outside Shape：Vertical and Horinzontal
  • Delivery：10 Days
  • Factory：Shanghai
  • MOQ：1
  • Spare Parts：Available
  • Motor Brand：Soemens ,ABB ,China Brand
  • Packing：Wooden Box
  • Control：Control Box
  • Cleaning：CIP Cleaning Ball
  • Transport Package：Standard
  • Specification：Based on special order
  • Trademark：KQ
  • Origin：China
  • HS Code：8479820090
  • Production Capacity：1000

Description

TypeKQ-1T
Vertical typeKQ-2T
Laying typeKQ-3T
Laying typeKQ-5T
 Laying typeKQ-6T
 Laying typeKQ-8T
 Laying typeKQ-10T
 Laying typeCapacity(L)10002000300050006000800010000LRefrigerating Output(W)9000150002200037000380005500074000Refrigerating  Fluid(R)R404/R22R404/R22R404/R22R404/R22R404/R22R404/R22R404/R22Insulating Property≤1C/4h≤1C/4h≤1C/5h≤1C/5h≤1C/5h≤1C/5h≤1C/6hAgitator Speed36r/min36r/min36r/min36r/min36r/min36r/min36r/minPower (Kw)3.85.97.510.5111319.2Voltage380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phasesDimension(mm)1800*1200*15003400*1550*17503600*1700*19003900*2050*21504500*2050*21506300*2050*22508000*2100*2400Weight(Approximately)0.6T 0.75T0.9T1.1T1.3TStainless Steel R22 404A Milk Cooling Vertical Milk Chilling Vat Price
Stainless Steel R22 404A Milk Cooling Vertical Milk Chilling Vat Price
Stainless Steel R22 404A Milk Cooling Vertical Milk Chilling Vat Price
Producing milk cooling tanks, collection centres, tubular coolers, milking machine components, pasteurisers, ice water
Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.

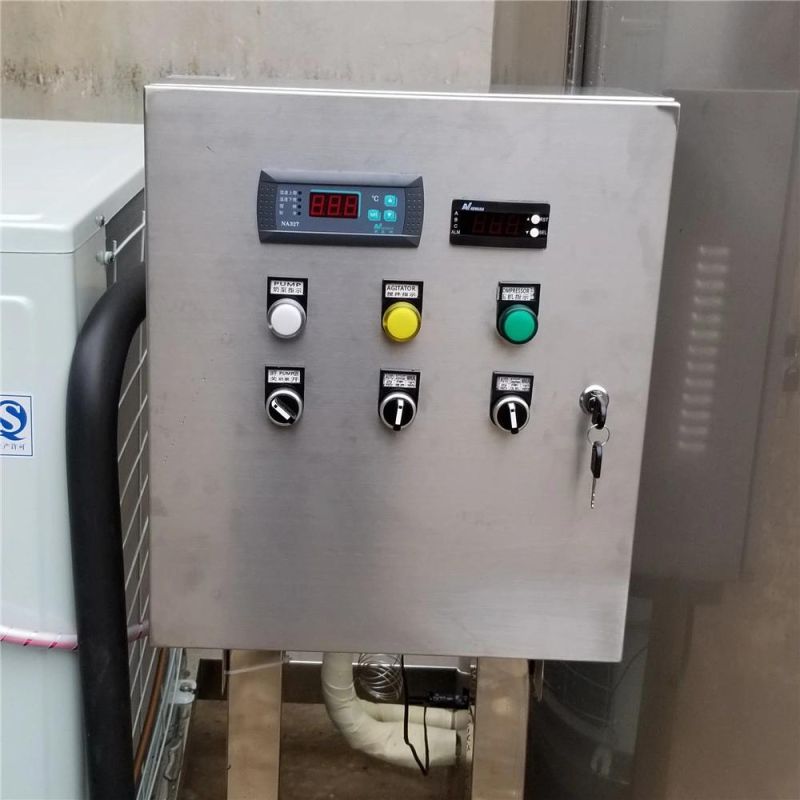

Stainless Steel R22 404A Milk Cooling Vertical Milk Chilling Vat PriceStainless Steel R22 404A Milk Cooling Vertical Milk Chilling Vat PriceStainless Steel R22 404A Milk Cooling Vertical Milk Chilling Vat PriceStainless Steel R22 404A Milk Cooling Vertical Milk Chilling Vat PriceThe adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device.
Stainless Steel R22 404A Milk Cooling Vertical Milk Chilling Vat Price .
