• Capacity：150kg,H
• Depositing Speed：55~65n,Min
• Steam Requirement：150kg,H, 0.5~0.8MPa
• Electric Power Needed：18kw,380V
• Total Length：15m
• Gross Weight：3500kg
• Transport Package：Wooden Case
• Specification：CE
• Trademark：SHINWEI
• Origin：China Shanghai
• HS Code：84382000
• Production Capacity：30sets,Year

Basic Info.

Capacity 150kg/H Depositing Speed 55~65n/Min Steam Requirement 150kg/H, 0.5~0.8MPa Electric Power Needed 18kw/380V Total Length 15m Gross Weight 3500kg Transport Package Wooden Case Specification CE Trademark SHINWEI Origin China Shanghai HS Code 84382000 Production Capacity 30sets/Year

Product Description

Complete Hard Candy Depositing Line with PLC control


FEATURES:
The processing line is a compact unit which can continuously produce various kinds of hard candies under a strict sanitary condition. It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.
1) PLC /computer process control available;
2) An LED touch panel for easy operating;
3) The standard production capacity is from 150kgs/h to 600kg/h;
4) The main parts is made of hygienic Stainless Steel
5) Optional (mass) flowing controlled by Frequency inverters;
6) In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;
7) Dosing pumps for the automatic injection of colors, flavors and acids;
8) Use AUTOMATIC STEAM CONTROL SYSTEM instead of manual steam valve which controls a stable steam supply to the microfilm cooker;

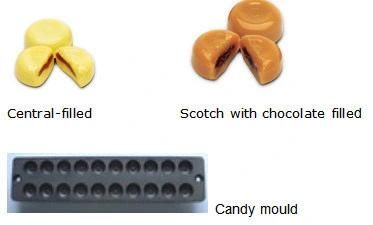

9) "two-color stripe depositing", "twocolor double layers depositing", "central filling", "clear" hard candies and etc. Can be made.
10) Moulds can be made according to the candies samples provided by the customer.


Whole Automatic Hard Candy Making Machine Constituent Parts: <o: P>
Sugar Melting Pot---Syrup Pump---Storage Tank(with mixing function)<o: P>
---continous Vacuum Micro-film Cooker--Multi-function Servo Depositing Machine<o: P>
---sticking Machine---Wrapping Machine<o: P>
Wooden packing
1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing: A. Inside the machine put desiccant b. Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrap c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: According to different products for reinforcement


After-sale service for abroad customers.

1. Free training of macine installion, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installion and adjustment


Why choose us?

· Nearly 20 years experiences in food processing machinery production, established in 1982.

· We are manufacturer and wholesale of dough kneading machine

· We adopt environment-friendly materials and technology

· We mainly sell stock in bulk. OEM orders are welcome

· We can accept the mix order


Contact us

Summer Sun/ Project Manager






Model	GD150	GD300	GD450	GD600
Output(kg/h)	150	300	450	600
Max candy weight	6g	6g	6g	6g
speed	55~65 n/min	55~65 n/min	55~65 n/min	55~65 n/min
Steam consumption Steam pressure	250kg/h, 0.5~0.8MPa	300kg/h, 0.5~0.8MPa	400kg/h, 0.5~0.8MPa	500kg/h, 0.5~0.8MPa
Compressed air consumption Compressed air pressure	0.2m3/min, 0.4~0.6MPa	0.2m3/min, 0.4~0.6MPa	0.25m3/min, 0.4~0.6MPa	0.25m3/min, 0.4~0.6MPa
Electric power needed	18kW/380V	27kW/380V	34kW/380V	42kW/380V
Total length(m)	15	17	17	20
Gross weight	3500 kg	4000 kg	4500 kg	5000 kg
