• Model NO.：GD150
• Production Capacity：100-200kg,H

Basic Info.

Model NO. GD150 Production Capacity 100-200kg/H

Product Description

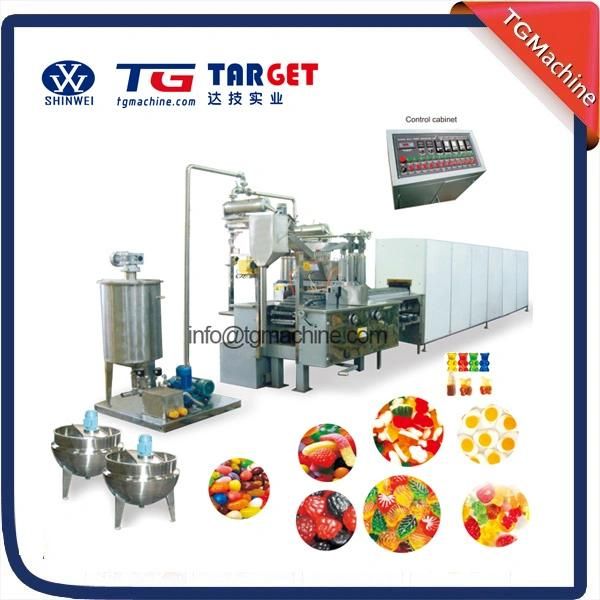

 GD150 Automatic Gummy/Jelly Candy Depositing Line

FEATURES:
This productionline is designed for hemp jelly candy, the new designed compact gummy machine was made for a pharmacy company. we realized this is a new available small commercial machine for new confactionery investors the whole production line at most 5 meters at length, so a room of 6m length is enough and only 100pcs moulds required for this line.

The processing line is an advanced and continuous plant for making different sizes of gelatin-type soft candies. It is an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.

CANDY SAMPLES :

TECHNICAL SPECIFICATIONS:

Model	GD150
Production capacity   ( kg/h)	100-200
Rated depositing times(n/min)	25~55
Electric power needed	5kw/380V
Refrigerator	MT120   15,000 kcal/h
Compressed air consumption Compressed air pressure	0.20m3/min 0.4-0.6 Mpa
Conditions needed for  the cooling system: 1.Room temperature(ºC) 2.Humidity (%)	20-25 55
Length of the whole line   (m)	18
Gross weight           ( Kgs)	Approx.3000

FLOW CHART:
Sugar and carrageenan/ gelatin/ pectin dissolving→  mixing→cooling→ transporting→  depositing →  cooling → de-moulding →packing
