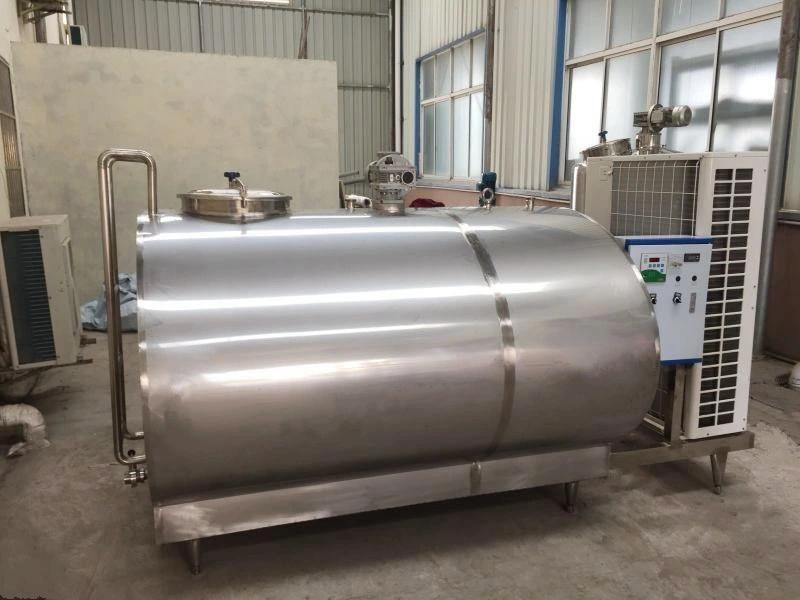

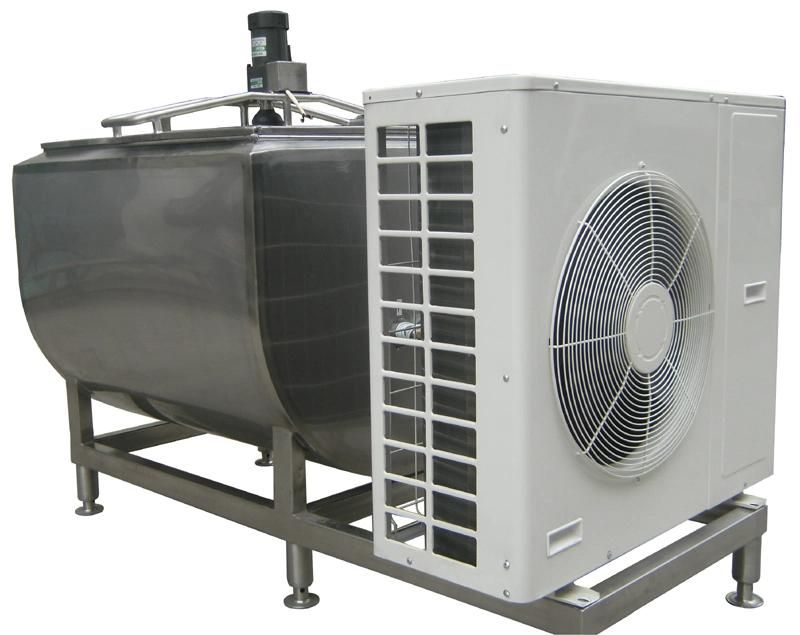

1000 Gallon Milk Cooling Storage Tank for Dairy Milk Industry

Shanghai Kaiquan Machine Valve Co., Ltd.
  • Process：Frozen and Chilled
  • Power Source：Electric
  • Certification：CE, MET, CSA, UL, SA8000, ISO9001
  • Automatic Grade：Automatic
  • Application：Milk, Yogurt
  • Customized：Customized

Base Info

  • Model NO.：KQ
  • Name：1000 Gallon Milk Cooling Storage Tank for Dairy M
  • Material：Sanitary Stainless Steel 304,316
  • Capacity：300litres to 10000litres
  • Motor Brand：Siemens ,ABB,China Brand
  • Refrigerant：R404A , R22
  • Compressor：USA Copeland
  • PU Insulation Wall Thickness：80mm
  • Outside Shape：Vertical and Horinzontal
  • Milk Tank Function：Cooling and Storage Fresh Milk
  • Electricity：Make to Your Order
  • Mixer：Equiped
  • Working Life：More Than 10 Days
  • Delivery：15-20 Days After Get Your Deposit
  • OEM：Yes
  • Packing：Wooden Box
  • Transport Package：Standard
  • Specification：ISO
  • Trademark：KQ
  • Origin：China
  • HS Code：841869909
  • Production Capacity：1000

Description

TypeKQ-1T
Vertical typeKQ-2T
Laying typeKQ-3T
Laying typeKQ-5T
 Laying typeKQ-6T
 Laying typeKQ-8T
 Laying typeKQ-10T
 Laying typeCapacity(L)10002000300050006000800010000LRefrigerating Output(W)9000150002200037000380005500074000Refrigerating  Fluid(R)R22R22R22R22R22R22R22Insulating Property ≤1ºC/4h≤1ºC/4h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/6hAgitator Speed 36r/min36r/min36r/min36r/min36r/min36r/min36r/minPower (Kw)3.85.97.510.5111319.2Voltage380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phasesDimension(mm)1800*1200*15003400*1550*17503600*1700*19003900*2050*21504500*2050*21506300*2050*22508000*2100*2400Weight(Approximately)0.6T 0.75T0.9T1.1T1.3T1.8T2.05T1000 Gallon Milk Cooling Storage Tank for Dairy Milk Industry
1000 Gallon Milk Cooling Storage Tank for Dairy Milk Industry
1000 Gallon Milk Cooling Storage Tank for Dairy Milk Industry
