• Model NO.：GJB Series
• Name：Spare Parts Alvailable 4plunger Two Stage Juice Be
• Material：Stainless Steel 304 ,316
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Certificate：Ce Certificate
• Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• Motor：Customized Electricity Motor
• Voltage：Make to Your Order
• Homogenizersize：Depending The Capacity
• Delivery：Within 10 Days
• Working Life：10 Years

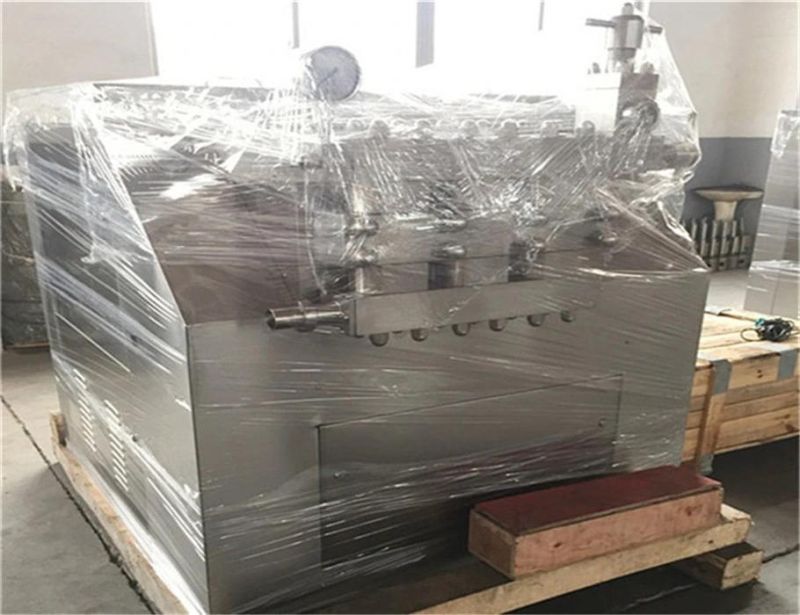

• Packing：Wooden Box
• Stage：Two Stage
• Piston：Four Stage
• Spare Parts：Available
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Series Name Spare Parts Alvailable 4plunger Two Stage Juice Be Material Stainless Steel 304 /316 Capacity 500L/H--10000L/H Pressure 250bar to 700bar Certificate Ce Certificate Appication Milk , Juice, Beverage, Butter, Honey, Cream Motor Customized Electricity Motor Voltage Make to Your Order Homogenizersize Depending The Capacity Delivery Within 10 Days Working Life 10 Years Packing Wooden Box Stage Two Stage Piston Four Stage Spare Parts Available Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

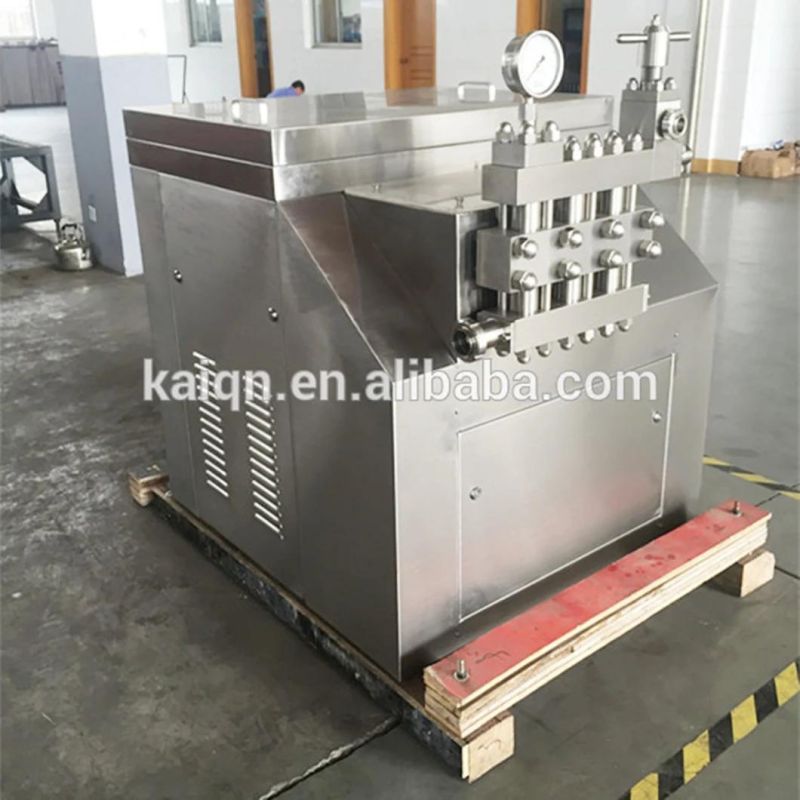

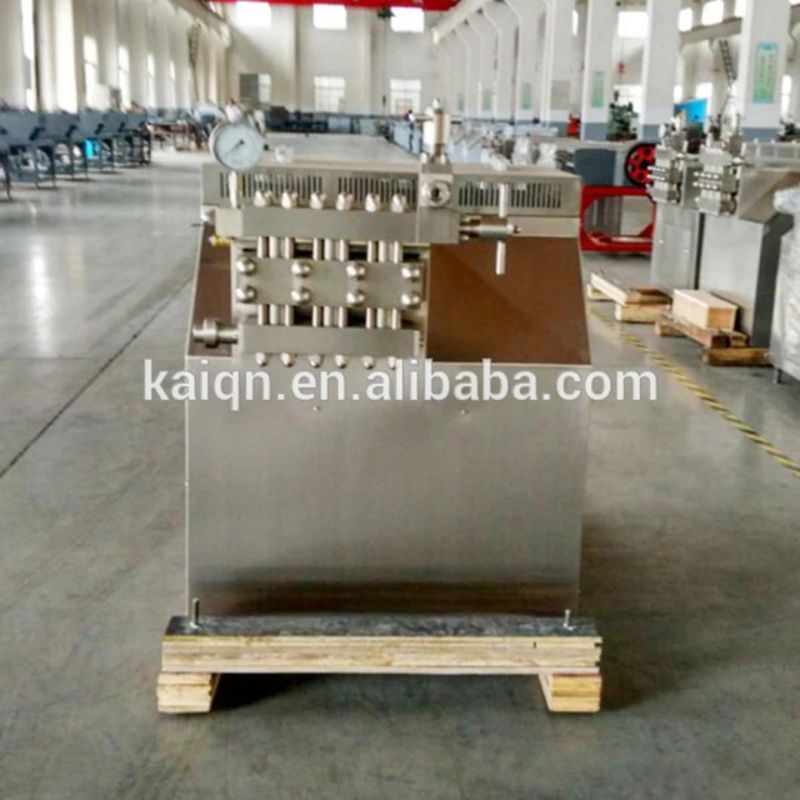

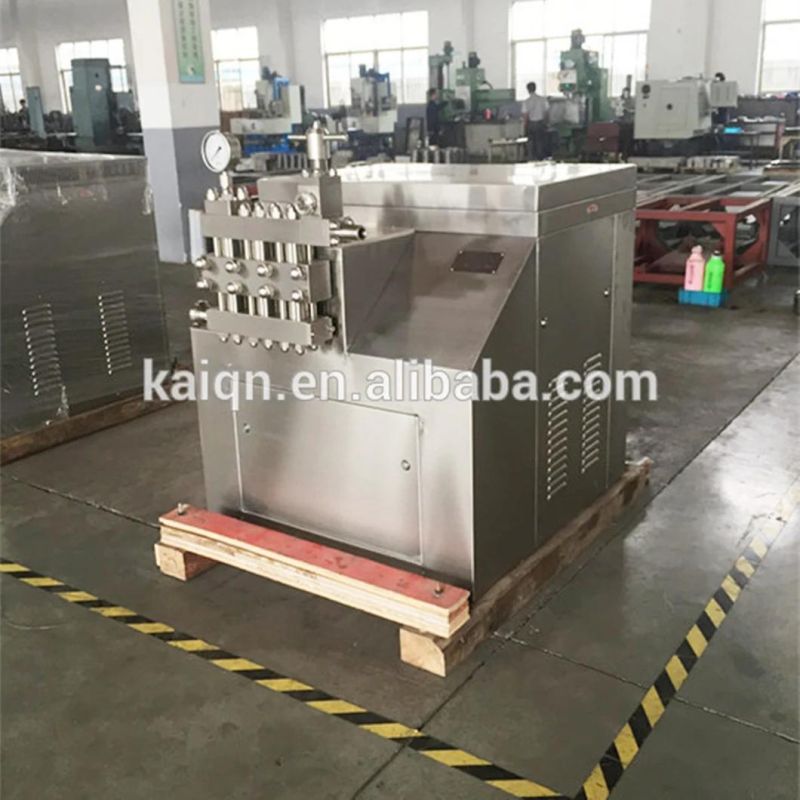

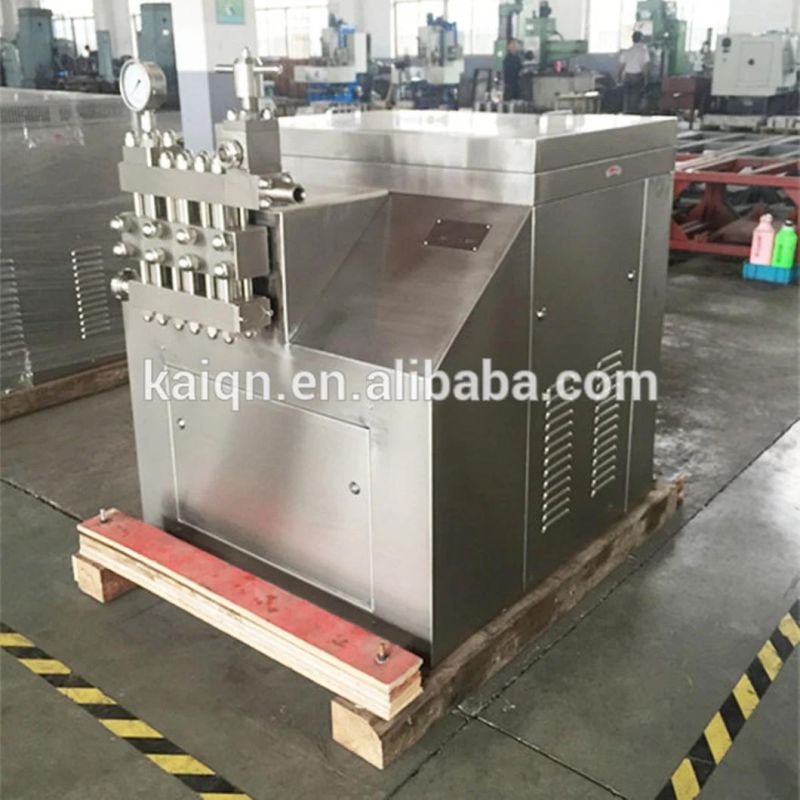

Spare Parts Alvailable 4Plunger Two Stage Juice Beverage Dairy Homogenizer Price

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life

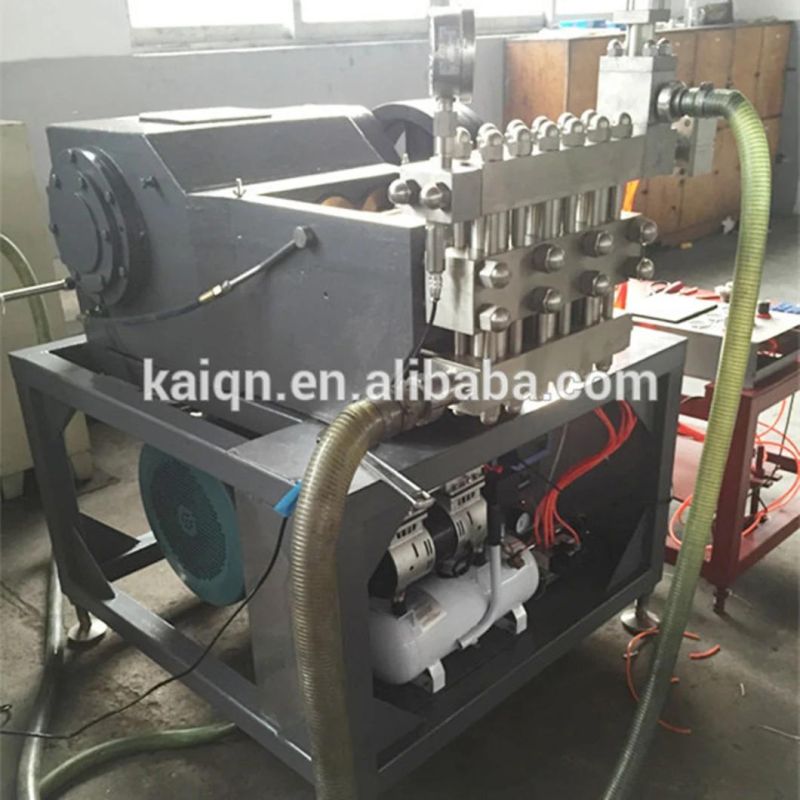

series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )


Spare Parts Alvailable 4Plunger Two Stage Juice Beverage Dairy Homogenizer Price
