• Model NO.：QMJ
• Application：Chocolate
• Customized：Customized
• Main Motor：15kw*2
• Spindle Speed：280-630
• Grinding Medium：400kg
• Process Ability：500
• Cooling Water：2000kg,H
• Input/Output Pump Power：3kw
• Outer Dimension：2320*1070*2385mm
• Transport Package：Standard Wooden Case
• Specification：QMJ500
• Trademark：GUSU
• Origin：Suzhou China
• HS Code：8438200000
• Production Capacity：500kg,H

Basic Info.

Model NO. QMJ Application Chocolate Customized Customized Main Motor 15kw*2 Spindle Speed 280-630 Grinding Medium 400kg Process Ability 500 Cooling Water 2000kg/H Input/Output Pump Power 3kw Outer Dimension 2320*1070*2385mm Transport Package Standard Wooden Case Specification QMJ500 Trademark GUSU Origin Suzhou China HS Code 8438200000 Production Capacity 500kg/H

Product Description

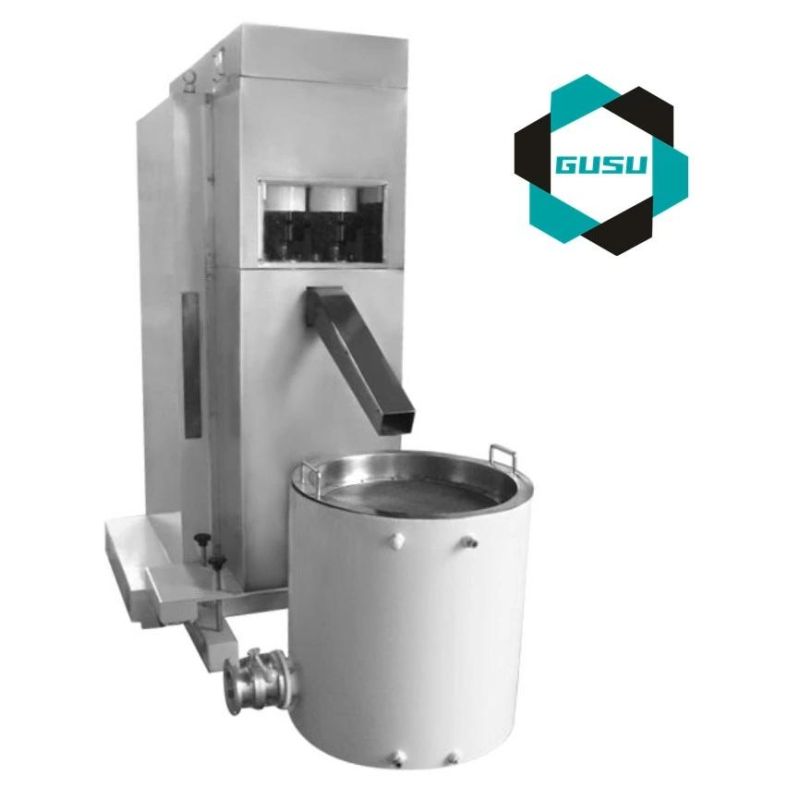

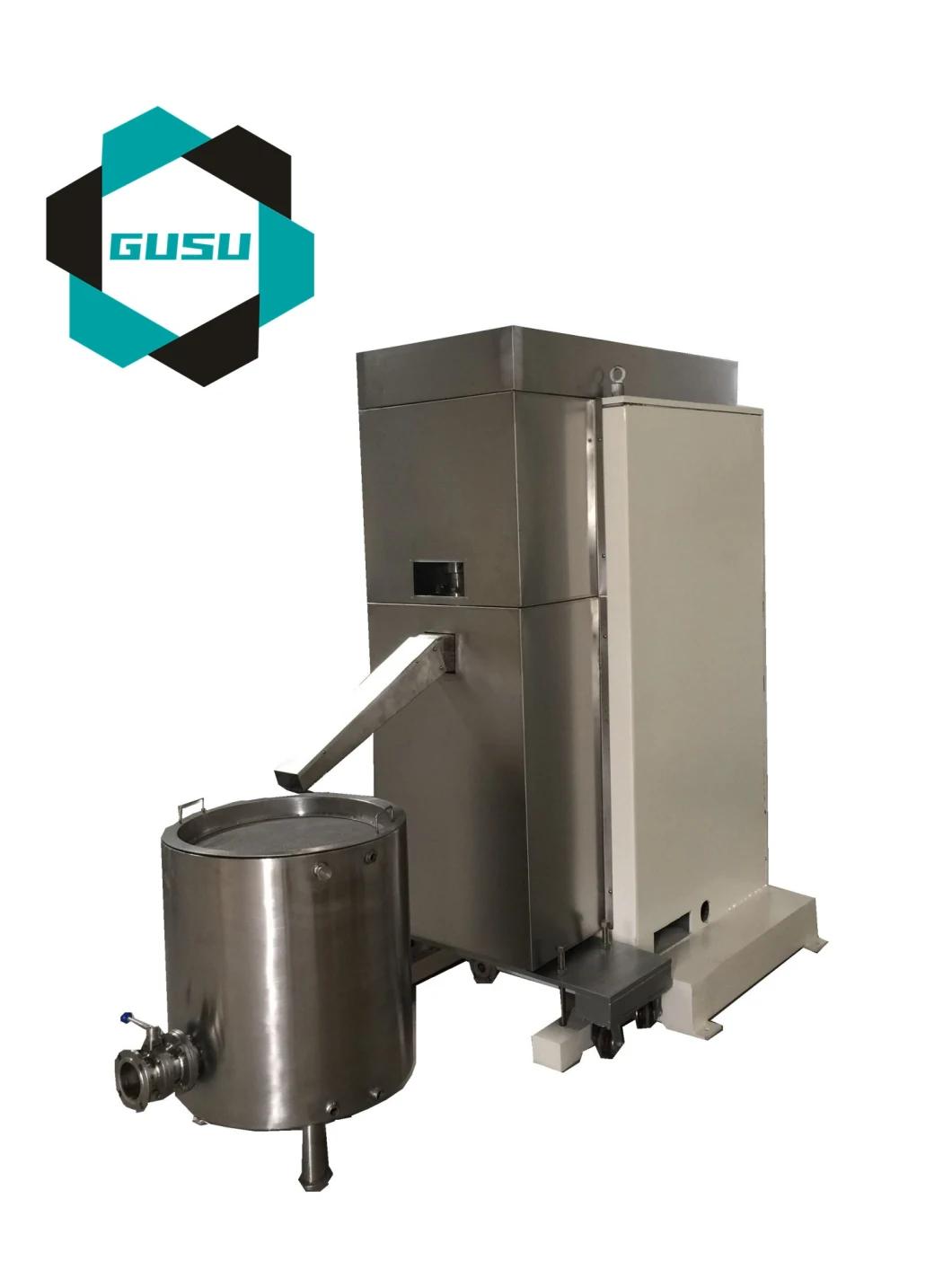

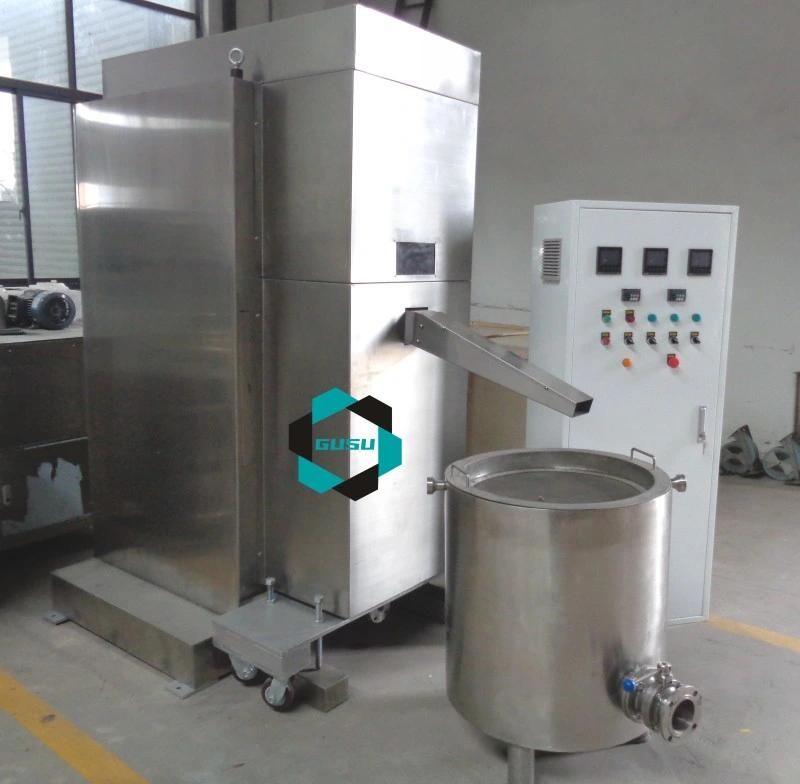

Gusu Ball Mill Machine is the ideal machine for ensuring efficient and uniform refinement of chocolate and similar masses with relatively low fat contents. Though this ball mill machine can be used as a stand-alone refining mill (Set after mixing machine), its features are best put to use when it is combined with our Chocolate Conche Machine, whether installed separately or as part of a comprehensive, compact unicom system.

Technical Parameters


Model	QMJ250	QMJ500
Main Motor(KW)	15KW	30KW
Spindle Speed(r/min)	250-500	280-630
Grinding Medium(kg)	200	400
Avg. Process Ability(kg)	150-250	500kg/h
Cooling Water(kg/h)	1500(15-20ºC)	2000(15-20ºC)
Input/output Pump(KW)	1.5	1.5
Overall Size(mm)	1240*960*1733	2320*1070*2385

 Features

1.Screw shaped double jacket
  Optimal transfer of cooling water temperature

2.Double Shaft
   Higher efficiency

3.Automatic central greasing system
   Smoothly running and reliable

4.Open product outlet
   No over heating or over pressure

5.Stainless steel filter
   Prevents overflowing and keeps balls in place

6.Extension to a higher capacity unicom system

7.Ideal dwelling times and refinement levels for each product

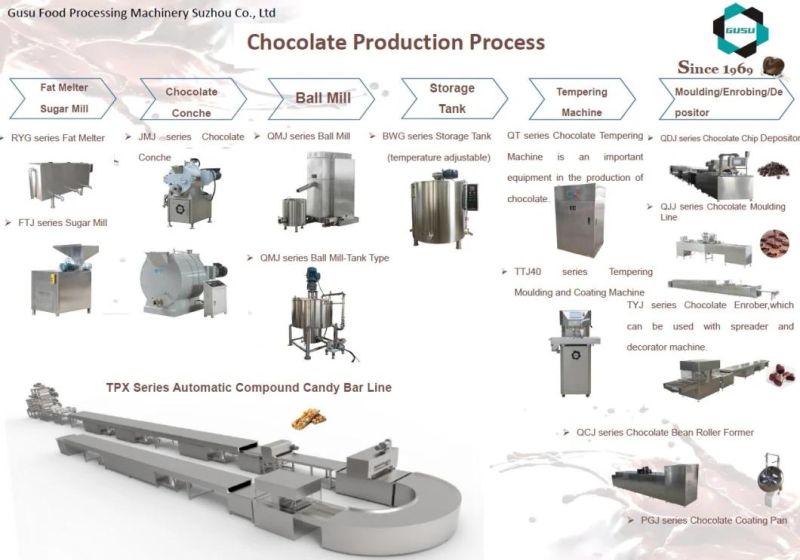

Chocolate Production Process

Company Information

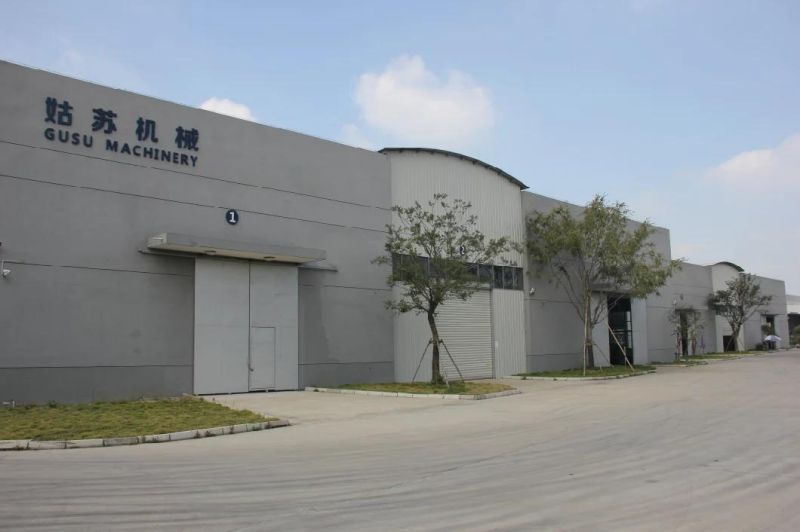

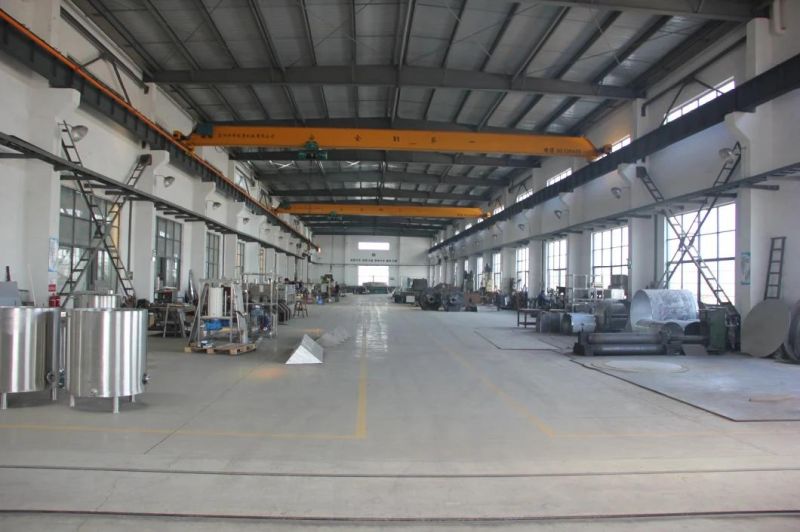

Gusu Food Processing Machinery Suzhou Co.,Ltd., formerly known as Gusu General Works of Food Processing Machinery Suzhou, founded in 1969, is also the first enterprise making complete sets of chocolate machinery in China and honored in this industry as "the Mother of Chocolate in China".  Products are sold all over China and more than 120 countries and regions.
