• Model NO.：TPX400
• Application：Candy, Chocolate, Biscuit, Snack Foods
• Customized：Customized
• Name：Candy Bar Forming Line
• Model：Tpx Series
• Voltage：Customized
• Lead Time：90 Days
• 180°turn Over：Selective
• Cooling Tunnel Temperature：0-10ºC
• Cooling Tunnel Length：17m
• Enrober：Selective
• Design：Provided
• Transport Package：Standard Export Wooden Case
• Specification：Stainless Steel
• Trademark：Gusu Machinery
• Origin：China
• HS Code：8438300000
• Production Capacity：1000 Lines,Year

Basic Info.

Model NO. TPX400 Application Candy, Chocolate, Biscuit, Snack Foods Customized Customized Name Candy Bar Forming Line Model Tpx Series Voltage Customized Lead Time 90 Days 180°turn Over Selective Cooling Tunnel Temperature 0-10ºC Cooling Tunnel Length 17m Enrober Selective Design Provided Transport Package Standard Export Wooden Case Specification Stainless Steel Trademark Gusu Machinery Origin China HS Code 8438300000 Production Capacity 1000 Lines/Year

Product Description

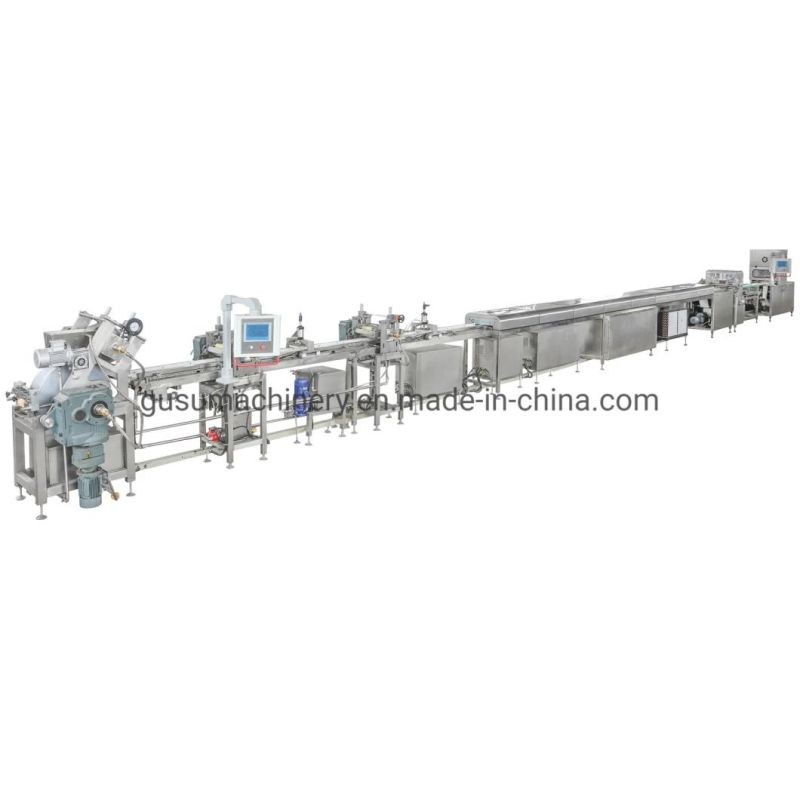

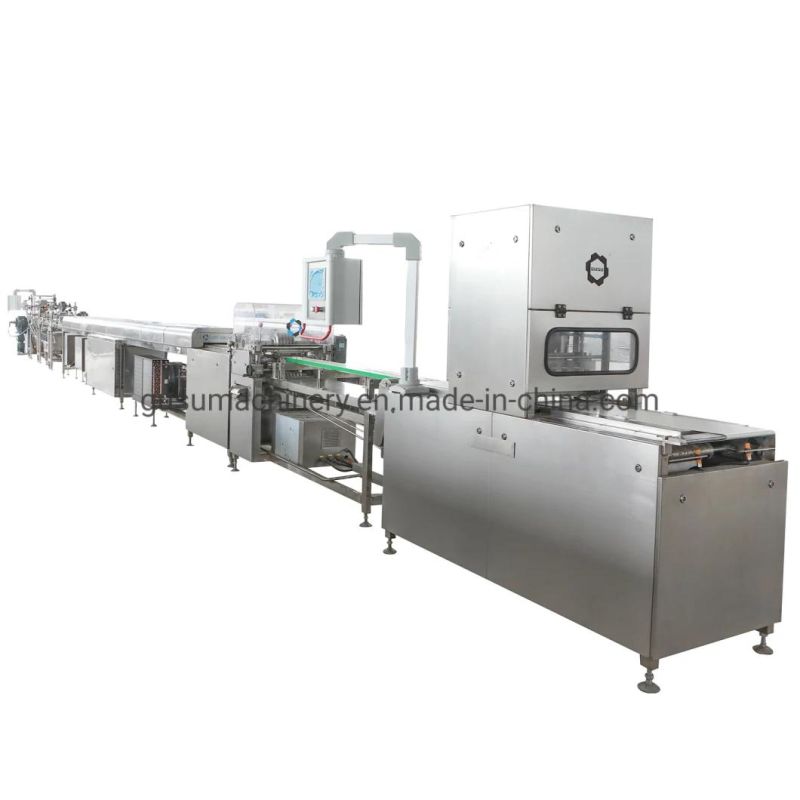

Compound Candy Bar Automatic Forming Line

Product Description
Compound Candy Bar Automatic Forming Line is designed to meet the fast growing market demand for bar products like Snicker, Nougat, Cereal Bar, Grains Bar, Energy Bar, Fruit Bar, Protein Bar, etc.
This line is perfect for both candy bars and bar products intend for diet and nutritional markets. And can also be used to produce everything from nougat or toffee layers, with or without nuts, to granola bars, etc.

Details
Gusu Candy Bar Forming Line is available in four widths: 400, 600 and 800mm. All functions of the bar forming line are regulated by means of one or two PLC control cabinets which is very easy to operate and saves time. Option of incorporating a cooling tunnel for enhanced cooling of the product layers. High quality rollers designed to guarantee both precise forming and optimum cold transfer from the brine tank (Copeland Brand) to the product. The outstanding performance of the cooling equipment and system used for subsequent drying of product layers. Maximum efficiency and reliability and the option of varying cut dimensions, both in terms of length and width.

Technical Parameters

Model	TPX200	TPX400	TPX600	TPX800
Single Roller Width(mm)	200	400	600	800
Compound Roller Width(mm)	200	400	600	800
Flatten Roller Width(mm)	200	400	600	800
Conveyor Belt Width(mm)	200	400	600	800
Cooling Tunnel Effective Width(mm)	200	400	600	800
Longitudinal Cutter	1 Unit	1 Unit	1 Unit	1 Unit
Latitudinal Cutter Width(mm)	300	500	700	850
Linear Speed(m/min)	0-5	0-5	0-5	0-5

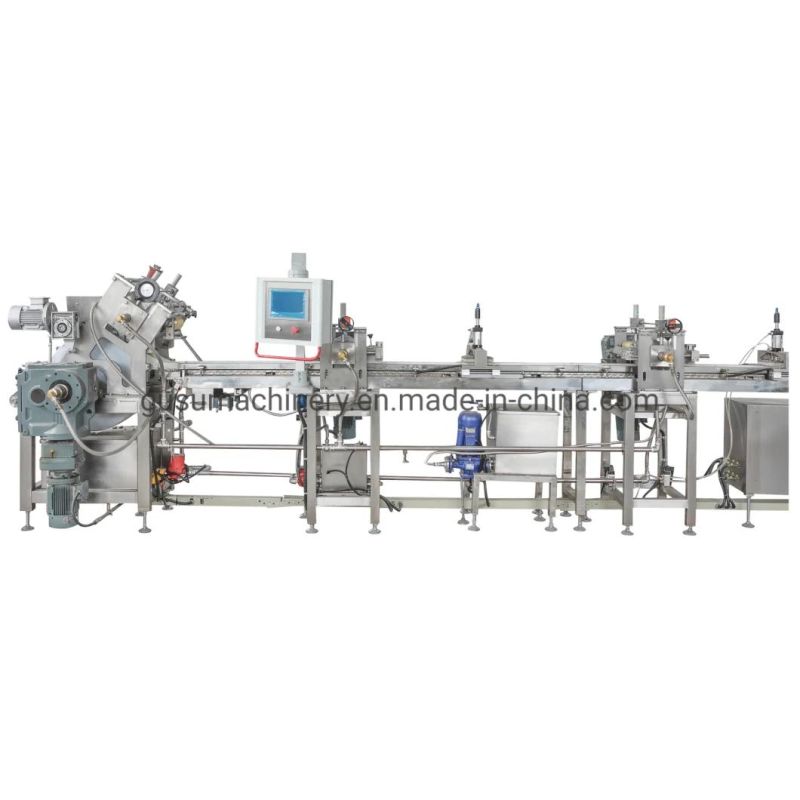

Components

1. Compound Single Group Roller
2. Compound Group Roller
3. Particle Spreader
4. Former Roller
5. Cooling Tunnel
6. Longitudinal Cutter
7. Longitudinal Distribution
8. Latitudinal Cutter
9. Chocolate enrober(Selective)

Advantages
Modular machine that can be adapted for production of any product the market might require: Energy Bar, Cereal Bar, Granola Bar, Protein Bar, Fruit Bar, Nougat, etc.


GUSU roller formers allow:
-direct feed from the cooking plant or the mixer without the need for interim cooling
-cooling and moulding in a single machine
-gentle moulding without pressure, without changing the weight or structure of the mass
-easy changeover between products or changes to the product mass.

Products Pictures







RAQ

1 How to Order
1. Customer send us an inquiry.
2. Confirm machine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to    yourrequest, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better

2 About after-sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .

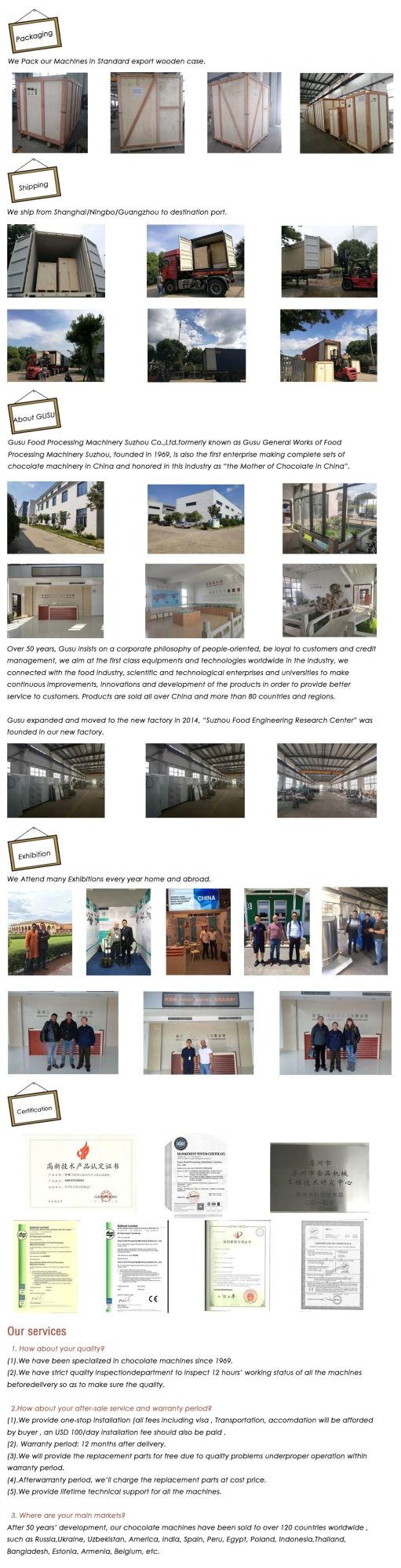

3 About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.

4 About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation.
