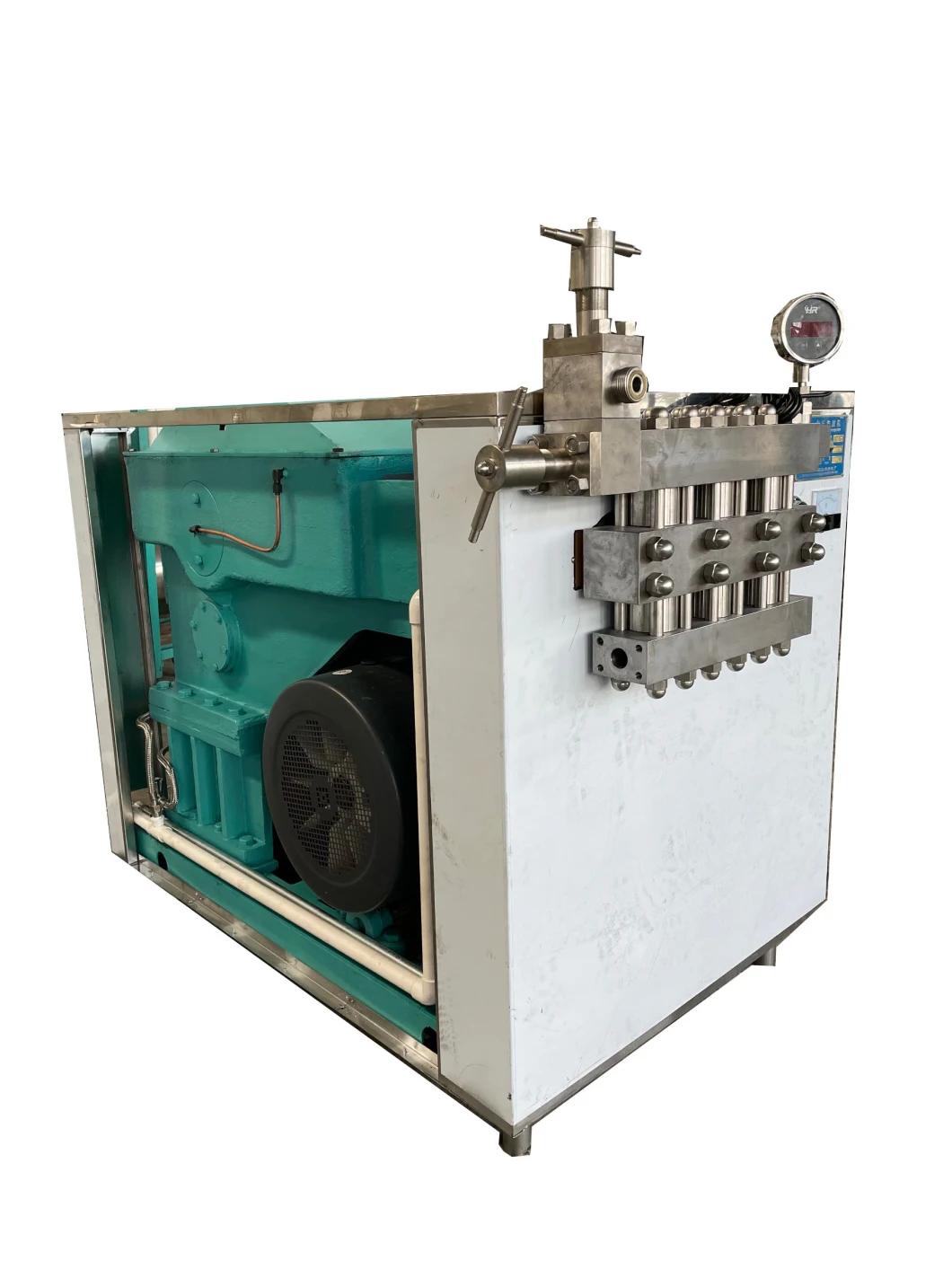

Fruit Juice Beverage Homogenizer
SHANGHAI DONGHUA HIGH PRESSURE HOMOGENIZER FACTORY- After-sales Service：1 Year
- Warranty：1 Year
- Condition：New
- Customized：Customized
- Voltage：380V
- Composition：Stainless Steel
Base Info
- Model NO.：GYB1000-6S
- Processing Material：Natural Ingredients
- Process：Smash
- Name：Homogenizer
- Machine Type：Gyb1000-6s
- Delivery：30d
- Capacity：1000L,H
- Working Pressure：60MPa
- Power：22kw
- Package：Standard Wooden Case
- Transport Package：Export Wooden
- Specification：1300*980*1230MM
- Origin：China
- HS Code：8434200000
Description
Model
Equipment flow
Maximum pressure
Nominal pressure
Motor power
Equipment size
Weight
Voltage
High pressure cell crusher

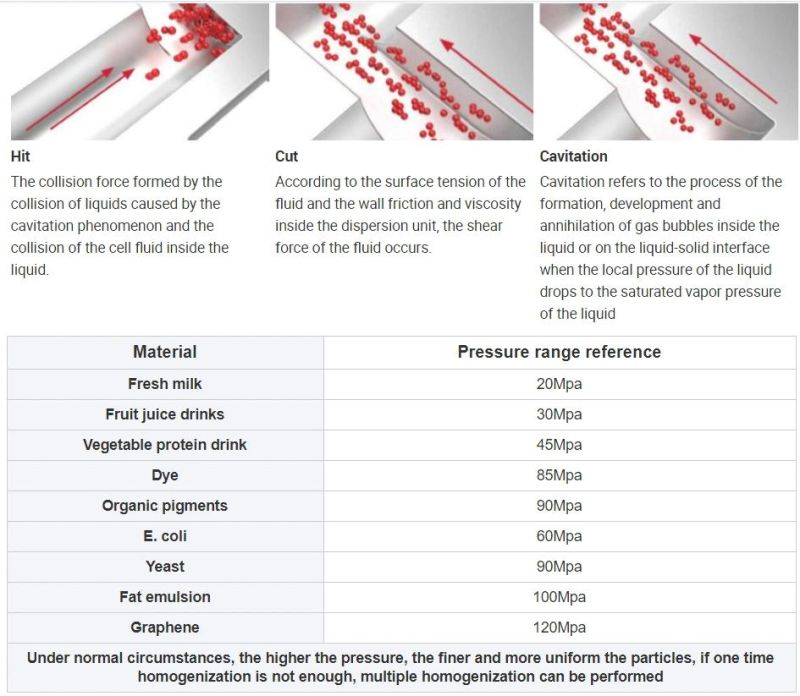

When the high-pressure fluid passes through the pore module under pressurization, the pressure drops sharply to form an ultrasonic flow rate. At this time, particle impact, cavitation and flow dissipation, shear, stress, fluid cell destruction, atomization, and emulsification will occur in the fluid. , Dispersion, liposomes and other phenomena using existing smart mixers, ultrasonics, ball mills, etc., compared to other technologies with higher efficiency of electronic materials, life engineering, pharmaceuticals, food, fiber, coatings, cosmetics and other industries, and even suitable for A wide range of fields.
The high-pressure fluid quickly passes through the narrow gaps of the dispersion unit. At this time, the supersonic flow rate formed by the sharp drop in the pressure in the fluid, the particle collision, cavitation and leakage in the fluid, the shear force acts on the cleaved nano-sized molecules and the fluid composition exists in a completely homogeneous state. .
