• Model NO.：YGB-350
• Application：Candy, Lollipop
• Customized：Customized
• Transport Package：Wooden Case
• Specification：3410*1375*2020(mm)
• Trademark：YH
• Origin：China
• HS Code：8438200000
• Production Capacity：50sets,Year

Basic Info.

Model NO. YGB-350 Application Candy, Lollipop Customized Customized Transport Package Wooden Case Specification 3410*1375*2020(mm) Trademark YH Origin China HS Code 8438200000 Production Capacity 50sets/Year

Product Description

PARAMETER:
CAPACITY:     350PCS/MIN
MOTOR POWER:  3KW 380V
HOT SEAL ELECTRIC HEATER:                    1.8KW 220V
STRIP PULLING INSULATION ELECTRIC HEATER:   0.4KW 220V
OVERALL DIMENSIONS:                          3410×1375×2020 MM
WRAPPING REQUIREMENT: WIDTH B=  MM (BASED ON THE        SPECIFICATION OF THE CANDY).
COMPOSITE WRAPPING PAPER THICKNESS:        0.04MM
WRAPPING MATERIAL: OPP PVC OPP/CPP PT/PE AND SO ON (SUIT FOR LOLLIPOP HEAT SEALING)
WEIGHT:                                        2000KG

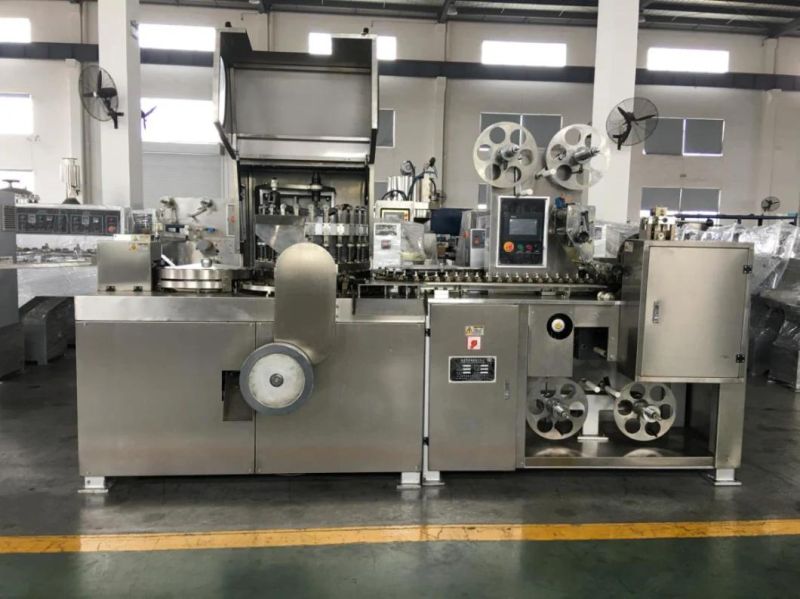

THIS MACHINE IS A COMBINATION OF FORMING AND PACKING SYSTEM.
WRAPPING PAPER WITH MARK TRACK,MICRO-COMPUTER CONTROL,CREDIBILITY.
IT IS MADE UP OF SUGAR INLET DEVICE, TURNING AROUND CUTTER DEVICE, SUGAR FEEDING PLATE DEVICE, STICK TRANSMITTING DEVICE, FORMING AND TURNING AROUND MOULD DEVICE, SUGAR CLAMPING TRANSMIT CHAIN, HOT SEAL PACKING WHEEL, CUTTING DEVICE, DRIVE MECHANISM, AND ELECTRIC BOX.
