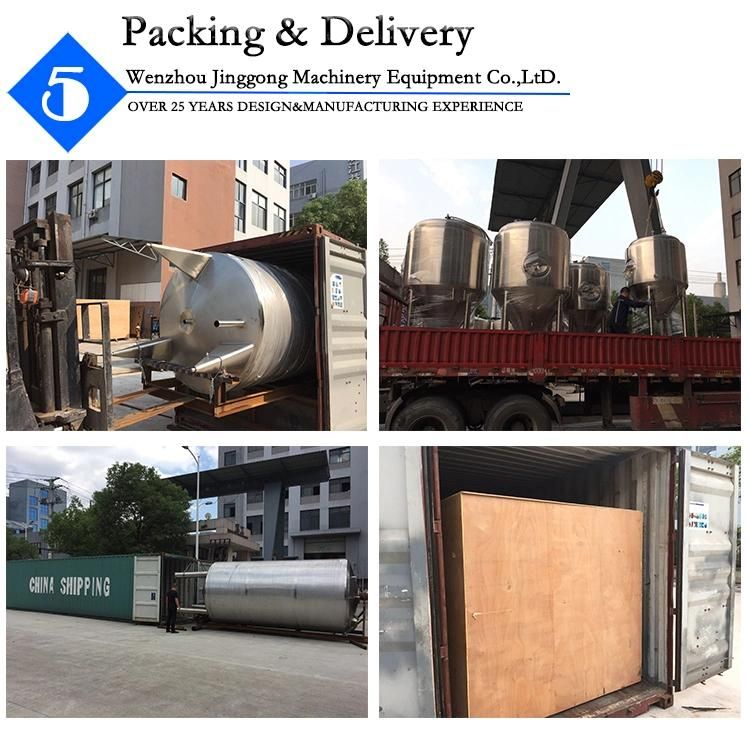

• Transport Package：LCL or FCL
• Specification：100L~5000L
• Trademark：Jinggong
• Origin：Zhejiang, China
• HS Code：8438900000
• Production Capacity：20 Sets,Year

Basic Info.

Transport Package LCL or FCL Specification 100L~5000L Trademark Jinggong Origin Zhejiang, China HS Code 8438900000 Production Capacity 20 Sets/Year

Product Description

Movable CIP cart with pump CIP washing unit

System introduction:
★ The complete CIP design for pure draft beer is divided into 4 parts: pre-filter cooling CIP, pre-filter heating CIP, post-filter cooling CIP, filtered hot CIP, and interception of cross-contamination.
★ This system not only considers the cleaning of tanks and pipelines but also the cleaning of the filtration system; the CIP tank itself can be self-cleaning.
★ The system can be manual, semi-automatic and fully automatic control: including temperature, pressure, liquid level, concentration, flow control.
★ The process includes: hot water washing, hot caustic washing, cold caustic washing, pickling, disinfecting liquid washing, water washing, deoxygenated water washing, brewing water washing and so on.
★ Major equipment: hot water tanks, hot caustic tanks, cold caustic tanks, acid tanks, disinfectant tanks, recovery tanks, brewing tanks, CIP transfer pumps, heaters, automatic acid-alkali addition pumps, conductivity meters, ultraviolet disinfection Etc.

Features:

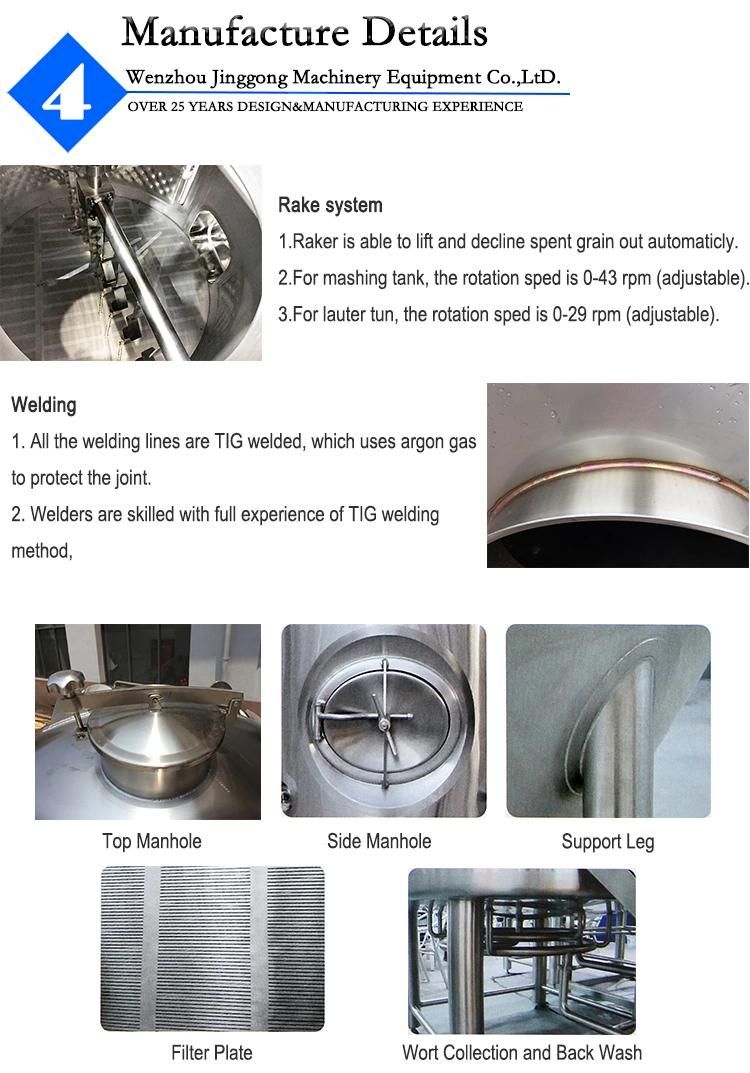

★ The design layout is reasonable, the equipments are made of imported 2B stainless steel material, the internal surface polishing is ≤ 0.4μm, the external surface is ≤ 0.8μm, and the overall appearance of the equipment is generous;
★ Recycle alkaline water and steam, save energy, meet the cleaning process requirements of various sections, and increase efficiency;
★ The operator only needs to configure the concentrated alkali solution and convert the CIP feed distribution plate for each shift; other tasks can be automatically controlled, manual monitoring is performed, and a touch monitor is provided to display all the system parameters of the intuitive CIP cleaning station and can be Cleaning process to facilitate the modification of parameters;
★ Automatically monitor the concentration of the washing liquid in the tank and automatically add the concentrated washing liquid;
★ Automatic monitoring of tank washing level, automatic water supplement;
★ automatic detection of reflux concentration, automatic selection of reflux or emissions;
★ Automatic control of the temperature of the liquid in the outlet, and the automatic control of the liquid material in the outlet.
