• Model NO.：Tqlz150
• Condition：New
• Customized：Customized
• Output：10-15t
• Power(Kw)：0.75*2
• Air Volume(M^3/H)：6000
• Net Weighe(Kg)：1100
• Transport Package：Wooden Box Package
• Specification：3100*2250*1700
• Trademark：pinyang
• Origin：Hubei China
• HS Code：8437000000
• Production Capacity：10-15t,H

Basic Info.

Model NO. Tqlz150 Condition New Customized Customized Output 10-15t Power(Kw) 0.75*2 Air Volume(M^3/H) 6000 Net Weighe(Kg) 1100 Transport Package Wooden Box Package Specification 3100*2250*1700 Trademark pinyang Origin Hubei China HS Code 8437000000 Production Capacity 10-15t/H

Product Description

Specification

TQLZ series vibration cleaning sieve( also called screening machine) is applicable to rice, flour, feed, grease, food and chemical factory, set in the cleaning process, the raw material used to remove the large, medium and small and light impurity; and through the equipped with different specifications of the screen hole, the material according to the partical size to classification, get different partical size products.

It can remove large, middle, small and light impurities from grain simultaneously; Plane rotary movement has higher efficiency; Smooth operation and long service life; Multiple sizes and specifications to meet different requirements, Suitable for assorted grains such as rice, wheat, maize and bean etc.

This machine has high efficiency in removing impurity, stable performance, running balance, low energy consumption, low noise, goof seal performance, install and convenient maintenance.


Features:

Improved separation;
Increases sieve capacity;
Low maintenance requirement;
Easy sieve removal; Easliy removeable inspection covers;
Simple and precise motor alignment.
Compact constrution, low power consumption, well seal low noise.Stable movement, well cleaning effect, higher production efficiency.Driven by vibrating cover can be adjustable according to the requirement.

Details



Modle	Output(T/H)	Power(KW)	Air Volume(M^3/H)	Net Weight(KG)	Dimension(L*W*H/mm)
TQLZ100	6-12T	0.37*2	4000	700	3100*1500*1700
TQLZ125	8-13T	0.37*2	5000	800	3100*1750*1700
TQLZ150	10-15T	0.75*2	6000	1100	3100*2250*1700

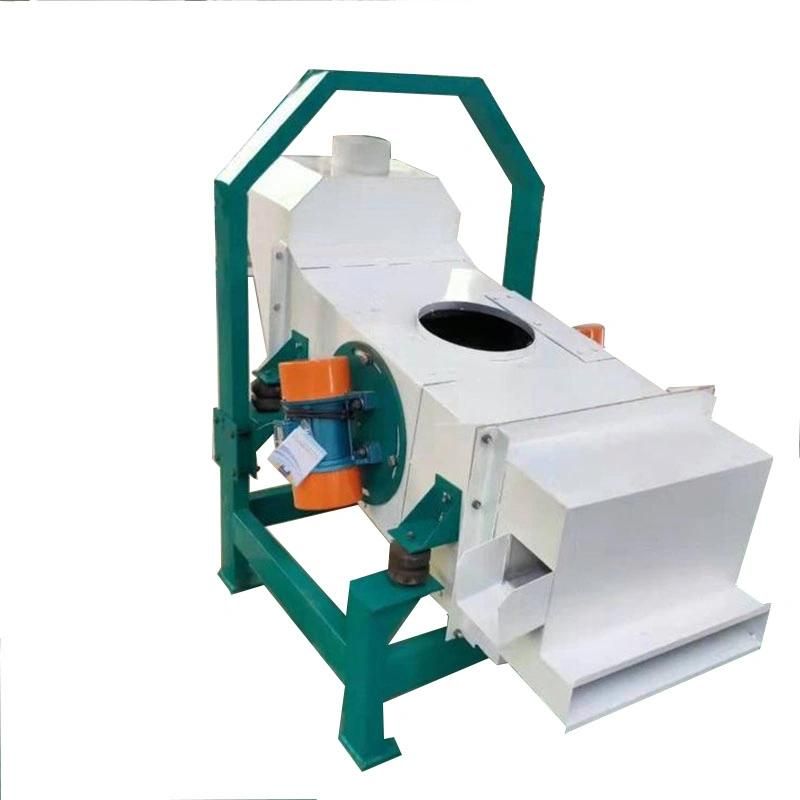

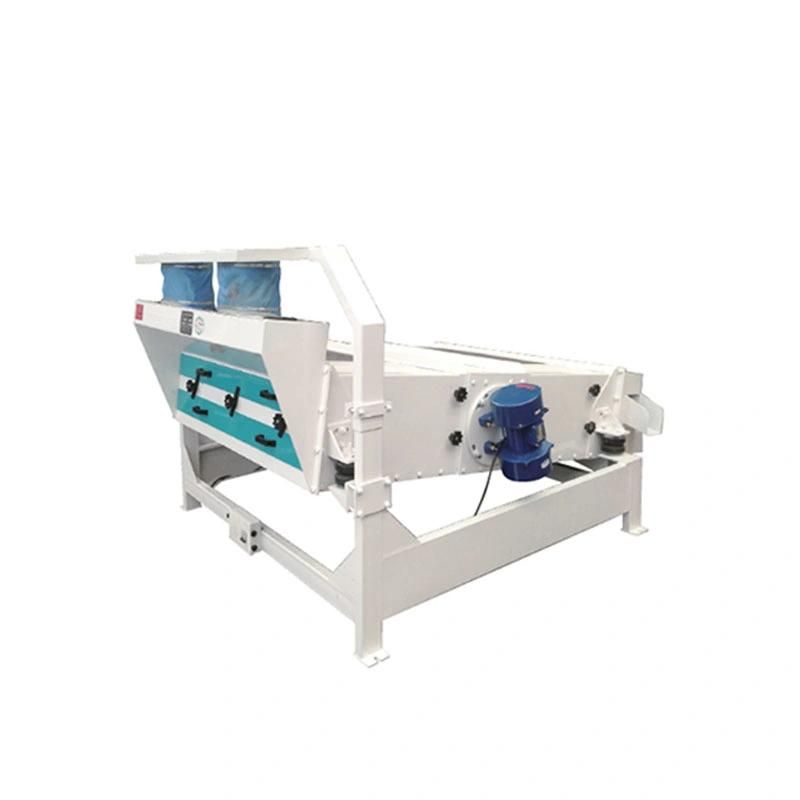

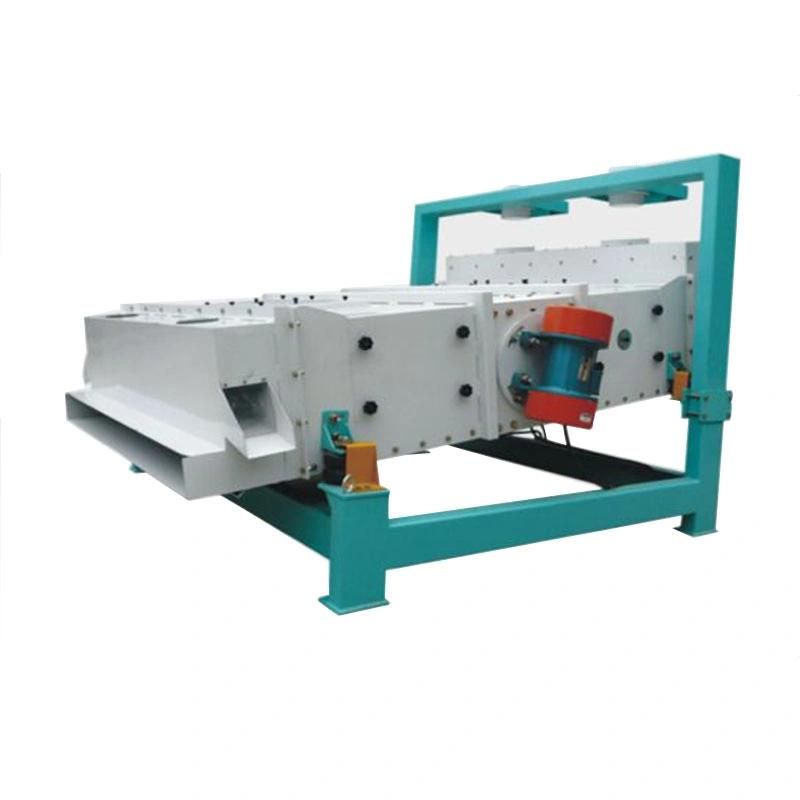

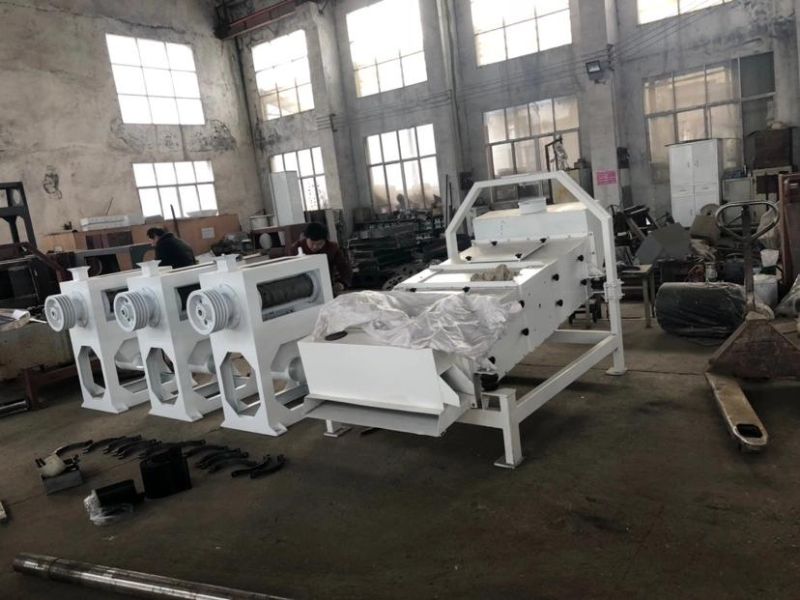

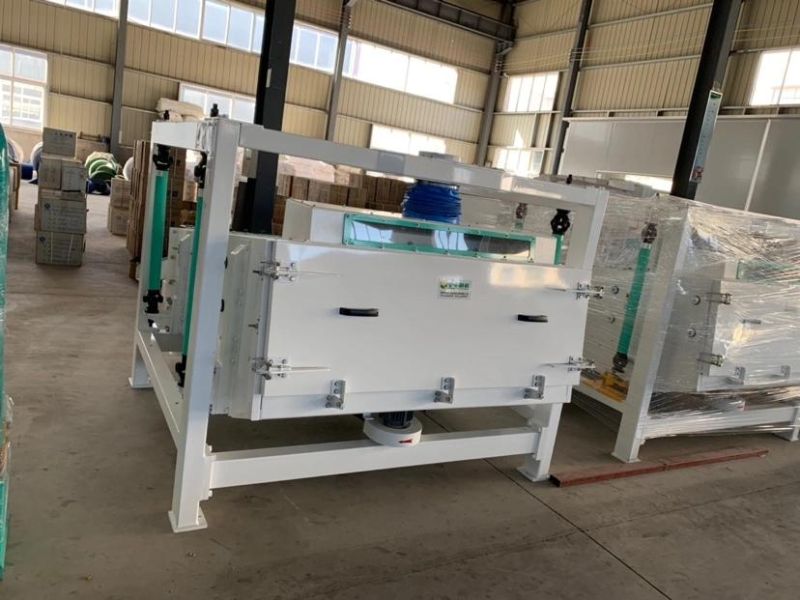

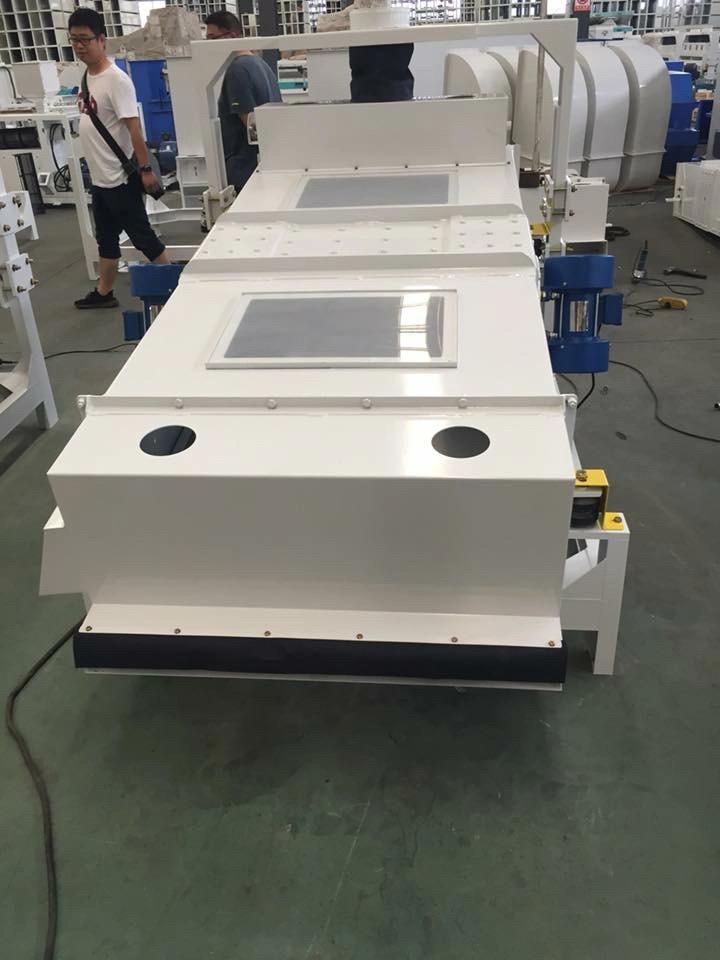

Photos
