• Model NO.：LFD-1
• Customized：Non-Customized
• Product Name：Household Freeze Dryer
• Application：Food, Medical, Laboratory
• Working Principle：Freezing, Lowering Pressure
• Pretreat Dealing：Pre-Freezing
• Drying Time：Around 20-24hours
• Capacity：1-2kg,Batch
• Warranty：12months
• Delivery Time：in Stock
• Certificate：Ce; ISO
• Vacuum Pump Included：Yes
• Nos. of Trays：3PCS
• Lowest Temperature：-35c
• Freeze Drying Area：0.12m|2
• The Minimum Order Quantity：1set
• Gross Weight：100kg
• Transport Package：Plywood Case Package
• Specification：0.12m|2
• Trademark：LABOAO
• Origin：China
• HS Code：8418402900
• Production Capacity：2000set,Month

Basic Info.

Model NO. LFD-1 Customized Non-Customized Product Name Household Freeze Dryer Application Food, Medical, Laboratory Working Principle Freezing, Lowering Pressure Pretreat Dealing Pre-Freezing Drying Time Around 20-24hours Capacity 1-2kg/Batch Warranty 12months Delivery Time in Stock Certificate Ce; ISO Vacuum Pump Included Yes Nos. of Trays 3PCS Lowest Temperature -35c Freeze Drying Area 0.12m|2 The Minimum Order Quantity 1set Gross Weight 100kg Transport Package Plywood Case Package Specification 0.12m|2 Trademark LABOAO Origin China HS Code 8418402900 Production Capacity 2000set/Month

Product Description

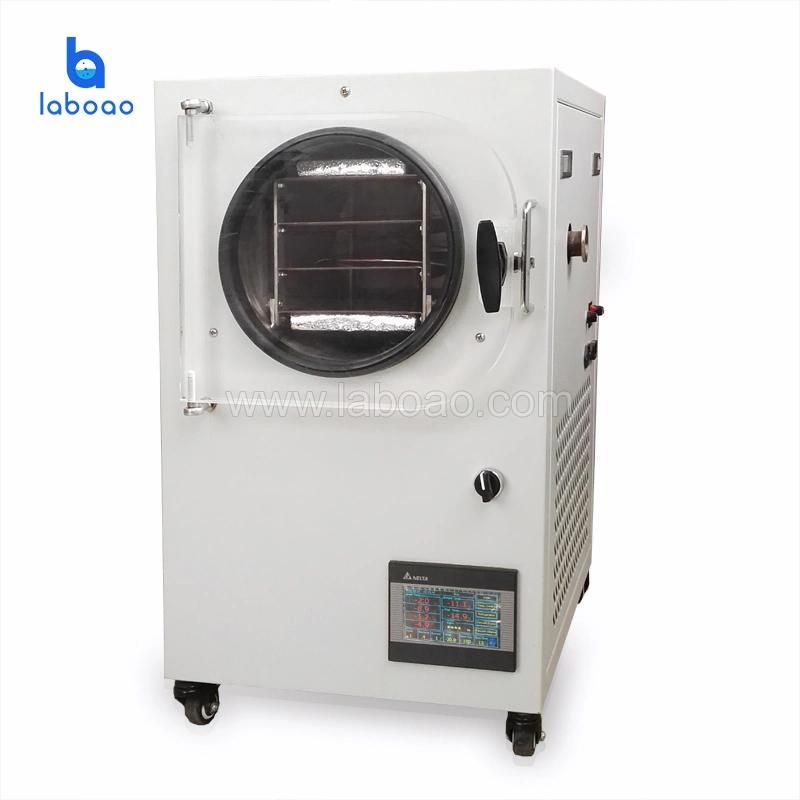

Food Low Temperature Dehydrator  Household Meat  Freeze Dryer
Lyophilization or freeze drying is a process in which water is removed from a product after it is frozen and placed under a vacuum, allowing the ice to change directly from solid to vapor without passing through a liquid phase. The process consists of three separate, unique, and interdependent processes; freezing, primary drying (sublimation), and secondary drying (desorption).

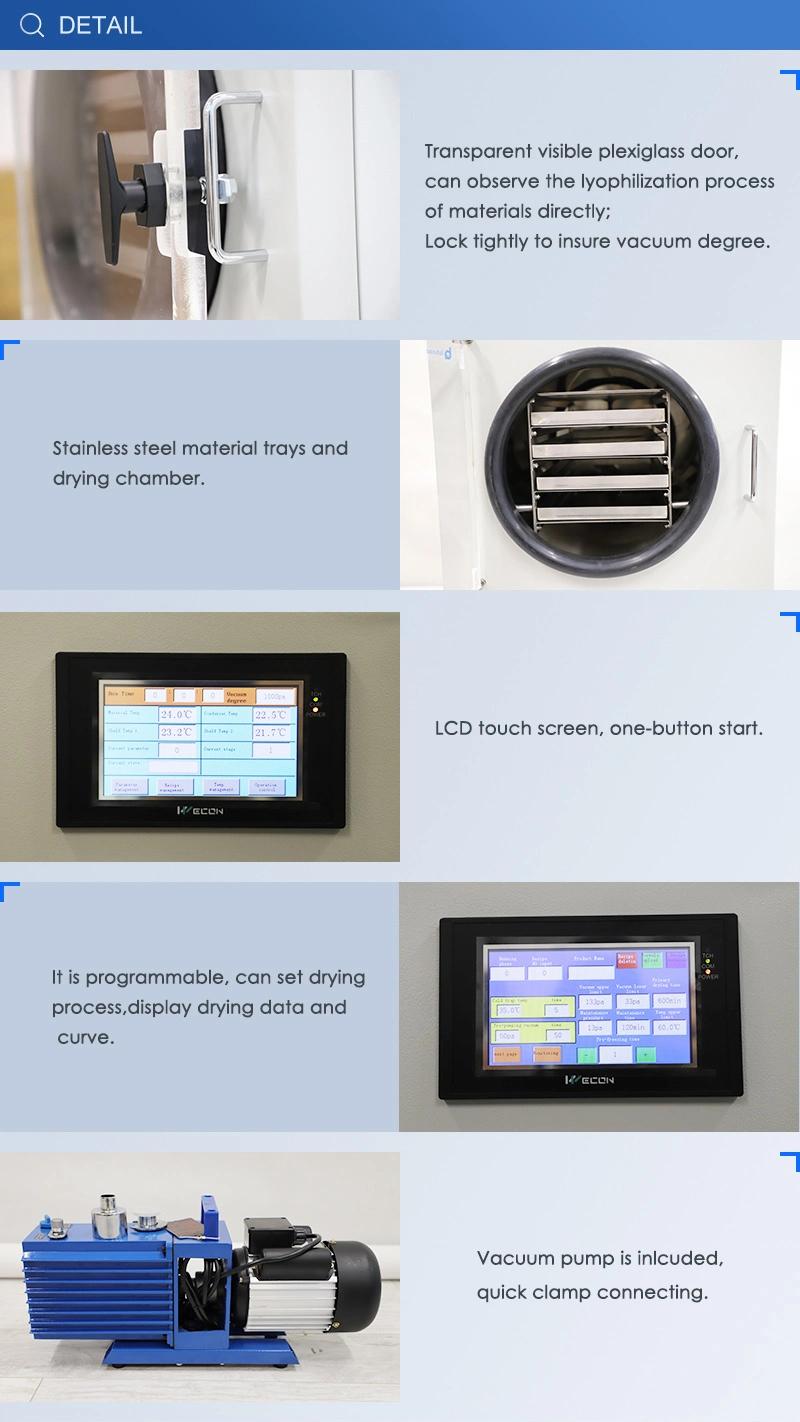

Feature:

1. Perfect appearance, compact size;
2. Touch screen operation, one key to start, and automatic freeze drying process, easy and convenient;3. Key components with imported brands, small noise, large capacity, high quality and high performance;
4. Advanced system, with low operating current and low energy consumption;
5. 304 stainless steel food tray and inside liner, safety and easy clean;
6. Transparent organic glass door, the direct observation of food processing




Specification:


Model	LFD-1
Overall size (WDH)	400x500x700mm
Energy consumption	750W
Power supply	220V 50HZ
Food tray area	0.12m|2
Single batch of food	1~2kg
Tray size	150*280mm
No. of tray	3pcs
Space between tray	40mm
Gross weight	100kg
Condenser temperature	≤-35°C
Drying temperature	-30°C ~+60°C
Vacuum	<15Pa

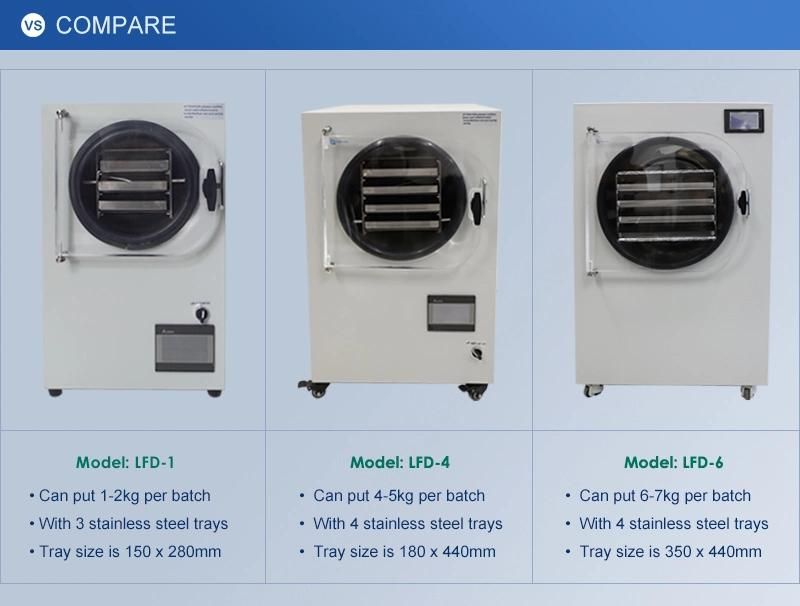

1. How many types do you have?

For laboratory used, normal, top-press, manifolf, manifold top-press and T type are available, total 5 types.
For home used, we have 1-2kg/batch and 4-6kg/batch.

2. How to choose the suitable model?

Firstly, what is your sample shape, bulk or in vials?
If bulk, choose normal type. If in vials, choose top-press type. If sample is various, choose manifold.

Secondly, tell us how many kilogram of your sample, then we will recommend the suitable model.

3. Does it including vacuum pump?

Yes.

4. What is your warranty?

12months.
