• Model NO.：LFD-1
• Customized：Customized
• Product Name：Home Freeze Dryer
• Ueage：Home and Laboratory
• Application Material：Medical,Laboratory,Biological
• Working Principle：Freezing, Sublimation
• Pretreat Dealing：Pre-Freezing
• Drying Time：Around 20-24hours
• Various：Narmal Type Freeze Dryer
• Capacity：1-2kg,Batch
• Freeze Drying Area：0.12m2
• Host Weight：41kg
• Core Selling Point：Automatic
• Certification：Ce;ISO
• Warranty Period：1year
• Model：Lfd-1
• Place Origin：China
• Transport Package：Standard Export Case
• Specification：1-2kg,batch
• Trademark：LABOAO
• Origin：China
• HS Code：8419399090
• Production Capacity：2000set,Month

Basic Info.

Model NO. LFD-1 Customized Customized Product Name Home Freeze Dryer Ueage Home and Laboratory Application Material Medical,Laboratory,,Biological Working Principle Freezing, Sublimation Pretreat Dealing Pre-Freezing Drying Time Around 20-24hours Various Narmal Type Freeze Dryer Capacity 1-2kg/Batch Freeze Drying Area 0.12m2 Host Weight 41kg Core Selling Point Automatic Certification Ce;ISO Warranty Period 1year Model Lfd-1 Place Origin China Transport Package Standard Export Case Specification 1-2kg/batch Trademark LABOAO Origin China HS Code 8419399090 Production Capacity 2000set/Month

Product Description

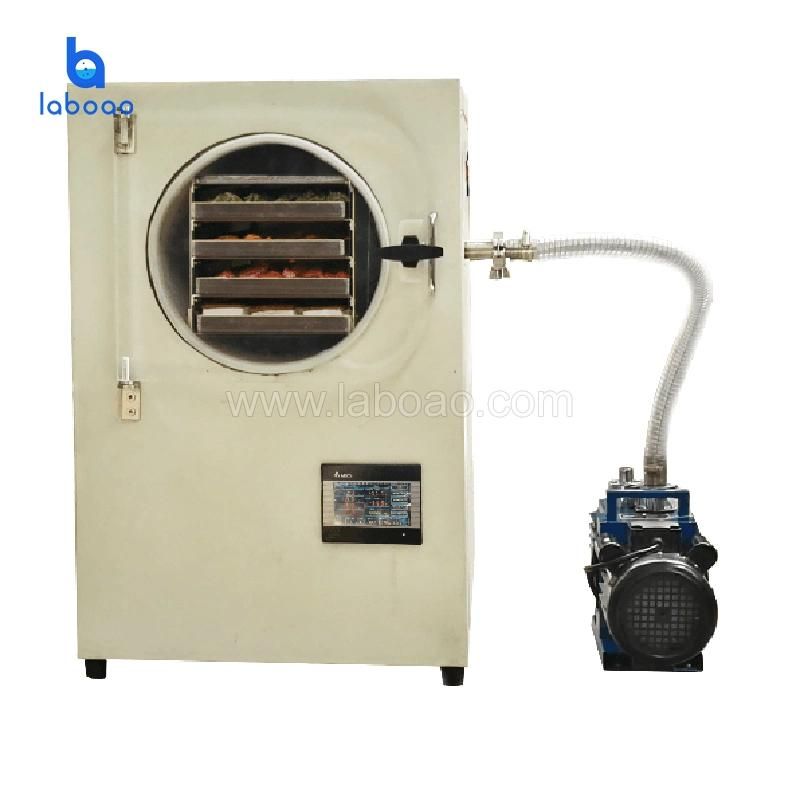

Household Freeze Dryer Food And Fruit Freeze Dryer Lyophilizer
    Lyophilization or freeze drying is a process in which water is removed from a product after it is frozen and placed under a vacuum, allowing the ice to change directly from solid to vapor without passing through a liquid phase. The process consists of three separate, unique, and interdependent processes; freezing, primary drying (sublimation), and secondary drying (desorption).

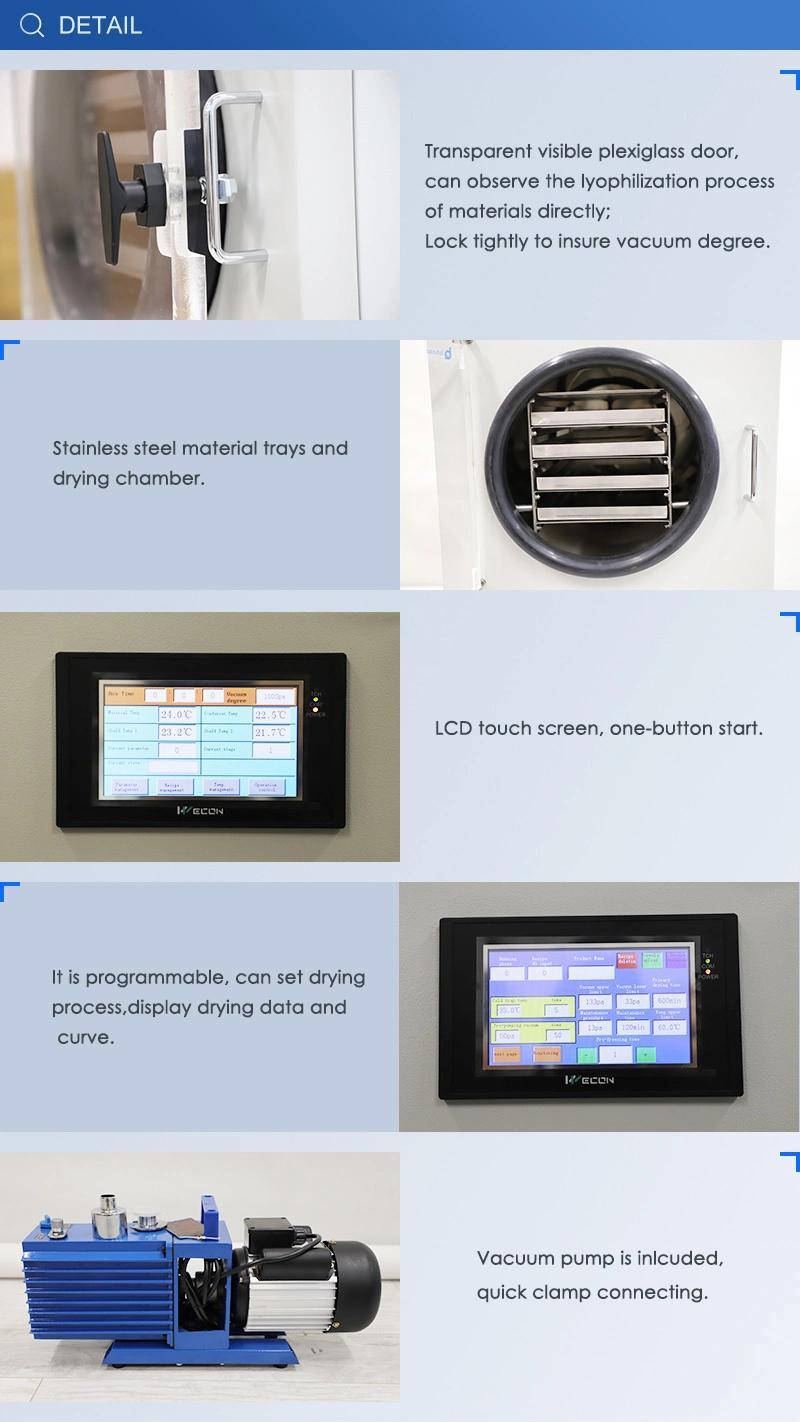

Feature:
1. Perfect appearance, compact size;
2. Touch screen operation, one key to start, and automatic freeze drying process, easy and convenient;
3. Key components with imported brands, small noise, large capacity, high quality and high performance;
4. Advanced system, with low operating current and low energy consumption;
5. 304 stainless steel food tray and inside liner, safety and easy clean;
6. Transparent organic glass door, the direct observation of food processing



Specification:

Model	LFD-1
Overall size WxDxH	400x500x700mm
Energy consumption	750W
Power supply	220V 50HZ
Food tray area	0.12m2
Single batch of food	1~2kg
Tray size	150*280mm
No. of tray	3pcs
Space between tray	40mm
Gross weight	100kg
Condenser temperature	≤-35°C
Drying temperature	-30°C ~+60°C
Vacuum	<15Pa
