• Model NO.：LFD-4
• Customized：Customized
• Product Name：Vacuum Freeze Dryer
• Usage：Freeze Drying for Laboratory Power
• Application Material：Medical,Laboratory,Biological
• Working Principle：Freezing, Sublimation
• Pretreat Dealing：Pre-Freezing
• Drying Time：Around 20-24hours
• Various：Normal Type Freeze Dryer
• Capacity：4-6kg,Batch
• Freeze Drying Area：0.4m2
• Host Weight：100kg
• Core Selling Point：Automatic
• Certification：Ce;ISO
• Place of Origin：China
• Warranty Period：1year
• Model：Lfd-4
• Transport Package：Standard Export Case
• Specification：4-6kg,batch
• Trademark：LABOAO
• Origin：China
• HS Code：8419399090
• Production Capacity：2000set,Month

Basic Info.

Model NO. LFD-4 Customized Customized Product Name Vacuum Freeze Dryer Usage Freeze Drying for Laboratory Power Application Material Medical,Laboratory,,Biological Working Principle Freezing, Sublimation Pretreat Dealing Pre-Freezing Drying Time Around 20-24hours Various Normal Type Freeze Dryer Capacity 4-6kg/Batch Freeze Drying Area 0.4m2 Host Weight 100kg Core Selling Point Automatic Certification Ce;ISO Place of Origin China Warranty Period 1year Model Lfd-4 Transport Package Standard Export Case Specification 4-6kg/batch Trademark LABOAO Origin China HS Code 8419399090 Production Capacity 2000set/Month

Product Description

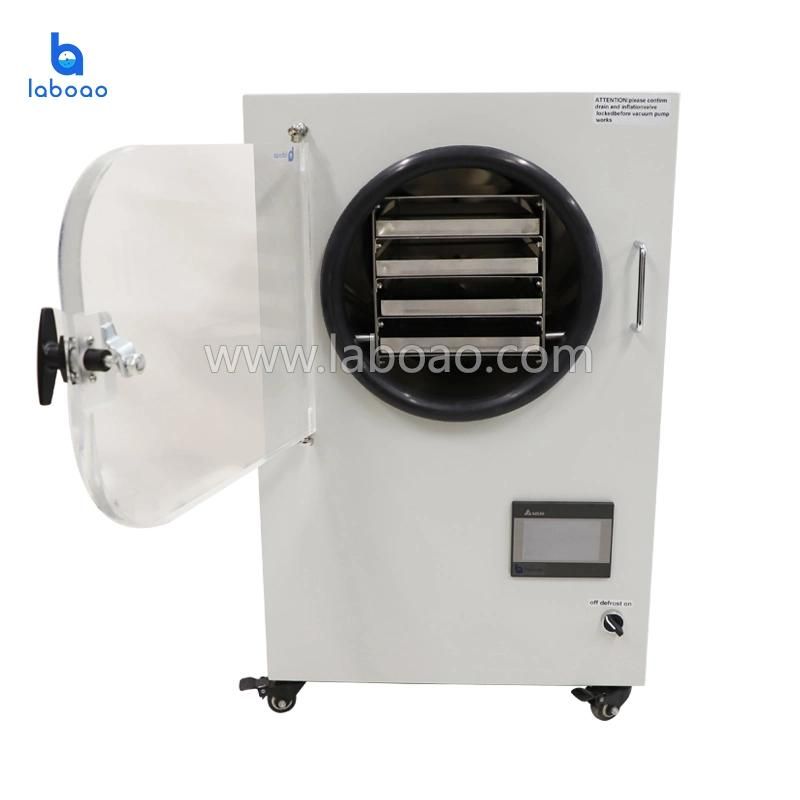

Home Vacuum Freeze Dryer With A Maximum Capacity Of 6kg
    Lyophilization or freeze drying is a process in which water is removed from a product after it is frozen and placed under a vacuum, allowing the ice to change directly from solid to vapor without passing through a liquid phase. The process consists of three separate, unique, and interdependent processes; freezing, primary drying (sublimation), and secondary drying (desorption).

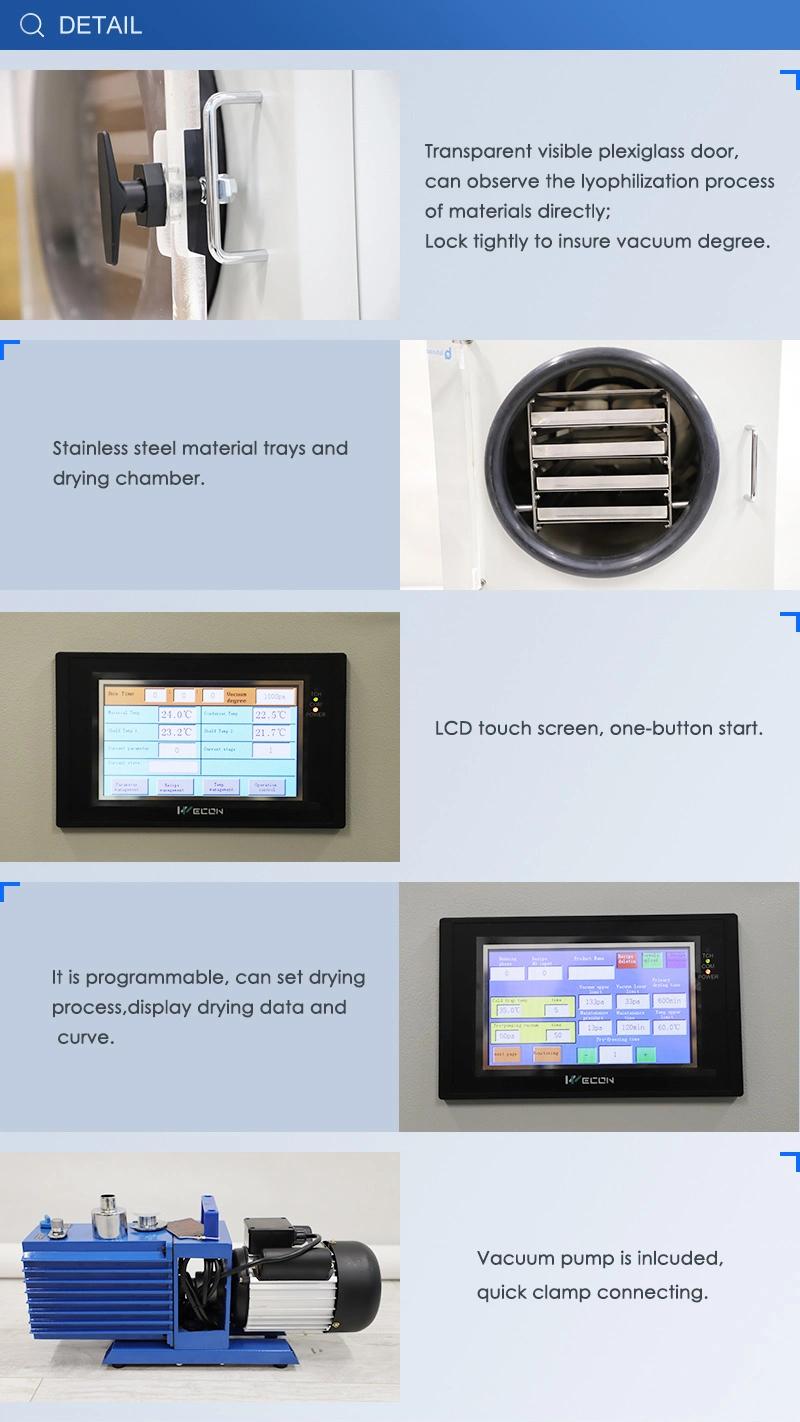

Feature:
1. Perfect appearance, compact size;
2. Touch screen operation, one key to start, and automatic freeze drying process, easy and convenient;
3. Key components with imported brands, small noise, large capacity, high quality and high performance;
4. Advanced system, with low operating current and low energy consumption;
5. 304 stainless steel food tray and inside liner, safety and easy clean;
6. Transparent organic glass door, the direct observation of food processing;


Specification:

Model	LFD-4
Overall size WxDxH	510*600*800mm
Energy consumption	1100W
Power supply	220V 50HZ
Food tray area	0.36m2
Single batch of food	4~6kg
Tray size	180*440mm
No. of tray	4pcs
Space between tray	45mm
Gross weight	140kg
Condenser temperature	≤-35°C
Drying temperature	-30°C ~+60°C
Vacuum	<15Pa

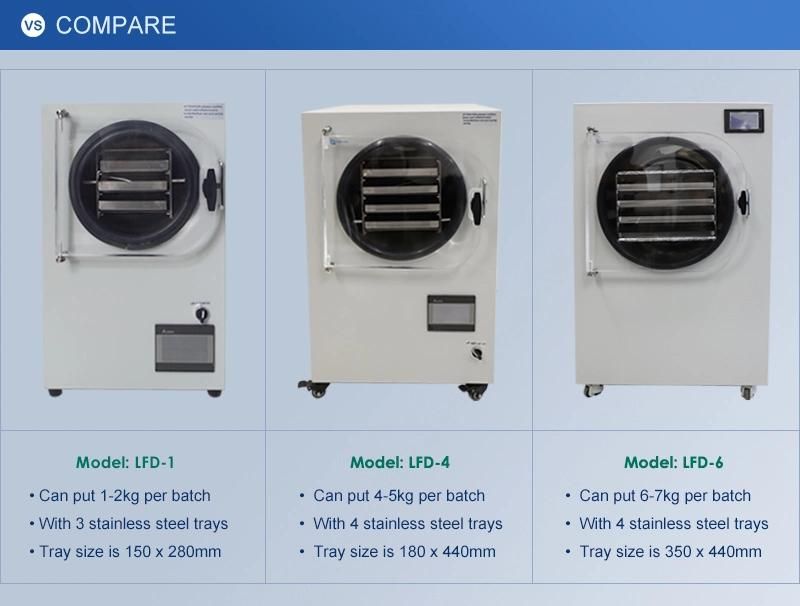

1. How many types do you have?

For laboratory used, normal, top-press, manifolf, manifold top-press and T type are available, total 5 types.
For home used, we have 1-2kg/batch and 4-6kg/batch.

2. How to choose the suitable model?

Firstly, what is your sample shape, bulk or in vials?
If bulk, choose normal type. If in vials, choose top-press type. If sample is various, choose manifold.

Secondly, tell us how many kilogram of your sample, then we will recommend the suitable model.

3. Does it including vacuum pump?

Yes.

4. What is your warranty?

12months.
