• Model NO.：LFD-6
• Customized：Customized
• Product Name：Normal Vacuum Freeze Dryer
• Ueage：Home and Laboratory
• Application Material：Medical,Laboratory,Biological
• Working Principle：Freezing, Sublimation
• Pretreat Dealing：Pre-Freezing
• Drying Time：Around 20-24hours
• Various：Normal Type Freeze Dryer
• Capacity：6-7kg,Batch
• Freeze Drying Area：0.6m2
• Host Weight：100kg
• Core Selling Point：Automatic
• Certification：Ce;ISO
• Warranty Period：1year
• Place Origin：China
• Model：Lfd-6
• Transport Package：Standard Export Case
• Specification：6-7kg,batch
• Trademark：LABOAO
• Origin：China
• HS Code：8419399090
• Production Capacity：2000set,Month

Basic Info.

Model NO. LFD-6 Customized Customized Product Name Normal Vacuum Freeze Dryer Ueage Home and Laboratory Application Material Medical,Laboratory,,Biological Working Principle Freezing, Sublimation Pretreat Dealing Pre-Freezing Drying Time Around 20-24hours Various Normal Type Freeze Dryer Capacity 6-7kg/Batch Freeze Drying Area 0.6m2 Host Weight 100kg Core Selling Point Automatic Certification Ce;ISO Warranty Period 1year Place Origin China Model Lfd-6 Transport Package Standard Export Case Specification 6-7kg/batch Trademark LABOAO Origin China HS Code 8419399090 Production Capacity 2000set/Month

Product Description

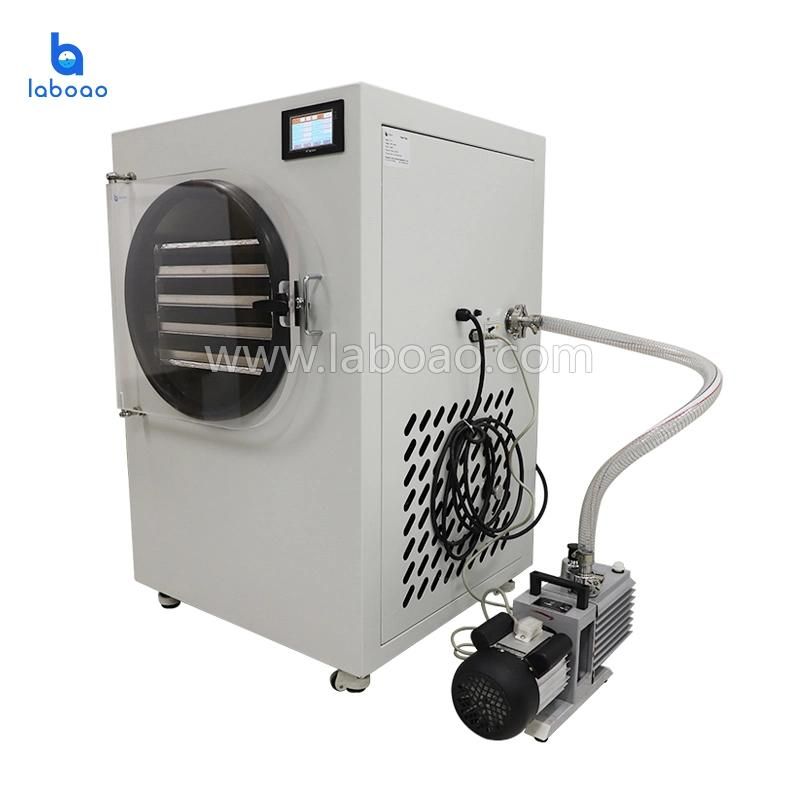

6-8KG/Batch Small Capacity Vegetable Fruit Freeze Dryer
    Lyophilization or freeze drying is a process in which water is removed from a product after it is frozen and placed under a vacuum, allowing the ice to change directly from solid to vapor without passing through a liquid phase. The process consists of three separate, unique, and interdependent processes; freezing, primary drying (sublimation), and secondary drying (desorption).


Feature:
1.    In-situ pre-freeze drying;
2.    Temperature adjustable, controllable production process;
3.    30 sections can be set, the freeze dryer can modify the program parameters during the running process, and record the vacuum drying curve and data online;

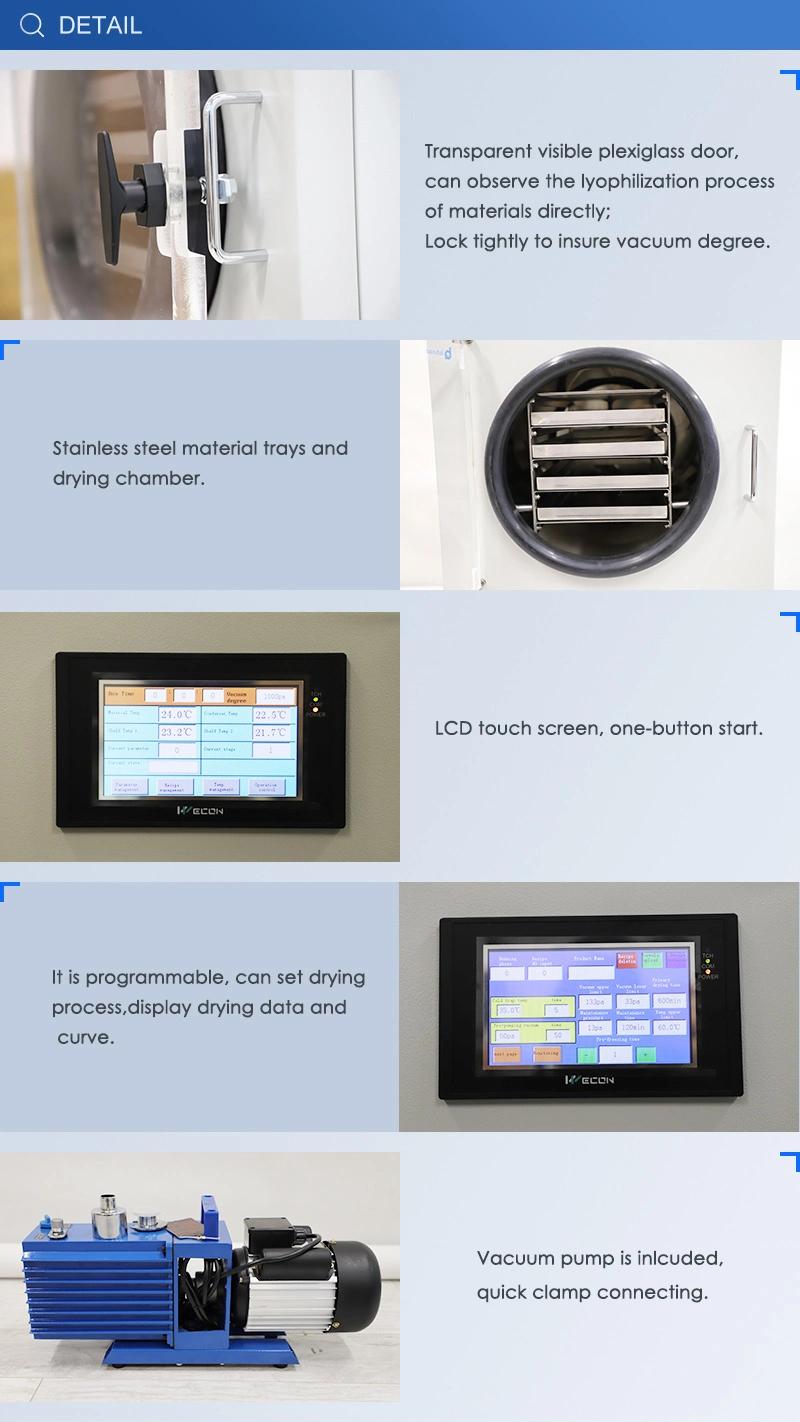

4.    Touch screen, you can set the power-on password to display the drying curve;
5.    The square tray is not easy to be deformed, easy to operate and easy to clean;
6.    The drying chamber adopts a high light transmissive colorless transparent plexiglass door, which can clearly observe the change process of the material during the operation;
7.    Optional configuration of the inflation valve, which can be filled with dry inert gas;




Specification:

Model	LFD-6
Freeze drying area	0.6m2
Loading capacity	6-7kg
Condenser temperature	≤-35ºC
Ultimate vacuum	10Pa (No load)
Water catching capacity	10kg/24h
Tray size	350*440mm
No. of tray	4pcs
Voltage	220V 50HZ
Power	2300w
Dimension	710*800*1130mm
Electric control system	Real time display curve for freeze-drying and temperature. Intelligent temperature control.
Defrost function	One-button defrosting function

Standard parts list:

Model	LFD-6
Host machine	1set
Tray	5pcs
Vacuum pump	1set
Vacuum pump pipe	1pc
Vacuum clamp	2sets
vacuum grease	1box
English manual	1pc
Certification	1pc

1. How many types do you have?

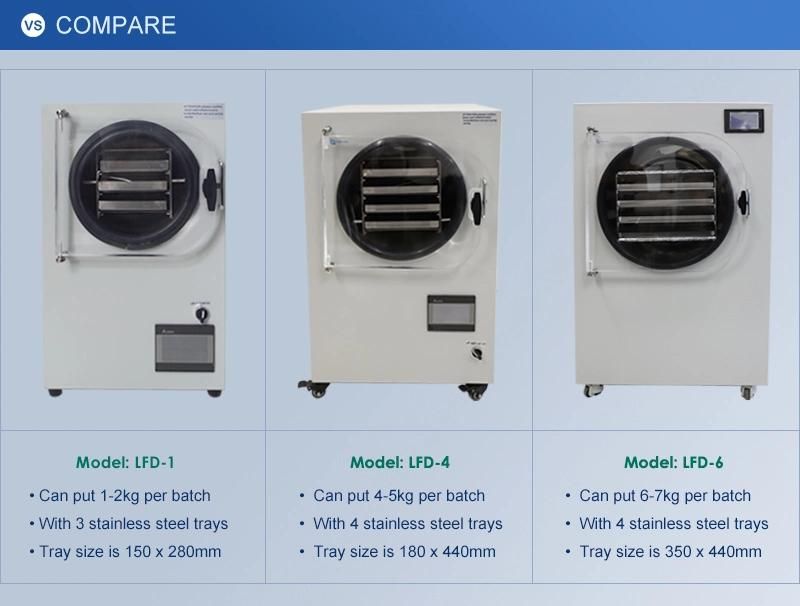

For laboratory used, normal, top-press, manifolf, manifold top-press and T type are available, total 5 types.
For home used, we have 1-2kg/batch and 4-6kg/batch.

2. How to choose the suitable model?

Firstly, what is your sample shape, bulk or in vials?
If bulk, choose normal type. If in vials, choose top-press type. If sample is various, choose manifold.

Secondly, tell us how many kilogram of your sample, then we will recommend the suitable model.

3. Does it including vacuum pump?

Yes.

4. What is your warranty?

12months.
