Soft Ice Cream Machine (6240A)

Ningbo Sicen Refrigeration Equipment Co., Ltd.
  • Certification：CE, UL, ISO9001
  • Power Source：Electric
  • Process：Frozen and Chilled
  • Automatic Grade：Automatic
  • Application：Ice Cream
  • Customized：Non-Customized

Base Info

  • Model NO.：6240A
  • Model：6240A
  • Power (Kw)：2.6 Kw
  • Voltage (V)：210-230V
  • Dimension (Net)：654mmx554mmx1520mm
  • Dimension (Packing)：800mmx645mmx1665mm
  • N.W. (Kg)：185 Kg
  • G.W. (Kg)：205kg
  • Transport Package：Carton with Pallet
  • Specification：CE
  • Trademark：SPACE
  • Origin：Ningbo, China
  • HS Code：8418699020
  • Production Capacity：10000 Units,Year

Description

Basic Info.

Model NO. 6240A Model 6240A Power (Kw) 2.6 Kw Voltage (V) 210-230V Dimension (Net) 654mmx554mmx1520mm Dimension (Packing) 800mmx645mmx1665mm N.W. (Kg) 185 Kg G.W. (Kg) 205kg Transport Package Carton with Pallet Specification CE Trademark SPACE Origin Ningbo, China HS Code 8418699020 Production Capacity 10000 Units/Year

Product Description

Professional manufacturer of soft ice cream machines.

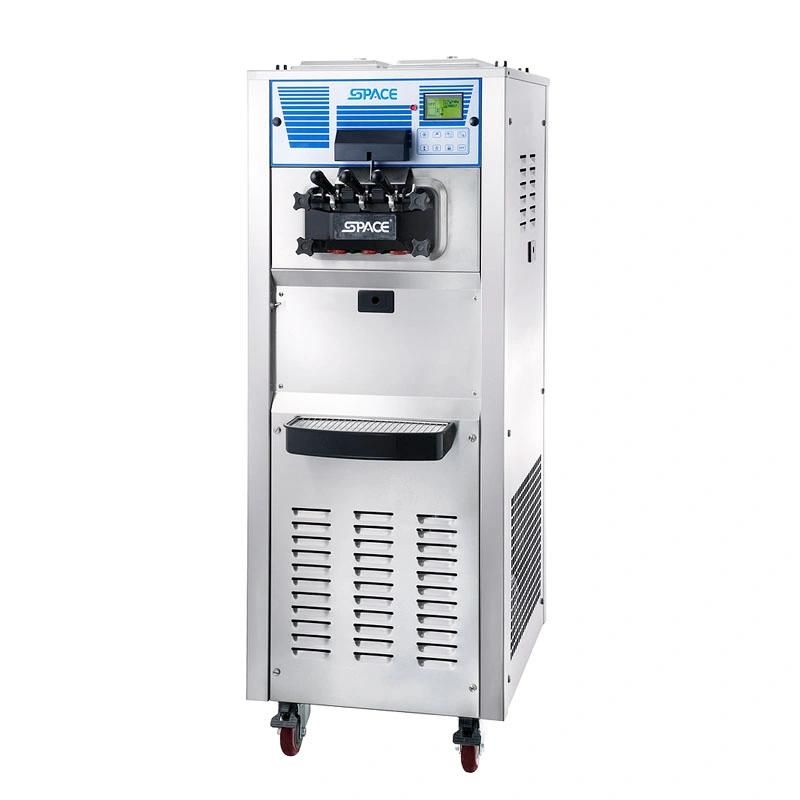

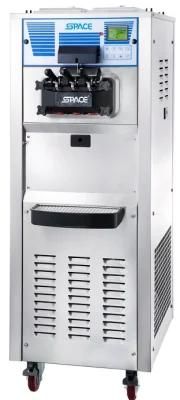

Soft Ice Cream Machine (6240A)



Soft ice cream machine 6240A, Air pump Feed

FEATURE
Offer all the popular soft serve variations from low or non-fat ice creams to custards, yogurt and sorbet.



FREEZING CYLINDER
Two, 1.8 Liter



MIX HOPPER
Two, 12.5 Liter
Separate hopper refrigeration(pre-cooling)maintains mix below 4.4º C.



MICROPROCESSOR CONTROLS
Microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.



MIX LOW LIGHT
The mix low light turns "ON" to alert operator to add mix, preventing cylinder over freezing.


STANDBY
Maintains product temperature in the mix hoppers and freezing cylinders below 4.4 º C during long no-use periods.



COUNTER
Records number of dispenses per day and total number of dispenses.



AGITATOR IN THE HOPPER
Mixture has better liquidity, the temperature of the mix to be more uniform.



OUTPUT
40 Liter/Hour
(At 4 º C Liquid&24º C Ambient )


ELECTRICAL REQUIREMENTS
One dedicated electrical connection is required. Make voltage steady when machine is ON.



MAIN MOTOR
One, 2.0HP



REFRIGERATION SYSTEM
One compressor: 5039 BTU/hr. R404A
Separate hopper refrigeration(Pre-cooling): One main compressor: 400BTU/hr. R134A
(BTU may vary depending on compressor used. )



AIR COOLED
Minimum clearance of 152mm on both sides to achieve optimum performance.
