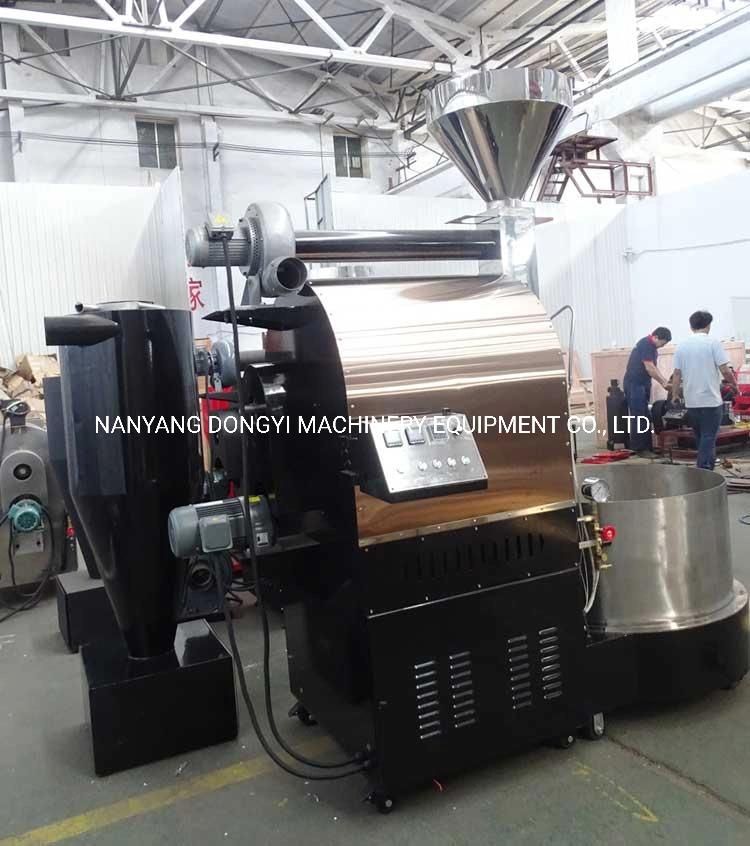

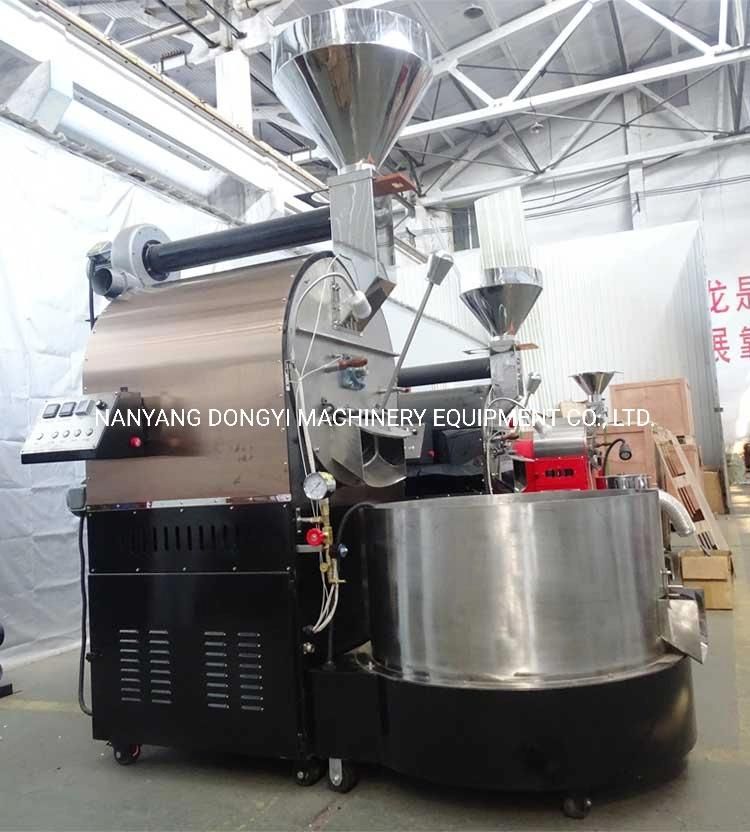

• Model NO.：DY20
• Batch Capacity：4-22kg,Batch -88kg,H
• Roasting Time：12-15 Minutes
• Heating Type：Electirc , Gas
• Temperature Range：0-300c
• Drum Motor Power：750W
• Cooling Tray Fan Power：1500W
• Hot Air Fan Motor Power：400W
• Cooling Mixing Motor Power：200W
• Machine Weight：1080kg
• Chaff Cyclone Weight：65kg
• Machine Dimension：2030*910*1910mm
• Gas Consumption：1.5kg,Hour
• Data Logger：USB Data Logger Connect to Computer
• Motor：4 Addka
• Controller：PLC or Pid
• Transport Package：Wooden Case Package
• Specification：2030*910*1910MM
• Trademark：DONGYI
• Origin：China
• HS Code：8419810000
• Production Capacity：2000sets,Year

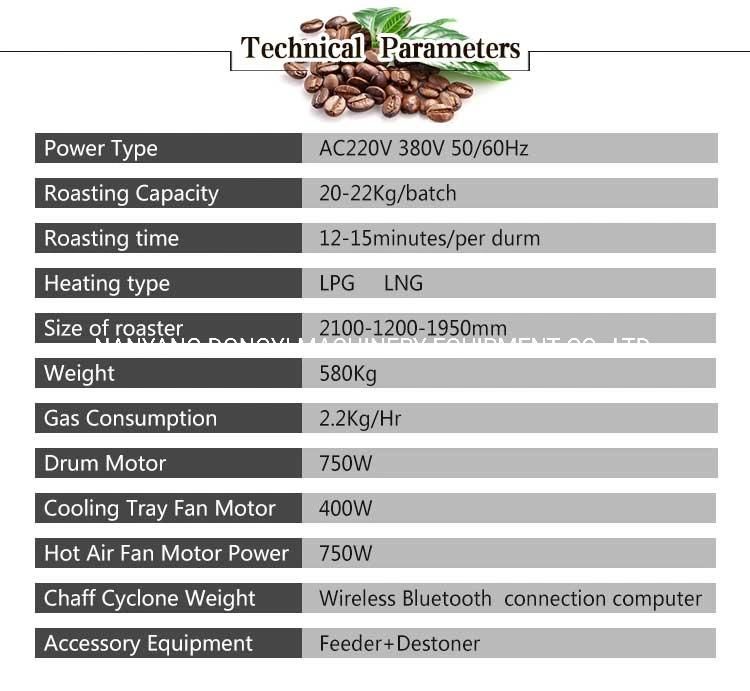

ModelDY20Batch Capacity20-22kg/batchHeating TypeGasTemperature Range0-300ºCDrum Motor750WCooling Tray Fan Motor1500WHot Air Fan Motor400WCooling Mixing Motor200W

Company information
Our factory is a technological company specializing in the development and manufacturing of coffee roasters.We can offer 1, 2, 3, 6, 12, 15, 20, 30, 60, 120, 200kg different capacity models.

DY and by series coffee roasters.
DY models are avilable in 1kg, 2kg, 3kg, 6kg, 12kg, 20kg, 30kg, 60kg, 120kg etc.
BY models are available in 1kg, 2kg, 3kg and 6kg.
OEM and ODM services are offered.



Production Indruction

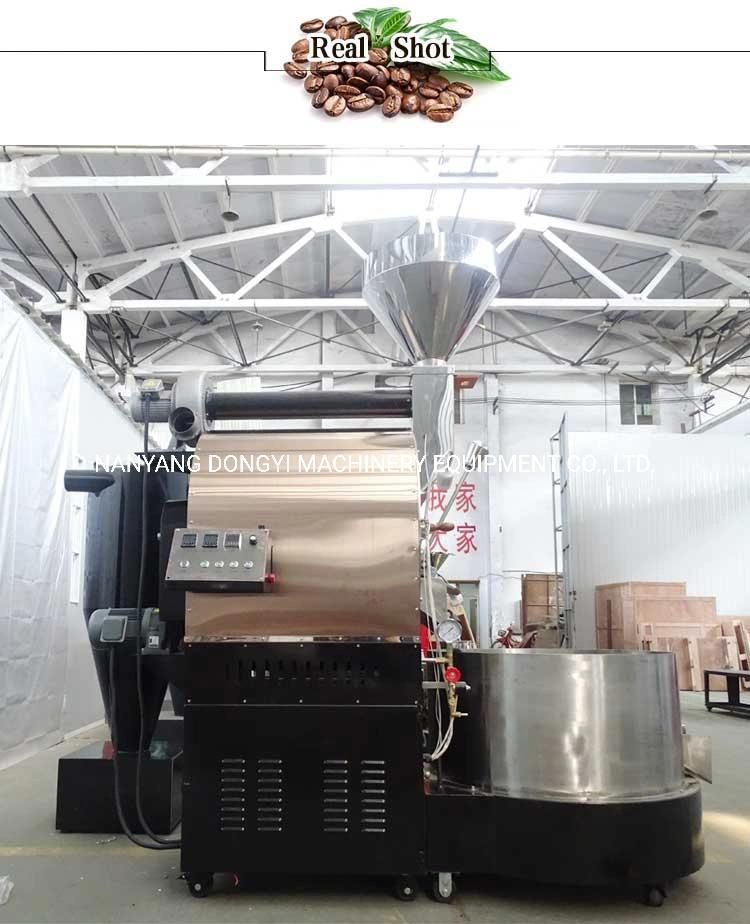

For this coffee roaster, there are gas and electic types for opration.You can use it in different places, like home, factory, shop etc...
If you do not know how to choose it, we can give you professional suggestion base on your needs.

Double stainless steel drum design:
Double drum make the heating more uniform, avoid uneven heating due to expansion of beans not enough, leading to black spots on the surface, affecting the taste of coffee

01.Omron dual temperature pid controller:
Omron dual temperature pid controller, beautilful and efficient, thermocouple temperature sensor accurate, dual digital sensor display, at a glance.

02.Equipped with observation window and sampling stick:
Equippped with a visual window, can clearly observe the color change of coffee, import rosewood handlesampler, high-end atmosphere.

03.Large mixing cooling pan:
Large independent stirring plate, cooling rapidly (1-2 minutes), continuous roasting.

04.Taiwan cast iron burner:
Gas model adopt taiwan cast iron burner, blue flame, temperature rising fast and stable.

05.Addka japan motor drum speed adjustable:
Addka imported high quality motor, accurate roller speed regulation, long life, stable performance, continuous operation.

06.Wireless bluetooth connect the computer:
Replaced the traditional usb cable.Start the advanced blue-tooth connection.

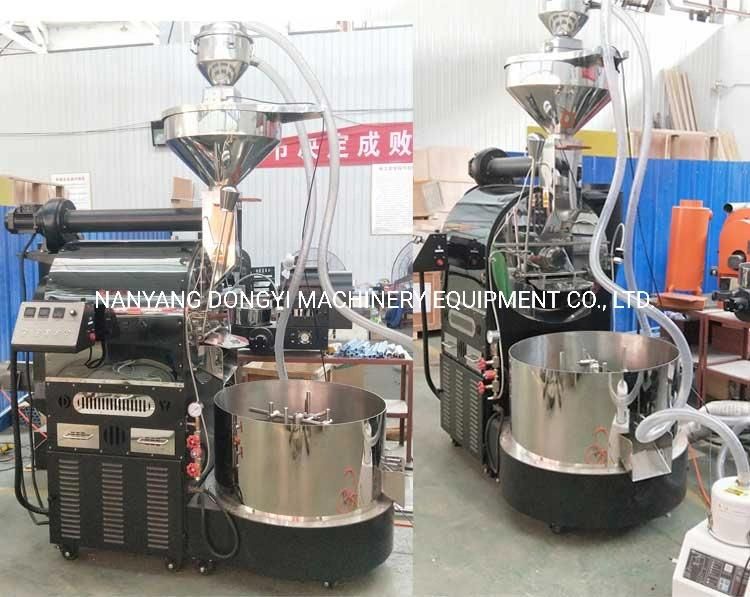

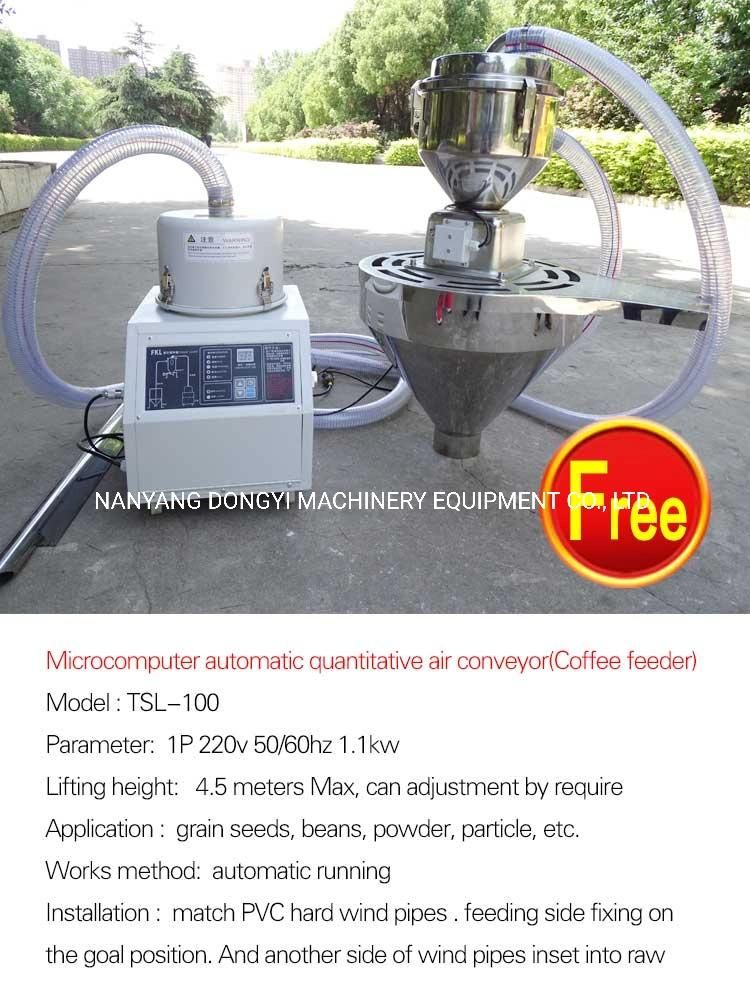

Equipped with air conveyor feeding machine



Main feature
1) the latest DY-20kg was equipped with manual damper to adjust the hot air flow.
2) add the maintenance door on the back, make it more easier to oil the bearings and clean the machine.
3) equipped with 4 japan addka motors.
4) german bearings.
5) rose wood sample spoon.
6) adjustable drum speed.
7) 304 stainless steel drum.
8) fixed chaff cyclone.
9) with a jacket structure for heat preservation.
10) integral welding frame.

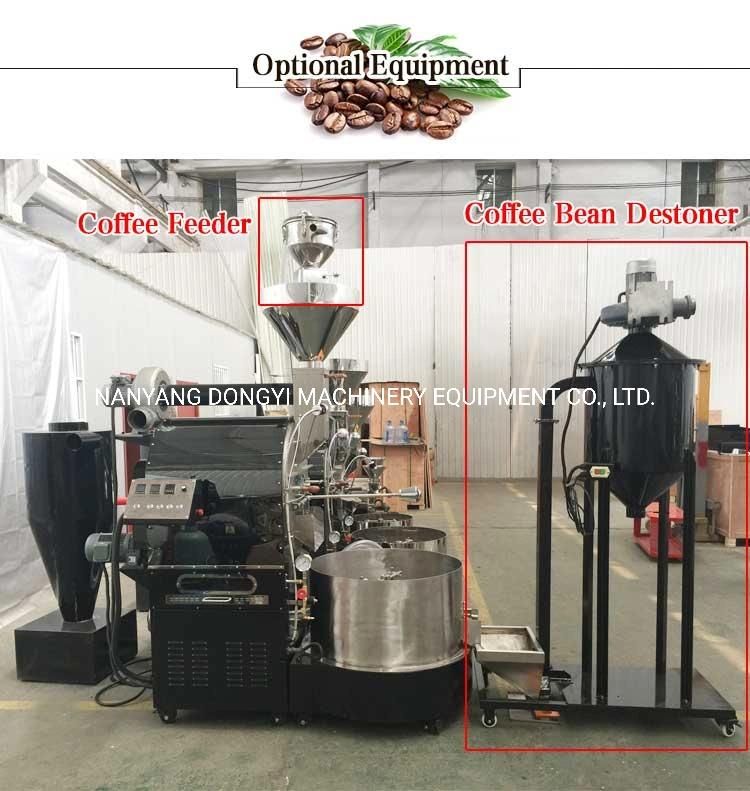

Optional Equipment



Package & Shipping
*Fumigation free wooden box with standard export packing.
*Nylon belt and screws fixing the roaster with wooden crates to prevent the roaster shaking.
*Steel belt fixing the wooden crates.
*All of the productions are inspected carefully by QC before delivery.
*30% deposit when placing order, 70% balance paid before shipment.
*Shipped in 5-15 days after payment.

Service we can provide
1.Prompt shipment:By reputed shipping line and professional documents
2.Cargoes photo:Before and after loading into container
3.Packing:New and strong sea worthy packing;As buyer's special request
4.Best service after shipment with email
5.Feedback email after end-users received the cargo
6.Trade assurance service as a trade safeguards

After-sale service
1.1 year
2.Installation video helping customer assembly
3.24 hours technical support by mobile or email

FAQ
1. Are you the manufacturer factory or trading company?
We are the manufacturer with professional produce experience on roaster machines more than 15 years. We have both Domestic and international sales department.

2. Where is your factory located? How can I visit there?
Our factory is located in Nanyang City, Henan Province, China,
Airport : Nanyang airport.
Rail Station: Nanyang Station
We will pick you up by car from above.

3. What are your main products?
Our main products include: 1kg-6kg small commercial coffee roaster/6-120kg industrials automatic coffee roasting machine/electric nuts roasting machine / grain seeds gas roaster/ Nuts and grain continuous electric roasting dryer/coffee bean feeding machine /de-stone conveyor / grinder

4. What payment types do you accept?
We accept T/T in advance (30% of deposit before production and 70% balance before delivery), bank transfer, Paypal or credit card under Alibaba online trade assurance or offline payment. We also accept L/C.

5. How to distribute your products?
If you are dealing coffee business and have interests in us.
if you want to be our wholesaler or distributor in your place,we are very willing to share profits together with you and we promise here you will get

A: Min order quantity up to 5 units (can be mixing color and model ), we can offer best distributor price again
B: free DIY color and customer logo on roasters ( I have indicated some done color before, also welcome new color require by Pantone color lists)
C: factory costs price supply spare parts for distributor stock
D: distributor markets Special protection policies
E: quick delivery and other more priority NEW products share items

6. How do your quality control systems operate?
We have professional designer team and experienced engineers to strictly guarantee the production from beginning to shipment.

7. What is your delivery time and cost?
For goods in stock, can arrange fast delivery around 5-10 working days after collect the full payment. In the case of out of stock and large quantity, production time varies about 15-30 working days depending on the situation.
We have customized special delivery package for certain markets, such like US, UK, Australia, Southeast Asia, Europe, South America etc. Contact sales to get further information.

8. How long is your warranty and after-sale service?
One-year limited warranty. Additionally, all of our roasters come with guaranteed personal support for the roaster's entire lifetime. While it is rare for our machines to face problems, our teams is always available to troubleshoot and answer questions. Simple call or email us and a member of our support team will provide the necessary assistance in a quick, succinct manner.

9. Does your company offer worldwide distribution?
Yes, we are proud to be a global company. We ship our products all around the world.

Welcome to contact us any time and welcome to our company!
