• Model NO.：YZD-100A
• Material：304 Stainless Steel
• Function：Baking Food Production
• Application：Bread Bakery Machine

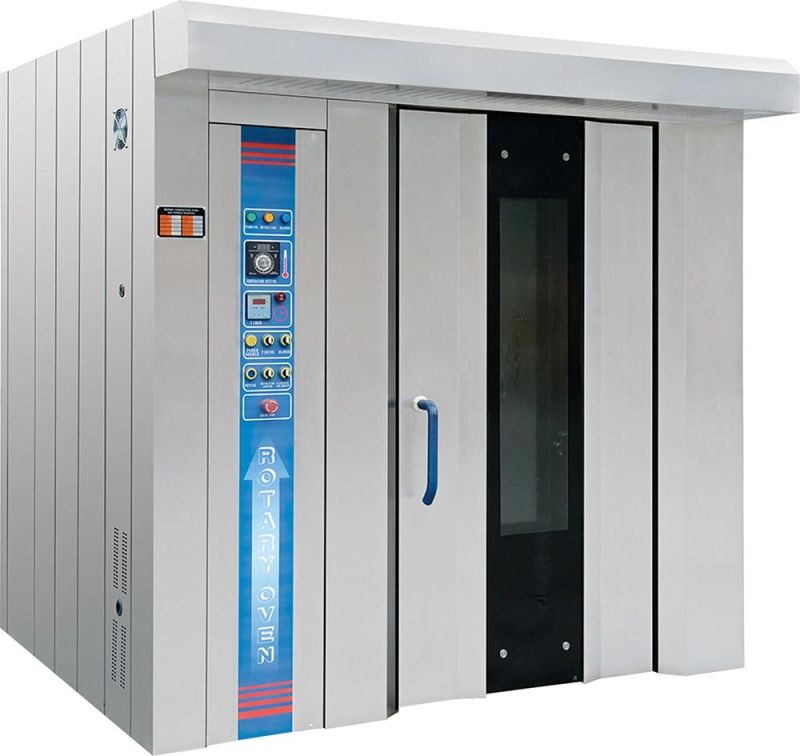

• Name：32 Trays Rotary Oven
• Color：Silver
• Quality Warranty：1 Year Guaranty; Lifelong Service and Technical S
• Loading Period：Within 2 Days, up to Your Quantity
• Packing Size：6.8 Cbm
• Certificate：Ce ISO
• Transport Package：Packed in Wooden Cases
• Specification：2050*2000*2150mm
• Origin：Shanghai China
• Production Capacity：1000 Pieces,Month

Basic Info.

Model NO. YZD-100A Material 304 Stainless Steel Function Baking Food Production Application Bread Bakery Machine Name 32 Trays Rotary Oven Color Silver Quality Warranty 1 Year Guaranty; Lifelong Service and Technical S Loading Period Within 2 Days, up to Your Quantity Packing Size 6.8 Cbm Certificate Ce ISO Transport Package Packed in Wooden Cases Specification 2050*2000*2150mm Origin Shanghai China Production Capacity 1000 Pieces/Month

Product Description

Features
1. used wide range , for baking meat bread moon cake toast biscuit cake and so on.

2.The combustion engine is imported , can get a good performance in working and save the energy

3.Large baking capacity.32 dishes each time

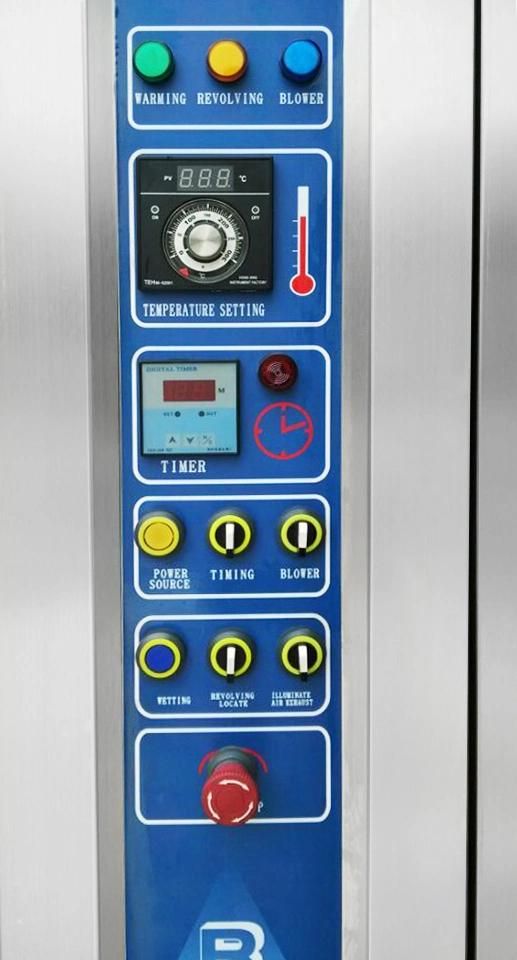

4.Mechanical panel and intelligent control.  can control the temperature ,time,and rotary system automatically. save lots of time and vigor of operator.

5. two rotate modes for your to choose: bottom rotate and top hanged rotate.

6.With inner lamp and glass window to see the baked food clearly.

7.Equipped with time-alarm, more convenient and safe for operator to control.

8. machine is equipped with high density and hyperfine cotton material so  can maintain the quantity of heat furthest .

9.Inching system can produce enough steam momentarily according to the request of craft ,so it can satisfy the quality request of food for baker.

10.The machine is equipped with blower , can make the temperature and humidity more balance because of the strong wind convection.

11.The panel is separated from the oven , can resist the harm of high temperature ,so the machine is more durable.






Parameter

Model	Voltage	Power	Trollery	Temp Range	Dimension(cm)
YZD-100A	3N/380V/220V/50hz	52KW	16 tiers*2=32 trays	Room Temp~300ºC	205*200*215
YZD-100AD	3N/380V/220V/50hz	52KW	16 tiers*2=32 trays	Room Temp~300ºC	205*200*215
YKG-100A	3N/380V/220V/50hz	4KW	16 tiers*2=32 trays	Room Temp~300ºC	190*180*230
YKG-100AD	3N/380V/220V/50hz	4KW	16 tiers*2=32 trays	Room Temp~300ºC	205*200*215
YKZ-100A	3N/380V/220V/50hz	4KW	16 tiers*2=32 trays	Room Temp~300ºC	190*180*230
YKZ-100AD	3N/380V/220V/50hz	4KW	16 tiers*2=32 trays	Room Temp~300ºC	205*200*215

Model	N/W(KG)	Burner Power	GAS/OIL	Energy	Unit    Price(USD)
YZD-100A	1300	/	/	Electric	4450
YZD-100AD	1350	/	/	Electric	4850
YKG-100A	1300	60 thousand kCal	1.2~2.3 m^3/h	LPG or Natural gas	5560
YKG-100AD	1350	60 thousand kCal	1.2~2.3 m^3/h	LPG or Natural gas	5955
YKZ-100A	1300	60 thousand kCal	2.5~3kg/h	Diesel Oil	4765
YKZ-100AD	1350	60 thousand kCal	2.5~3kg/h	Diesel Oil	5160

we have 6 models of 32 trays rotary ovens,YZD-100A,YKZ-100A and YKG-100A rotary system on top.
YZD-100AD,YKG-100AD and YKZ-100AD rotary system on bottom.just according to your demand.
Certifications

Packing & Delivery
Packing: plywood case ,very safe
Delivery:by sea or aircraft
Loading period:within 3 days,up to your quantity
Loading port:Shanghai China
Payment terms: (30% as deposit. 70% before shipment) ,L/C, can be negotiated.
Factory and Company
we are manufacturer and specialize in manufacturing bakery equipments,fast -food equipments ,

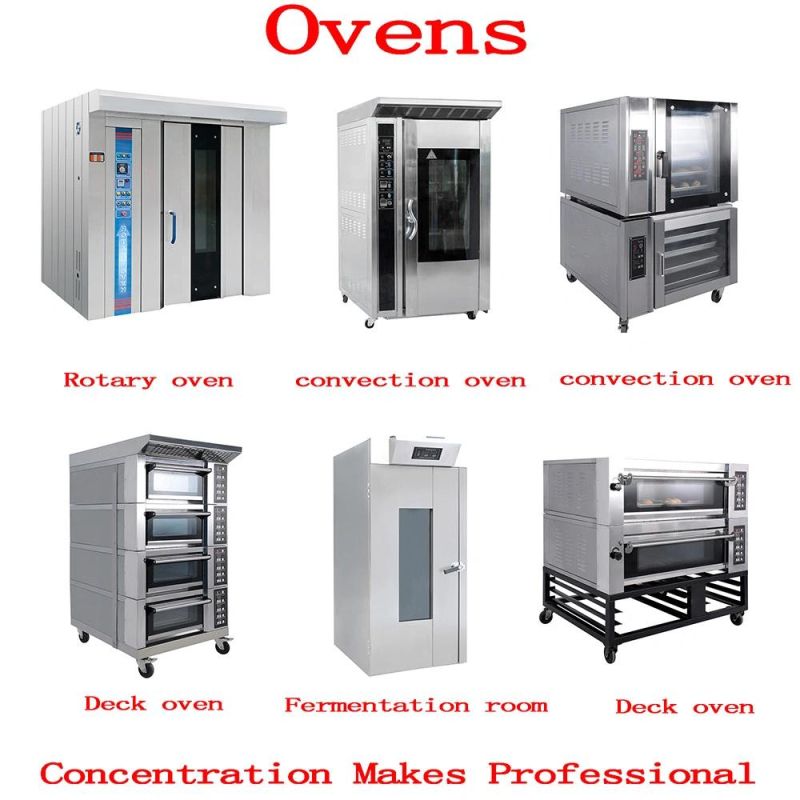

The main products are : 32 trays rotary oven,12 trays convection oven,etc.
we founded in 2007,and have got a big share in market with high technical strength ,have regular trades with over 45%of the countries and regions in the world.
we are manufacturer,so the products can be customized according to your demand ,and the unit price can be negotiated on the basis of your quantity.
(web:g-xing.en.made-in-china.com)
Our Service

Pre-sale service:

1.relative market information and your inquiry is timely replied within 12 hours
2.Advice for equipment device
3.Customization is supplied depend on your demand
After-sale service:
1. 12 months warranty, lifelong service and technical support.
2. Whole life's technical consultant of the machine.
3.Site-repair is offered when it necessary

4.Spare parts are provided of some machines.

Pre-sale service:

1.relative market information and your inquiry is timely replied within 12 hours
2.Advice for equipment device
3.Customization is supplied depend on your demand
After-sale service:
1. 12 months warranty, lifelong service and technical support.
2. Whole life's technical consultant of the machine.
3.Site-repair is offered when it necessary

4.Spare parts are provided of some machines.
