The Latest Technology Juice and Milk Uht Tube Sterilizer for Liquid Food Production Line
Weishu Machinery Technology (Shanghai) Co., Ltd.- Customized：Customized
- Certification：CE, ISO9001
- Scale：Medium
- Automation：Automatic
- Principle：Rotary
- Structure：Pipe, Tube
Base Info
- Model NO.：WS-1000
- Operation：Continuous
- Energy：Heat Sterilization
- Property：Physical Sterilization
- Type：High Voltage Electric Field Sterilization Equipment
- Power：5.0-25kw
- Sterilization Method：Steam Sterilization&Electric Heating Sterilization
- Texture of Material：SUS304&316L
- Transport Package：Export Standard Package
- Specification：1000L,H to 15000L,H
- Trademark：WS
- Origin：Shanghai, China(Mainland)
- HS Code：8419200000
- Production Capacity：Shanghai
Description
Shanghai
Equipment description:Siemens PLC full-auto control with touch screen mainly used for aseptic filling packing types products, such as Tetra paper birck, Tetra paper pillow, aseptic soft plastic bag, aseptic PET bottles, especially used for liquid milk an juice .
Tubular sterilizer performs the hot processing on the liquid foods and beverage. Compared to the other model, it has the following characteristics:
1. High heat efficiency, 90% of heat can be reused after the product be processed; 2. Temperature difference between the product and the heating medium is small, so the heating is gentle; 3. It is of high degree automatic, can automatically control the CIP cleaning, self sterilizing, and the whole procedures steps; all the procedures are recorded and controllable; 4. It is of precise and reliable sterilizing temperature control; all the affecting factors such as steam pressure, steam flow rate, product flow rate are all controllable; 5. The inside of the tubular adopts advanced polish procedure, all tubes can perform fully cleaning, self sterilizing ensures the system at aseptic state; 6. The system is strong safety, the fittings all adopts reliable materials; 7. The system is of high reliable, main parts such as product pump, hot water pump, all kinds of valves, elements of the electrics are all of world known brands. 8. With self CIP.

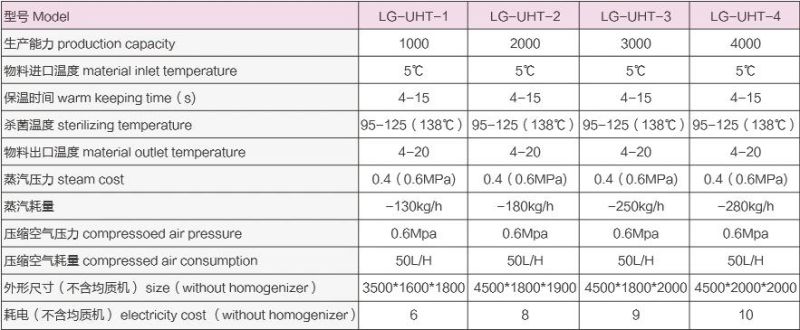

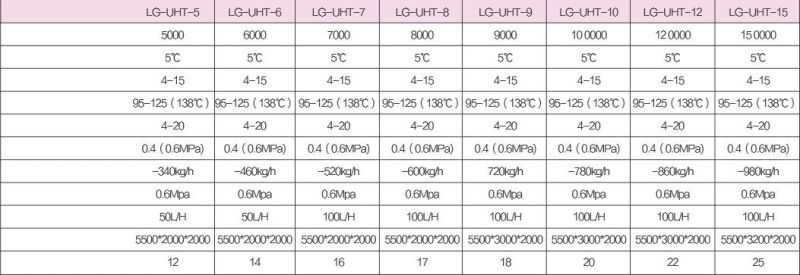

Main technical parameter:

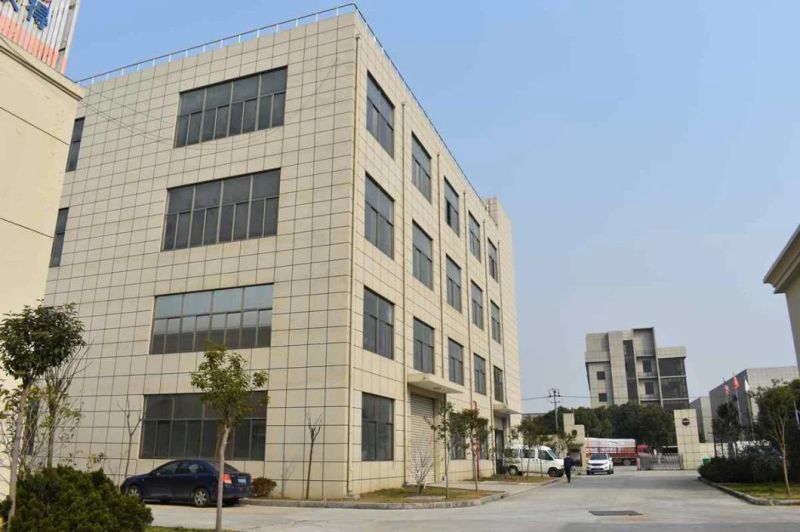

Company Profile
Weishu Machinery Technology (shanghai) Co.,Ltd located in Fengxian district Shanghai China, it take one hour from PUDONG airport to the factory by vehicle, a factory that specialist in design ,R&D, produce, distribute of dairy and beverage production line, have more than 25 year experienced engineers, cooperate with professor of university,Introduce German technology ,we passed ISO9001, applied patents, according to different requirement of customers, assist to complete mechanical engineering design, project budget, process design and package design etc. , Our product widely use in Europe Southeast Asia ,Africa, Middle east Europe America , supply 24 hours service, we looking forward to cooperate with you!
Management Team

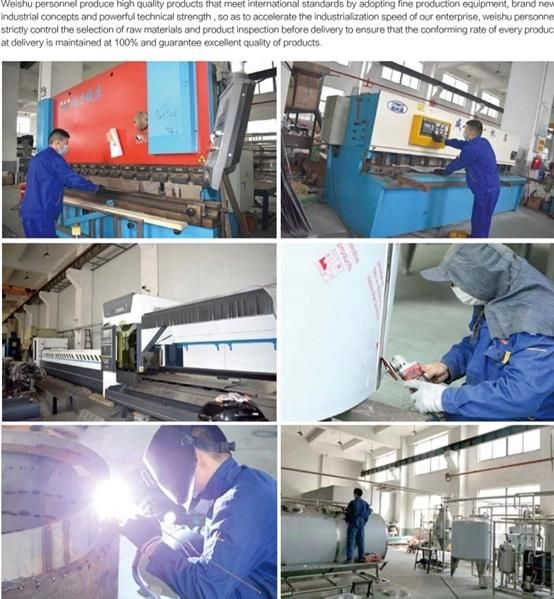

Production and equipment
Customer Visit and cooperation
FAQ
Equipment description:Siemens PLC full-auto control with touch screen mainly used for aseptic filling packing types products, such as Tetra paper birck, Tetra paper pillow, aseptic soft plastic bag, aseptic PET bottles, especially used for liquid milk an juice .
Tubular sterilizer performs the hot processing on the liquid foods and beverage. Compared to the other model, it has the following characteristics:
1. High heat efficiency, 90% of heat can be reused after the product be processed; 2. Temperature difference between the product and the heating medium is small, so the heating is gentle; 3. It is of high degree automatic, can automatically control the CIP cleaning, self sterilizing, and the whole procedures steps; all the procedures are recorded and controllable; 4. It is of precise and reliable sterilizing temperature control; all the affecting factors such as steam pressure, steam flow rate, product flow rate are all controllable; 5. The inside of the tubular adopts advanced polish procedure, all tubes can perform fully cleaning, self sterilizing ensures the system at aseptic state; 6. The system is strong safety, the fittings all adopts reliable materials; 7. The system is of high reliable, main parts such as product pump, hot water pump, all kinds of valves, elements of the electrics are all of world known brands. 8. With self CIP.
Main technical parameter:
Company Profile
Weishu Machinery Technology (shanghai) Co.,Ltd located in Fengxian district Shanghai China, it take one hour from PUDONG airport to the factory by vehicle, a factory that specialist in design ,R&D, produce, distribute of dairy and beverage production line, have more than 25 year experienced engineers, cooperate with professor of university,Introduce German technology ,we passed ISO9001, applied patents, according to different requirement of customers, assist to complete mechanical engineering design, project budget, process design and package design etc. , Our product widely use in Europe Southeast Asia ,Africa, Middle east Europe America , supply 24 hours service, we looking forward to cooperate with you!
Management Team
Production and equipment
Customer Visit and cooperation
FAQ
