• Model NO.：LY65 LY70 LY75 LY85 LY100
• Application：Chips, Made-in-China Cereals Snack Machine with Best Fact
• Customized：Customized
• Product Name：Made-in-China Cereals Snack Machine with Best Facr
• Material of Machine：Stainless Steel
• Product：Puffed Snacks; Core Filled
• Advantage：Easy Operation High Efficiency
• Capacity：120-150kg,H; 250kg,H; 500kg,H; 1000kg,H
• Keyword：Snack Food Production Line
• Model：Food Extruder
• Raw Materials：Corn Flour, Rice Flour etc Grain Flours.
• Factory：More Than 25 Years Extrusion Experience
• Main Machine：Twin Screw Extruder, Dryer and Flavoring Machine
• Transport Package：Plywood
• Specification：Customized
• Trademark：LUERYA
• Origin：Jinan, China
• HS Code：84388000
• Production Capacity：30sets,Month

Overview Product Description

Product Parameters

Voltage of cereals snack machine:

Three phases of food extruder machine: 380V/50Hz; Single phase: 220V/50Hz in china, we can make it according to customers' local voltage in different countries

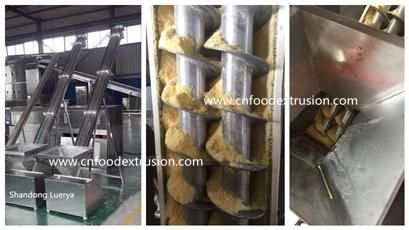

Technical Parameter of food extruder machine:Name Processing Line (Snack food production line)TroughputPowerDimensionSnack foodMixer--Twin screw Extruder--Air Conveyer--Roasting Oven--Flavoring machine120~500kg/h68KW15*0.8*1.6mJam Center FoodMixer--Twin screw Extruder--Multi-function Cutting Shaper--Core Filler--Large-hoister--Roasting Oven--Flavoring machine120~500kg/h70KW18*0.8*1.6mRice Crust FoodMixer--Twin screw Extruder--Multi-function Cutting Shaper--Automatic Fryer--Eight-square Seasoner120~500kg/h80KW18*0.8*1.6mNarshall FoodMixer--Twin screw Extruder--Multi-function Cutting Shaper--Core Filler--Large-hoister--Material Machine--Oil Sprayer--Suger Sprayer--Material Machine--Dryer--Cooler120~500kg/h75KW18*0.8*1.6m1. Twin screw conveyor

1. Twin screw instead of one screw which will be more strong powerful;
2. It can be opened easily by locker which will be easily cleaned;

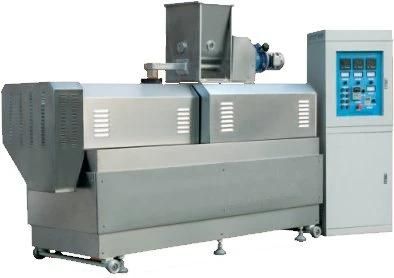

3. The exclusive design of new technology of converoy, conveying more stable and continuous.2. Twin Screw Extruder

1. This machine is consisting of feeding system, extruding system, cutting system, heating system and controlling system.
2. It can process various materials, frequency speed-controlling, high automation, stable per formation, long life.
3. Longer life: uses special material and technology, endure fray.

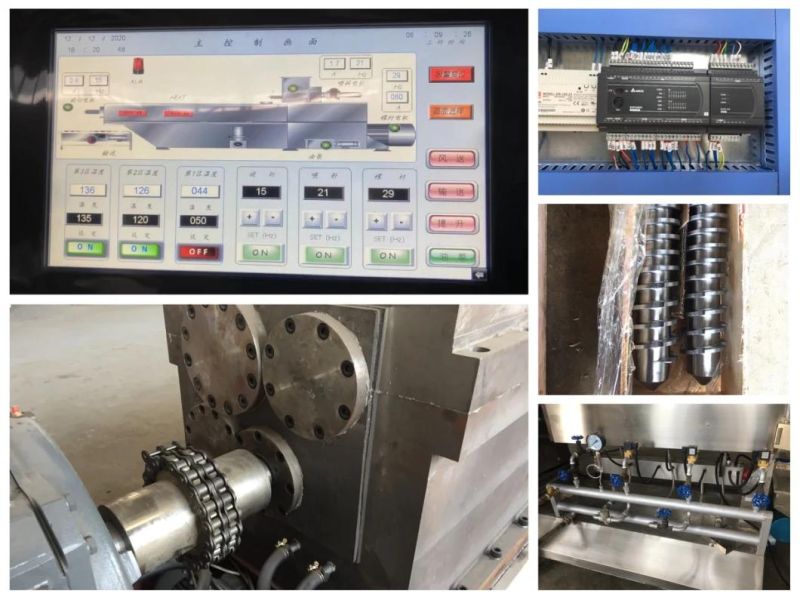

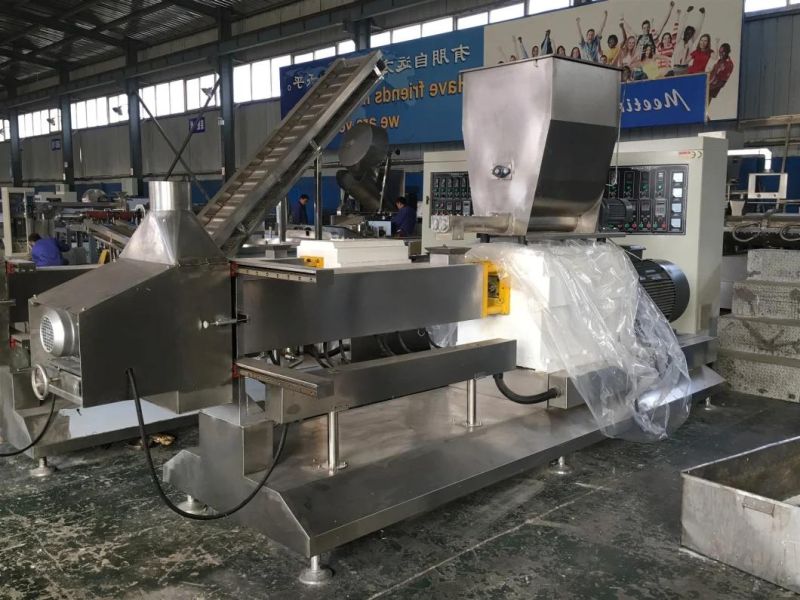

3. New Type SX70 SX85 Twin Screw Extruder

1. New type Rail-mounted cutting system;
2. Gear Box is manufactured by our factory;
3. New Type Direct Transmit System, more power (no belt, between gear box with motor), reducing energy consumption;
4. Full automatic heating system and cooling system;
5. PLC touch screen system.

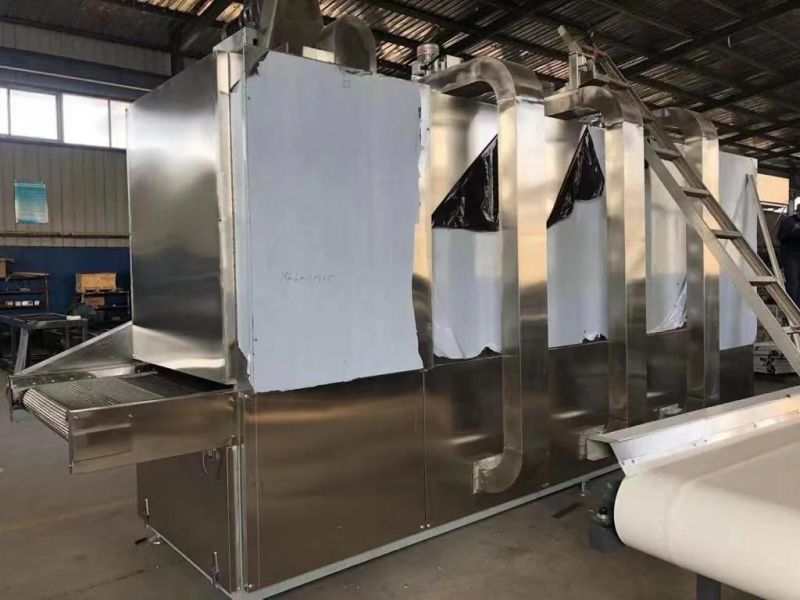

4. Main Machine (New design) - Dryer

1. The oven is circulated continuous dryer, can be customized according to solution.
2. It mainly consist of drive motor,stainless steel drive belt, circulating fan, dehumidification equipment, aircraft, PLC control system, etc.

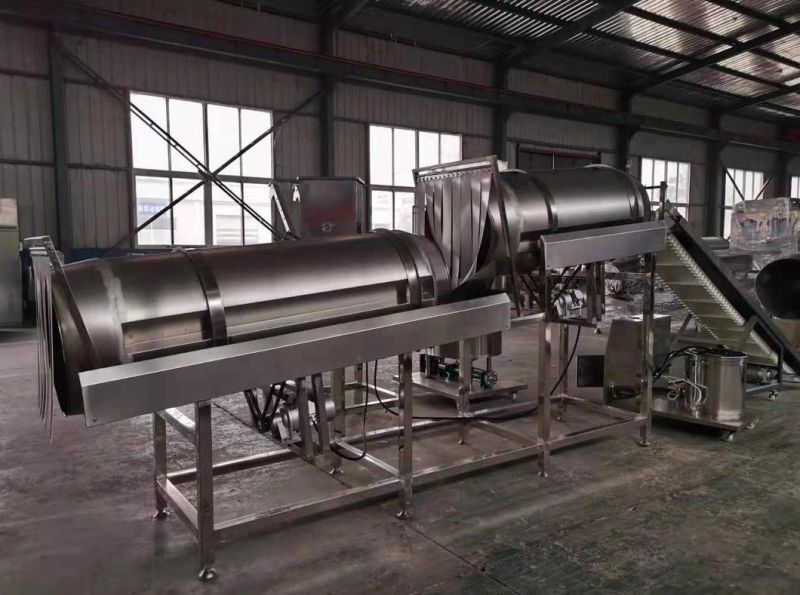

3. The Moisture of the dried material is around 9-10%.5. Double roller flavoring machine

The double roller flavoring machine is used for the seasoning of food.
The first section is used to spray food oil, the second section is used for powdered seasonings.
Include: two-section drum, fuel injector, and spreader.
Imported injectors, stainless steel spreader screws.
1. Materials will be in the roller automatically through elevator.
2. There is a flavoring quantity control device on the roller, make sure flavor spread evenly on snacks.
3. Rotary roller adopts complete molding, no dead angle inside.
4. Oil spray nozzle can adjust the oil amount, spraying equally.Customers' Feedback

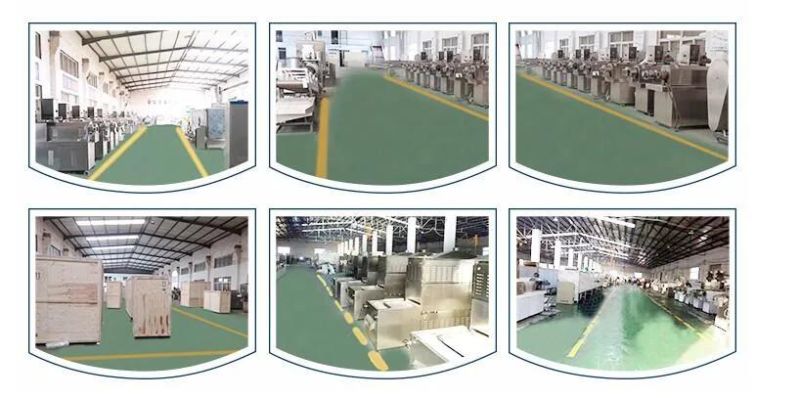

Company Information

Our company( Shandong Luerya )has good experience of the industry development. We have well-experienced managers, outstanding engineers as well as well-trained technical workers. By constant technical exchange with well-known firms of the same line in the world and also by introduction of advanced technique and experience into our company, we have established a strong technical guarantee system. Our company is a one of the most rich experienced manufacturer of puffed extruder and food machinery in China since the year of 1990.

Our Service
1. Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1.. Select equipment model;
2.. Design and manufacture products according to clients' special requirement;
3.. Train technical personnel for clients.

2. Services during the sale:
Respect clients, devote ourselves to improving the total value of clients.
1.. Pre-check and accept products ahead of delivery;
2.. Help clients to draft solving plans.

3. After-sale services:
Provide considerate services to minimize clients' worries.
1.. Assist clients to prepare for the first construction scheme;
2.. Install and debug the equipment;
3.. Train the first-line operators;
4.. Examine the equipment;
5.. Take initiative to eliminate the troubles rapidly;
6.. Provide perfect service;
7.. Provide technical exchanging.
