• Model NO.：GH-50
• Usage：Liquid
• Certificate：SGS
• Size of Bottle Can Be Handled：10-30kg
• Automation：Fully Automatic
• Transport Package：Wooden Case
• Specification：12cm
• Trademark：Ganghong
• Origin：China
• HS Code：84223090
• Production Capacity：100,Year

Basic Info.

Model NO. GH-50 Usage Liquid Certificate SGS Size of Bottle Can Be Handled 10-30kg Automation Fully Automatic Transport Package Wooden Case Specification 12cm Trademark Ganghong Origin China HS Code 84223090 Production Capacity 100/Year

Product Description

Product Introduction

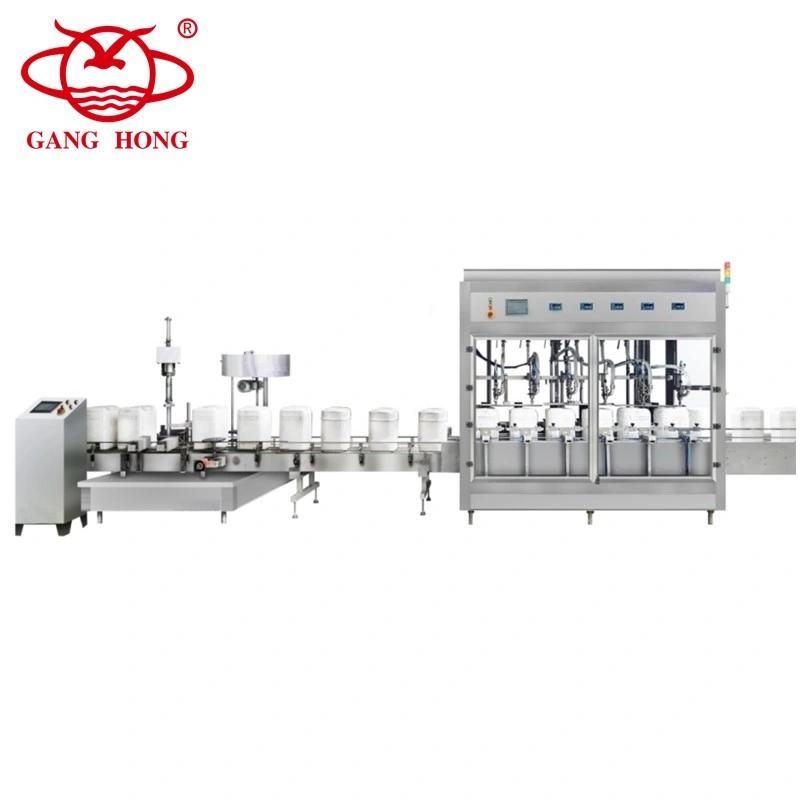

 This machine is suitable for quantitative filling of water, emulsion and low viscosity chemical materials.The weighing method is adopted, which the metering is accurate, the production capacity is high, and the use and maintenance are convenient and quick. This machine adopts the chain blocker plate,intermittently enters the barrel, locates, fills the metering and discharges the barrel; the filling valve of the machine adopts the double-speed filling method, firstly the fast filling, when the dose reaches the predetermined capacity, the quick conversion Slow filling; the filling valve is fully closed when the dose reaches the required dose.This machine can be combined with a single-head capping machine or a screwing cap machine into the production.


Main performance parameters

1.Power supply: AC 220V/380V ; 50HW/60HW
2,Power: 0.5KW
3,Filling capacity : 10-30Kg
4,Production capacity : 300-600/(Barrel/hour)
5,Filling accuracy : ±3g
6,Number of filling heads: 6
7,Measurement method :Weighing type
8,Equipped with gas source: 0.65Mpa
9,Weight: 200kg
10,Dimensions: 1800x1000x1900mm


Machine Details

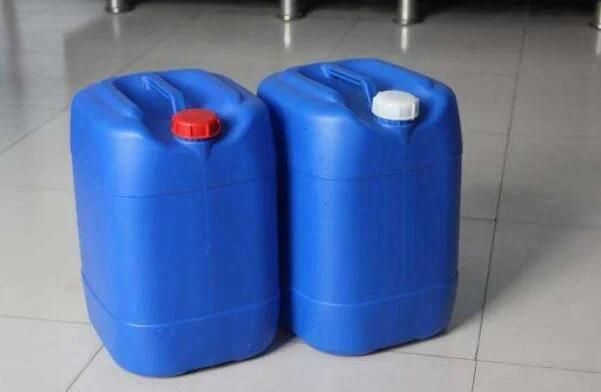

Suitable bottles

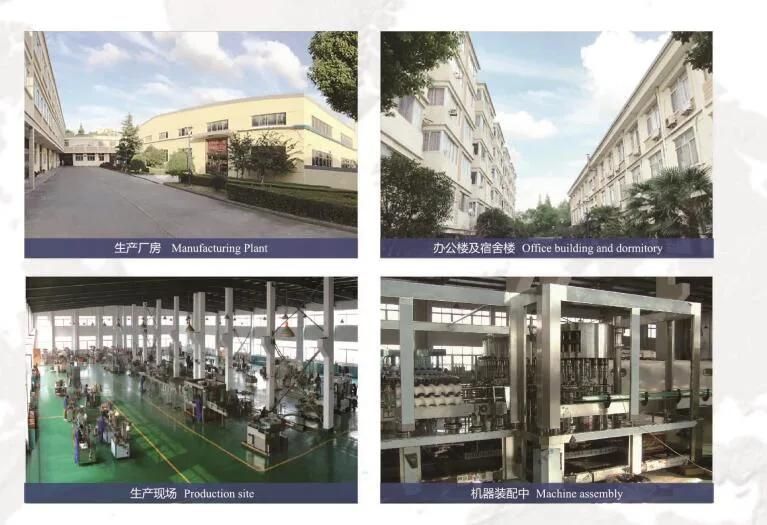

 Company facilitate

Packing & Delivery

Packaging Details:Standard export packing suitable for long distance land and sea transportation.

Shipping Detail:Shipped in 45 working days after advance payment and sample bottles and capers received.

Loading Port:Shanghai, Ningbo, Shenzhen

Our Advantage:

No matter whether you're a newcomer or a sectoral expert - we have the specialists who can provide the comprehensively can-do support you need for planning a new facility in terms of not only actual beverage production, but also filling, packaging, utilities and logistics.In closely responsive consultation with you, from a multiplicity of possible options, we select the technologically and commercially most effective variant, handle the design and planning work, and bring the project to a successful conclusion at your chosen location.Sunswell is not only the consultant here, but also takes responsibility for executing the entire project.

FAQ

1) When can I get the price?

We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.



2) Are you factory or trading company?

We are factory and manufacture.

3) Where is your factory located?How can I visit your factory?

We are located in Wuxi, you can fly to Changzhou airport or Wuxi airport.We can pick you up from the airport or your hotel.

Welcome to visit us!

4) How to place my order?

Just contact us via Trader Manager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.

5) What about the transportation and delivery date?

Normally we use shipment to transport the goods.It is about 25-40 days.It also depends on which country and port you are.

It could be shorter if you need to send the goods like Asian.

If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.

6) The After-sales Service of Ganghong Machine

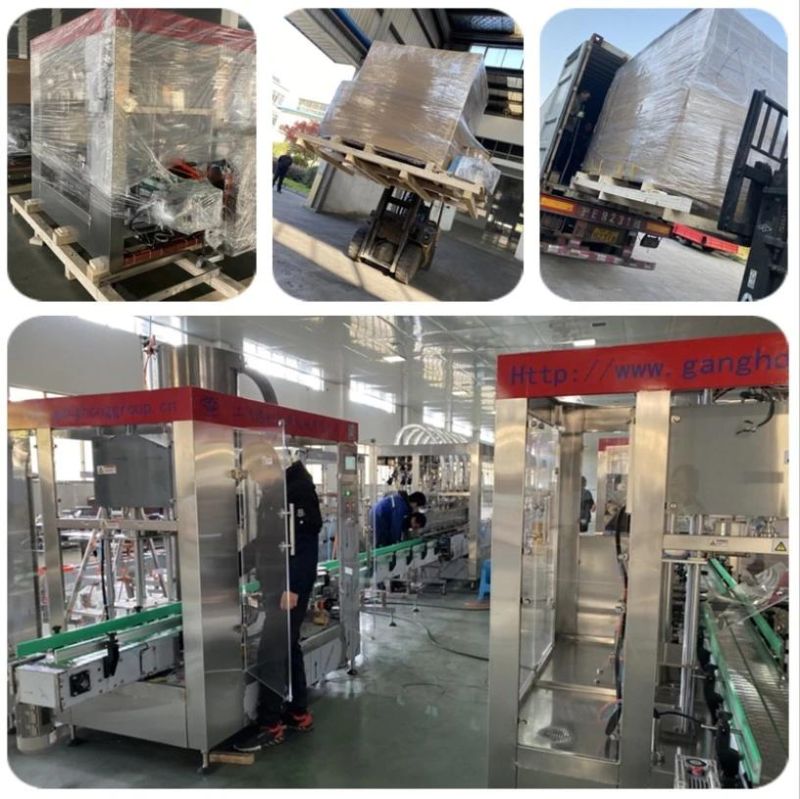

1.After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools

2.After the commissioning, we will package the equipment by standard export package for shipment.

3.According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.

4.Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
