• Model NO.：QS-400BT
• Dimension：1780*830*620 mm
• Weight：120 Kg
• Max Dough：4 Kg
• Power：0.55 Kw
• Conveyor Belt：430*1700 mm
• Working Width：430 mm
• Adjustable Thickness：1-35 mm
• Certification：Ce
• Folding Size：810*690*710 mm
• Package Size：910*790*870 mm
• Transport Package：Standard Export Wooden Case
• Specification：430 mm
• Trademark：Hongling
• Origin：Guangzhou, China
• HS Code：8438100090
• Production Capacity：500 PCS,Month

Basic Info.

Model NO. QS-400BT Dimension 1780*830*620 mm Weight 120 Kg Max Dough 4 Kg Power 0.55 Kw Conveyor Belt 430*1700 mm Working Width 430 mm Adjustable Thickness 1-35 mm Certification Ce Folding Size 810*690*710 mm Package Size 910*790*870 mm Transport Package Standard Export Wooden Case Specification 430 mm Trademark Hongling Origin Guangzhou, China HS Code 8438100090 Production Capacity 500 PCS/Month

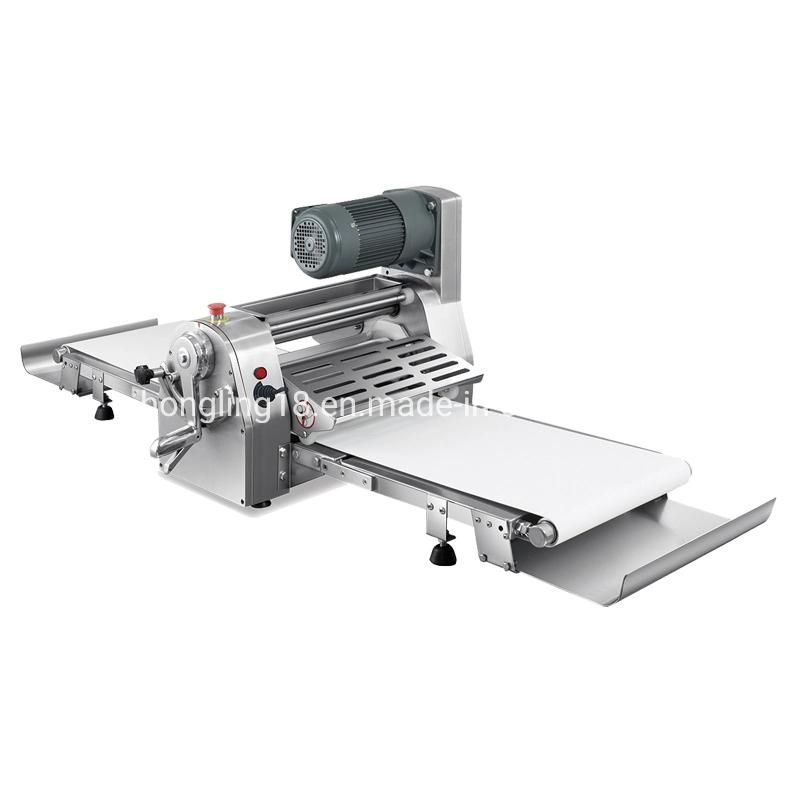

Product Description

Product descrition:

TEM	MODEL	Power	Voltage	Dimension (mm)	Weight	Working Standard
Dough Sheeter	QS-520S (Table Top)	0.55 KW	220 V/380 V	1780*950*620	129 KG	500 mm
Dough Sheeter	QS-400BT(Table top)	0.55 KW	220 V/380 V	1780*830*620	120 KG	430 mm
Dough Sheeter	QS-520B	0.55KW	220 V/380 V	2740*870*1200	190 KG	500 mm
Dough Sheeter	QS-520C	0.55 KW	220 V/380 V	2740*950*1180	189 KG	500 mm
Dough Sheeter	QS-650B	0.75 KW	220 V/380 V	2940*1070*1200	225 KG	630 mm
Dough Sheeter	QS-380C	0.55 KW	220 V/380 V	2100*950*1200	100 KG	360 mm



machine performance:
1. Imported parts, good materials, the pinch roller has hard chromium plated,
non-stick and against scratches;
2. Unique oil immersion design, low noise, wear resistance;
3. The specially designed pinch roller and scraper to make uniform thickness, the thinnest is 1 mm.
4. folding design, space saving, easy delivery;
5. Usage: All kind of pastries, croissant, also for small amount of dough rolling.

 Advantages:

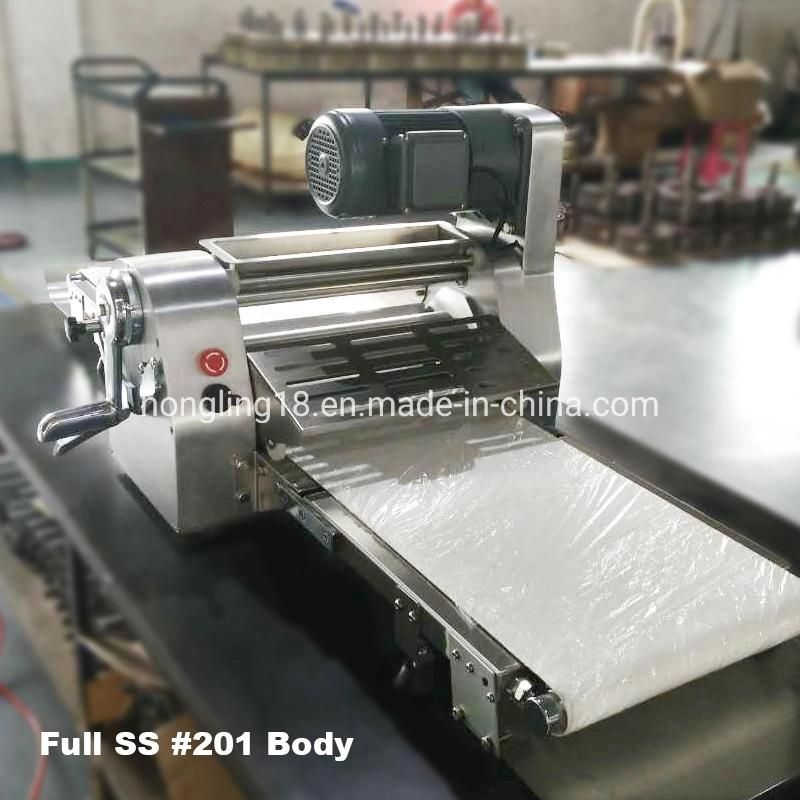

1. Stainless steel platform.
2. The pedal and rolling pin can be installed, very convenient.
3. optional: automatic and manual.

no need turn off the machine to shift speed, automatic rolling/pressing, automatically reduce the height of pinch roller and other function.

Product warranty:
1 year warranty and lifetime technical support.
Free spare parts will be shipped together with the goods.

Company advantages:
1. Producing bakery equipment since 1979, for more than 35 years.
2.the factory occupies 15, 000 square meters of workshop and 200 employees.
OEM/ODM is welcome.
3.Cettification: ISO9001, CE, etc.

Service:
All inquiries will be response within 24 hours.
We can pick customers up within Guangzhou aera.
