• Model NO.：TSDG-20
• Applications：Fruits,Vegetables,Seafoods
• Drying Plates：48 Pieces
• Drying Time：1-24hours
• Transport Package：Wrapped in Film, Wooden Case
• Specification：5000x2200x2500mm
• Trademark：AMBITIOUS
• Origin：China
• HS Code：8438600000
• Production Capacity：50pieces,Year

Basic Info.

Model NO. TSDG-20 Applications Fruits,Vegetables,Seafoods Drying Plates 48 Pieces Drying Time 1-24hours Transport Package Wrapped in Film, Wooden Case Specification 5000x2200x2500mm Trademark AMBITIOUS Origin China HS Code 8438600000 Production Capacity 50pieces/Year

Product Description

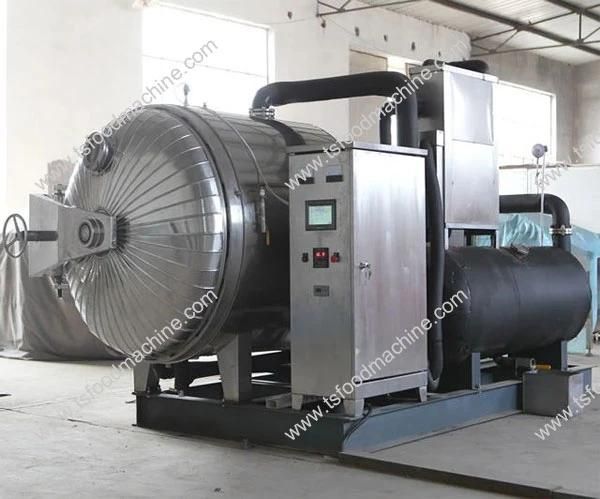

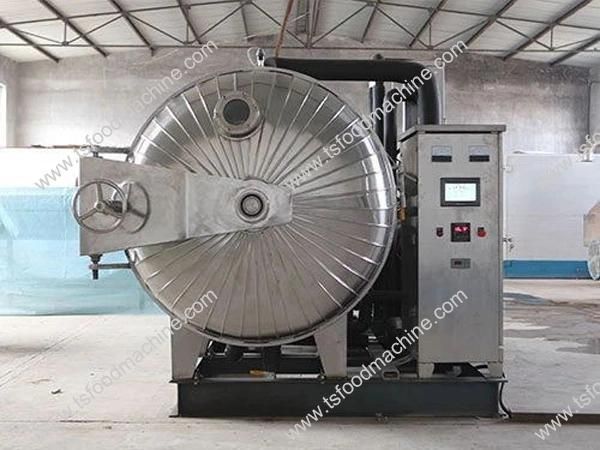

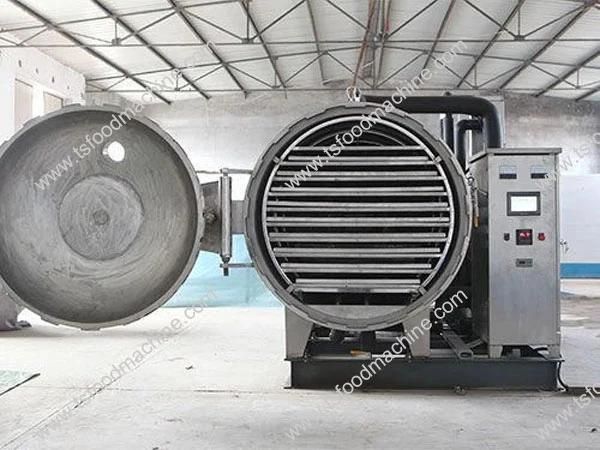

1.- Commercial Freeze Dryer Vacuum Freeze Drying Machine

Freeze drying is to freeze the water in the materials into a solid by freezing, and then sublimate the solid water ice into water vapor by the vacuum and light heating, so as to achieve the purpose of dehydration.

Compared with the heating drying method, freeze drying has many advantages, such as low volatile loss, no preservative, keeping the active ingredients in the material. Therefore, freeze-drying technology is widely used in pharmaceutical, food, scientific research and other fields.

Generally speaking, freeze-drying machine is mainly composed of refrigeration system, vacuum system, heating system and control system.



Features & Advantages Of Freeze Drying Machine:

*Protects many heat sensitive substances in the materials.

*When drying at low temperature, the loss of some volatile components in the materials is very small.

*In the freeze-drying process, the growth of microorganisms and the role of enzymes can not be carried out.

*The volume is almost unchanged and the original structure is maintained.

*The surface hardening of the material will not be caused because the moisture in the material exists in the form of ice crystal after freeze drying.

*The materials is loose, porous and spongy after freezing dried, so can dissolve quickly and completely, and almost immediately returns to its original shape.

*Since drying is carried out under vacuum, there is little oxygen, so some easily oxidized substances are protected.

*Freeze drying can remove more than 95% ~ 99% of moisture, so that the dried products can be preserved for a long time without deterioration.

*Because the material is in the freezing state and the temperature is very low, so the requirement of heat source is not high.










2.-Applications of Commercial Freeze Dryer Vacuum Freeze Drying Machine

Fruits:Strawberry,lemon,blueberry,apple,banana,longan,orange,pitaya, mango,hawthorn,blackberry,peach, kiwifruit,dates,peanut,etc.

Vegetables:Such as green onions,carrots,cucumbers,beans,ginger,
onions,garlic and so on.

Aquatic products: Such as shrimp,small and big fish,kelp and so on.






3.-Techinical Index of Commercial Freeze Dryer Vacuum Freeze Drying Machine

Model	TSDG-20
Control	PLC
Working Type	Quick freezing
Material	304Stainless steel
Drying area	20m²
Charge amount	200kg
Tray size	600/1000/25mm
Tray quantity	34
Tray type	disk or mesh
Shelf number	36pcs
Shelf temperature	-55~120ºC
water discharge 12Hours	200kg
vacuum pump	Rotary vane pump
Working vacuum temperature	≤130Pa
ultimate vacuum	<10Pa
Defrosting mode	Hot water spray
compressor	Fully enclosed inlet
Voltage	Single or three phase
Working Temperature	≤40ºC
Power Rating	45kw
Dimension L*W*H	5000x2200x2500mm

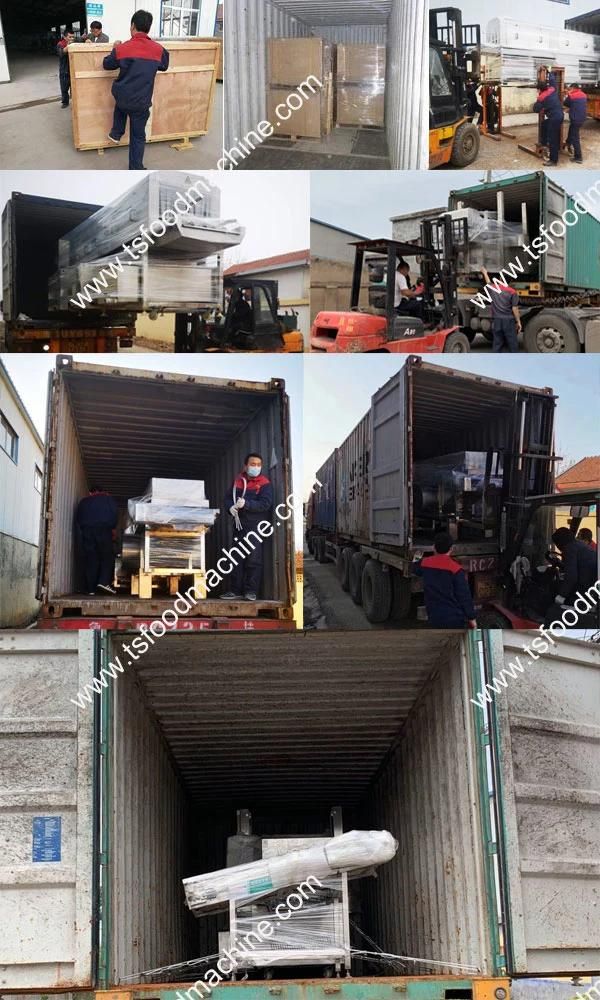

4.-Packaging and Delivery

Packaging	With Wrapping film and in wooden case, or according to the customer needs.
Delivery Time	15-20 Working days.
Shipping Type	By sea, railway, etc.

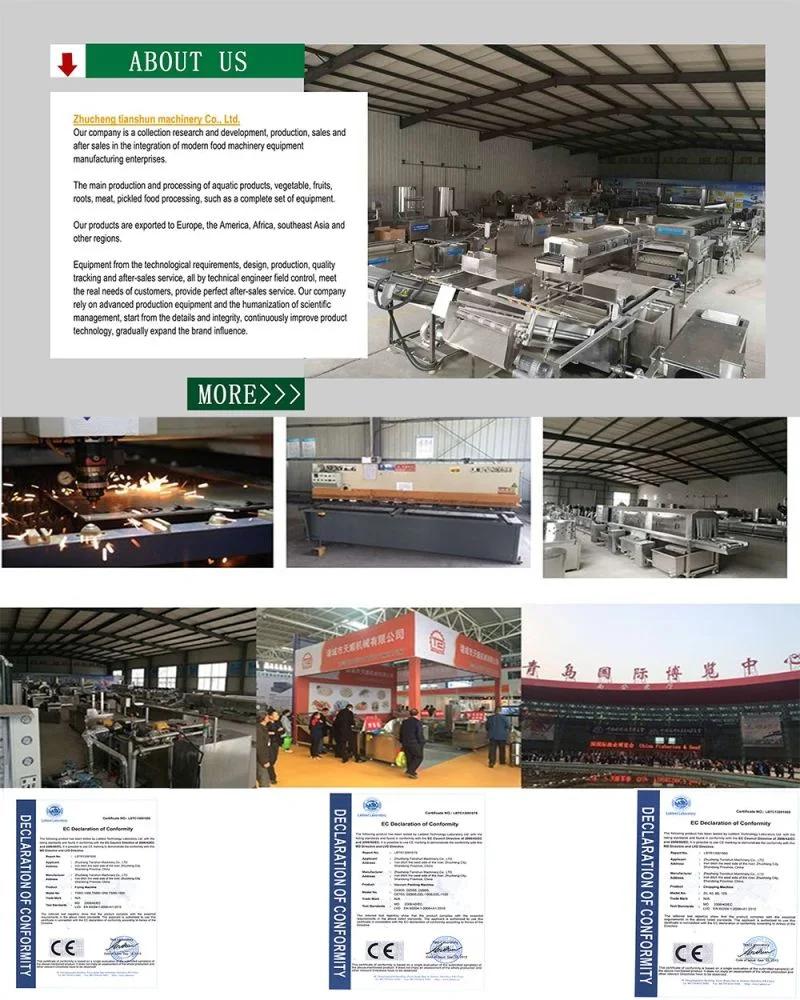

5. -Introduction of Our Company

Zhucheng Tianshun Machinery Co.,Ltd. has grown into a large, specialized food machinery manufacturing enterprise which integrates R & D and manufacturing. Currently has more than 100 employees, the division of labor is professionalization and specific, there are technical department, after-sales service department, domestic marketing department, international business department, etc. The company has all kinds of welding equipment, machining equipment to meet the needs of different customers.


Our Main Products:
Vegetables&fruits cutting machines,
Peeling&washing machines,
Frying equipment,
Air drying machinery,
Blanching&cooking machine,
Food flavoring machine,
Fruit drying machine,
Vacuum packing machine,
Donuts machine,
Potato chips production line,french fries production line,plantain chips production line.

All of them can be designed semi-automatic and full automatic, and widely used for processing varieties of vegetable, fruits, fish, seafood, etc. Some of them have pass the CE certificate. All of them could be customized, and we also provide and design individual machines for customers.
