• Transport Package：Plywood Case
• Power：7.9-10kw
• Quantitative Range：6-9999g
• Hopper Volume：240L
• Quantitative Deviation：+-2g
• Filling and Twisting Speed：0-600 Time,Min
• Button and Electric Parts：ABB
• Touch Screen：Taiwan Delta
• PLC：Japan or Germany Brand
• Motor：Siemens, Yaskawa
• Model NO.：ZKG-3500, ZKG-4500, ZKG-7500
• Specification：CE, SGS
• Trademark：YuanChang
• Origin：Shijiazhuang
• HS Code：84385000
• Production Capacity：300pieces,Month

Basic Info.

Model NO. ZKG-3500, ZKG-4500, ZKG-7500 Motor Siemens, Yaskawa PLC Japan or Germany Brand Touch Screen Taiwan Delta Button and Electric Parts ABB Filling and Twisting Speed 0-600 Time/Min Quantitative Deviation +-2g Hopper Volume 240L Quantitative Range 6-9999g Power 7.9-10kw Transport Package Plywood Case Specification CE, SGS Trademark YuanChang Origin Shijiazhuang HS Code 84385000 Production Capacity 300pieces/Month

Product Description

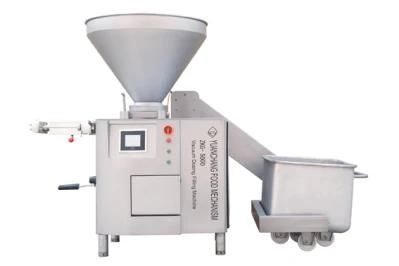

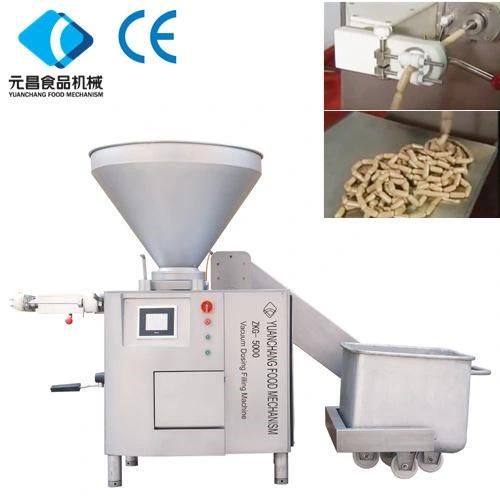

Sausage Making Machine Vacuum Sausage Stuffer



1. The sausage stuffer fill mince meat under vacuum state, preventing fat oxidation and proteolysis, reducing bacteria survival amount. Make the sausage has a longer shelf life, brighter color and pure taste.
2. Be equipped with automatic sausage twisting device for natural casing, collagen casing, smoke casing, sausage linker speed is 640pcs per minute.
3. Optional dual filling tube for plastic or nylon sausage casing. Work with sausage clipper machine form a automatic sausage production line.
4. Can fill dry minced meat and juice minced meat both.

Hopper Volume: 160L, 240L
Sausage Casing: Natural casing, collagen casing and smoke casing twisting.
Dual filling tubes option:  The vacuum sausage stuffer can work with full-automatic sausage clipper machine.
Twisting speed: 640pcs/min(e.g 6g/pc); stepless speed regulating available.
Drive Model: AC Servo Motor
Twisting tube size: Φ10 Φ12 Φ14 Φ16 Φ19 Φ22MM (3 options)
Clipping and filling tube: Φ16 Φ22 Φ28 Φ30 Φ40MM (3 options)

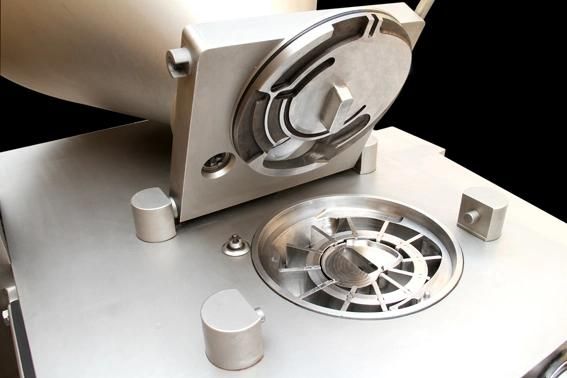

Impeller, blade and pump body is designed with high hardness, high wear-resisting stainless steel and master body adopts 304 stainless steel.

The main parts using imported :Japan YASKAWA servo motor and Italy BONFIGILION (German) decelerator as its drive system, also featuring its man-machine interface from Taiwan, Japan
 Mitsubishi PLC and Germany Busch vacuum pump and ABB waterproof button,
 all material for machine is SUS 304 with 2mm thickness.


Here are ZKG Series Sausage Stuffer Details:
1. Sausage Linker Device. Twist the natural casing sausage, collagen casing sausage automatically and speedily.
2. The PLC controller. You can set the filling speed, sausage weight, sausage linker number, vacuum or not..etc.
Touch screen, different language option, very friendly and easy operation.
3. Elevator. Two option, fixed or moveable. Load the mince meat into sausage stuffer hopper automatically. Improve working efficiency and save labour.
4. Filling Tube optional. If you use plastic sausage casing, remove the twisting device, connect filling tube. The sausage stuffer can work with sausage clipper machine automatically.

The ZKG Series built with a combination of Japan YASKAWA servo motor and Italy BONFIGILION (German) decelerator as its drive system, also featuring its man-machine interface from Taiwan, Japan Mitsubishi PLC and Germany Busch vacuum pump. Key parts produced by machine center with high precision. All of pump, impeller and blade have are adopted the special heat treatment technique, highly smooth surface, easily to be cleaned up.




Model	Quantitative Range ( g )	Power (KW)	Quantitative Deviation (minced meat) ( g )	Hopper Volume  ( L )	Rated Voltage ( V )	Weight (Kg )	Dimensions ( mm )
ZKG-2500	6-9999	5.05	± 2	125	380	590	1350 × 860 × 1740
ZKG-3500	6-9999	6.09	± 2	240	380	630	2420 × 1180 × 1800
ZKG-4500	6-9999	6.09	± 2	240	380	750	2420 × 1180 × 1850
ZKG-7500	6-9999	7.59	± 2	240	380	830	2420 × 1180 × 1850
