• Transport Package：by Standard Export Packing in Containers
• Advantage：Environmental Protection
• Merit：Save Power
• Quality Certificate：ISO, CE Certificate
• Motor：Siemens Brand
• Transducer：Siemens Brand
• Gearbox：Sew Brand
• Bearing：NSK Brand
• Automatic：PLC Controlled
• Materials：304 Stainless Steel
• Voltage：380V
• Model NO.：HJ
• Specification：ISO9001: 2000, CE
• Trademark：SINOBAKE
• Origin：China
• HS Code：8438
• Production Capacity：100 Pieces,Year

Basic Info.

Model NO. HJ Voltage 380V Materials 304 Stainless Steel Automatic PLC Controlled Bearing NSK Brand Gearbox Sew Brand Transducer Siemens Brand Motor Siemens Brand Quality Certificate ISO, CE Certificate Merit Save Power Advantage Environmental Protection Transport Package by Standard Export Packing in Containers Specification ISO9001: 2000, CE Trademark SINOBAKE Origin China HS Code 8438 Production Capacity 100 Pieces/Year

Product Description

Automatic Soda/Cracker Biscuit Complete Production Line

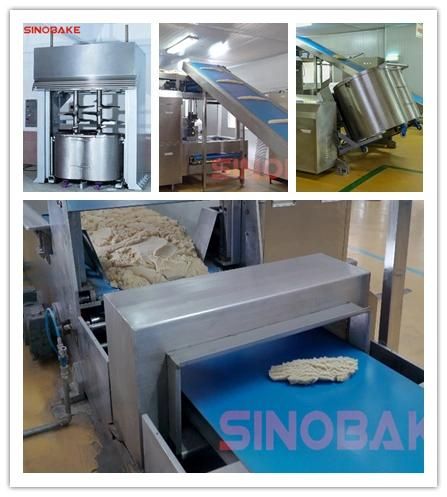

1. Vertical dough mixer/ Horizontal dough mixer

Used to mixing the dough

2. Tilting machine

Used to easy to transport the dough to the dough feeding system

3. Metal detector

Used to detect if the dough contains any metal

4. Automatic Dough feeding system

Used to automatic conveying the dough to the next machine

5. Laminator

For Hard biscuit production, sheeting and overlapping the dough, increase layered of biscuit


6. Gauge roll *4 (According to the length of oven )

Used for half-sheeting and sheeting dough for hard biscuit production line.

7. Rotary cutter

This machine is the forming equipment of hard biscuit , the dough will be cutting to hello panda biscuit shape or others shapes by rotary cutter.

8. Separating machine

Designed for separating the unbaked biscuit and the scrap.

9. Dough scrap recycle machine

Designed for scrap recycling when producing hard biscuit, also used for feeding of soft biscuit dough.

10. Enter oven machine

Designed for sending the unbaked biscuit into the baking oven

11. Oven drive belt and tension system

Mainly provide motive power to oven belt,drive the mesh belt,the mesh belt can be tensioned manually, pneumatic offset adjustment,the belt has brush cleaning device.

12. Tunnel Oven(Gas/Electric/Diesel oil for optional)

Used to baking biscuit

13. Out oven machine

It is used for conveying baked biscuit out of oven smoothly.

14. 90/180 degree turning machine(Optional)

It makes a 90°/180°turn after biscuit come out of the oven, so that the plant can be used properly.

15. Oil sprayer

It sprays atomized oil with high speed on the up and down surface of biscuits,  it can improve the color, smell, and taste of biscuits, the excessive oil can be recycled through filter, and reuse through conveyor.

16. Cooling conveyor

It is used for cooling and conveying the biscuits in normal condition.

17. Star wheel stacker

It is used for sorting the biscuits before packaging, to make the packaging work easy.

18. Packing console

It is used for checking the quality of biscuits before packaging.

19. PLC System

Used for automatic control and remote monitoring of biscuit production line

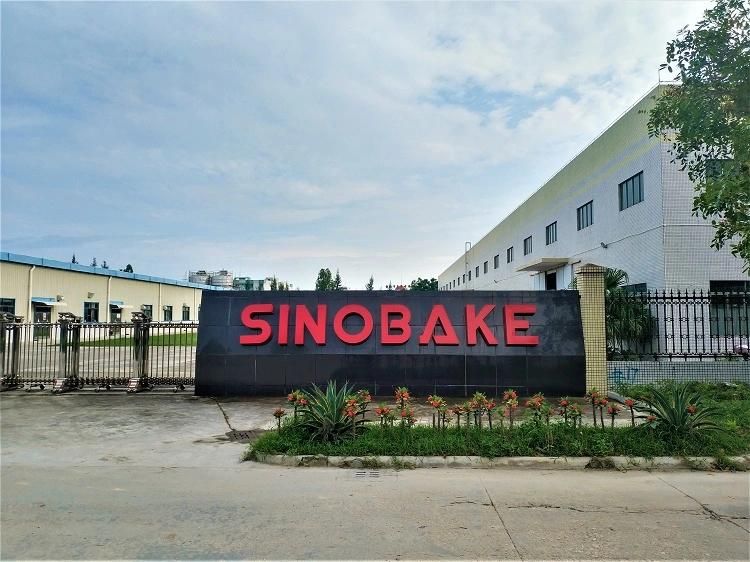

OUR COMPANY
