• Transport Package：Standard Export Package
• Cold Load：115kw
• Output Temperature：-18°c
• Input Temperature：+15°c
• Freezing Time：5-50min Adjustable
• Freezing Temperature：-36+,-2°c
• Model NO.：SLD-0.5
• Specification：500kg,h
• Trademark：Walley
• Origin：China
• HS Code：8418699090

Basic Info.

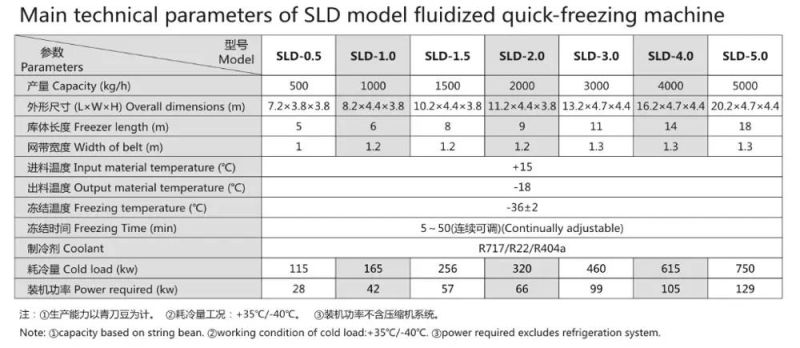

Model NO. SLD-0.5 Freezing Temperature -36+/-2°c Freezing Time 5-50min Adjustable Input Temperature +15°c Output Temperature -18°c Cold Load 115kw Transport Package Standard Export Package Specification 500kg/h Trademark Walley Origin China HS Code 8418699090

Product Description

Product Description

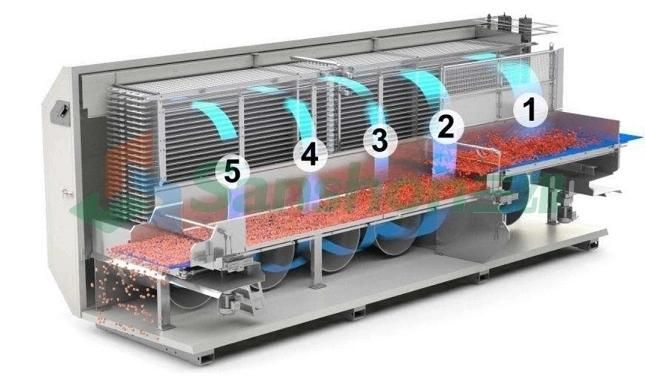

IQF Tunnel Quick Freezing Machine Working principle:

The best equipment for quick freezing all kinds of fruit&vegetable and some of the seafood.

Adopts the two stage belting structure---fristly, quick-cooling step. Secondly, deep-freezing step. Independently speed control system, and the speed of the two meshbelts can be changed infinitely.

1.Quick-cooling stage---the food particles are to be quick cooled after entering into the blast room. The surface of the particles would frozen and reach the temperature of 0 C. meanwhile, with the help of the striking chain, the particles would neither stick together nor sticke on the stainless steel meshbelt.

2.Deep-freezing stage---the food is to be moved on a stainless steel meshbelt, the foodstuff layer loosens with the increasing of the airflow. Some of the foodstuff particles become floating(this is the reason why this equipment is not applicable to big bulk foodstuff) when the air pressure reaches a certain scale, which brings interspace among the foodstuff particles, that is the way the fluidized bed come into being.






Detailed Pictures
