• Average lead time：15 days
• Name：oil press with filter
• Raw material：oil seeds
• With filter：Yes
• Capacity：20-30KG,H
• Weight：160kg
• Power：1.5+0.18kw
• English Manual：Yes
• Auto：Semi-Auto
• Control Box：Have
• Customized：Non-Customized
• Condition：New
• Press Series：Fifth
• Press Materials：All Oil Seeds
• Model NO.：6YL-30A
• Transport Package：Wooden Box
• Specification：CE
• Trademark：VIC
• Origin：China
• HS Code：847920000
• Production Capacity：3000PCS,Year

Basic Info.

Model NO. 6YL-30A Press Materials All Oil Seeds Press Series Fifth Condition New Customized Non-Customized Control Box Have Auto Semi-Auto English Manual Yes Power 1.5+0.18kw Weight 160kg Capacity 20-30KG/H With filter Yes Raw material oil seeds Name oil press with filter Average lead time 15 days Transport Package Wooden Box Specification CE Trademark VIC Origin China HS Code 847920000 Production Capacity 3000PCS/Year

Product Description

 6YL-30A Combine Oil Press Machine
Application:
This machine is upgrade type based on traditional type screw oil press, it's combined with transparent double vacuum filter and control box; It is widely used to press rapeseeds, cottonseeds, soybean, peanut, sesame, teaseeds, sunflowerseeds, etc

Advantage:

1. Choose rods type pressing rods, which is with higher pressure in pressing chamber, higher oil extraction rate, and lower oil slags rate;
2. Both hot press and cold press are available to meet different user;
3. Pressing screw, rods, pressing shaft etc core parts all through carburization and hardening, so that with high wear-resistance;
4. Match with transparent vacuum filtering system, which can realize pressing and filtering same time and observe filtering anytime;
5. Inside feed-in hopper match with agitating auger, which can realize forced feeding and solve blocking materials problem;
6. With cake adjustable handle, which can control cake thickness anytime;
7. With control box which is more easier to control and operation machine;
8. This oil press can do continuous work with high oil extraction rate.

Technical data:

Model	Capacity (kg/h)	Power(kw)	Size(mm)	Weight(KG)
6YL-30A	20-30	1.5kw+0.18kw	800x800x1200	160
6YL-60R	30-50	2.2kw+0.18kw	1000x900x1200	200
6YL-70R	50-80	4kw+0.18kw	1000x1000x1250	260

Shipping: We can deliver the machines to port within 7-10 days after payment.
Packing: wooden box package as international standard.
Delivery port: Shanghai port or qingdao port of china.
Warranty: one year excluding wearable parts.

We can supply different kinds of screw oil presses with different capacity. We also can supply comined oil press with vacuum filter and complete set of edible oil processing plant in turkey basis.
Our target is make the best qualified oil press machine and in time service for you, long-term win-win cooperation. Customers all over the world and agents are always welcome.

More picture
Final oil and residue

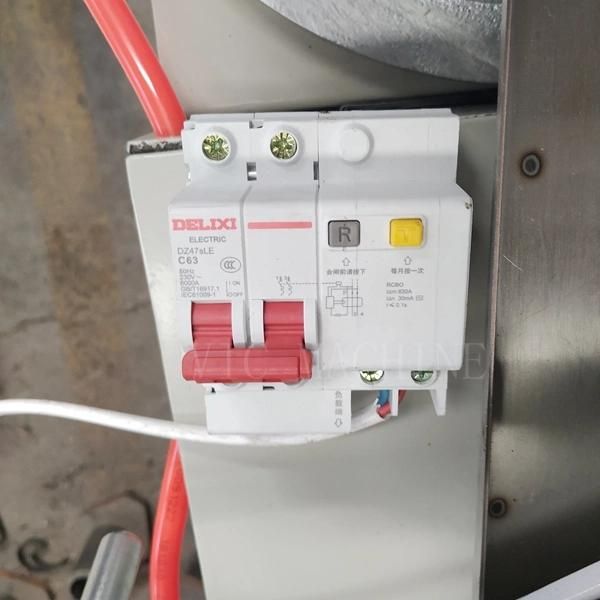

The wiring of the leakage protector presented by the randomizer is safer

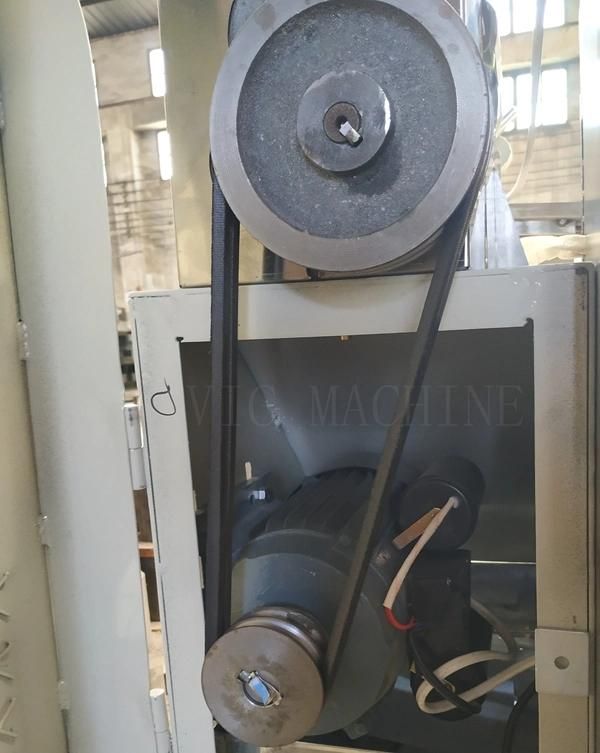

Two V-belts drive more powerful;Strong magnetic door connection is secure to open the door and it is convenient without screwing

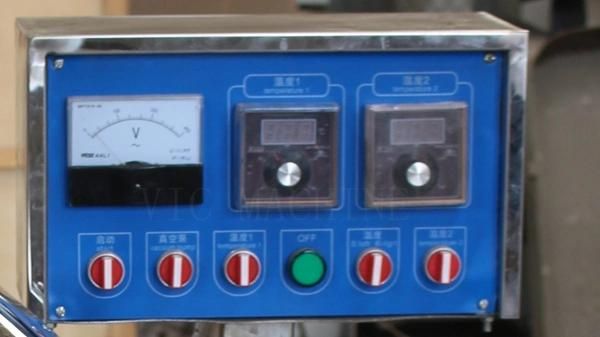

Simple operation electronic control system with temperature controller

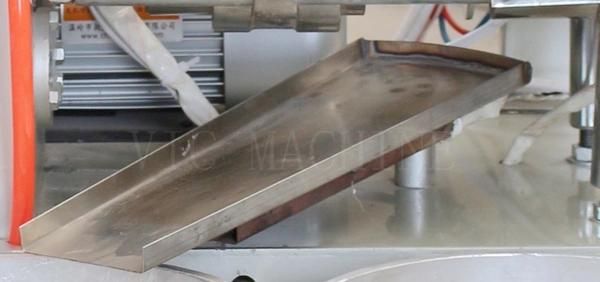

Stainless steel oil pan clean and sanitary

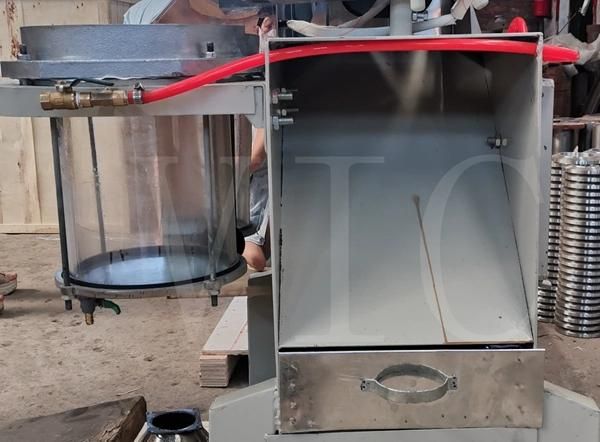

The pull-out drawer can be used to place tools, and it can also be used to catch oil cakes

Double glass filters are easy to observe and clean

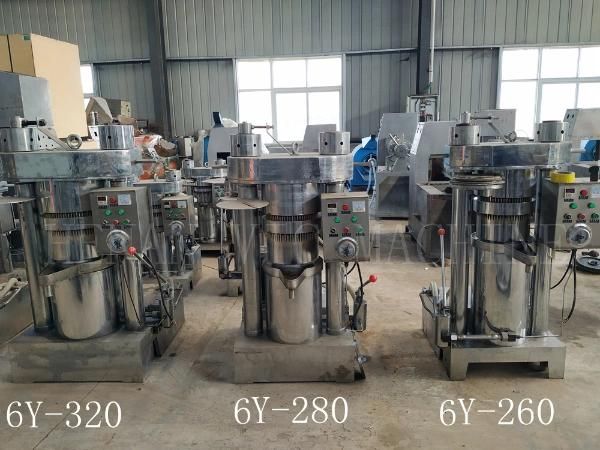

Other hydraulic oil press 6Y series

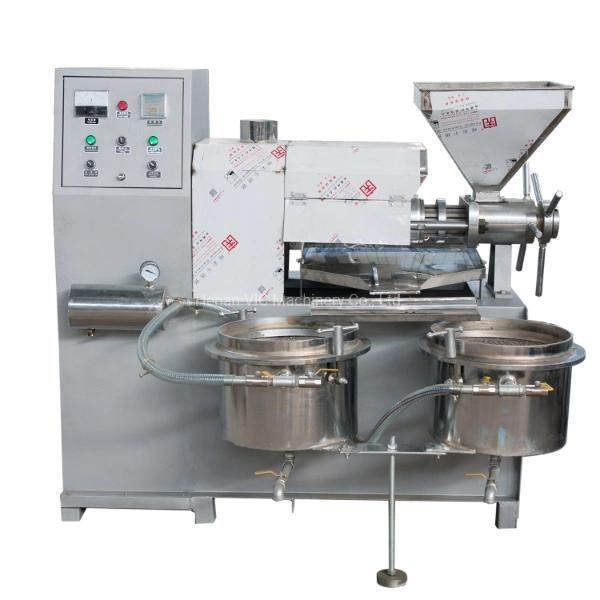

Other combined oil press with filer 6YL-80B

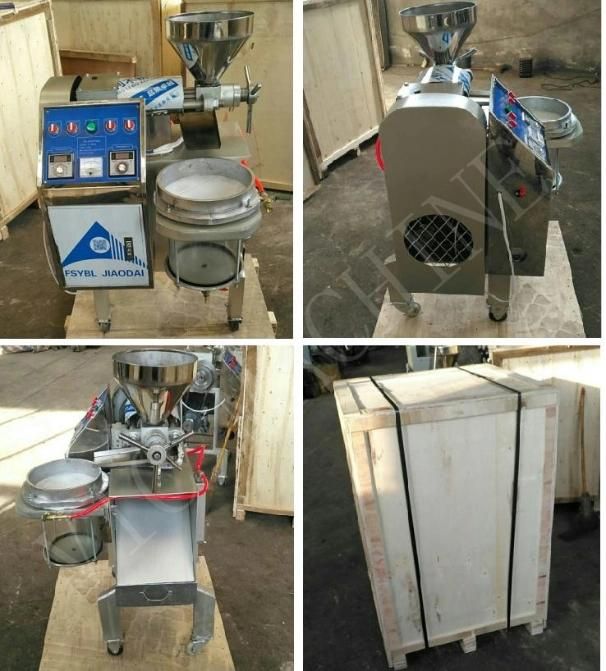

Package picture

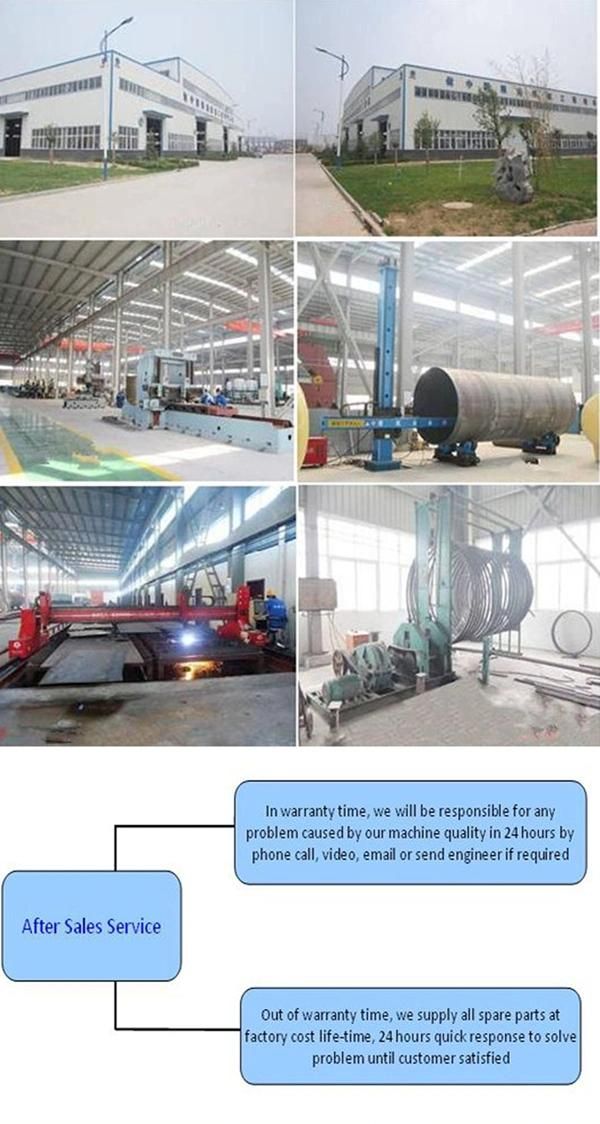

 Our factory
