Full Automatic Carbonated Liquid Mineral Soda Water Bottling Filling Capping Sealing ...
Jiangsu Fantas Industrial Technology Co., Ltd.- After-sales Service：Video Guidance or Live Teaching
- Warranty：2 Years
- Condition：New
- Customized：Customized
- Voltage：220V,380V
- Composition：Filling Machine
Base Info
- Model NO.：CGF
- Processing Material：Agronomic Products
- Rated Output：8000 Bottles Per Hour
- Volume：250-1500 Ml
- Height of Can：80~135mm
- Diameter of Can：45~70 mm
- Suitable Cover：Standard Aluminum Cover
- Number of Valve：18
- Temperature of Filling：0-4 Temperature
- Flow of Filling Valve：140~150ml,S
- Number of Capping：4
- Power of Motor：3 Kw
- Consumption of CO2：120g,Hl
- Overall Dimension：3150*1920*2700
- Transport Package：Plywood Case
- Specification：4500 kg
- Trademark：Fantas
- Origin：Zhangjiagang, China
- HS Code：8422301090
- Production Capacity：50-100 Sets Per Year
Description

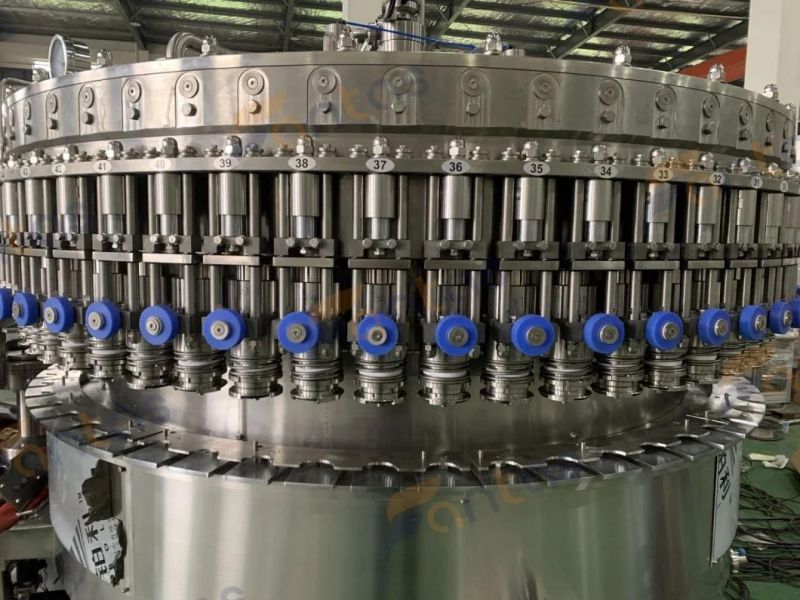

Our company introduces German technology, designing and manufacturing by ourselves.Uses the principle of equal pressure filling, so as to fill the liquid into the washed bottles sent by the bottle washing machine.The filling valve adopts constant pressure mechanical valve, which makes the filling process quick and sensitive, with high precision of filling liquid level.
It has perfect CIP cleaning function.
Combine filling valve mouth with guide device and bottle supporting cylinder lifting device to ensure the accurate sealing of the bottle mouth and filling valve. It can reduce the leakage of materials from the can mouth.
According to the different height of the tank, it can achieve manual lifting to meet the filling requirements.
Adopt gear transmission, which has high efficiency, low noise, long service life, convenient maintenance and sufficient lubrication. Use frequency converter to control the main motor speed of the machine. The machine adopts stepless frequency control.
The structure of the bottle guiding system is simple, which can be changed quickly and conveniently according to the type of the can. The whole machine adopts the structure of supporting the bottom of the can for conveying.
The whole machine is controlled automatically by PLC. Faults are displayed online, such as bottle blocking, cover lacking, etc.
It has the safety protection functions of shutdown when there is no cap. When there is no can, it won't open valve and make cap.
The material in the filling cylinder is automatically controlled.The liquid level height is detected by the liquid level sensor to ensure the stability of liquid level and the reliability of filling.
The key parts and electrical components of this machine are imported products.
1.Water Treatment System (Water Filtration)2.Bottle Blowing Machine (Making plastic bottles)
3.Air Conveyor (Transport empty bottles)
4.Water Filling Machine (Filling water into bottles)
5.Cap elevator (Transport cap)
6.Blow dryer (Blow dry water)
7.Flat Convey (Transport bottle)
8.Code Sprayer (Printing the date on the bottle water)
9.Labeling Machine (Labeling in bottled water)
10.Bottle Shrink Wrapping Machine (package the bottle water)
Please feel free to contact me if you have any questions.
