• Origin：China
• Trademark：YH
• Specification：CE
• Transport Package：Wooden Case
• Model NO.：YH-450
• HS Code：84383000
• Production Capacity：50line,Year

Basic Info.

Model NO. YH-450 Transport Package Wooden Case Specification CE Trademark YH Origin China HS Code 84383000 Production Capacity 50line/Year

Product Description

Main Features:
1). Directly Candy machine Manufacturer ,15 years experience focus on Jelly candy depositing line
2). Different sizes, multiple colors,center filling jelly candies (QQ candies) by replacing moulds or depositor head.
3). The whole line consists of jacket dissolving tank, jelly mass cooker and storage tank, depositing machine, cooling tunnel, conveyor, sugar coating machine (optional), surface polishing machine (optional).
4).Drive: Servo depositing
5).PLC controller.
6). Molds: Aluminum alloy with Teflon Coating
7).Motor: ABB brand.
8).Material: All the parts that touched with Candy will use stainless steel 304 or H62 copper, PVC belt, strong carbon steel or appointed material for the bearing parts. High quality electronic components supplied by well-reputed company like Schneider and Mitsubishi.
9). Heating type: Steam or electricity.

Technical Parameter:


Production capacity	450kg/h
Stroke speed	45-55 n/minute
Candy weight	2-12g(max)
Steam consumption	300kg/h
Steam pressure	0.6Mpa
Voltage	380v
Total power	45kw
Compressor air consumption	0.3m3/minute
Compressor air pressure	0.4-0.6Mpa
Condition for cooling parts	Room temperature<25ºC,humidity<55%
Water consumption	0.3m3/hour

Specifications:
1).Dissolving tank:

A. Jacketed tank 1 set 300L
B. top diameter:900mm, height:950mm
C. SUS304
D. with stirrer, reducer and motor
E. with temp. meter and pressure meter
 F.max steam pressure:0.6Mpa

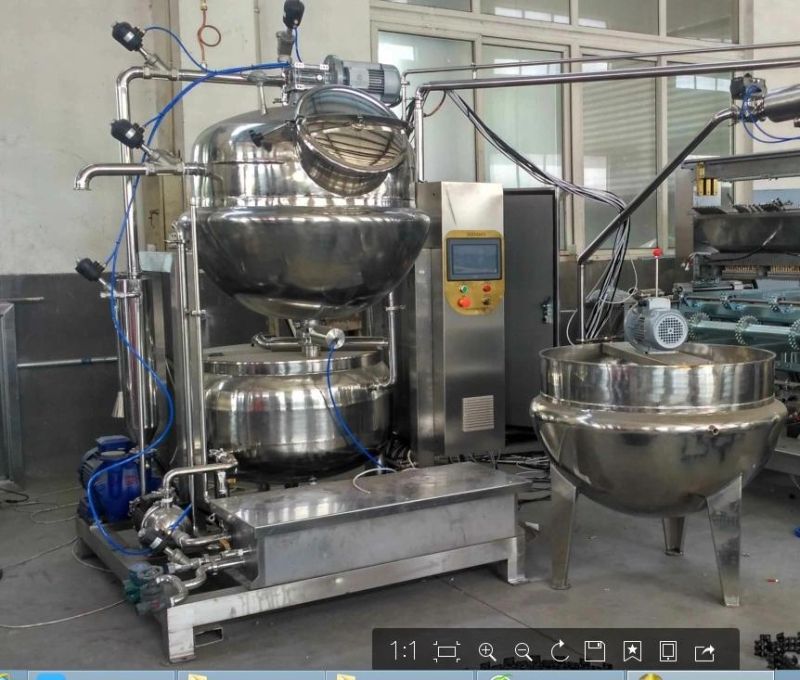

2).Jelly Mass cooker:

A. jacket mixing tank 1pc
B. jacket storage rank 1pc
C. with stirrer and motor
D. vacuum pump 1 set 4 KW
E. transfer pump 1 set 1.5 KW
F. with electricity control box
G. PLC System control
H. tank capacity:300L
I. top diameter:600mm
J. material SUS304

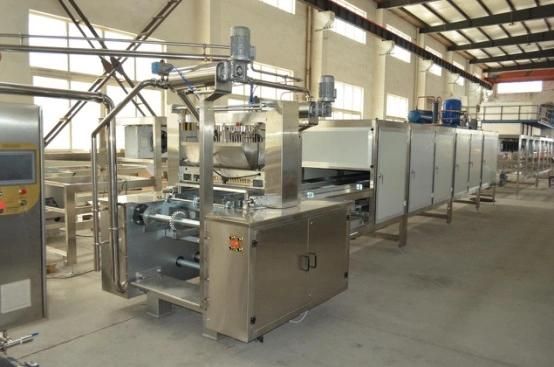

3).Servo system depositing machine and cooling tunnel:


A.CAM Depositor 1 set
B.Cooling tunnel 1 set
C. PLC/touch screan control type depositing system
 D. With 4 flavor dosing pump and 2 mixer
 E. 2 hoppers, can produce bi-color jelly candy
 F. frequency inventer
 G. chiller 1 set, power 7.5kw
 H. conveyor belt power1.5kw
 I. machine surface and parts touching food use SUS304
 J. Tunnel door use SUS304, insulation inside

4).Moulds:

A. moulds made of Aluminum alloy, coated with Teflon
B.candy shape and size can be designed

5).Transport table:

A.Transport belt length: 1500mm
B.Transport belt length:2600mm

6).Surface sugar control machine :

A. Material SUS304
B. Length 1400 mm, width 750 mm
C. G.W.: 300 KGS
D.  Power: 1.5 KW
Configuration:1).Main motor ABB brand, electrical parts ABB brand
2).MITSUBISHI PLC
3).Danfoss converter
4).Touch screen MCGS
5).SERVO MOTOR TAIWAN TECO BRAND
6).Compressor use  Danfoss
Notes:For parts which touch food, material use 304 stainless steel or H62 copper.

WARRANTY:
The seller guarantees the quality of the products for 12 months since the date of installation. During the warranty period, any problems/defaults happen on the hard parts of the machinery, the buyer will replace the parts at the seller's cost (FREE). If the defaults are aroused by the defaulted operations, or the buyer needs the technical assistance for the processing problems, the buyer should be responsible for all the cost and their allowance.

Utilities:
The buyer should prepare sufficient electric power, water, steam and compressed air supplies which are suitable to be connected to our machinery before the arrival of our machinery.
