• Specification：1100× 800× 1750mm
• Transport Package：Wooden Cases
• Application：Liquid Filling Machine
• Key Word 2：Milk Packing Machine
• Key Word 1：Juice Sachet Packing Machine
• Model NO.：THB4-S320L(3 side)
• Trademark：RX
• Origin：Henan
• Production Capacity：50000

Basic Info.

Model NO. THB4-S320L(3 side) Key Word 1 Juice Sachet Packing Machine Key Word 2 Milk Packing Machine Application Liquid Filling Machine Transport Package Wooden Cases Specification 1100× 800× 1750mm Trademark RX Origin Henan Production Capacity 50000

Product Description

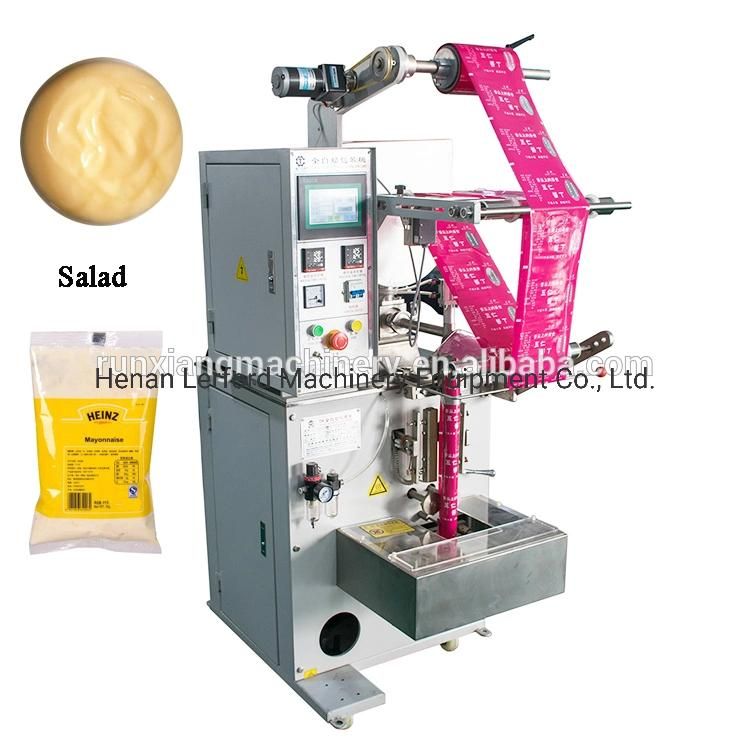

automatic liquid packing machine sechet packing machine

Juice, Honey, Ketchup, Peanut butter, Garlic sauce, Milk, condensed milk, Shampoo, gel, emulsion, lotion, Liquid detergent, liquid soap…



Standard setting:

• Closed sealer housing
• Intuitive operator guidance on the button/touch panel
• Integration of all identification systems
• Printed mark identification & measurement of bag lengths
• Use of different heat sealing and welding instruments
• Minimal time required when changing rolls
• Stop when film roll end. Detect the fault automatically.
• Seal tight, no leaking.

Available option spare parts:

• Stainless steel and Paint version
• Display panel: Touch screen and Button screen
• Date & batch printer
• Date embossing system
• Exhaust sponge system, less air inside the packet
• Easy tearing notch
• Round and euro-hole punch, carrying handle punch
• Insulation and stirring system
• Numerical control cutter, 1-99 packet
• Flat bottom package with center seal
• Frequency control system, less noise
• Power supply: - 110V, 120V, 220V, 240V. - 50Hz, 60Hz.
• Bottom holding set
•





MAIN FEATURES:

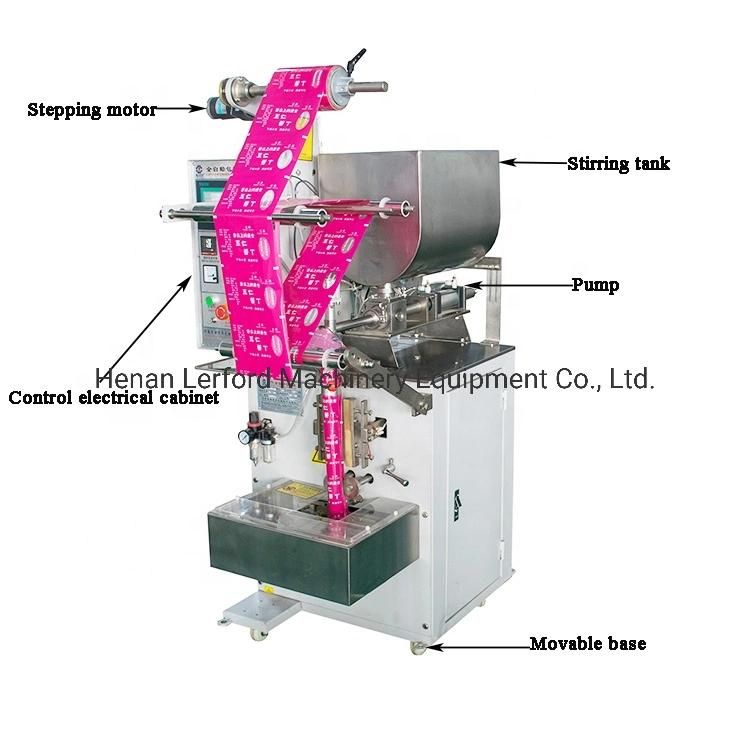

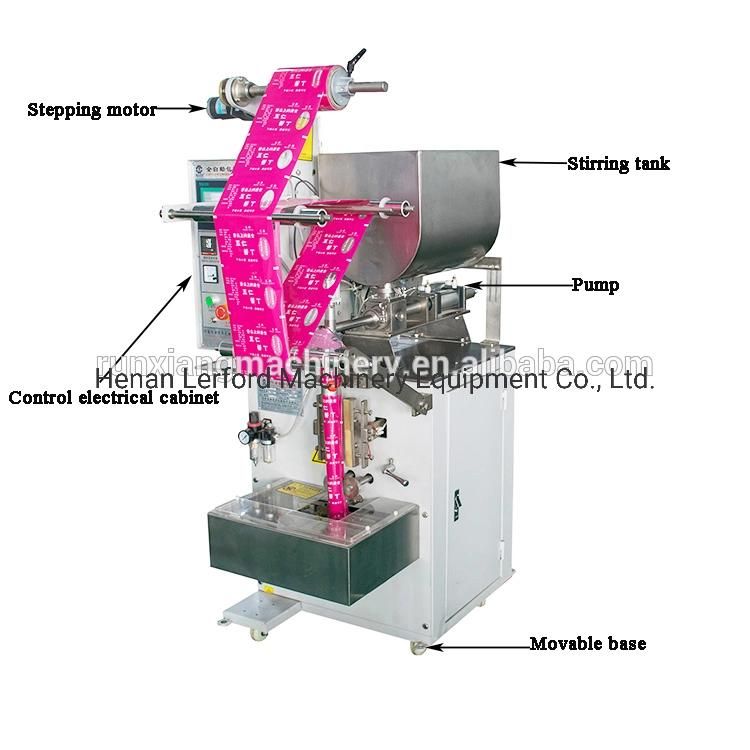

1.     Pneumatic injection pump, adjustable injection volume, 304SS.
2.     7 inches touch screen, easy operation and multiple language for choice.
3.     Stable software system to ensure smooth operation of the machine. Packing speed and length is settable.
4.     With a memory function for storage 10 sets of parameters. Easy to change different packing product and package sizes.
5.     Separate PID temperature controller, suitable for various packing materials.
6.     Multi-union roll film pulling system makes film running more smooth.
7.     Double servo film-dragging structure, enable stable bag forming for perfect bag shape.
8.     Sophisticated sealing framework achieve the consistency of bag sealing and cutting.



Function:
This machine integrates mechanical and electrical functions, two CPU computer control system, large screen LCD, microcomputer control optical tracking correcting system, equipped with high-precision stepper motor, exactly the same position design of each bag, control system of complete synchronization, fixed length, position and speed, automatic fault diagnosis function. Can choose a ribbon typewriter or stamp marking device.
Application:

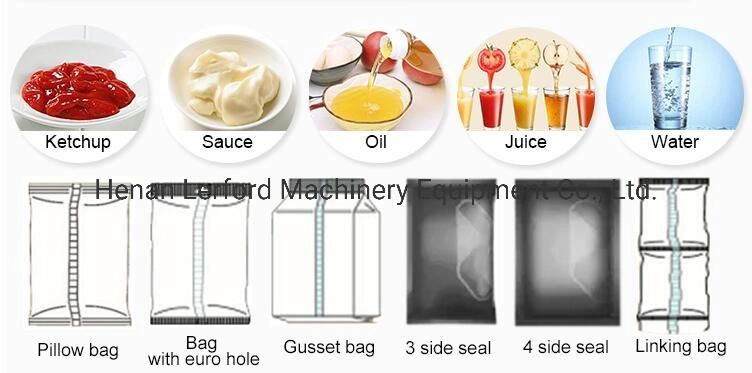

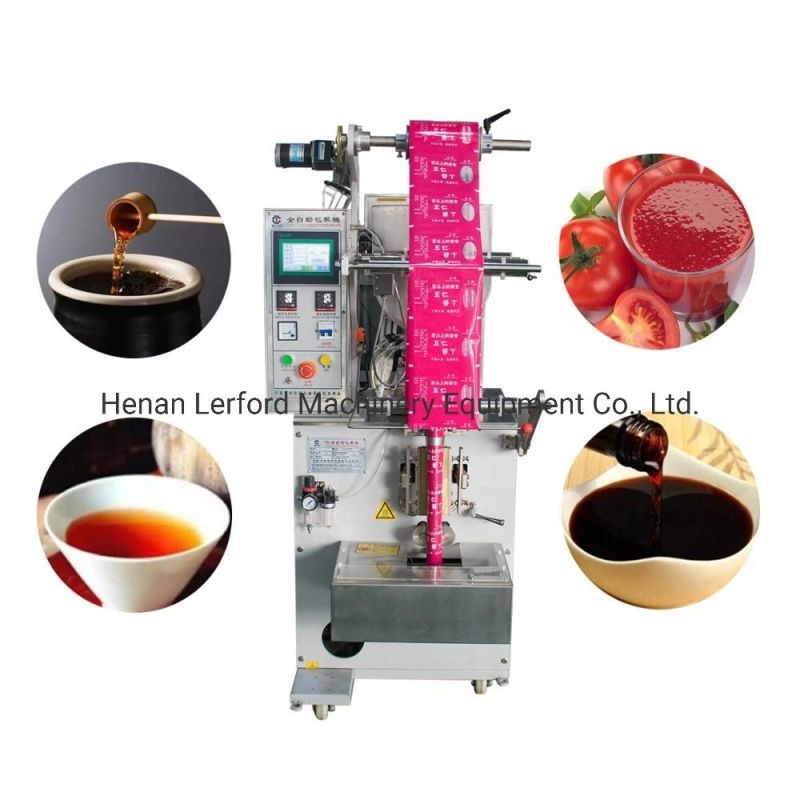

This machine can be used to pack the liquid or paste of food stuff,chemical,and cosmetion,such as shampoo,edible oil,cooking oil,water,honey,juice, drink,liquid milk,tamato paste,suace,ketchup, Liquid Condiment and Cheese Fondue etc.


Technical parameter:

Model	THB4 -S320L(Pillow)	THB4-S320L(3 side)	THB4 -S320L(4 side)
Film Width	Max. 300 mm	Max. 320 mm	Max. 320 mm
Bag Length	60-200 mm	60-200 mm	60-200 mm
Bag Width	40-140 mm	40-160 mm	40-160 mm
Packaging Speed	15-40 bags/minute	15-40 bags/minute	15-40 bags/minute
Range of Metering	10-500 ml	10-400 ml	10-400 ml
Film Thickness	0.04-0.12 mm	0.04-0.12 mm	0.04-0.12 mm
Power	220V  50Hz  2KW	220V  50Hz  2KW	220V  50Hz  2KW
Dimension	1100×800×1750mm	1100×800×1750mm	1100×800×1750mm
Net Weight	About 300 KG	About 300 KG	About 300 KG

Note: We have several models. Please tell us: Materials, Packing weight, bag width /length, we will customize a suitable solution for you according to your requirment.
