• Spare Parts：Available
• Temperature：Thermometer
• Insulation Wall：Polyurethane Foam
• Cleaning：CIP Spray Ball
• Packing：Wooden Box
• Customized Type：Accept
• Tank Material：SS304,SS316
• Tank Function：Heating, Fermenting, Mixing , Warm Keeping
• Working Life Span：More Than 10years
• Heating Source：Electric Heating Bars Oil,Hot Water in The Jackets
• Mixing Speed：36rpm, 48rpm,96rpm, 2900rpm
• Model NO.：KQ Series
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：100sets Per Month

Basic Info.

Model NO. KQ Series Mixing Speed 36rpm, 48rpm,96rpm, 2900rpm Heating Source Electric Heating Bars Oil/Hot Water in The Jackets Working Life Span More Than 10years Tank Function Heating, Fermenting, Mixing , Warm Keeping Tank Material SS304/SS316 Customized Type Accept Packing Wooden Box Cleaning CIP Spray Ball Insulation Wall Polyurethane Foam Temperature Thermometer Spare Parts Available Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 100sets Per Month

Product Description

 Small Lab Large Scale Flavour Juice Beverage Cereal Hot Sugar Syrup Mixing Tank .

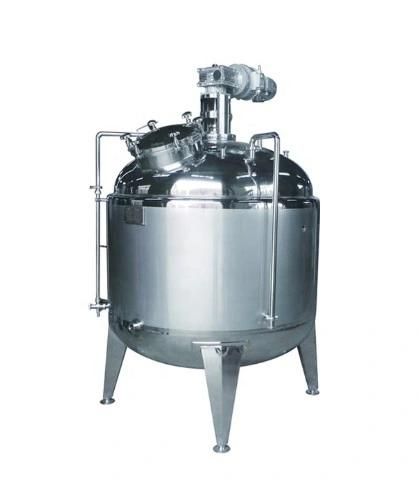

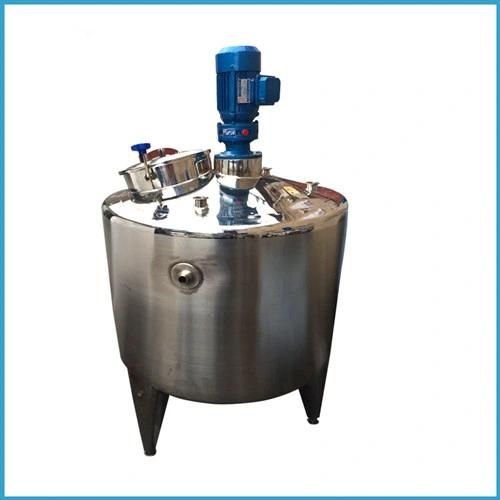

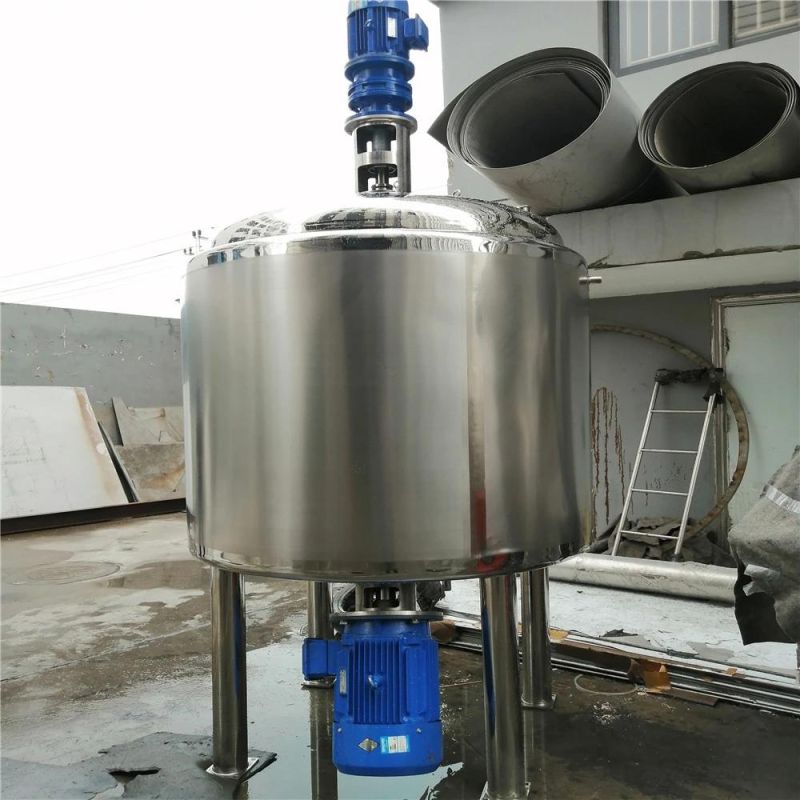

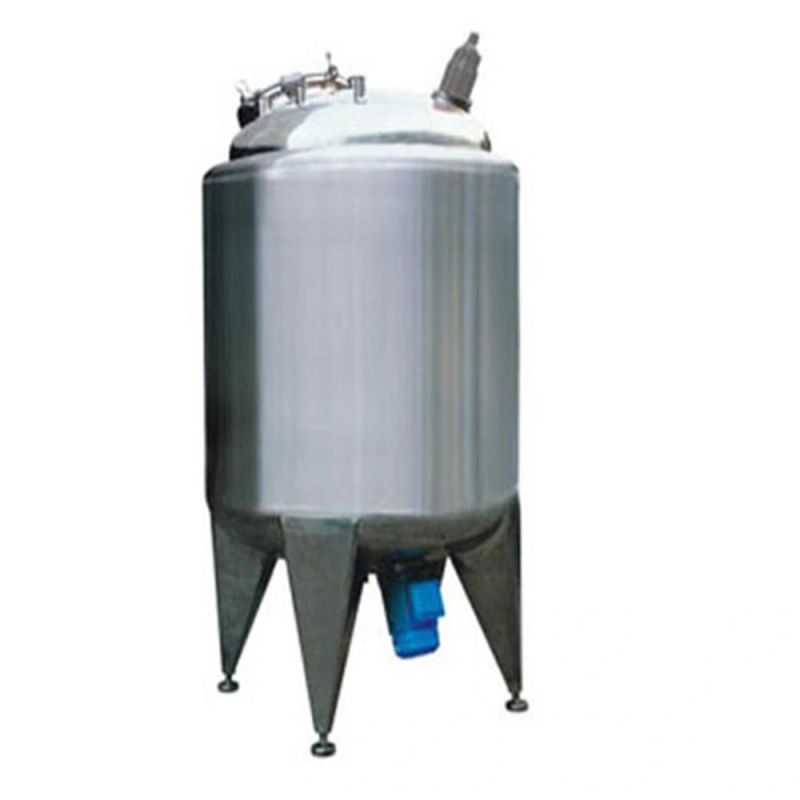

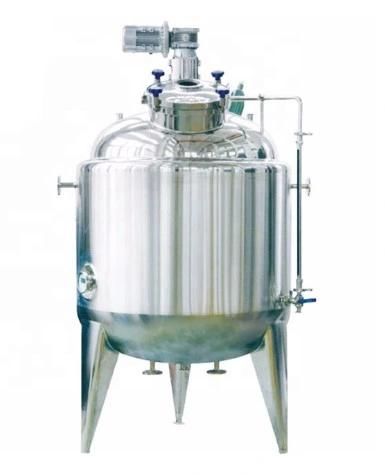

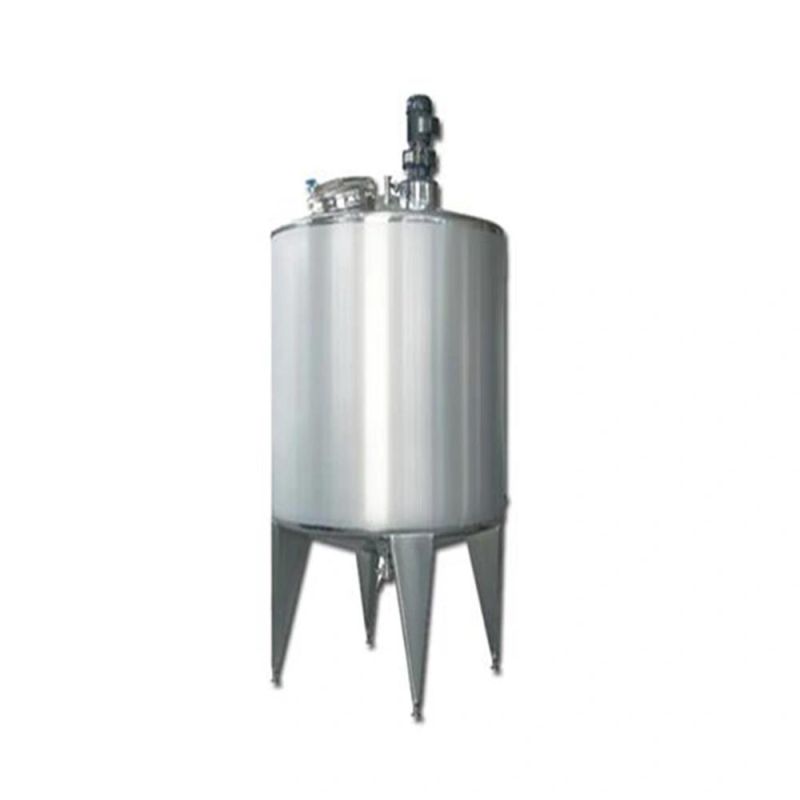

Double Jacketed Mixing Tank Jacketed Tank Heating Jacketed Vat



Shanghai Kaiquan Machine Valves Co.ltd offers the broadest range of tank heating solutions in the electric heatingindustry. .... jacketed vessel application is the heating of chocolate
ELECTRIC HEATING MILK BATCH PASTEURIZER

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000,SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW,380v,50hz	0.75KW,380v,50hz	0.75KW,380v,50hz	1.1KW,380v,50hz
Electric heating tube power	15KW,380v,50hz	18KW,380v,50hz	24KW,380v,50hz	45KW,380v,50hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN MM)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)MM	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750
GROSS WEIGHT(KGS)	150	200	300	450

200l, 300L, 400L ,500L, 600L JUICE PASTEURIZER, MILK PASTEURIZER.
Newest electric double jacketed heating cable for tank
Heating by Electric(380V, 50Hz)

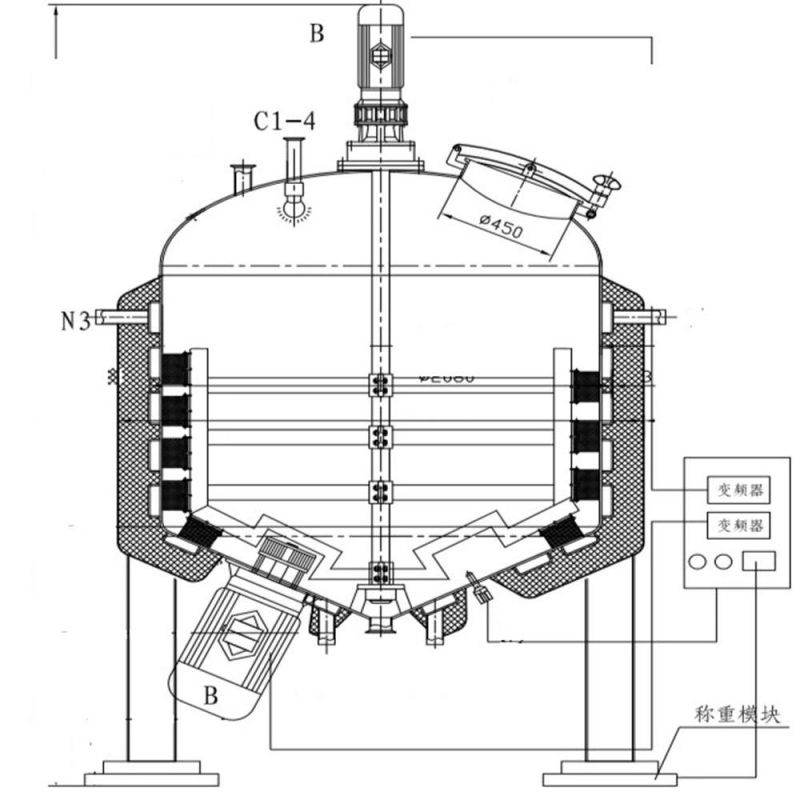

* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down

* Accessories:
(1)Lid able to open on the top
(2) Charging/discharging hole at the bottom,
(3) Heat transfer oils (water) Inlet/outlet,
(4) Temperature probe,
(5) CIP cleaning ball,

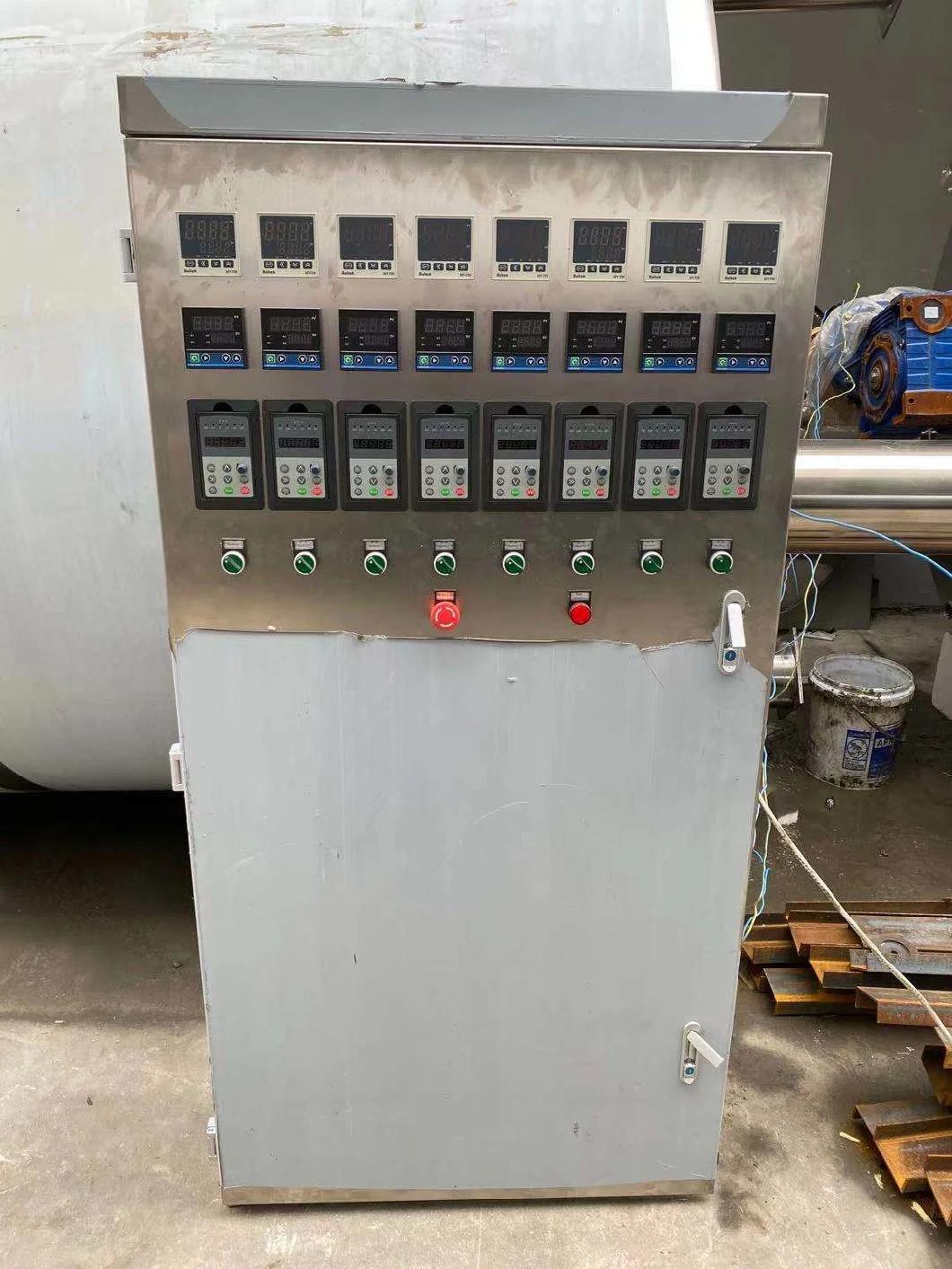

(6) Heating tube, (7) Electric cabinet, (8) Reduction gears, (9) Rack & blender etc. (10)The electric motor(2.2KW, 380V, 50Hz)
