• Certification：CE ISO
• Degree of Automation：Fully Automatic
• Outsize：2260*4400mm
• Heating Way：Stean Heating, Electric Heating, Direct Fire Heati
• Application：Restaurants, Bars, Hotels, Brewery
• Material：SUS304,SUS316
• Capacity：5000L,Batch
• Model：Hg-5000L
• Process：Ferment
• Floor Area：250m2
• Transport Package：Wooden Case or Steel Frame
• Specification：HG-5000L, 8000L, 10000L
• Trademark：HG
• Origin：Shandong
• HS Code：8438400000

Basic Info.

Process Ferment Model Hg-5000L Capacity 5000L/Batch Material SUS304/SUS316 Application Restaurants, Bars, Hotels, Brewery Heating Way Stean Heating/ Electric Heating/ Direct Fire Heati Outsize 2260*4400mm Degree of Automation Fully Automatic Certification CE ISO Floor Area 250m2 Transport Package Wooden Case or Steel Frame Specification HG-5000L/ 8000L/ 10000L Trademark HG Origin Shandong HS Code 8438400000

Product Description

Model	HG- 5000
Capacity	5000L/Batch
Outsize	2260*4400mm
Material	SUS 304
Combination method	Mash tun,lauter tun, kettle tank,whirlpool tank
Application	Brewery
Heating way	Steam heating
Voltage	According to the requirement
Floor area	250m2
Degree of automation	Fully automatic

Beer equipment introduction :
5000L beer brewery equipment is used for brew commercial beer, and it is popular at large capacity breweries.
It made by SUS 304 and heated by steam. It can brew pale lager, amber lager, dark lager, ale and etc at proper
temperature with different raw material.



Beer equipment advantages:
1). High cost performance.
2). With certified SUS 304.
3). The inner jacket and seal head of the tanks are all 3.0mm. The external jacket is 2.0mm. It ensure the good pressure
resistance and good abrasion resistance.
4). With sand polishing technology.
5). Polishing accuracy up to Ra0.4μ m .
6). With sanitary pipe and valves.
7). Strict tank pressure test.
8). Energy conservation and pollution emissions.



Item	Production capacity	Volume in US Gallon	Heating area	Tank diameter	Height
HG-50	50L/day	14US Gallon	0.15m2	550mm	1500mm
HG-100	100L/day	26US Gallon	0.25m2	650mm	2000mm
HG-200	200L/day	53US Gallon	0.25m2	910mm	2200mm
HG-300	300L/day	79US Gallon	0.3m2	910mm	2300mm
HG-500	500L/day	132US Gallon	0.5m2	1160mm	2400mm
HG-600	600L/day	158US Gallon	0.6m2	1160mm	2500mm
HG-700	700L/day	185US Gallon	0.7m2	1260mm	2500mm
HG-800	800L/day	212 US Gallon	0.8m2	1260mm	2500mm
HG-1000	1000L/day	264US Gallon	1.0m2	1360mm	2800mm
HG-1500	1500L/day	396US Gallon	1.5m2	1560mm	2900mm
HG-2000	2000L/day	528US Gallon	2.0m2	1960mm	3150mm
HG-2500	2500L/day	660US Gallon	2.5m2	1960mm	3200mm
HG-3000	3000L/day	792US Gallon	3.0m2	2060mm	3800mm
HG-5000	5000L/day	1320US Gallon	5.0m2	2260mm	4400mm

Our service

1.Pre-service:
-Layout:Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer you an equipment footprint according to your requirement.
-Technical Drawings : We will offer Technical Drawings of each tank based on the equipment layout .
-3D effective sketch: We will 3D effective sketch to make sure ensure you have a more intuitive experience
2.After service
We guarantee the quality of the electrical elements within 1year and tanks body within 1 years. If the electrical elements go wrong without artificial factors within one year, we will freely provide them or maintain them for you.
After warranty, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support. We can also dispatch our engineer to your brewery to install and adjust the machines for you. He can also train your staff to use the equipment.


FAQ

1.Q:Does your company have foreign installation experience?

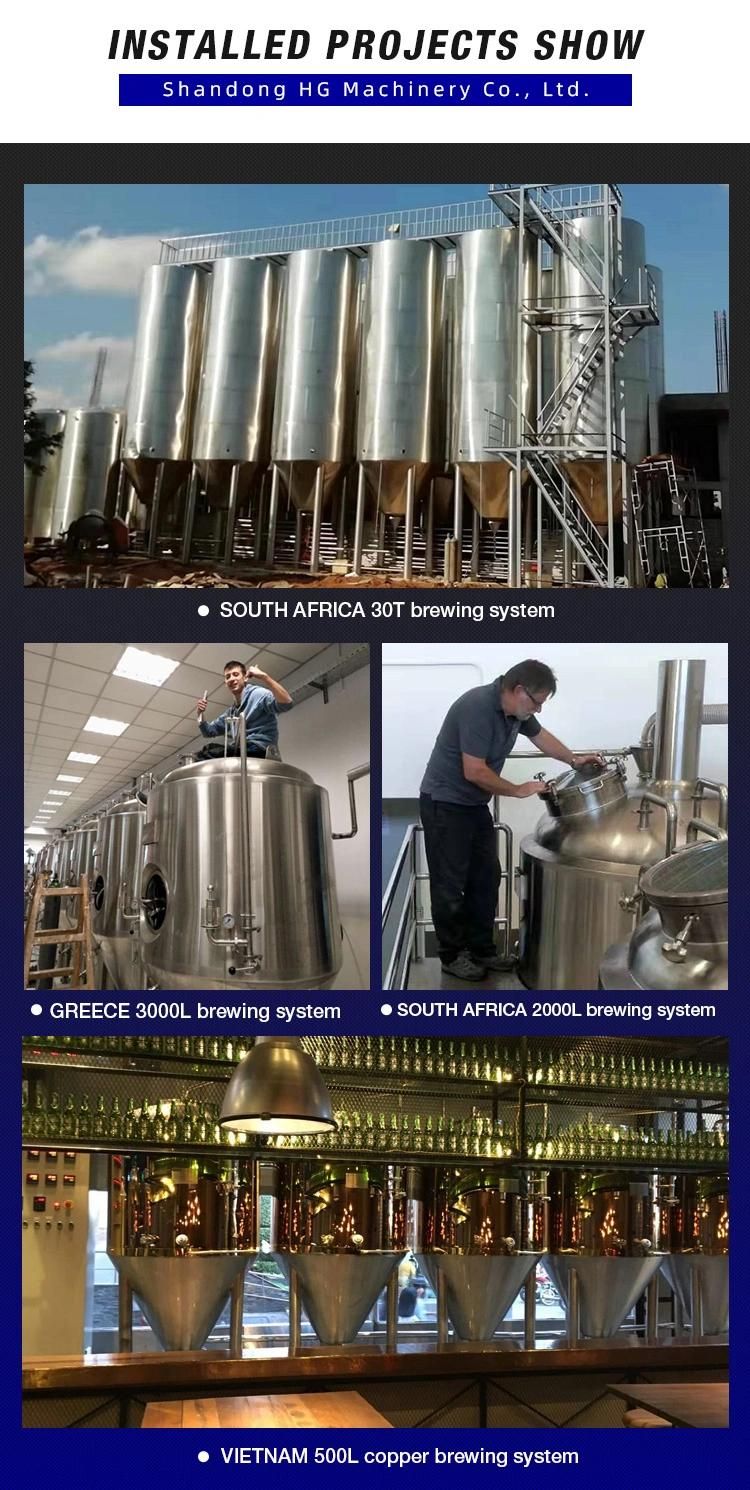

A: Yes, our company has installation experience in USA, Canada, Europe, Australia, Malaysia, Myanmar, South Africa etc.
2.Q: Do you have a professional engineer or after-sales team in our country?
 A: Yes, our equipment is sold to 150 countries and areas and we have our local after-sales service personnel in Europe, America and Asia.
3.Q: How long is the delivery time?
A:The delivery time of beer equipment is 30-50 working days, the delivery time of filling machine is 45-50 working days.
4.Q:What payment methods are supported?
A:T/T, L/C, Credit Card, VISA, Apple device, Western Union.
5.Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries. 1 Year warranty for filling machine.
6.Q:How about the installation and training?
A:We can supply the installation and training. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
7.Q: Can I be your company's sales agent?
A: Yes, it's our pleasure. We very much welcome you to join us. Please contact us to discuss specific details.

8.  6-year warranty, only for tanks, excluding electrical appliances, wearing parts such as cushions, seals, etc. (mixing seals, pump seals, butterfly valves and other valve seals), pumps.

9. The price does not include electrical appliances, etc.
