• Trademark：Saibainuo
• Specification：20FT or 40FT
• Transport Package：Wooden Cases or Your Need
• Payment Term：30%Advance Payment, 70% Before Shipment
• Bearings Brand：FAG
• Screw：38CrMoAl
• Barrel：Alloy
• Material：Stainless Steel 304
• Voltage：220V,380V,415V,440V
• Guarantee：1 Year
• Electric Band：ABB
• Motor Brand：Siemens
• Customized：Customized
• Feed Type：Fish Meal
• Application：Dog, Fish, Cat, Bird
• Model NO.：SLG65,70,85,95
• Origin：China Fish Food Making Machine
• HS Code：843880000
• Production Capacity：1000sets,Year
• Package size per unit product：800.00cm * 130.00cm * 250.00cm
• Gross weight per unit product：3000.000kg

Basic Info.

Model NO. SLG65/70/85/95 Application Dog, Fish, Cat, Bird Feed Type Fish Meal Customized Customized Motor Brand Siemens Electric Band ABB Guarantee 1 Year Voltage 220V/380V/415V/440V Material Stainless Steel 304 Barrel Alloy Screw 38CrMoAl Bearings Brand FAG Payment Term 30%Advance Payment, 70% Before Shipment Transport Package Wooden Cases or Your Need Specification 20FT or 40FT Trademark Saibainuo Origin China Fish Food Making Machine HS Code 843880000 Production Capacity 1000sets/Year

Packaging & Delivery

Package size per unit product 800.00cm * 130.00cm * 250.00cm Gross weight per unit product 3000.000kg

Product Description

Animal feed machine produce different product(dog food, fish food, cat food, Pet chews, dog treats)
Pet food machine, dog food machine, cat food machine ,fish feed machine.


Dog food samples:

Fish feed samples:


1. Main feature:
It can make kinds of feed, such as food fish, catfish, shrimps, crab, etc. The fish pellet made by the machine can float on water more than 24 hours. Gelatinization degree can reach 90%, enhance the output of fodders, it is suitable for making floating feed, pet food, fish fodder. The diameter of particle is 0.6-16mm. Promising fodder output evenly and continuously.

2. Raw materials: Adopts soya meal, fish meal, bone meal, rice bran etc. As raw materials.

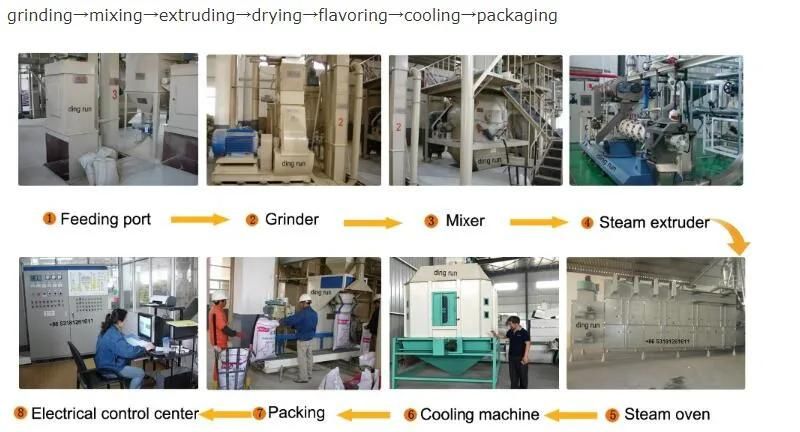

3. Flow of chart:

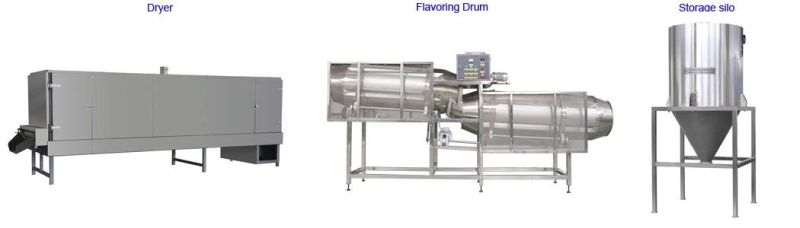

Mixer -Screw conveyor -Twin-screw extruder -Eelevator-Dryer-Hoister -Flavoring line -cooling conveyor.





4. Component details:
Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.

Machine materials: All the aquaculture fish feed machine production line are made by stainless steel, this line is with reasonable design and with high automation; The screws are made by alloy steel, with building block system structure and self-cleaning function.

Main Parts of Twin screw extruder with electricity heating system:
A. The screws are made by alloy steel (38CrMoAl) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
B. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.

C. The gearbox has automatic lubrication function, with extends gear life.

D. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.

E. Siemens(China) brands electronic parts used in the controller box, make sure the extrusion process perfect.

F. Main Motor from Siemens(China), ensure its powerful extrusion and excellent performance.

6. Parameter:

Model	SLG65	SLG70	SLG85	SLG95
Install Power	65KW	110KW	190KW	300KW
ConsumptionPower	42KW	77KW	133KW	210KW
Output	120-150KG/H	220-260KG/H	500-600KG/H	900-1000KG/H
Dimension	19000×1300×2200mm	22000×1300×2200mm	30000×1300×2500mm	38000×1300×3000mm

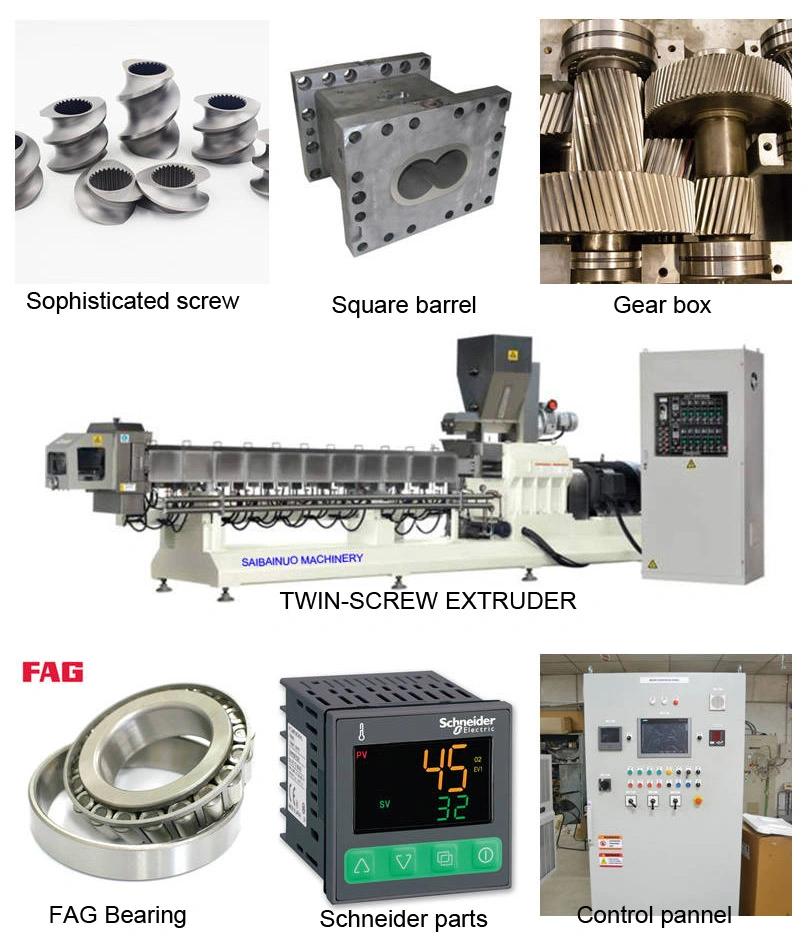

Mahcine detail pictures:



Mahcine use best quality parts:



Our services:
We Provide Satisfied Service & Turnkey Solution:

Before sale services:
1. Provide the free consultation of the equipment.
2. Provide the standard device and the flow chart.
3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.

Services during the sales:
1. Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2. Welcome to visit our factory or the domestic clients' factory.
3. Inspect the machine before leaving the factory.

After sale services:
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. We will provide 1-2 engineer to the client's factory for the installation and teach totally in 10 days. The client need provide room, food, round-trip transportation, visa fee and a nominal $40 daily subsidy per person.

Relevant spare parts	Free, delivery with processing line
Guarantee	Within 12 months
Oversea service	Provide installation and commissioning after machine arrived your factory
Payment terms	30% is paid by T/T as the down payment, 70% is paid by T/T orL/C before shipment.
Delivery time	30 days after receipt the deposit
Pre-shipment	When it finished, we will invite you to our company to inspect machines, when no problem, we will arrange the shipment

We Jinan Saibainuo Machinery Co., Ltd, Sincerely welcome you to our factory, you would know our machines and factory strength better after your visit and guarantee you would have a worthy travel in China.
For any further information, pls contact me any time!
