• Capacity：30-40kg,h
• Name：extruder
• Model：8 Models Avaliable
• Delivery Time：Within 15 Days After Receive Deposit
• Warranty Time：1 Year Except Spare Parts
• English Mannual：Yes
• Is_Customized：Yes
• Package：Yes
• Customized：Customized
• Feed Type：mixed
• Model NO.：DGP-40C
• Transport Package：Wooden Box
• Specification：CE, SGS
• Trademark：VIC
• Origin：China
• Production Capacity：1000PCS Per Year

Basic Info.

Model NO. DGP-40C Feed Type mixed Customized Customized Package Yes Is_Customized Yes English Mannual Yes Warranty Time 1 Year Except Spare Parts Delivery Time Within 15 Days After Receive Deposit Model 8 Models Avaliable Name extruder Capacity 30-40kg/h Transport Package Wooden Box Specification CE, SGS Trademark VIC Origin China Production Capacity 1000PCS Per Year

Product Description

              Most stable floating fish feed extruding pellet machine

Introduction:
The raw materials can be wheat, soybean, cake and other leftovers etc. The final products floating pellets are widely used in frogs, aquatic, ornamental fish, pet feed, fish farmers, small feed mill.

Features:
(1)The cutting structure is very advanced with cutter shaft fixed spring to cut to realize. Infinitely speed change; the final output product can be cut freely in different length according to requirement.
(2)The Screw is made of special wear-resisting No38 chromium aluminum molybdenum after tempering, heating and formed; it's with wear-resisting and long life.
(3)In order to ensure quality and capacity, there is special pressurization die device and the electric heating devices improve the feed expansion rate.
(4)The main bearing is from Japanese and Sweden SKF bearing to ensure its safety. The main motor is Y-Series three phrase motor.
(5)The floating pellets will float on the water for about 12hours without spreading. The pellets are no pollution and easy for working members to observe. The materials is health and easy for fish and poultry to absorb. Usually if use floating pellet feed can save 8-15% feed than to use powder feed.

Main date:

Model	DGP40-C	DGP50-C	DGP60-C
Power (KW)	5.5kw	7.5+0.4kw	15+0.4
Capacity (kg/h)	30-40	60-80	120-150
Weight(kg)	350	400	450
Machine size (mm)	1350*1030*840	1470*1110*850	1470*1140*840

Other models date

Model	Capacity/t/h	Power/kw	Feed power/kw	Diameter/mm	Cutting power/kw	Size(mm)
DGP40-C	0.03-0.04	5.5	0.4	Φ40	0.4	1350*1030*840
DGP50-C	0.06-0.08	7.5-11	0.4	Φ50	0.4	1470*1110*850
DGP60-C	0.12-0.15	15	0.4	φ60	0.4	1470*1140*840
DGP70-B	0.18-0.2	18.5	0.4	φ70	0.4	1790*1470*940
DGP80-B	0.2-0.25	22	0.4	φ80	0.6	1850*1470*950
DGP90-B	0.32-0.35	37	0.6	φ90	0.8	2300*1640*1000
DGP120-B	0.5-0.6	55	1.1	φ120	2.2	2350*2010*1110
DGP135-B	0.7-0.8	75	1.1	φ133	2.2	2450*2040*1200
DGP160-B	1-1.2	90	1.5	φ155	2.2	2550*2100*1300
DGP200-B	1.8-2.0	132	1.5	φ195	3.0	2650*2240*1400

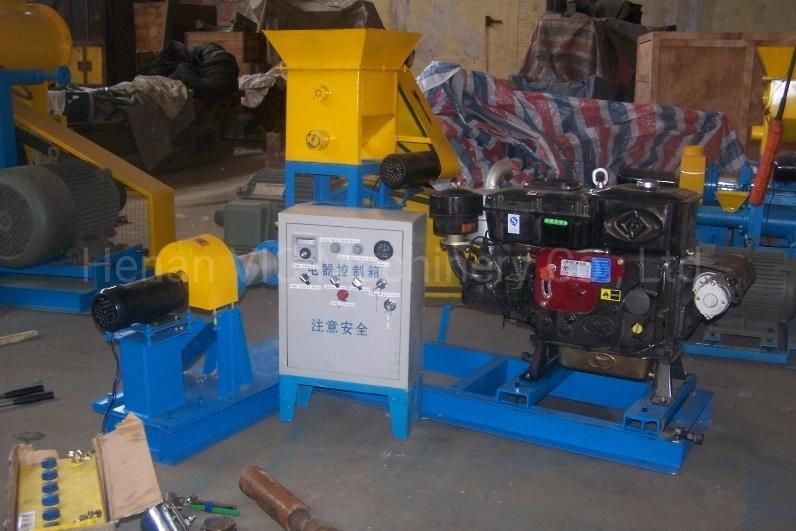

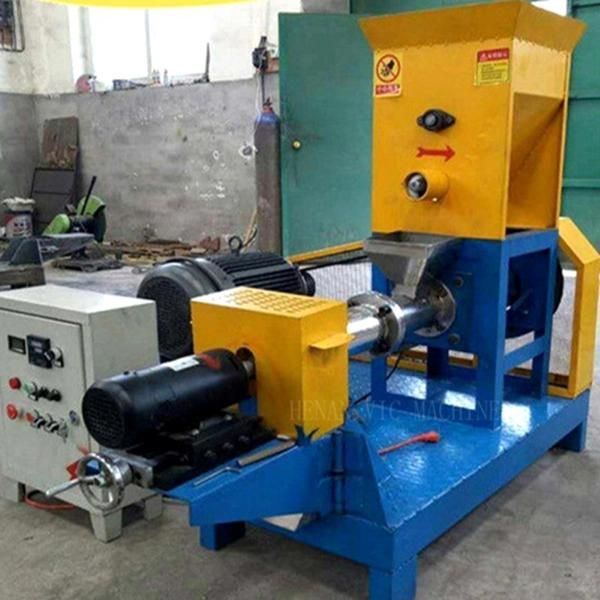

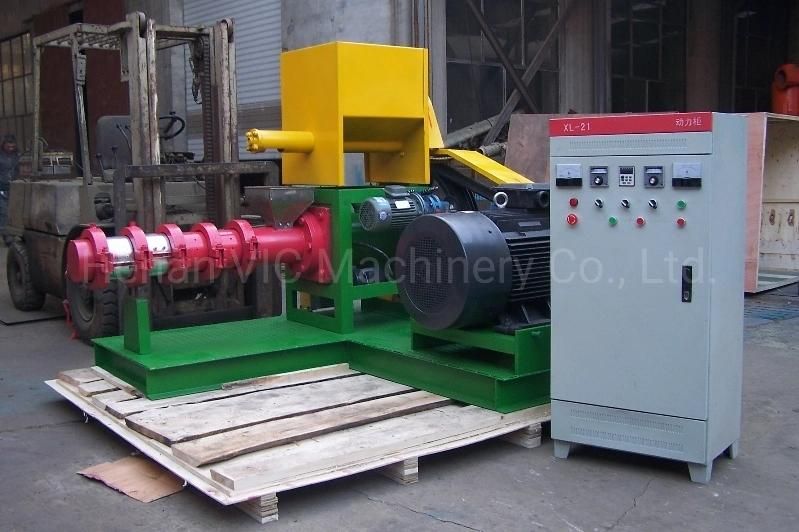

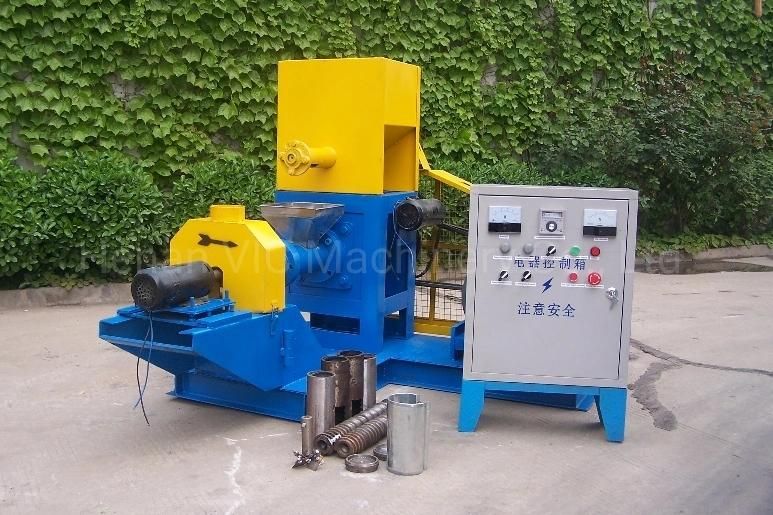

Photos:

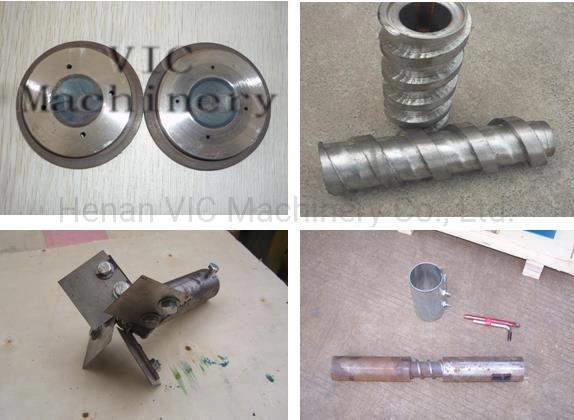

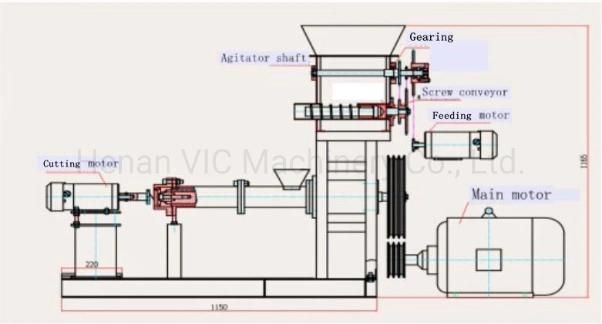

Parts:

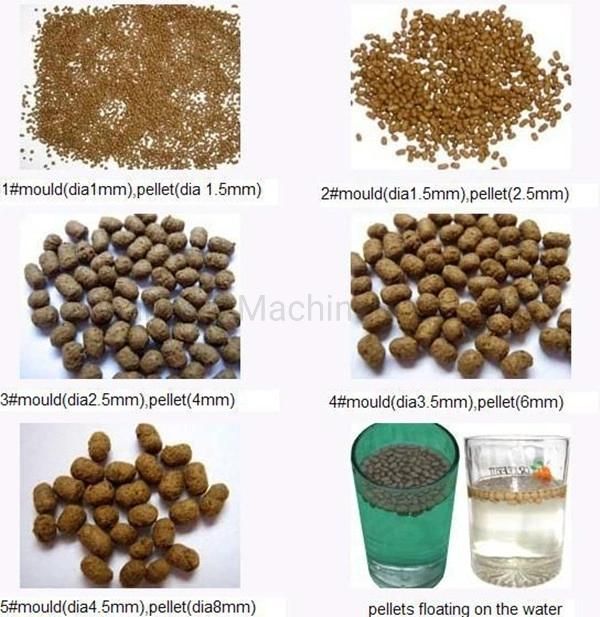

Fish food Products

Pet food product

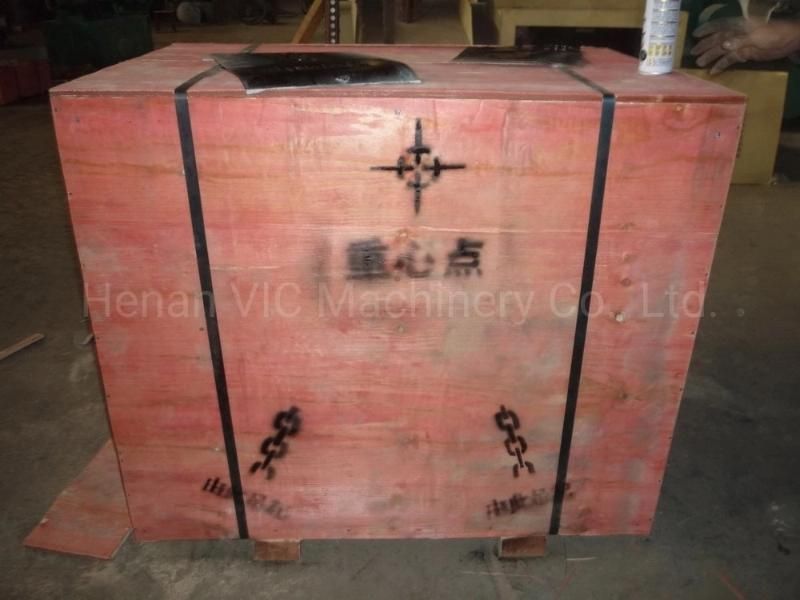

Package:


Cerficates:

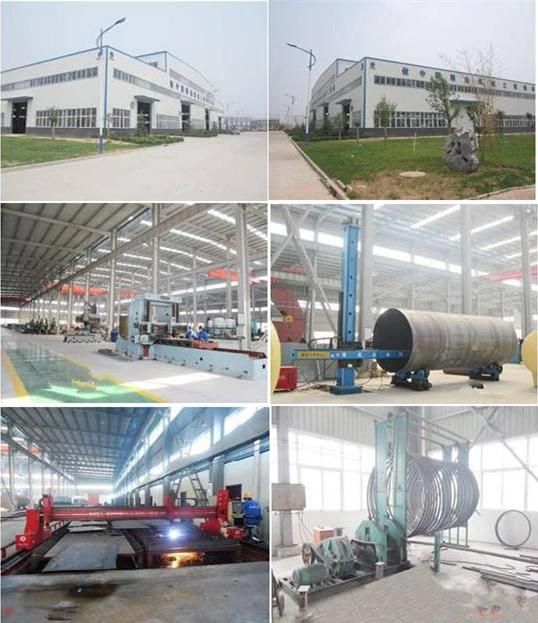

Factory View

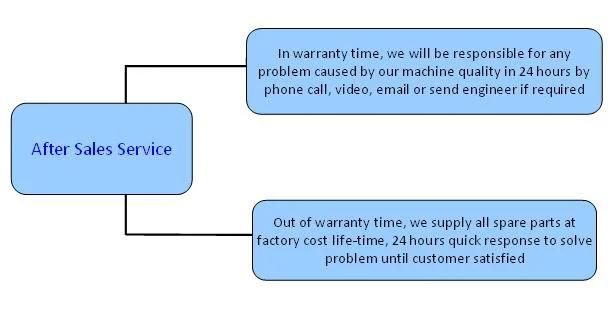

After sales service
